Product Overview
The PPLEE Alarm Clock (Model: CR1001EPRO) is an upgraded digital clock designed for bedrooms, featuring a large, bold number display for easy readability. It includes dual alarms, weekend/weekday modes, adjustable brightness and volume, and convenient Type-C and USB charging ports. This clock is designed to provide reliable timekeeping and alarm functions with power-off memory for uninterrupted use.
Figure 1: PPLEE Alarm Clock with large white LED display and charging phone.
Ključne karakteristike
- Large Bold LED Display: 2.2-inch digits for clear visibility day and night, with an upgraded week display.
- Adjustable Brightness & Volume: 5 levels of brightness and volume to suit individual preferences and light sensitivity.
- Dvostruki alarmi: Set two independent alarms with daily, weekday (MON-FRI), and weekend (SAT-SUN) modes for flexible scheduling.
- USB + Type-C Charging Ports: Conveniently charge mobile devices directly from the clock.
- DST & 12/24H Format: Easy Daylight Saving Time (DST) adjustment and switch between 12-hour and 24-hour time formats.
- Big Snooze Button: Allows for an extra 9 minutes of sleep.
- Memorija isključenja: Retains time and alarm settings during power outages (requires backup batteries, not included).
Figure 2: Adjustable brightness levels of the alarm clock display.
Setup
1. Priključak za napajanje
Connect the provided AC adapter to the DC 5V IN port on the back of the alarm clock and plug it into a standard wall outlet. The display will light up.
Slika 3: Pozadi view of the alarm clock with power and charging ports.
2. Rezervna baterija (opciono)
For power-off memory function, insert 2 AAA batteries (not included) into the battery compartment on the back of the clock. This will preserve time and alarm settings during power interruptions.

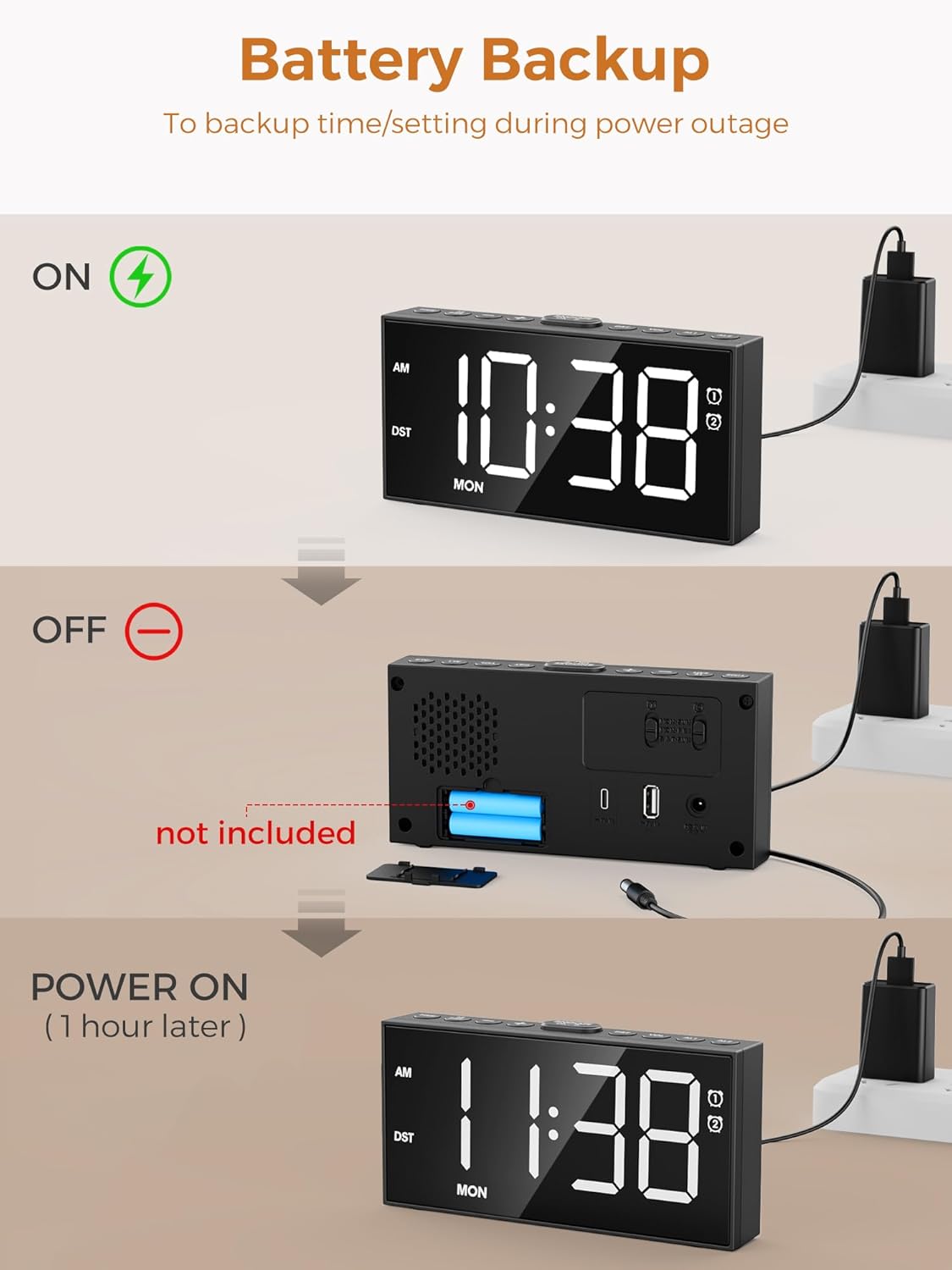

Figure 4: Illustration of the battery backup feature for power outage memory.
Uputstvo za upotrebu
1. Postavljanje vremena
- Pritisnite POSTAVITE VRIJEME dugme jednom. Cifre za sate će treptati.
- Koristite HOUR dugme za podešavanje sata.
- Pritisnite MIN tipku za podešavanje minuta.
- Pritisnite POSTAVITE VRIJEME again or wait a few seconds for the setting to save automatically.
2. Podešavanje alarma (dvostruki alarmi)
Sat podržava dva nezavisna alarma (ALARM1 i ALARM2).
- Pritisnite ALARM1 or ALARM2 dugme. Vrijeme alarma će treptati.
- Koristite HOUR i MIN dugmad za podešavanje željenog vremena alarma.
- Pritisnite ALARM1 or ALARM2 button again to confirm and activate the alarm. An alarm icon will appear on the display.
- To select alarm mode (Daily, Weekday, Weekend), press the corresponding ALARM button repeatedly until the desired mode icon appears.
Figure 5: Dual alarm settings with weekday and weekend options.
3. Funkcija odgode alarma
Kada se oglasi alarm, pritisnite veliko dugme ODGODI/OK button on top to temporarily silence the alarm for 9 minutes.
Figure 6: The large snooze button for temporary alarm silencing.
4. Podešavanje svjetline
Pritisnite DIMMER button repeatedly to cycle through 5 levels of display brightness.
5. Podešavanje jačine zvuka
Koristite VOL+ i VOL- buttons on the side to adjust the alarm volume (5 levels).
6. 12/24 Hour Format & DST
Pritisnite 12/24H button to switch between 12-hour (with AM/PM indicator) and 24-hour formats. Hold the DST button for 3 seconds to activate/deactivate Daylight Saving Time, which will adjust the time by one hour.
Figure 7: Time format and DST adjustment options.
Održavanje
- Keep the clock clean by wiping it with a soft, dry cloth. Avoid abrasive cleaners.
- Ensure proper ventilation around the clock.
- Izbjegavajte izlaganje sata ekstremnim temperaturama, direktnoj sunčevoj svjetlosti ili visokoj vlažnosti.
- If using battery backup, replace batteries annually or when the display shows signs of dimming during power outages.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Prikaz sata je isključen ili taman. | No power or low brightness setting. | Check AC adapter connection. Press DIMMER dugme za povećanje osvetljenosti. |
| Alarm se ne oglašava. | Alarm nije aktiviran, jačina zvuka je preniska ili je alarm u pogrešnom režimu. | Ensure alarm icon is displayed. Increase volume using VOL+. Verify correct alarm mode (Daily/Weekday/Weekend). |
| Izgubljeno vrijeme/postavke nakon nestanka strujetage. | Nema rezervnih baterija niti su baterije prazne. | Instalirajte ili zamijenite 2 AAA rezervne baterije. |
| Cannot charge devices via USB/Type-C. | Problem s kablom ili nekompatibilnost uređaja. | Ensure charging cable is functional. Check device compatibility with 5V 1A output. |
Specifikacije
- Model: CR1001EPRO
- Brand: PPLEE
- Vrsta prikaza: LED
- Izvor napajanja: Corded Electric (AC adapter included)
- Rezervna kopija baterije: 2 x AAA baterije (nisu uključene)
- Priključci za punjenje: 1 x USB (5V 1A), 1 x Type-C (5V 1A)
- Dimenzije proizvoda: 6.8 cm Š x 3.4 cm V
- Težina artikla: 9.9 unce
- Materijal: Akrilonitril butadien stiren
Garancija i podrška
This PPLEE Alarm Clock comes with an extended warranty. For any product inquiries, technical support, or warranty claims, please contact PPLEE Customer Service at Support@ppleee.net.
Please refer to the official PPLEE webstranicu za najnovije informacije o garanciji i resurse podrške.
