XTUGA X9 Audio Interface Mixer User Manual

1. Uvod

The XTUGA X9 Audio Interface Mixer is designed for live streaming, podcasting, and studio recording. It features a metal design with an LCD screen, mic preamps, dual DSP audio processors, and 48V phantom power. This manual provides detailed instructions for setting up and operating your X9 mixer to achieve optimal audio performance.

2. Sadržaj paketa

Provjerite da li se sve stavke nalaze u vašem paketu:

• 1 x XTUGA X9 Live Sound Card (Audio Interface Mixer)
• 1 x Type-C na USB kabel
• 1 x Type-C do Type-C kabel
• 1 x 3.5 mm na 3.5 mm audio kabel
• 1 x Uputstvo za upotrebu

Image: The XTUGA X9 mixer box with its contents laid out, including the mixer unit, various cables, and the user manual.

3. Proizvod je gotovview i karakteristike

Slika: Od vrha prema dolje view of the XTUGA X9 Audio Interface Mixer, showcasing its control panel with knobs, faders, and an LCD screen.

3.1. Dizajn i prikaz

The X9 features a metal design with an LCD screen for visual feedback. It includes RGB colorful lighting that enhances the user experience and provides visual cues for various functions.

Image: The XTUGA X9 mixer displaying its vibrant RGB lighting effects, highlighting the buttons and the overall aesthetic.

Image: The XTUGA X9 mixer with an overlay indicating 10 scene effects, 12 sound effects, and 3 self-edited sound effects.

3.2. Audio Processing and Effects

Equipped with mic preamps and Dual DSP audio processors, the X9 delivers exceptional sound quality. It offers 10 scene effects, 12 pre-set sound effects, and 3 customizable sound effect buttons. Features include Reverb, Voice Changer, and Dodge effects to enhance vocals and content.

Image: Close-up of the XTUGA X9 mixer's sound effects panel, showing buttons labeled 'Kiss', 'Gunfire', 'Applause', and custom slots.

Slika: Sa strane view of the XTUGA X9 mixer, highlighting the XLR input port labeled 'CANNON' and '48V'.

3.3. Connectivity and Inputs

The mixer supports simultaneous inputs from a 6.35mm dynamic mic, 3.5mm mic, and headset mic. It features an XLR microphone interface with 48V phantom power for condenser microphones. Bluetooth connectivity allows for wireless audio input.

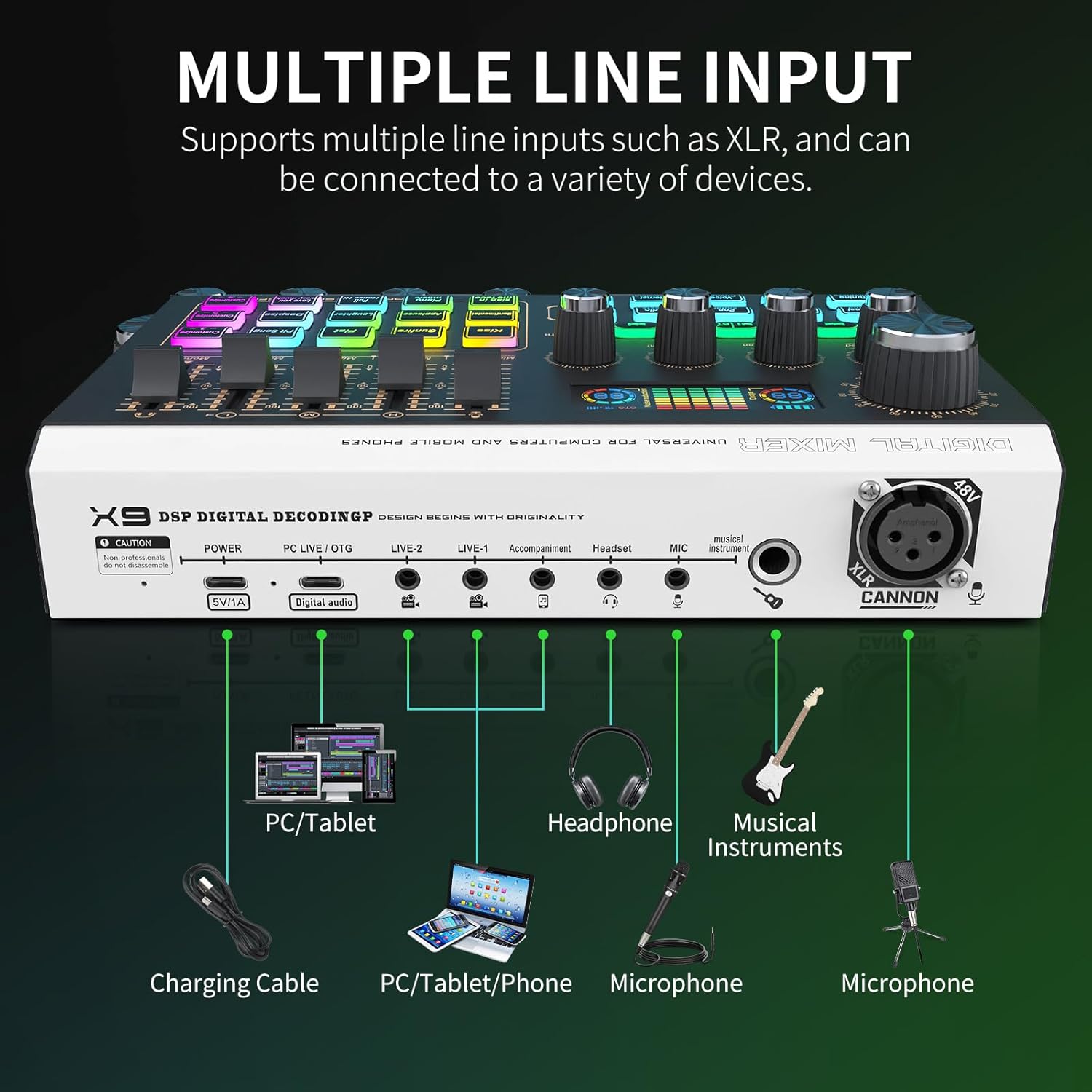

Image: Diagram illustrating the multiple input options of the XTUGA X9 mixer, including connections for PC/tablet, headphones, musical instruments, and microphones.

Image: Close-up of the XTUGA X9 mixer's control panel, showing faders and knobs with arrows indicating independent volume adjustment for different channels.

3.4. Kontrola i prilagođavanje

Enjoy precise control over each channel with smooth volume slider faders. Four independent channels provide individual volume control for microphone, LINE IN, headset, and OTG. The mixer offers individual EQ, Reverb, Voice Changer, and Dodge effects. Three customization buttons allow for easy recording and activation of personalized sound effects.

4. Vodič za postavljanje

4.1. Napajanje uređaja

Connect the X9 mixer to a power source using the provided Type-C to USB cable. The mixer has a built-in rechargeable battery providing up to 8 hours of working time on a 3-hour charge.

4.2. Povezivanje s računarom ili mobilnim uređajem

• PC/Tablet: Use the Type-C to Type-C cable or Type-C to USB cable to connect the mixer to your computer or tablet.
• mobilni telefon: Use the appropriate Type-C or 3.5mm cable to connect your phone for live broadcasting or audio input.

4.3. Povezivanje mikrofona

• XLR Microphone: Plug your XLR microphone into the XLR input port. If using a condenser microphone, ensure 48V phantom power is activated.
• Dynamic/Headset Microphones: Connect 6.35mm dynamic microphones or 3.5mm headset microphones to their respective input jacks.

4.4. Connecting Headphones/Monitors

Plug your headphones or studio monitors into the designated headphone output jacks for real-time audio monitoring.

4.5. Connecting Musical Instruments

Connect your musical instruments to the dedicated instrument input jack on the mixer.

5. Uputstvo za upotrebu

5.1. Podešavanje nivoa jačine zvuka

Use the individual slider faders and rotary knobs to precisely control the volume for each channel, including microphone, LINE IN, headset, and OTG inputs. The LCD screen provides visual feedback on volume levels.

5.2. Applying Sound Effects

The mixer features pre-set sound effects accessible via dedicated buttons (e.g., Kiss, Gunfire, Applause). To customize sound effects, use the three 'Custom' buttons. Press and hold a custom button to record your desired sound, then press it again to activate during use.

5.3. Voice Changer and Auto-Tune

Explore the 4 voice changer modes and 12 auto-tune options by pressing the 'Voice Changer' or 'Auto-Tune' buttons. Adjust parameters as needed to achieve desired vocal effects.

5.4. EQ Control

Utilize the individual EQ knobs (Mic High, Mic Mid, Mic Low) to fine-tune the tonal characteristics of your microphone input.

5.5. 48V Phantom Power

Activate or deactivate 48V phantom power for condenser microphones using the dedicated 48V switch on the mixer.

Image: Close-up of the XTUGA X9 mixer's 48V switch and earphone output jacks, indicating their functions.

5.6. Bluetooth povezivanje

To connect via Bluetooth, search for 'X9 Music' on your Bluetooth-enabled device and pair. You can then stream audio wirelessly to the mixer.

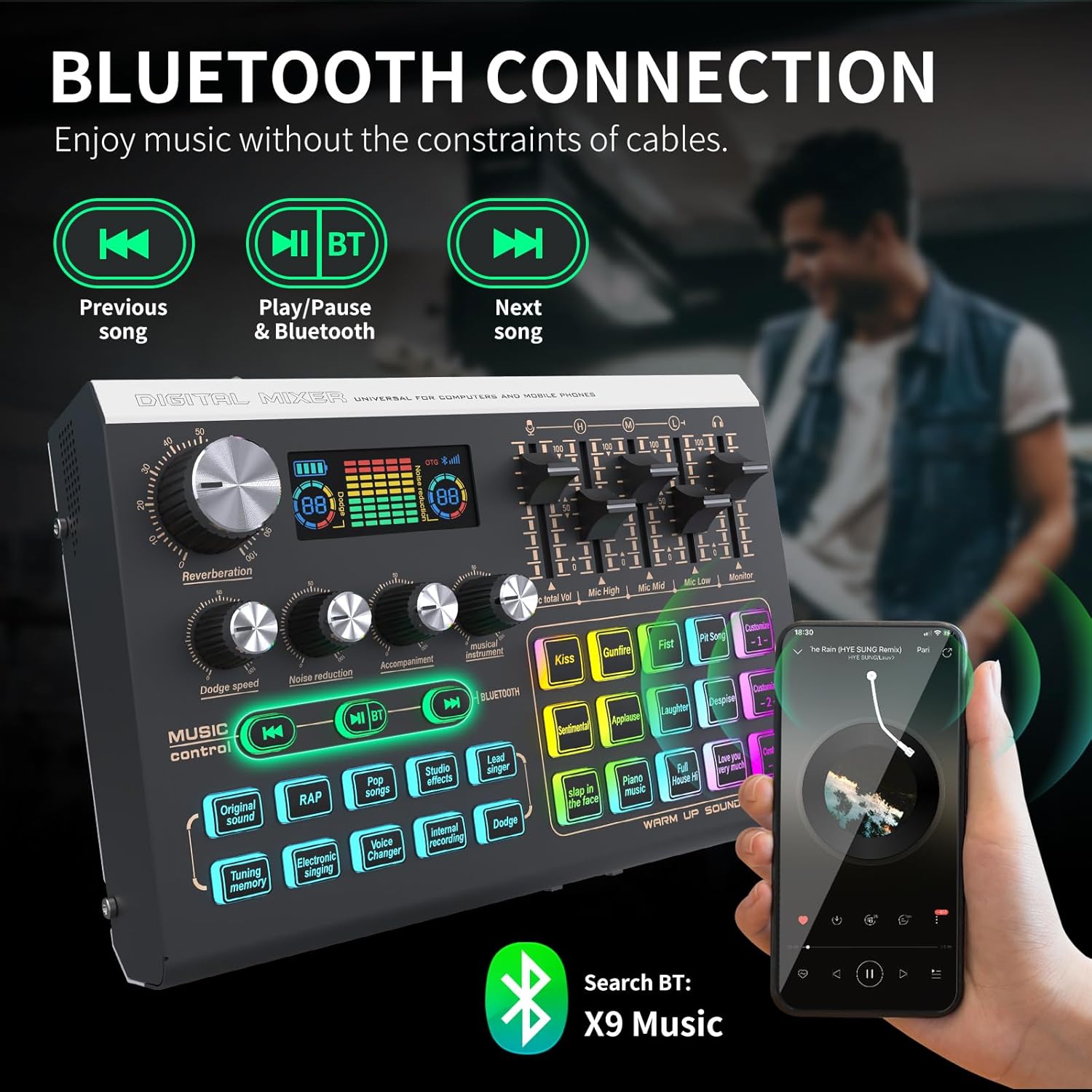

Image: The XTUGA X9 mixer connected via Bluetooth to a smartphone, with the Bluetooth search name 'X9 Music' displayed.

6. Otkrivanje problema

• Nema izlaza zvuka: Check all cable connections, ensure volume faders are up, and verify input/output selections on your computer/software.
• Iskrivljeni zvuk: Reduce input gain levels to prevent clipping (indicated by red lights on the LCD). Check cable integrity.
• Fantomsko napajanje ne radi: Ensure the 48V switch is engaged for condenser microphones. Verify the microphone requires phantom power.
• Problemi sa Bluetooth vezom: Ensure the mixer is in pairing mode and within range. Disconnect and reconnect the Bluetooth device.
• Custom Sound Effects Not Recording: Press and hold the custom button until the recording indicator appears, then speak clearly. Release the button to save.

7. Specifikacije

8. Održavanje

To ensure the longevity and optimal performance of your XTUGA X9 Audio Interface Mixer, follow these maintenance guidelines:

• čišćenje: Use a soft, dry cloth to wipe down the surface of the mixer. Avoid using abrasive cleaners or solvents that could damage the finish or electronic components.
• Skladištenje: Mikser čuvajte na hladnom i suhom mjestu, dalje od direktne sunčeve svjetlosti, ekstremnih temperatura i visoke vlažnosti.
• Rukovanje: Handle the mixer with care to avoid dropping it or subjecting it to strong impacts.
• Upravljanje kablovima: Avoid bending or kinking cables excessively, as this can damage internal wires.

9. Garancija i podrška

The XTUGA X9 Audio Interface Mixer comes with a standard manufacturer's warranty. For detailed warranty information, technical support, or service inquiries, please refer to the contact information provided in your product packaging or visit the official XTUGA website.
