1. Uvod
Thank you for choosing the TOPK K70 Portable Handheld Fan. This versatile device is designed to provide personal cooling in various settings, functioning as a handheld, neck, or desk fan. Equipped with a 5000mAh rechargeable battery, an LED display, and 4 adjustable speeds, it offers convenience and comfort. Please read this manual thoroughly before use to ensure proper operation and maintenance.
2. Važna sigurnosna uputstva
- Do not insert fingers or any objects into the fan blades or protective grille.
- Držite ventilator dalje od vode ili drugih tekućina kako biste spriječili strujni udar.
- Do not disassemble, repair, or modify the fan yourself. Contact customer support if service is required.
- Čuvati izvan dohvata djece. Ovo nije igračka.
- Do not expose the fan to extreme temperatures, direct sunlight, or high humidity.
- Za punjenje koristite samo priloženi Type-C kabel.
- Uverite se da je voltage je 5V.
- Avoid dropping the fan or subjecting it to strong impacts.
3. Sadržaj paketa
Molimo Vas da provjerite paket kako biste bili sigurni da su svi artikli prisutni:
- 1 x TOPK K70 Portable Handheld Fan
- 1 x odvojiva baza
- 1 x remen za vrat
- 1 x Type-C kabel za punjenje
- 1 x Uputstvo za upotrebu (ovaj dokument)
Slika 3.1: Included components of the TOPK K70 Portable Handheld Fan.
4. Proizvod je gotovview
4.1 Ključne karakteristike
- 5000mAh baterija velikog kapaciteta: Omogućava produženo vrijeme korištenja.
- 3-u-1 dizajn: Functions as a handheld, neck, or desk fan.
- LED digitalni displej: Shows real-time battery level and wind speed.
- 360° rotirajuća glava: Allows for adjustable airflow direction.
- 4-Speed Wind Control: Customize airflow from gentle breeze to strong wind.
- Motor bez četkica: Ensures quiet operation, high efficiency, and long lifespan.
- Brzo punjenje tipa C: Praktično i brzo punjenje.
4.2 Identifikacija komponente
Familiarize yourself with the main parts of your fan:
- Fan Head (with protective grille and blades)
- Handle / Battery Compartment
- Power Button / Speed Control
- LED digitalni displej
- Port za punjenje tipa C
- Detachable Base Connector
- Tačka pričvršćivanja remena za vrat
Slika 4.1: Key features including 360° rotation, Type-C charging, and digital display.
Slika 4.2: Information on the 5000mAh battery capacity and performance.
Slika 4.3: Advantages of the fan's brushless motor technology.
5. Podešavanje
5.1 Attaching the Detachable Base (Desk Mode)
- Locate the detachable base and the bottom of the fan handle.
- Align the fan handle with the slot on the base.
- Gently push the fan into the base until it clicks securely into place.
- To remove, pull the fan firmly upwards from the base.
Slika 5.1: Fan in desk mode with the detachable base.
5.2 Attaching the Neck Strap (Neck Mode)
- Identify the small loops on the top sides of the fan head.
- Thread each end of the neck strap through these loops.
- Secure the strap ends according to the strap's design (e.g., clip or knot).
- Adjust the strap length for comfortable wearing around your neck.

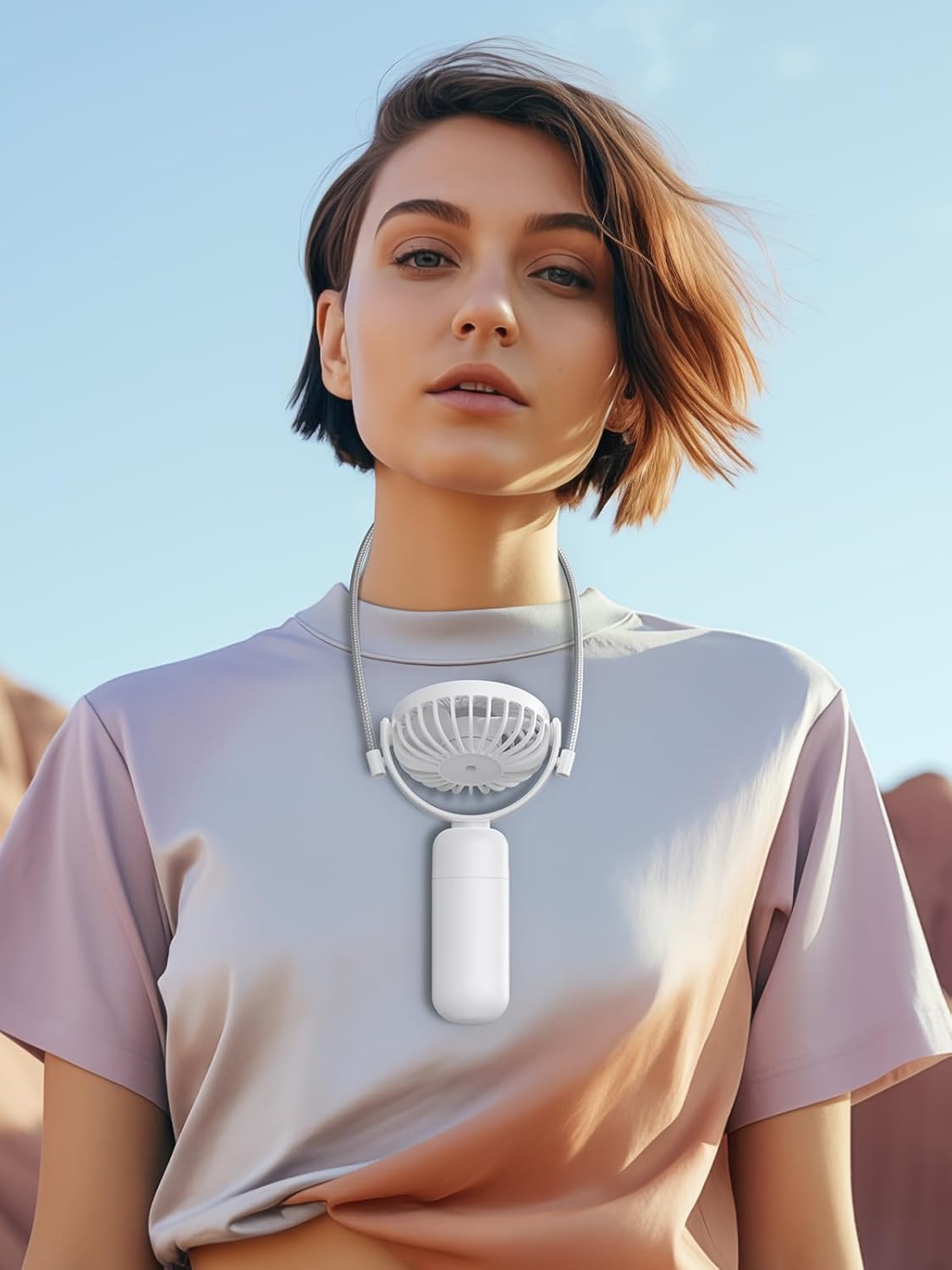

Slika 5.2: Fan in neck-hanging mode.
6. Punjenje ventilatora
The TOPK K70 fan is equipped with a built-in 5000mAh rechargeable battery. Before first use, it is recommended to fully charge the fan.
- Locate the Type-C charging port on the fan handle.
- Spojite priloženi kabel za punjenje tipa C na priključak za punjenje ventilatora.
- Plug the other end of the USB cable into a 5V USB power source (e.g., wall adapter, power bank, computer USB port).
- The LED digital display will show the battery charging status. It will indicate 100% when fully charged.
- Potpuno punjenje obično traje otprilike 3.5 sata.
- Isključite kabel za punjenje nakon što se baterija potpuno napuni kako biste sačuvali njen vijek trajanja.
7. Uputstvo za upotrebu
7.1 Uključivanje/isključivanje i podešavanje brzine
- Uključeno: Press the power button once to turn on the fan at Speed 1.
- Podesite brzinu: Each subsequent press of the power button will cycle through the wind speeds: Speed 1 → Speed 2 → Speed 3 → Speed 4.
- Iskljuciti: After Speed 4, pressing the button again will turn the fan off. Alternatively, press and hold the power button for 2 seconds to turn off the fan from any speed setting.
7.2 Using the Fan in Different Modes
- Ručni način rada: Hold the fan by its handle. Adjust the fan head angle as needed.
- Neck Mode: With the neck strap attached, wear the fan around your neck. Adjust the fan head for optimal airflow.
- Način rada na radnoj površini: Attach the fan to its detachable base and place it on a flat surface. Adjust the fan head to direct airflow.
Slika 7.1: Fan in handheld mode.
7.3 Rotacija od 360°
The fan head can be manually rotated 360 degrees vertically to direct the airflow precisely where you need it. Gently pivot the fan head to your desired angle.
Slika 7.2: Fan head 360° rotation capability.
8. LED digitalni displej
The integrated LED digital display provides real-time information:
- Nivo baterije: Prikazuje preostali postotak baterijetage (e.g., "100" for full charge).
- Brzina vjetra: Displays the current wind speed setting (e.g., "1", "2", "3", "4").
This allows you to monitor power status and adjust fan speed efficiently.
9. Održavanje
9.1 Čišćenje ventilatora
Redovno čišćenje pomaže u održavanju optimalnih performansi i produžava vijek trajanja ventilatora.
- Ensure the fan is turned off before cleaning.
- To clean the fan blades, gently twist the front grille counter-clockwise to detach it.
- Wipe the fan blades and the inside of the grille with a soft, dry cloth. For stubborn dust, a slightly damp Može se koristiti krpa, pazeći da voda ne uđe u motor.
- Ostavite da se svi dijelovi potpuno osuše prije ponovnog sastavljanja.
- Align the front grille with the fan head and twist clockwise until it locks securely.
Slika 9.1: Quick disassembly for cleaning.
9.2 Skladištenje
When not in use for extended periods, store the fan in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to charge the fan to about 50% before storing.
10. Otkrivanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Ventilator se ne uključuje. | Baterija je prazna. | Napunite ventilator pomoću priloženog Type-C kabla. |
| Slab protok vazduha. | Low battery level. Fan speed set too low. Fan blades are dirty. | Charge the fan. Increase the fan speed. Clean the fan blades (refer to Section 9.1). |
| Ventilator se neočekivano zaustavlja. | Baterija je prazna. | Napunite ventilator. |
| Ventilator se ne puni. | Problem s kablom ili adapterom. Začepljenost priključka za punjenje. | Ensure the Type-C cable is securely connected. Try a different USB power adapter or port. Check the charging port for debris. |
| Neobična buka tokom rada. | Obstruction in fan blades. Loose components. | Turn off the fan and check for any obstructions in the blades. If the issue persists, contact customer support. |
11. Specifikacije
| Feature | Detalj |
|---|---|
| Naziv modela | K70 |
| Brand | TOPK |
| Kapacitet baterije | 5000mAh |
| Izvor napajanja | Battery Powered |
| Dizajn električnog ventilatora | Wearable Fan (Handheld, Neck, Desk) |
| Broj brzina | 4 |
| Rotacija | 360 ° okomito |
| Kontrolni metod | Pritisnite dugme |
| Port za punjenje | Tip-C |
| Voltage | 5 Volts |
| Dimenzije proizvoda | 2.78"D x 2.78"Š x 6.6"H |
| Težina artikla | 9.9 unce |
| Uključene komponente | Fan, Base, Neck Strap, Type-C Cable |
12. Garancija i podrška
TOPK products are manufactured with high-quality standards. For warranty information, technical support, or any product-related inquiries, please refer to the contact information provided on the product packaging or visit the official TOPK webMolimo sačuvajte dokaz o kupovini za potrebe reklamacije.
