YEEHUNG 12.3" Android 13 Car Multimedia Screen User Manual

1. Uvod

This manual provides detailed instructions for the installation, operation, and maintenance of your YEEHUNG 12.3-inch Android 13 Car Multimedia Screen. This device is designed to enhance your driving experience by integrating advanced multimedia features into your Mercedes Benz E Class W212 (2012-2015) with an NTG4.5 OEM host system.

Please read this manual thoroughly before installation and use to ensure proper functionality and to prevent potential issues.

2. Kompatibilnost

This multimedia screen is compatible with the following Mercedes-Benz models:

• Mercedes-Benz E Class W212 (2012-2015)
• Applicable to E180, E200, E220, E250, E260, E300, E320, E350, E63 AMG models.
• Requires NTG4.5 OEM host systems.
• Designed for left-hand drive vehicles.

Važno: To confirm compatibility, please verify your car's NTG system version. Refer to Section 3.1 for guidance on identifying your NTG version.

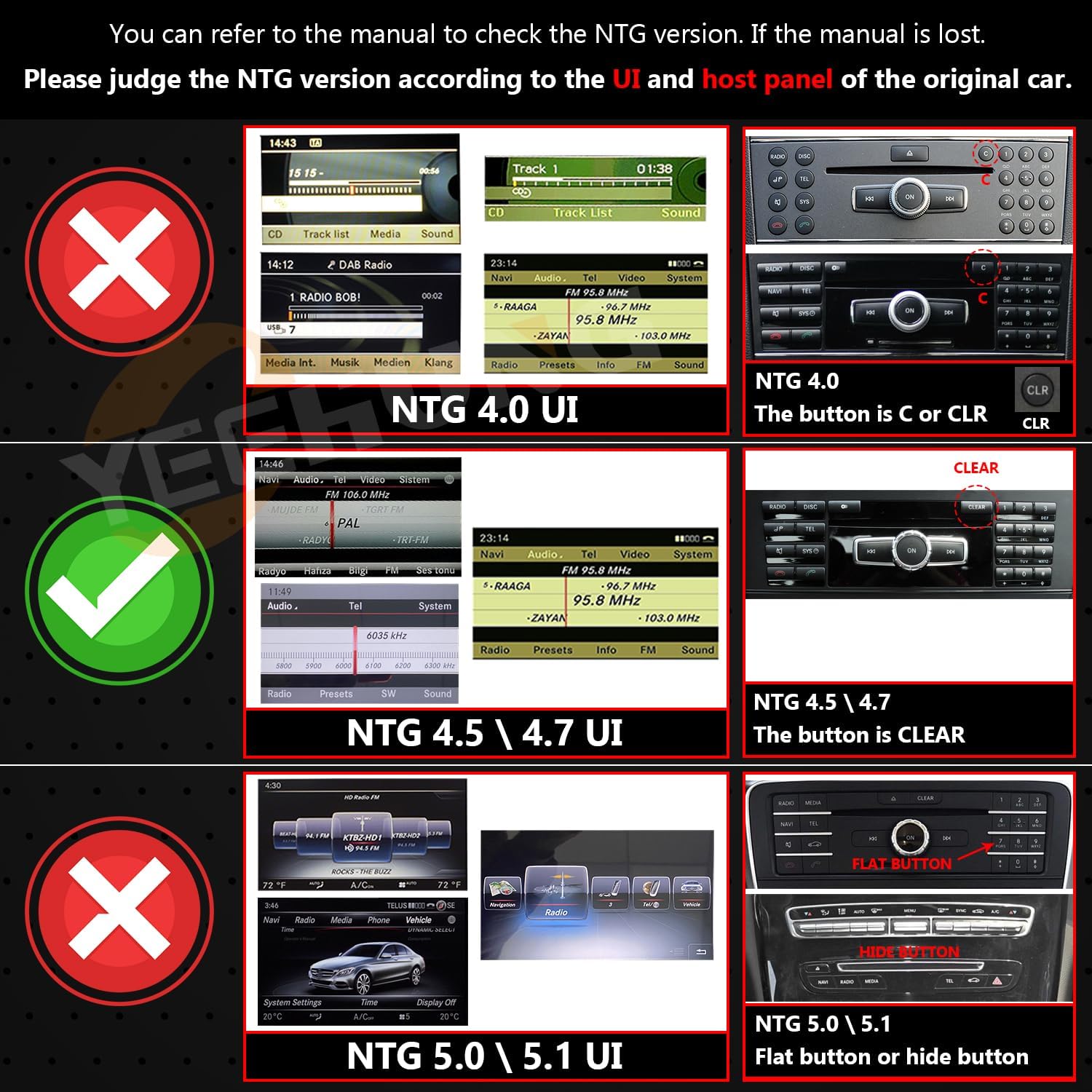

Image: Guide for identifying your car's NTG system version by comparing the user interface and host panel buttons. This image shows examples of NTG 4.0, NTG 4.5/4.7, and NTG 5.0/5.1 interfaces and corresponding buttons (C, CLR, CLEAR, Flat button, Hide button) to help determine compatibility.

Image: Detailed compatibility check for E Class W212 (2013-2015) NTG 4.5. It highlights the original car's interface, the 4-pin LVDS connector (not 10-pin), and the COMAND system knob with a 'CLEAR' button, indicating compatibility for four-door saloon cars.

3. Postavljanje i instalacija

Careful installation is crucial for optimal performance. It is recommended to consult a professional for installation if you are not familiar with car electronics.

3.1. Sadržaj paketa

Provjerite da li su sve komponente prisutne u paketu:

Slika: Prekoview of the items included in the package, showing the main screen unit, a base, ISO wiring harness, RCA cable, 4G antenna, GPS antenna, microphone, AMI decoder, installation manual, and user manual.

• 1 x 12.3" Android Multimedia Screen
• 1 x baza
• 1 x ISO Wiring Harness
• 1 x RCA kabel
• 1 x 4G antena
• 1 x GPS antena
• 1 x mikrofon
• 1 x AMI Decoder
• 1 x Upute za instalaciju
• 1 x Korisnički priručnik (ovaj dokument)

3.2. Precautionary Notes

• AUX Menu Activation: If your original NTG4.5 system does not have an AUX menu, you must activate it to obtain audio from the Android screen. This can be done by selecting the AMI cable or using the Audio out on the ISO cable to interface with the car's AUX jack, depending on your car's specific interface type.
• Priručnik za instalaciju: Always refer to the dedicated installation manual and videos provided for detailed step-by-step instructions.
• testiranje: After connecting all cables and devices, power on the Android unit and test all functions before reassembling any covers or panels.

Image: Visual guide showing the fiber optic connection, and how to connect the 'Audio out' from the new unit to either the car's AMI port or a standard AUX IN port, which is critical for sound output.

3.3. AUX Automatic Switching Settings (NTG 4.5/4.7)

For NTG4.5 and NTG4.7 systems with an original car AUX function, follow these steps to set up automatic AUX switching:

1. In the original car's menu, navigate to the AUDIO section.
2. Set the position of the AUDIO icon to '2'.
3. Set the position of the AUX icon to '8'.
4. In the Android unit's Factory Settings, select 'Automatic' for AUX Switching Modes.
5. Ensure 'AUX Activate' is checked under the relevant settings.
6. Configure 'CAN Protocol' and 'Car Display' settings according to your vehicle's specifications (e.g., BC_Protocol_type_4.5, NTG4.5_400x240_5.8).

Image: A four-panel image illustrating the steps for setting up automatic AUX switching for NTG 4.5/4.7 systems. It shows menu navigation for AUDIO and AUX positions, and settings within the Android unit's Factory Settings for AUX Switching Modes.

Image: Three separate images showing specific settings within the Android unit's interface: 'AUX Activate' checkbox, 'CAN Protocol' selection (highlighting BC_Protocol_type_4.5), and 'Car Display' options (highlighting NTG4.0/NTG4.5_800).

4. Uputstvo za upotrebu

Your YEEHUNG multimedia screen offers a range of features designed for convenience and entertainment.

4.1. Osnovne funkcije

• Wired and Wireless CarPlay: Connect your iPhone for navigation, music, messages, and calls.
• Android Auto: Connect your Android phone for seamless integration of apps and services.
• Bežična zrcalna veza: Display your smartphone screen directly on the multimedia unit.

Image: The 12.3-inch multimedia screen displaying the Apple CarPlay interface with various app icons like Car Home, Phone, Music, Messages, Calendar, Settings, Google Maps, WhatsApp, and Telegram.

Image: Three small images demonstrating the CarPlay, Android Auto, and Mirror Link functionalities on the screen, showing typical interfaces for each feature.

4.2. Karakteristike ekrana

• 12.3" Blue Anti-Glare HD Screen: Provides a clear, non-reflective display, reducing eye fatigue and improving driving safety.
• rezolucija: 1920x720 HD resolution for a more realistic and detailed visual experience.
• Multi-point Capacitive Touch: Responsive and intuitive touch control.
• IPS tehnologija: Offers a 178° ultra-wide viewing kut.
• Automatic Backlight Adjustment: Adapts to ambient light conditions.

Image: A comparison illustrating the benefit of the anti-glare screen, showing a driver struggling with glare in an 'Old Style' screen versus a clear view with the 'New Style' anti-glare screen, emphasizing improved driving safety.

Image: Details the features of the fully laminated HD anti-glare screen, including its 12.3-inch size, 1920x720 resolution, IPS touch screen, 178° ultra-wide viewing angle, high color rendition, 4K video playback, and automatic backlight adjustment.

4.3. System Performance and Connectivity

• procesor: 11 nm Qualcomm Snapdragon 662 8-core high-speed processor.
• Memorija: 8GB RAM and 256GB internal storage for faster reaction speed and ample space.
• Bluetooth 5.0: Supports music playback and hands-free calling.
• Ugrađeni Wi-Fi: Supports 2.4G and 5.0G networks.
• 4G Network Support: Built-in SIM card slot for high-speed internet access (North America TDD-LTE/FDD-LTE/WCDMA).
• Online Voice Control: Available after connecting to the network.

Image: Highlights key technical specifications including Qualcomm Snapdragon 662 processor, 8GB RAM, 256GB ROM, Android 13 operating system, Bluetooth 5.1, 4G network support, and the blue anti-glared 12.3-inch 1920x720 HD screen with IPS technology.

Image: Illustrates the high-speed internet capabilities with a built-in SIM card slot and 2.4G/5G WiFi support, enabling calls, internet browsing, video streaming, online music, and app downloads.

4.4. Integration with Original Car Functions

• Retains original car knob and steering wheel controls.
• Preserves original car radio and ampLifier funkcije.
• Supports original rear view camera and reverse trajectory.
• Compatible with factory and aftermarket cameras.

4.5. Dodatne karakteristike

• Podijeljeni ekran: Run two applications simultaneously.
• Google Play trgovina: Access and download a wide range of applications.
• Podrška za više jezika: Operates in various languages.

5. Održavanje

To ensure the longevity and optimal performance of your multimedia screen, follow these general maintenance guidelines:

• čišćenje: Za čišćenje ekrana koristite meku krpu koja ne ostavlja dlačice. Za tvrdokorne mrlje, lagano obrišiteampOperite krpu vodom ili sredstvom za čišćenje ekrana. Izbjegavajte jake hemikalije ili abrazivne materijale.
• temperatura: Izbjegavajte izlaganje uređaja ekstremnim temperaturama, i visokim i niskim, tokom dužeg perioda.
• fizička šteta: Protect the screen from direct impact or sharp objects.
• Ažuriranja softvera: Periodically check for and install software updates to ensure the system runs efficiently and securely.

6. Otkrivanje problema

If you encounter issues with your YEEHUNG multimedia screen, refer to the following common troubleshooting steps:

6.1. No Sound from Android System

• Check AUX Activation: Ensure the AUX menu is activated in your original NTG system and that the 'Audio out' from the Android unit is correctly connected to your car's AUX or AMI input. Refer to Section 3.2 and 3.3.
• Nivoi glasnoće: Verify that the volume on both the Android unit and your car's original audio system is turned up.
• Kablovske veze: Recheck all audio-related cable connections for secure fitment.

6.2. Screen Not Powering On

• Priključci za napajanje: Ensure all power cables are securely connected to the unit and the vehicle's power source.
• Paljenje vozila: Potvrdite da je paljenje vozila uključeno.
• Provjera osigurača: Inspect relevant fuses in your vehicle's fuse box.

6.3. CarPlay/Android Auto Not Connecting

• Bluetooth/Wi-Fi: Ensure Bluetooth is enabled on both your phone and the multimedia unit for initial pairing. For wireless connections, ensure Wi-Fi is also active.
• Postavke telefona: Check your phone's settings to ensure CarPlay or Android Auto is enabled and allowed to connect to new devices.
• USB veza: For wired connections, try a different USB cable or port.

Ako ovi koraci ne riješe vaš problem, obratite se korisničkoj podršci.

7. Specifikacije

8. Garancija i podrška

YEEHUNG is committed to providing quality products and customer satisfaction.

8.1. Kvalitet proizvoda

All products undergo strict screening to ensure high quality and unique aesthetics.

8.2. Korisnička podrška

If you have any questions or encounter problems, please contact our customer service team. Provide a clear description of your issue to facilitate a quick resolution. We aim to respond to all inquiries within 24 hours.

Za pomoć, molimo vas da posjetite YEEHUNG Store on Amazon ili nas kontaktirajte direktno putem platforme na kojoj ste kupili proizvod.
