DITONG HY300 Plus HD Projector User Manual

1. Uvod

Welcome to the DITONG HY300 Plus HD Projector user manual. This guide will help you set up, operate, and maintain your new projector. The HY300 Plus is a portable projector equipped with Android 11 and dual-band WiFi 6, offering a seamless and high-quality viewing experience for movies, presentations, and more, both indoors and outdoors.

2. Proizvod je gotovview

2.1 Komponente

The DITONG HY300 Plus projector package typically includes the following items:

• DITONG HY300 Plus Projector
• Adapter za napajanje
• Daljinski upravljač

Image: The DITONG HY300 Plus projector in white, accompanied by its black remote control and a protective cover for the lens.

2.2 Ključne karakteristike

• Android 11 OS: Built-in smart operating system for direct access to streaming apps without external devices.
• Dual-band WiFi 6 (5G + 2.4G): Ensures faster and more reliable wireless connectivity for smooth streaming and screen mirroring.
• Elektronski fokus: Easily adjust image clarity using the remote control.
• 4K Decoding & 720P Native Resolution: Supports 4K video input with a native resolution of 1280x720P for clear images.
• Auto Keystone Correction: Automatically adjusts image distortion for a perfectly rectangular picture.
• 180° Flexible Projection Angle: Omogućava projekciju na zidove, plafone ili podove.
• Rad sa niskim nivoom buke: Operates at less than 25dB for a quiet viewing iskustvo.
• Visoka svjetlina: 8000 Lux (250 ANSI lumens) for vivid and bright images.
• Multiple Aspect Ratios: Supports 16:9, 4:3, and 16:10.
• Bluetooth povezivanje: Za povezivanje eksternih audio uređaja.

Slika: Prekoview of the DITONG HY300 Plus features, including electronic focus, Bluetooth 5.0, 4K decoding, 720P native resolution, WiFi 5G/2.4G, and auto keystone correction.

Image: A demonstration of the electronic focus feature, showing a clear image projected onto a screen with the projector and remote control in the foreground.

Image: Illustrates the 180-degree flexible projection angle, showing the projector casting an image onto a wall and a ceiling in a bedroom setting.

Image: Depicts the dual-band WiFi 5G/2.4G capability, showing a fast connection for screen mirroring with a projected image of a car chase.

Image: Illustrates the low noise level of the projector, comparing its sound output to common ambient noises like whispering and a motorcycle passing.

3. Podešavanje

3.1 Otpakivanje i pregled

Carefully remove all components from the packaging. Inspect for any signs of damage. If any items are missing or damaged, contact customer support immediately.

3.2 Priključak za napajanje

1. Spojite adapter za napajanje na ulazni priključak za napajanje projektora.
2. Uključite adapter za napajanje u odgovarajuću električnu utičnicu.

3.3 Početno uključivanje

Pritisnite dugme za napajanje na projektoru ili daljinskom upravljaču da biste uključili uređaj. Projektor će se pokrenuti, prikazujući Android 11 interfejs.

3.4 Postavljanje i udaljenost projekcije

Postavite projektor na stabilnu, ravnu površinu. Za optimalno viewing, consider the projection distance:

• For a 130-inch display, an optimal projection distance is approximately 1.68 meters.
• The projector supports various screen sizes from 40 inches to 130 inches depending on distance.

Image: A diagram illustrating optimal projection distances for different screen sizes, showing that 1.68 meters is ideal for a 130-inch display.

3.5 Opcije montaže

The HY300 Plus is designed for versatile placement:

• Prijenosna upotreba: Place it on a table or flat surface.
• Stropni nosač: The bottom of the projector features a 1/4-inch screw hole, compatible with standard ceiling mounts or camera tripods.

Image: The projector shown mounted to a ceiling, highlighting the 1/4-inch screw hole for various mounting solutions.

4. Uputstvo za upotrebu

4.1 Funkcije daljinskog upravljača

Use the included remote control to navigate the projector's interface. Key functions include:

• Uključivanje/isključivanje
• Navigacija (Gore, Dolje, Lijevo, Desno, U redu)
• Back/Home buttons
• Kontrola jačine zvuka
• Podešavanje fokusa

Image: The DITONG HY300 Plus projector with its remote control, demonstrating the electronic focus feature.

4.2 Electronic Focus Adjustment

Da biste podesili jasnoću slike:

1. Point the remote control at the projector.
2. Press the dedicated focus buttons (usually marked with a circle or 'F' icon) on the remote to sharpen the image.

4.3 Automatic Keystone Correction

The HY300 Plus features automatic keystone correction. When the projector is moved or angled, it will automatically adjust the image to maintain a rectangular shape. Manual adjustments are typically not required.

4.4 Povezivanje vanjskih uređaja

• HDMI: Connect laptops, gaming consoles, or other HDMI-enabled devices using an HDMI cable.
• Screen Mirroring (WiFi): Connect your smartphone or tablet wirelessly via WiFi for screen mirroring. Ensure both devices are connected to the same WiFi network.

Image: A family watching a football game projected onto a screen, with a smartphone in the foreground demonstrating wireless screen mirroring.

4.5 Navigacija kroz Android 11

The projector's smart interface allows you to download and use various applications. Use the remote control to navigate through menus, select apps, and adjust settings. Connect to your home WiFi network to access online content.

4.6 Audio izlaz

The projector has built-in speakers. For enhanced audio, you can connect external Bluetooth speakers or headphones via the Bluetooth interface.

5. Održavanje

Pravilno održavanje osigurava dugotrajnost i optimalne performanse vašeg projektora.

• Čišćenje sočiva: Gently wipe the projector lens with a soft, lint-free cloth or a lens cleaning brush. Avoid abrasive materials that could scratch the lens.
• ventilacija: Ensure the projector's ventilation ports are clear of dust and obstructions to prevent overheating. Do not block the air vents during operation.
• Skladištenje: When not in use, store the projector in a cool, dry place, away from direct sunlight and extreme temperatures. Use the protective cover if provided.

6. Otkrivanje problema

If you encounter issues with your DITONG HY300 Plus projector, refer to the following common problems and solutions:

• Nema slike:
  • Ensure the power adapter is securely connected and the projector is powered on.
  • Check the input source. Make sure the correct HDMI or mirroring input is selected.
• Zamućena slika:
  • Use the remote control to adjust the electronic focus.
  • Provjerite da li je površina za projekciju ravna, a projektor stabilan.
• Nema zvuka:
  • Check the volume level on the projector and the connected device.
  • If using external speakers, ensure they are properly connected via Bluetooth.
• Problemi s WiFi povezivošću:
  • Provjerite je li projektor unutar dometa vašeg WiFi rutera.
  • Ponovo pokrenite projektor i WiFi ruter.
  • Provjerite da li je lozinka za WiFi ispravno unesena.

If the problem persists, please contact DITONG customer support for further assistance.

7. Specifikacije

Below are the detailed specifications for the DITONG HY300 Plus HD Projector:

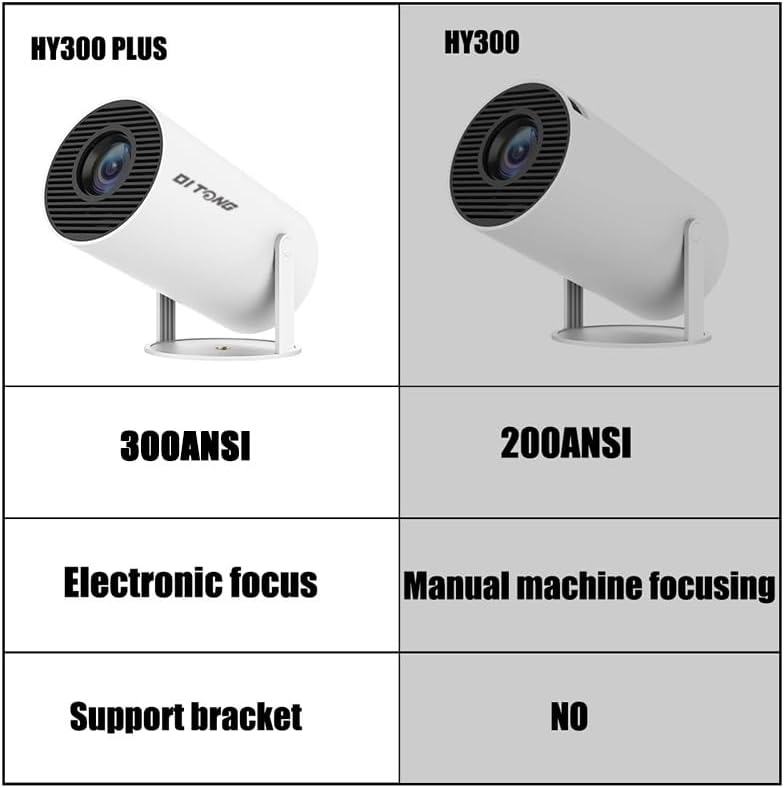

Image: A comparison table highlighting the differences between the HY300 Plus and the original HY300, showing the Plus model has 300 ANSI lumens, electronic focus, and a support bracket.

8. Garancija i podrška

The DITONG HY300 Plus Projector comes with a manufacturer's warranty. Please refer to the product packaging or the official DITONG webstranicu za specifične uslove i odredbe garancije.

For technical support, troubleshooting assistance, or warranty claims, please contact DITONG customer service through the contact information provided with your purchase or on the official DITONG support channels.
