Fitfiu Fitness MC-100C Folding Treadmill User Manual

1. Uvod

This manual provides essential instructions for the safe and effective use of your Fitfiu Fitness MC-100C Folding Treadmill. Please read all instructions carefully before assembly, operation, or maintenance to ensure proper function and user safety. Keep this manual for future reference.

Figure 1: The Fitfiu Fitness MC-100C Treadmill in its operational state.

2. Važna sigurnosna uputstva

To reduce the risk of serious injury, always follow basic precautions when using this treadmill. Failure to do so may result in personal injury or damage to the equipment.

• Pročitajte sva uputstva: Prije upotrebe upoznajte se s cijelim uputstvom.
• Nadzor: Do not leave children or pets unattended near the treadmill.
• Medical consultation: Konsultujte se sa lekarom pre nego što započnete bilo koji program vežbanja.
• Proper attire: Wear appropriate athletic footwear and clothing. Avoid loose clothing that could get caught.
• Stabilna površina: Postavite traku za trčanje na ravnu, stabilnu površinu s dovoljnim prostorom oko nje.
• Hitno zaustavljanje: Always attach the safety key clip to your clothing before starting. The treadmill will stop if the safety key is dislodged.
• Kabl za napajanje: Keep the power cord away from heated surfaces and ensure it is not pinched or damaged.
• Ograničenje težine: Nemojte prekoračiti maksimalnu težinu korisnika od 120 kg.
• Održavanje: Obavljajte redovno održavanje kako je opisano u ovom priručniku.

3. Montaža i postavljanje

The Fitfiu Fitness MC-100C Treadmill is designed for straightforward assembly. Most components are pre-assembled. Follow these general steps:

1. Raspakivanje: Pažljivo izvadite sve komponente iz pakovanja.
2. rasklapanje: The treadmill arrives in a folded position. Gently lower the running deck until it locks into place. Ensure all locking mechanisms are secure.
3. Volan i konzola: Raise the handlebar assembly and secure it with the provided pins or bolts. Connect any necessary console cables.
4. plasman: Position the treadmill on a level surface, ensuring at least 0.6 meters (2 feet) of clear space on all sides and 2 meters (6.5 feet) at the rear for safety.
5. Priključak za napajanje: Uključite kabl za napajanje u uzemljenu električnu utičnicu.

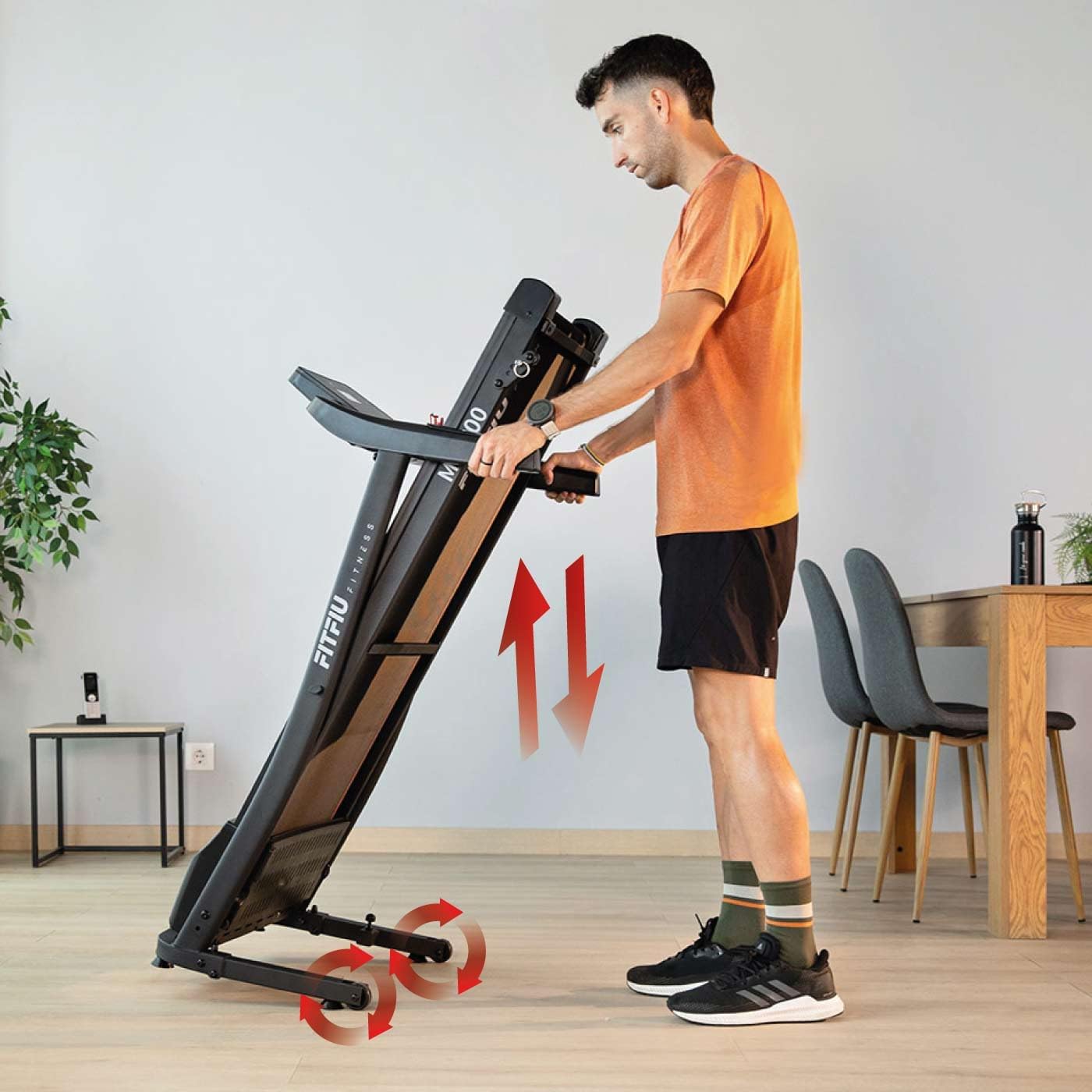

Figure 2: Illustration of the Fitfiu Fitness MC-100C Treadmill's vertical folding mechanism for storage, showing wheels for easy movement.

To fold the treadmill for storage, lift the running deck until it clicks into the vertical storage position. The integrated wheels allow for easy relocation.

4. Uputstvo za upotrebu

4.1. Control Panel Overview

Figure 3: Close-up of the Fitfiu Fitness MC-100C Treadmill control panel, displaying 12 pre-set programs (P1-P12) and the safety key.

The control panel features an LED display and various buttons for controlling your workout. Key functions include:

• Prikaz: Shows speed, time, distance, calories, and pulse.
• Start/Stop: Initiates and pauses/stops the treadmill belt.
• Brzina +/-: Adjusts the running speed.
• Program (P): Odabir između 12 unaprijed postavljenih programa vježbanja.
• Način rada (M): Cycles through display modes or sets target values.
• Sigurnosni ključ: Magnetic key that must be in place for the treadmill to operate. Pulling it off will stop the belt.

4.2. Početak treninga

1. Ensure the treadmill is plugged in and the safety key is attached to the console and your clothing.
2. Stanite na bočne ograde trake za trčanje.
3. Pritisnite Počni button. The belt will begin moving at a low speed.
4. Carefully step onto the moving belt and adjust the speed using the brzina +/- buttons to your desired pace.
5. Za zaustavljanje pritisnite Stani dugme ili povucite sigurnosni ključ.

4.3. Using Pre-set Programs

The MC-100C offers 12 pre-set programs (P1-P12) that automatically adjust speed over time.

1. From standby mode, press the Program (P) button repeatedly to cycle through the available programs.
2. Once your desired program is displayed, press Počni da započnete trening.

4.4. Manual Incline Adjustment

The treadmill features 3 levels of manual incline to simulate different terrains.

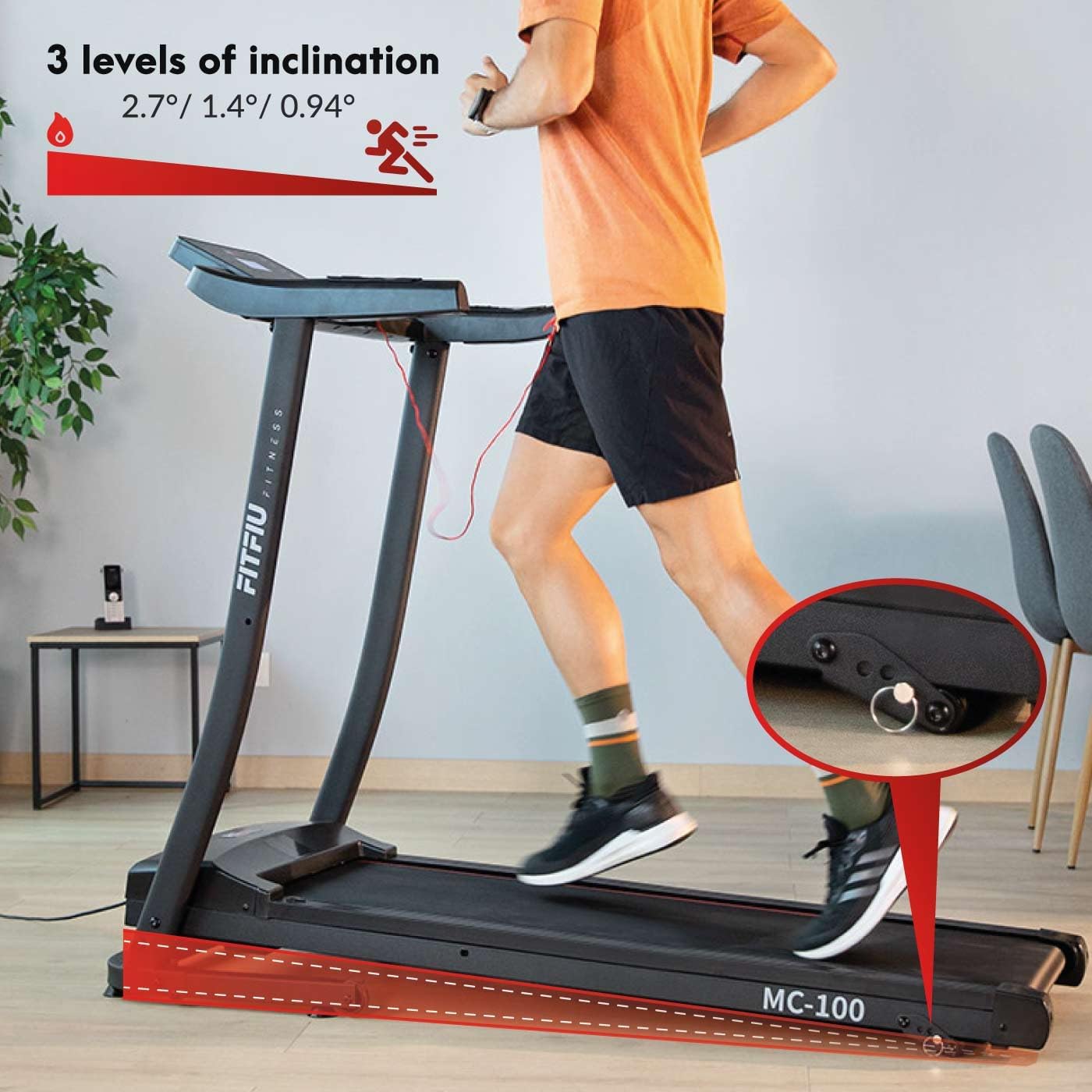

Figure 4: Image demonstrating the 3 manual incline levels (2.7°, 1.4°, 0.94°) of the Fitfiu Fitness MC-100C Treadmill, with a close-up of the adjustment pin.

Za podešavanje nagiba:

1. Ensure the treadmill is stopped and unplugged for safety.
2. Locate the incline adjustment pins at the rear of the treadmill.
3. Lift the rear of the treadmill slightly and remove the pins.
4. Adjust the support bars to the desired incline level (e.g., 2.7°, 1.4°, or 0.94°).
5. Reinsert the pins securely to lock the incline in place.

4.5. Kinomap Compatibility

The MC-100C Treadmill is compatible with the Kinomap application, allowing for interactive training experiences. Place your tablet or smartphone on the integrated holder for easy viewing.

Figure 5: Fitfiu Fitness MC-100C Treadmill with a tablet and smartphone displaying the Kinomap app, illustrating virtual training integration.

5. Održavanje

Redovno održavanje osigurava dugotrajnost i optimalne performanse vaše trake za trčanje.

5.1. Čišćenje

• Dnevno: Wipe down the console and handlebars with a damp krpom nakon svake upotrebe.
• sedmično: Clean the running belt and deck to remove dust and debris. Ensure the treadmill is unplugged before cleaning.

5.2. Running Belt Lubrication

The running belt requires periodic lubrication to reduce friction and wear. The frequency depends on usage.

• Učestalost: Lubricate every 25 hours of use or every 3 months, whichever comes first.
• Procedura:
  1. Isključite traku za trčanje.
  2. Loosen the rear roller bolts to slightly lift the belt.
  3. Apply a thin line of 100% silicone lubricant (specifically designed for treadmills) under the center of the belt.
  4. Tighten the rear roller bolts and plug in the treadmill.
  5. Run the treadmill at a low speed (e.g., 3 km/h) for 5 minutes to distribute the lubricant.

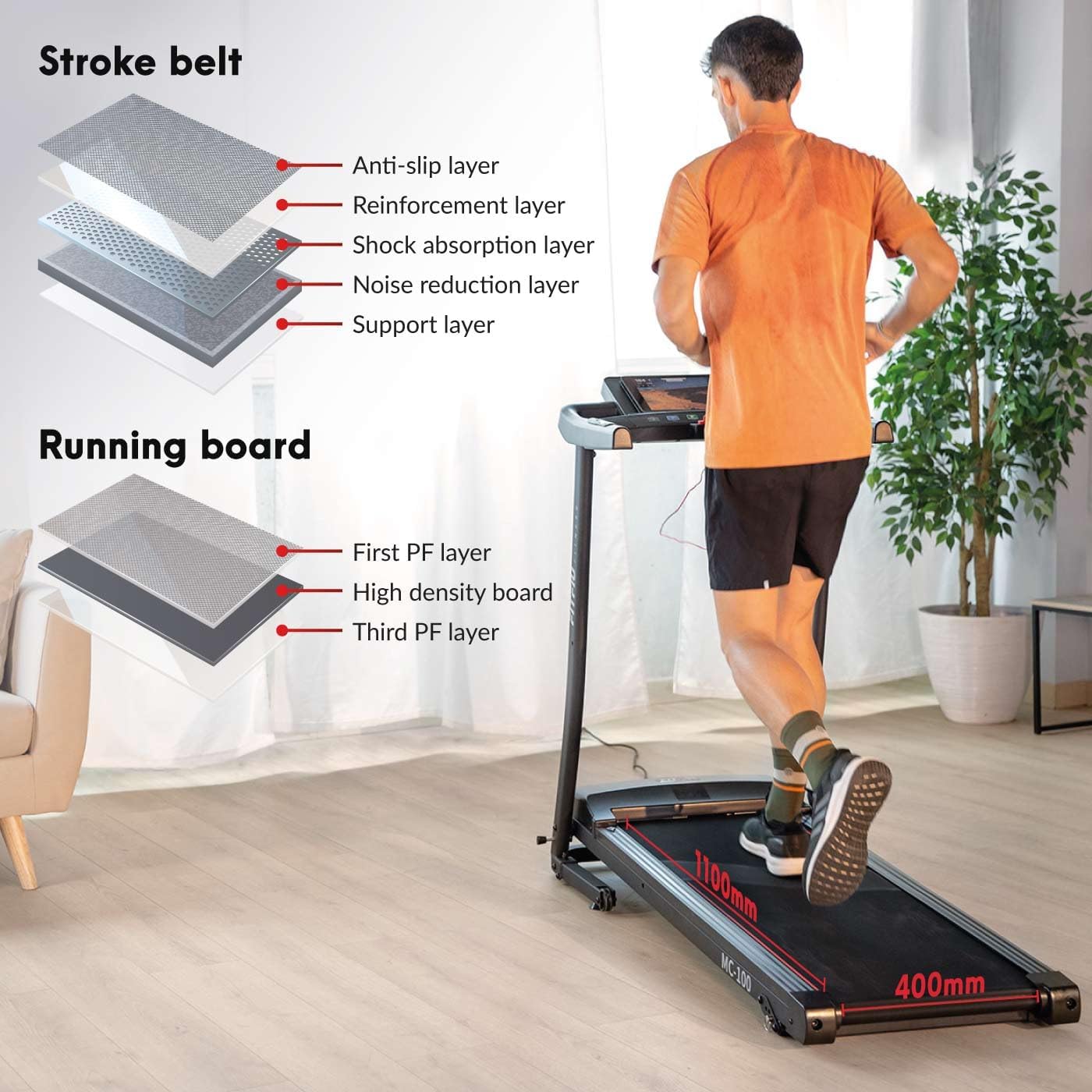

Figure 6: Diagram illustrating the multi-layered structure of the Fitfiu Fitness MC-100C Treadmill's running belt and running board, detailing anti-slip, reinforcement, shock absorption, noise reduction, and support layers.

5.3. Belt Tension and Alignment

If the belt slips or drifts to one side, it may need adjustment. Refer to the detailed instructions in the full product manual for precise belt tensioning and alignment procedures.

6. Otkrivanje problema

Ovaj odjeljak se bavi uobičajenim problemima s kojima se možete susresti prilikom korištenja trake za trčanje.

7. Specifikacije

Technical details for the Fitfiu Fitness MC-100C Treadmill:

8. Garancija i podrška

For information regarding warranty coverage, technical support, or replacement parts, please refer to the official Fitfiu Fitness webweb-mjesto ili kontaktirajte njihovu službu za korisnike. Sačuvajte račun kao dokaz o kupovini.
