1. Uvod
Thank you for choosing the ABSOSO Single Din Wireless CarPlay Stereo. This manual provides essential information for the proper installation, operation, and maintenance of your new car stereo system. Please read this manual thoroughly before use to ensure optimal performance and safety.
2. Sigurnosne informacije
- Always operate the device responsibly and in accordance with local traffic laws. Distracted driving can lead to accidents.
- Do not attempt to install or repair the unit yourself if you are not qualified. Improper installation can cause damage to the unit or your vehicle.
- Provjerite jesu li sve žice ispravno spojene kako biste spriječili kratki spoj ili električne opasnosti.
- Keep the screen clean and free from obstructions to maintain clear visibility.
- Izbjegavajte izlaganje uređaja ekstremnim temperaturama, direktnoj sunčevoj svjetlosti tokom dužeg perioda ili prekomjernoj vlazi.
3. Šta se nalazi u kutiji
Prije nego što nastavite s instalacijom, provjerite da li su sve komponente prisutne:
- Single Din CarPlay Stereo Unit
- Dual USB Cable
- GPS antena
- Kabel za rezervnu kameru
- Wiring Harness & Wires
- Montažni kompleti
- Korisnički priručnik (ovaj dokument)
4. Proizvod je gotovview
The ABSOSO Single Din Wireless CarPlay Stereo features a 10.1-inch rotatable touchscreen designed for enhanced in-car entertainment and navigation. It supports wireless Apple CarPlay and Android Auto, Bluetooth connectivity, AM/FM radio, and includes GPS navigation capabilities.

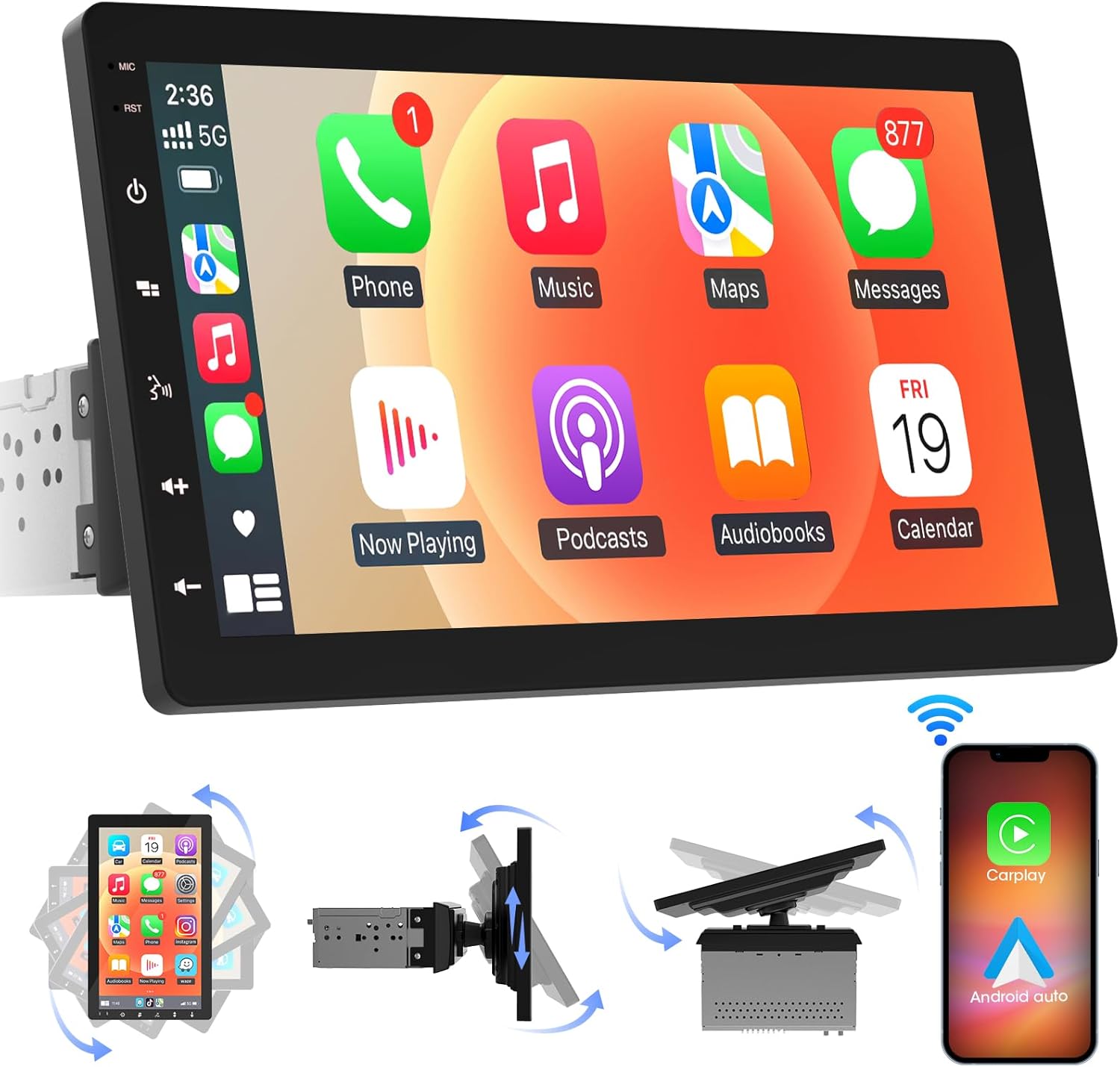

Slika 4.1: Prednja strana view of the ABSOSO Single Din Wireless CarPlay Stereo displaying the Apple CarPlay interface.
5. Postavljanje i instalacija
This unit is designed for standard single DIN dash openings. Professional installation is recommended to ensure correct wiring and functionality. Refer to the wiring diagram provided with the unit for specific connections.
5.1 Montaža jedinice
The modular design allows for flexible installation. The main unit fits into a single DIN slot, and the 10.1-inch screen can be adjusted for optimal viewing.
Image 5.1: Visual comparison of a car dashboard before and after the installation of the ABSOSO 10.1-inch rotatable car stereo, highlighting the integrated appearance.
5.2 Ožičenje
Connect the power, speaker, and accessory wires according to your vehicle's wiring harness and the provided diagram. Ensure the backup camera input cable is routed correctly if you plan to use a rearview kamera.
5.3 Instalacija GPS antene
Postavite GPS antenu na mjesto sa čistim view of the sky, typically on the dashboard or under the windshield, to ensure accurate satellite reception.
6. Uputstvo za upotrebu
6.1 Uključivanje/isključivanje napajanja
The unit will power on automatically with the vehicle's ignition. To manually power off, press and hold the power button on the unit.
6.2 Bežični CarPlay i Android Auto
This stereo supports wireless Apple CarPlay and Android Auto. To connect, enable Bluetooth and Wi-Fi on your smartphone and follow the on-screen prompts to pair with the stereo. Once connected, you can access navigation, music, messages, and voice assistants directly from the stereo's display.
Image 6.1: The ABSOSO car stereo showcasing its wireless connectivity features, including Apple CarPlay, Android Auto, and MirrorLink, with various app interfaces.
6.3 HD Touchscreen Operation
The 10.1-inch HD IPS display offers a responsive touch interface. Navigate through menus and applications by tapping, swiping, and pinching. Five capacitive touch buttons are located along the left edge for quick access to common functions.
Image 6.2: The 10.1-inch screen of the ABSOSO car stereo, emphasizing its HD resolution, sleek touch buttons, and 178-degree viewing angle for optimal clarity.
6.4 Mirrorlink Functionality
Mirrorlink allows you to display your smartphone's screen directly onto the stereo. This feature is useful for viewing navigation, videos, or other content from your phone on a larger display.
6.5 Bluetooth povezivost
Pair your smartphone via Bluetooth for hands-free calling and wireless audio streaming. Access your phone's contacts and call history directly from the stereo.

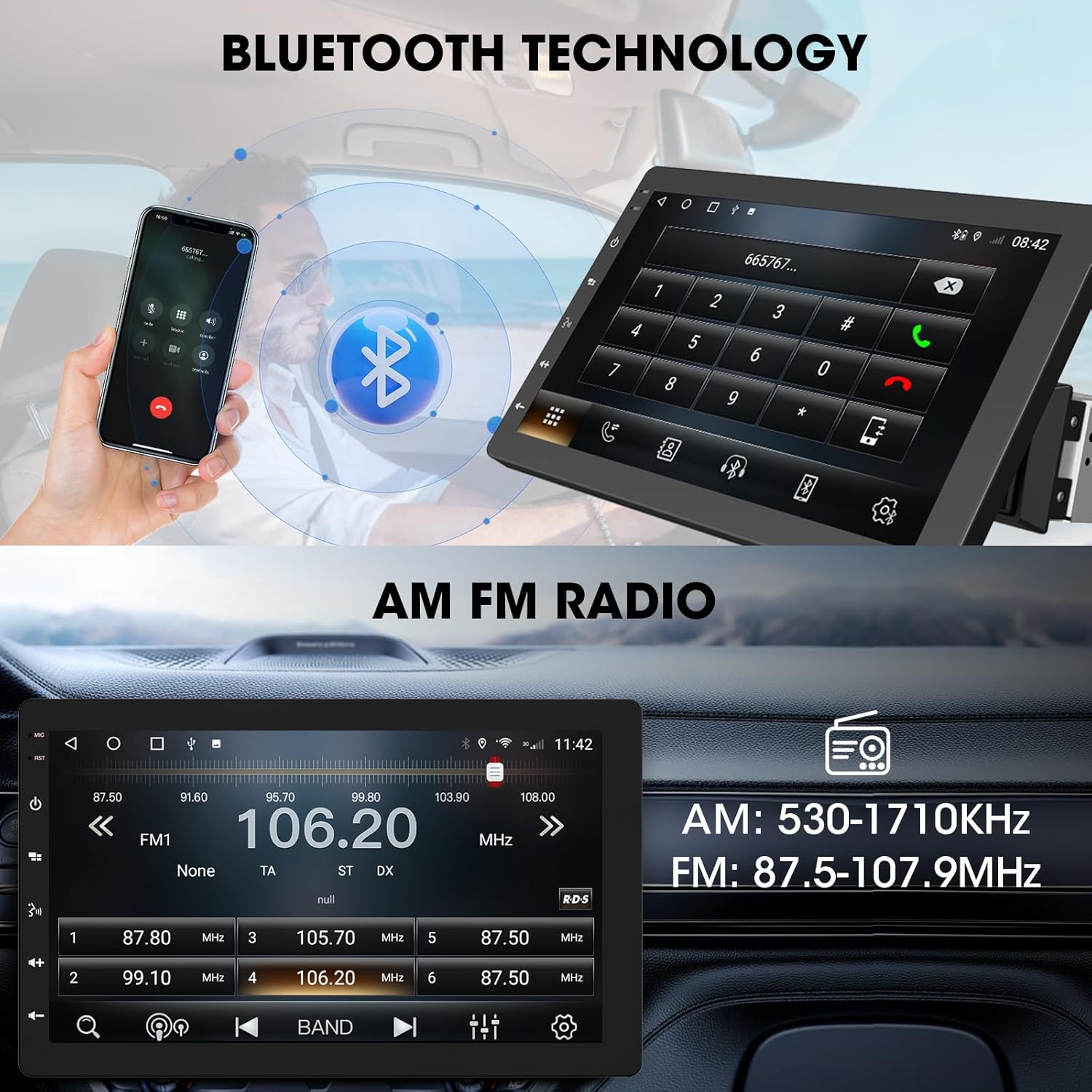

Image 6.3: The ABSOSO car stereo illustrating Bluetooth technology for hands-free calls and the interface for AM/FM radio tuning.
6.6 FM/AM radio
Tune into your favorite FM and AM radio stations. The unit features 30 station memory presets for quick access to sports, news, and music.
6.7 GPS Navigation & WiFi Hotspot
The stereo includes built-in GPS navigation with support for offline maps (2G RAM + 64GB ROM storage). Connect to a 2.4 GHz or 5 GHz Wi-Fi hotspot for online navigation and app downloads.
Image 6.4: The ABSOSO car stereo screen showing GPS navigation with a map, surrounded by icons representing various applications accessible via WiFi hotspot.
6.8 Adjustable Floating Screen
The 10.1-inch display is rotatable by 360 degrees and can be adjusted vertically and tilted to achieve optimal viewing angles, reducing glare and improving visibility.
6.9 Sound Tuning
Customize your audio experience with preset equalizer settings. The unit delivers a maximum power output of 200W and includes pre-amp and subwoofer outputs for enhanced sound quality.
6.10 Backup Camera Input
Connect a compatible backup camera (sold separately) to the RCA input. The stereo will automatically display the rearview camera feed when the vehicle is in reverse, aiding in accurate parking and maneuvering.
Image 6.5: Illustration of the backup camera input connection to the ABSOSO car stereo, showing how the camera feed is displayed on the screen when reversing.
7. Održavanje
7.1 Čišćenje ekrana
Koristite meku krpu koja ne ostavlja dlačice da nježno obrišete ekran osjetljiv na dodir. Za tvrdokorne mrlje, lagano obrišiteampOperite krpu vodom ili sredstvom za čišćenje ekrana. Izbjegavajte abrazivne materijale ili jake hemikalije.
7.2 Opšta njega
Keep the unit free from dust and debris. Ensure proper ventilation around the unit to prevent overheating. Do not block any vents or openings.
8. Otkrivanje problema
- Nema napajanja: Provjerite sve priključke za napajanje i osigurače. Uvjerite se da je paljenje vozila uključeno.
- Nema zvuka: Verify speaker connections. Check volume levels and mute settings. Ensure the correct audio source is selected.
- Bluetooth/CarPlay/Android Auto Connection Issues: Ensure your phone's Bluetooth and Wi-Fi are enabled. Try restarting both the stereo and your phone. Forget and re-pair the device.
- Gubitak GPS signala: Osigurajte da GPS antena ima čist view of the sky. Check antenna connection.
- Ekran ne reaguje: Pokušajte ponovo pokrenuti uređaj. Ako problem i dalje postoji, obratite se korisničkoj podršci.
9. Specifikacije
- Dimenzije proizvoda: 6.4"D x 9.8"Š x 5.9"H
- Težina artikla: 4.73 funte
- Prikaz: 10.1 Inch HD IPS Touchscreen (1280*720P)
- Povezivanje: Bluetooth, USB, Wi-Fi (2.4 GHz & 5 GHz)
- Posebne karakteristike: 360° Rotatable Floating Touchscreen, Wireless Android Auto, Apple CarPlay, Mirrorlink, GPS Navigation (Online/Offline Maps), AM/FM Radio, AV Input, Rearview Camera Input, USB Charging, Voice Control, Preset EQ, Video Output, Amplifier/Subwoofer Output
- Memorija: 2G RAM + 64GB ROM
- Način audio izlaza: Stereo
- Konfiguracija kanala surround zvuka: 4
- Video kodiranje: H.264, H.265/HEVC
10. Garancija i podrška
For warranty information and technical support, please refer to the documentation included with your purchase or contact ABSOSO customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
For further assistance, visit the official ABSOSO webstranicu ili kontaktirajte njihove kanale za podršku.
