Uvod
This manual provides detailed instructions for the safe and effective use of your PNI PMR R45 PRO portable radio. Please read this manual thoroughly before operating the device to ensure proper functionality and to prevent damage.
Image: PNI PMR R45 PRO Portable Radio, front view.
Sadržaj paketa
Provjerite da li se u vašem paketu nalaze sve dolje navedene stavke:
- 1 x PNI PMR R45 PRO Radio Station
- 1 x Li-Ion Battery (2000 mAh)
- 1 x stoni punjač
- 1 x Wall Power Supply
- 1 x USB tip C kabel
- 1 x antena
- 1 x kopča za pojas
- 1 x Korisnički priručnik (ovaj dokument)

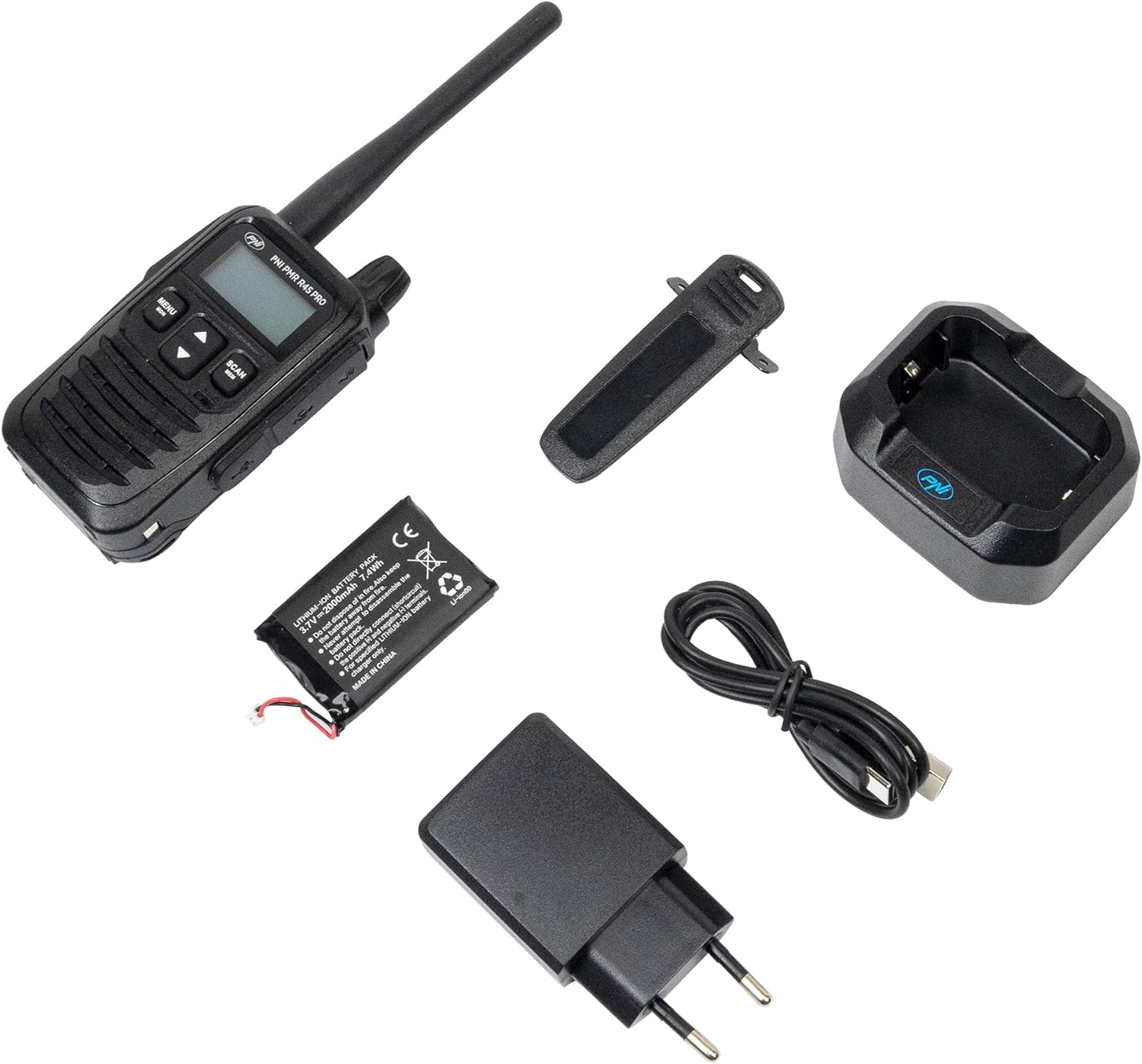

Image: All components included in the PNI PMR R45 PRO package.
Setup
1. Instalacija baterije
- Provjerite je li radio isključen.
- Pronađite poklopac odjeljka za baterije na stražnjoj strani radija.
- Slide the cover downwards or unlatch it to open.
- Insert the Li-Ion battery into the compartment, ensuring the contacts align correctly.
- Vratite poklopac odeljka za baterije i pričvrstite ga.
Image: Open battery compartment of the PNI PMR R45 PRO radio, showing battery insertion.
2. Punjenje baterije
- Connect the USB Type C cable to the desktop charger.
- Connect the wall power supply to the USB Type C cable and plug it into a power outlet.
- Place the radio into the desktop charger. Ensure the charging indicator light illuminates.
- Prije prve upotrebe, potpuno napunite bateriju (otprilike 3-4 sata).
Image: PNI PMR R45 PRO radio placed in its desktop charging cradle, connected to a wall adapter via USB-C cable.
3. Pričvršćivanje kopče za remen
- Poravnajte kopču za kaiš sa predviđenim utorima na poleđini radija.
- Slide the belt clip upwards until it clicks securely into place.
Image: A hand demonstrating the attachment of the belt clip to the back of the PNI PMR R45 PRO radio.
Image: PNI PMR R45 PRO radio with the belt clip securely attached.
Uputstvo za upotrebu
Basic Operation
- Uključivanje/isključivanje: Press and hold the power button (usually combined with volume knob) until the LCD screen illuminates or turns off.
- Podešavanje jačine zvuka: Okrenite dugme za jačinu zvuka u smjeru kazaljke na satu da biste povećali jačinu zvuka, a suprotno od kazaljke na satu da biste je smanjili.
- Odabir kanala: Use the Up/Down arrow buttons to select one of the 99 available channels.
- Pritisni za razgovor (PTT): Press and hold the PTT button on the side of the radio to transmit your voice. Release to listen.
Image: A hand holding the PNI PMR R45 PRO radio, with a finger positioned on the Push-to-Talk (PTT) button.
Slika: Sa strane view of the PNI PMR R45 PRO radio, highlighting the PTT button and other side controls.
Napredne funkcije
- CTCSS/DCS kodovi: To ensure private conversations, set the same CTCSS (38 tones) or DCS (104 codes) sub-code on all radios in your group. Refer to the radio's menu for setting these codes.
- VOX Function (Voice Operated Exchange): Activates transmission automatically when you speak, without needing to press the PTT button. The PNI PMR R45 PRO offers 3 sensitivity levels for VOX. Activate and adjust in the menu.
- Squelch: Suppresses weak signals and background noise. The radio features 5 squelch levels. Higher levels require stronger signals to open the receiver. Adjust in the menu.
- Funkcija skeniranja: Scans through active channels to find ongoing conversations. Activate by pressing the 'Scan' button or through the menu.
- Roger Beep: An audible tone transmitted when the PTT button is released, signaling the end of your transmission. Can be enabled/disabled in the menu.
- Zaključavanje tastature: Prevents accidental changes to settings. Activate/deactivate via the menu or a dedicated button.
- Tonovi poziva: Choose from 5 selectable call tones to alert other users.
- Tajmer za istek vremena (TOT): Limits the duration of a single transmission to prevent accidental continuous transmission and conserve battery.
- Blokada zauzetog kanala (BCL): Prevents transmission on a channel that is already in use.
- Automatic Power Saver: Extends battery life by reducing power consumption during periods of inactivity.
- Indikator slabe baterije: An icon or audible alert will notify you when the battery level is low.
Održavanje
- čišćenje: Koristite meku, damp krpu za čišćenje vanjštine radija. Ne koristite jake hemikalije ili abrazivna sredstva za čišćenje.
- Održavanje baterije: For optimal battery life, avoid fully discharging the Li-Ion battery frequently. Charge the radio regularly. If storing for extended periods, charge the battery to about 50% and store in a cool, dry place.
- Skladištenje: Radio čuvajte na suhom mjestu, dalje od ekstremnih temperatura i direktne sunčeve svjetlosti.
- antena: Do not bend or modify the antenna. A damaged antenna can affect performance.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Radio se ne uključuje. | Baterija je prazna ili nije pravilno instalirana. | Napunite bateriju ili je ponovo pravilno instalirajte. |
| Ne može se slati ili primati. | Incorrect channel/sub-code, out of range, or low battery. | Verify channel and CTCSS/DCS settings. Move closer to other radios. Charge battery. |
| Loš kvalitet zvuka ili statički šum. | Slab signal, visok nivo prigušivanja šuma ili smetnje. | Podesite nivo šuma. Premjestite se na područje s boljim signalom. Provjerite izvore smetnji. |
| Trajanje baterije je kraće od očekivanog. | Frequent transmissions, high volume, or aging battery. | Utilize power-saving features. Reduce transmission time. Consider replacing the battery if it's old. |
Specifikacije
| Šifra proizvoda | PNI-R45-PRO |
| Tip | PMR446 Portable Radio |
| Frequency (UHF) | 446.00625 ~ 446.19375 MHz |
| Kanali | 99 (16 PMR + 38 CTCSS / 104 DCS) |
| Frekvencijski korak | 12.5 kHz (PMR) |
| Sigurnosni kodovi | 38 CTCSS, 104 DCS |
| Snaga prijenosa | 0.5W |
| Napajanje | Li-Ion Battery (2000 mAh) |
| Battery Life (5/5/90 cycle) | Do 12 sati |
| Radna temperatura | -26°C ~ +80°C |
| Težina (sa baterijom) | 145 g |
| Dimenzije (D x V x D) | 55 x 185 x 30 mm (100 mm without antenna) |
| Dužina antene | 95 mm |
| Audio Accessory Pins | 2-pin PNI-K |
| Port za punjenje | USB tip C |
| Posebne karakteristike | VOX (3 levels), Squelch (5 levels), Scan, Roger Beep, Keypad Lock, TOT, BCL, Low Battery Indicator, Automatic Power Saver, Dual Watch, Channel Monitor, Programmable. |
Garancija i podrška
The PNI PMR R45 PRO portable radio comes with a 2-godišnja garancija proizvođača od datuma kupovine. Ova garancija pokriva nedostatke u materijalu i izradi pri normalnoj upotrebi.
For technical support, warranty claims, or service inquiries, please contact the manufacturer:
- Proizvođač: ONLINESHOP SRL
- Email: comenzi@pni.ro
- Adresa: Olteniei 26A, Piatra Neamt, Neamt 610206, Romania
Image: Bottom label of the PNI DCR45 desktop charger, showing manufacturer information and contact details.
