Uvod
This manual provides essential instructions for the safe assembly, operation, and maintenance of your INTEX Prism 8,592 Liters Structural Pool. Please read all instructions carefully before setup and use to ensure proper function and safety. Retain this manual for future reference.
Image: The INTEX Prism Structural Pool, showcasing its complete setup including the pool, filter pump, and safety ladder, with individuals enjoying the pool.
Sigurnosne informacije
UPOZORENJE: Nepridržavanje ovih uputa može dovesti do ozbiljnih ozljeda ili smrti.
- Potreban nadzor odrasle osobe: Always provide active adult supervision to children and individuals with disabilities in and around the pool.
- Bez ronjenja: This pool is not designed for diving. Shallow water can cause serious injury.
- Čisto područje: Keep children away from the pool cover to avoid entanglement. Ensure the area around the pool is clear of obstacles.
- Hemijska upotreba: Handle pool chemicals according to manufacturer instructions. Improper use can cause skin and eye irritation.
- električna sigurnost: Connect the filter pump to a grounded 110v outlet protected by a Ground Fault Circuit Interrupter (GFCI). Do not use extension cords.
- Sigurnost ljestava: Use the ladder only for entering and exiting the pool. Do not allow children to play on the ladder.
Sadržaj paketa
Prije početka montaže provjerite da li su sve komponente prisutne:
- 1 x INTEX Prism Structural Pool Liner (8,592 Liters capacity)
- 1 x INTEX Filter Pump (2,006 Liters/hour, 110v)
- 1 x INTEX Safety Ladder
- Complete Metal Frame Components (legs, horizontal beams, pins)
- Crijeva i Clamps za priključak filter pumpe
- Ground Cloth (may be included or recommended separately)
Uputstva za postavljanje
- Odabir lokacije: Choose a firm, level surface for pool installation. The area must be free of sharp objects, debris, and have adequate drainage. Ensure the ground can support the weight of the filled pool.
- Postavljanje podloge: Lay the ground cloth (if included) on the selected site. This protects the pool liner from punctures.
- Sklop okvira: Following the diagrams provided in the separate assembly guide, connect all metal frame components. Ensure all T-joints, horizontal beams, and vertical legs are securely interlocked with the spring-loaded pins.
- Instalacija obloge: Carefully spread the pool liner within the assembled frame. Position the drain plug away from the main traffic area. Smooth out any major wrinkles in the bottom of the liner.
- Priključak pumpe: Connect the filter pump to the designated inlet and outlet ports on the pool liner using the provided hoses and clamps. Provjerite da su svi spojevi čvrsti kako biste spriječili curenje.
- Sastavljanje ljestava: Assemble the safety ladder according to its specific instructions. Place the ladder securely against the pool.
- Punjenje bazena: Begin filling the pool with water. As the water level rises, continue to smooth out any remaining wrinkles in the liner from the center outwards. Stop filling when the water reaches the recommended level, typically just below the top frame rail.

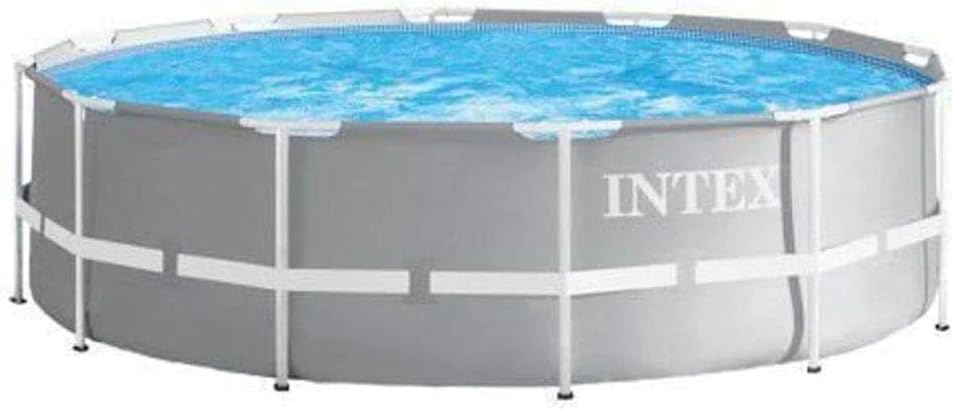

Image: The INTEX Prism Structural Pool fully assembled and filled with water in a garden setting, with individuals enjoying the pool.
Image: The INTEX Prism Structural Pool fully assembled and filled with water, situated in a garden environment.
Uputstvo za upotrebu
- Početni rad pumpe: Ensure the filter pump is properly connected to the pool and a grounded 110v GFCI outlet. Open all valves to allow water flow. Turn on the pump. It may take a few moments for water to circulate and air to purge from the system.
- Dnevni rad: Run the filter pump for 2-4 hours daily to maintain water circulation and filtration. The exact duration may vary based on pool usage, water clarity, and environmental conditions.
Održavanje
- Hemija vode: Regularly test your pool water's pH and chlorine levels using a pool test kit. Maintain pH between 7.2 and 7.6, and chlorine levels between 1-3 ppm. Adjust as needed with appropriate pool chemicals.
- čišćenje: Skim debris (leaves, insects) from the water surface daily. Vacuum the pool floor as necessary to remove settled dirt and particles.
- Filter Cartridge: Turn off and unplug the filter pump before cleaning or replacing the filter cartridge. Clean or replace the filter cartridge every 2 weeks, or more frequently with heavy pool use or if water appears cloudy.
- Zimljenje: For regions with freezing temperatures, consult local guidelines for proper pool winterization procedures to prevent damage to the pool and equipment.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Mutna voda | Insufficient filtration, improper chemical balance, heavy use. | Check/clean filter cartridge, adjust water chemicals, run pump for longer periods. |
| Filter Pump Not Working | No power, clogged impeller, airlock in system. | Check power connection and GFCI, clean impeller, bleed air from pump. |
| Curenje vode | Loose hose connections, damaged liner, faulty drain plug. | Zategnite crijevo clamps, inspect liner for punctures (use repair kit), ensure drain plug is secure. |
Specifikacije
| Feature | Detalj |
|---|---|
| Brand | INTEX |
| Naziv modela | Prizma |
| Broj modela | 26715 |
| Kapacitet | 8,592 litara |
| Sastavljene dimenzije | 366 cm (prečnik) x 99 cm (visina) |
| Liner Material | 3-ply PVC-polyester |
| Materijal okvira | Epoxy-treated Steel |
| Protok filterske pumpe | 2,006 litara/sat |
| Volumen filter pumpetage | 110v |
| Boja | Grey |
| Približna težina paketa | 40 kg |
Garancija i podrška
For detailed warranty information, product registration, or customer support, please refer to the documentation included with your INTEX Prism Structural Pool. It is recommended to keep your original purchase receipt as proof of purchase for any warranty claims. You may also visit the official INTEX webstranicu za dodatnu pomoć i kontakt informacije.
