UPGENT GD3024EMH 3000W/24V Off-Grid Pure Sine Wave Inverter Instruction Manual

1. Uvod

Thank you for choosing the UPGENT GD3024EMH Off-Grid Pure Sine Wave Inverter. This all-in-one machine is designed to provide reliable power conversion for photovoltaic solar energy storage systems. It converts DC power from solar panels or batteries into stable AC power suitable for various household and outdoor applications. This manual provides essential information for the safe installation, operation, and maintenance of your inverter.

Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your device. Keep this manual for future reference.

2. Sigurnosna uputstva

Važne sigurnosne mjere:

• Prije instalacije i rada pažljivo pročitajte sva uputstva.
• Instalaciju mora izvršiti kvalificirano osoblje u skladu s lokalnim električnim propisima.
• Ne rastavljajte inverter. Unutra nema dijelova koje korisnik može sam servisirati. Za servisiranje se obratite kvalifikovanom servisnom osoblju.
• Osigurajte odgovarajuću ventilaciju oko pretvarača kako biste spriječili pregrijavanje.
• Držite inverter dalje od zapaljivih materijala, vlage i direktne sunčeve svjetlosti.
• Always disconnect all power sources (solar panels, battery) before performing any maintenance or wiring.
• Koristite odgovarajuću ličnu zaštitnu opremu (LZO) tokom instalacije i održavanja.
• This inverter is designed for off-grid applications only. Do not connect it to the public utility grid.
• Proverite da li je baterija voltage matches the inverter's input voltage requirement (24V).
• Osigurajte da su svi spojevi čvrsti i sigurni kako biste spriječili labave spojeve i potencijalne opasnosti.

3. Sadržaj paketa

Prilikom raspakivanja, molimo Vas da provjerite da li su sve dolje navedene stavke prisutne i da nisu oštećene:

• UPGENT GD3024EMH Off-Grid Pure Sine Wave Inverter (1 unit)
• Korisnički priručnik (1 primjerak)
• DC Input Cables (Battery Cables) (1 set)
• AC Output Terminal Block (1 unit)
• Vijci za montažu (4 komada)

Ako bilo koji predmet nedostaje ili je oštećen, odmah kontaktirajte svog prodavača.

4. Proizvod je gotovview

The UPGENT GD3024EMH is a high-frequency, all-in-one inverter designed for efficient solar energy conversion and storage. It features a pure sine wave output, ensuring compatibility with sensitive electronics.

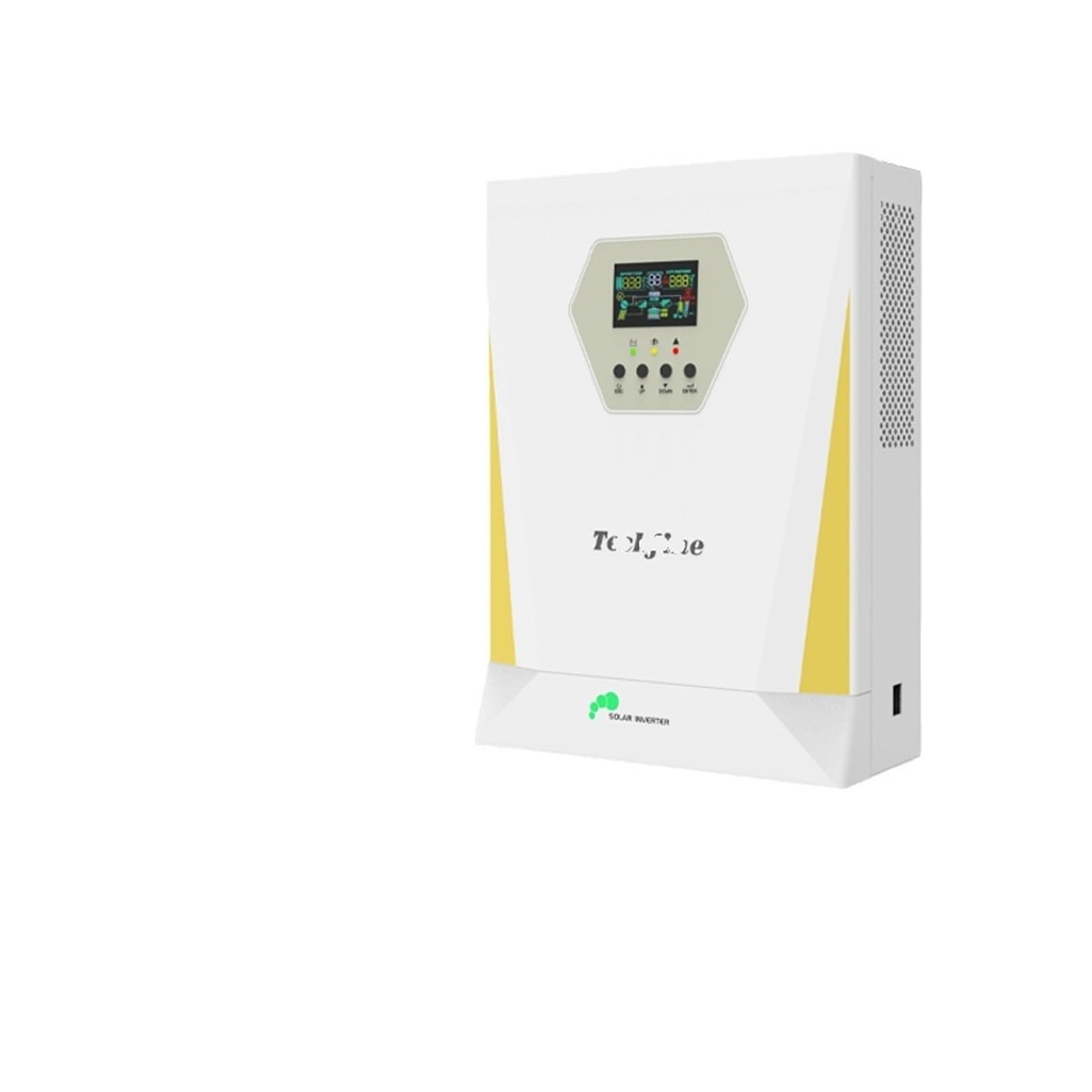

Slika 1: Prednja strana view of the UPGENT GD3024EMH Inverter, showing display and control buttons.

Ključne karakteristike:

• Pure Sine Wave Output: Ensures clean and stable power for all connected devices.
• High Frequency Design: Compact and efficient.
• Integrated Solar Charge Controller: Manages charging from solar panels to batteries.
• Battery Charger: Can charge batteries from an AC source (if applicable to this model, assuming it is an all-in-one).
• LCD Display: Provides real-time operating status and parameters.
• Multiple Protection Functions: Overload, short circuit, over-temperature, over-voltage, pod-voltage zaštita.

5. Postavljanje i instalacija

5.1 Odabir lokacije:

• Instalirajte inverter u zatvorenom prostoru, na suhom i dobro prozračenom mjestu.
• Izbjegavajte direktnu sunčevu svjetlost, visoke temperature i visoku vlažnost.
• Ensure sufficient clearance (at least 20 cm) around the inverter for proper airflow.
• Mount on a non-flammable surface.

5.2 Mounting the Inverter:

1. Select a suitable vertical wall surface.
2. Mark the positions for the mounting screws using the inverter as a template.
3. Izbušite pilot rupe i po potrebi umetnite odgovarajuće zidne tiple.
4. Securely mount the inverter to the wall using the provided mounting screws.

5.3 Ožičenje:

UPOZORENJE: Ensure all power sources are disconnected before making any wiring connections. Incorrect wiring can cause severe damage to the inverter, batteries, and connected loads, and poses a risk of electric shock.

1. Povezivanje baterije:
   • Connect the positive (+) terminal of the 24V battery bank to the positive (+) DC input terminal on the inverter.
   • Connect the negative (-) terminal of the 24V battery bank to the negative (-) DC input terminal on the inverter.
   • Ensure correct polarity. Reverse polarity will damage the inverter.
   • Use appropriate gauge cables for the battery connection, considering the inverter's current rating.
2. Solar Panel Connection (PV Input):
   • Connect the positive (+) output from your solar panel array to the PV+ terminal on the inverter.
   • Connect the negative (-) output from your solar panel array to the PV- terminal on the inverter.
   • Verify that the open-circuit voltage (Voc) of your solar array does not exceed the maximum PV input voltage specified for the GD3024EMH.
   • Osigurajte ispravan polaritet.
3. Priključak naizmjeničnog izlaza:
   • Connect your AC loads (appliances, lights, etc.) to the AC output terminals of the inverter.
   • Ensure the total power consumption of your loads does not exceed the inverter's rated output power (3000W).
   • Pravilno uzemljite inverter u skladu s lokalnim električnim propisima.

5.4 Početno uključivanje:

1. Double-check all wiring connections for tightness and correct polarity.
2. Connect the battery bank to the inverter.
3. If solar panels are connected, ensure they are receiving sunlight.
4. Turn on the inverter's power switch.
5. Pratite LCD ekran za indikatore statusa i sve poruke o greškama.

6. Upravljanje pretvaračem

6.1 LCD Display and Control Buttons:

LCD ekran pruža informacije u realnom vremenu o statusu invertera, ulaznoj/izlaznoj jačini napona.tages, battery charge level, and error codes. Use the control buttons (typically UP, DOWN, ENTER/SET, ESC) to navigate through menus and adjust settings.

6.2 Osnovni rad:

• Uključivanje/isključivanje: Press and hold the power button for a few seconds to turn the inverter on or off.
• Nadgledanje: Cycle through the display screens to view various parameters such as PV input voltage, zapremina baterijetage, AC izlaz voltage, procenat opterećenjatage, i način rada.
• Postavljanje parametara: Access the settings menu to configure battery type, charging current, AC output voltage/frequency, and other operational parameters. Refer to the detailed menu structure in the full manual for specific adjustments.

6.3 načina rada:

The GD3024EMH typically supports various operating modes, such as:

• Solarni prioritet: Solar power is used first to power loads and charge batteries.
• Utility Priority (if applicable): AC utility power is used first, with solar as a backup. (Note: This is an off-grid inverter, so utility priority might refer to a generator input if available, or not be present).
• Prioritet baterije: Loads are powered primarily from batteries, with solar charging them.

Select the appropriate mode based on your energy usage and solar availability.

7. Održavanje

Regular maintenance ensures the longevity and optimal performance of your UPGENT inverter.

• čišćenje: Povremeno čistite vanjski dio invertera suhom, mekom krpom. Osigurajte da su ventilacijski otvori bez prašine i ostataka. Ne koristite tekuća sredstva za čišćenje.
• Veze: Annually check all wiring connections (battery, solar, AC output) for tightness and corrosion. Loose connections can cause overheating and poor performance.
• Pregled baterije: Regularly inspect your battery bank for signs of damage, corrosion, or swelling. Ensure battery terminals are clean and tight. Follow the battery manufacturer's maintenance guidelines.
• Okruženje: Osigurajte da temperatura i vlažnost okoline u kojoj se instalacija održavaju unutar specificiranih raspona.
• Ažuriranja firmvera: Check the UPGENT website or contact support for any available firmware updates, if applicable.

OPREZ: Uvijek isključite sve izvore napajanja prije izvođenja bilo kakvog održavanja.

8. Otkrivanje problema

This section provides solutions to common issues you might encounter. If the problem persists, contact UPGENT technical support.

9. Specifikacije

The following are the technical specifications for the UPGENT GD3024EMH Inverter:

Note: Specifications are subject to change without prior notice. Refer to the product label for the most accurate information.

10. Garancija i podrška

Informacije o garanciji:

UPGENT products are manufactured to high-quality standards and are warranted against defects in materials and workmanship for a limited period from the date of purchase. This warranty does not cover damage caused by improper installation, misuse, abuse, natural disasters, or unauthorized modifications.

Molimo sačuvajte svoj dokaz o kupovini za zahtjeve u vezi s garancijom.

tehnička podrška:

For technical assistance, troubleshooting, or warranty inquiries, please contact UPGENT customer support. Provide your product model number (GD3024EMH) and a detailed description of the issue when contacting support.

Contact information can typically be found on the UPGENT official webweb-mjestu ili na ambalaži proizvoda.
