Cecotec Conga Ash 3000 Compact Plus Usisivač za Pepel - Uputstvo za upotrebu

1. Uvod i krajview

The Cecotec Conga Ash 3000 Compact Plus is a powerful ash vacuum cleaner designed for efficient removal of cold ash and various debris. With a 1000W motor and a 15-liter stainless steel tank, it offers robust performance for cleaning fireplaces, pellet stoves, barbecues, and other areas with fine or coarse dirt. This manual provides essential information for safe and effective use, setup, operation, and maintenance of your ash vacuum cleaner.

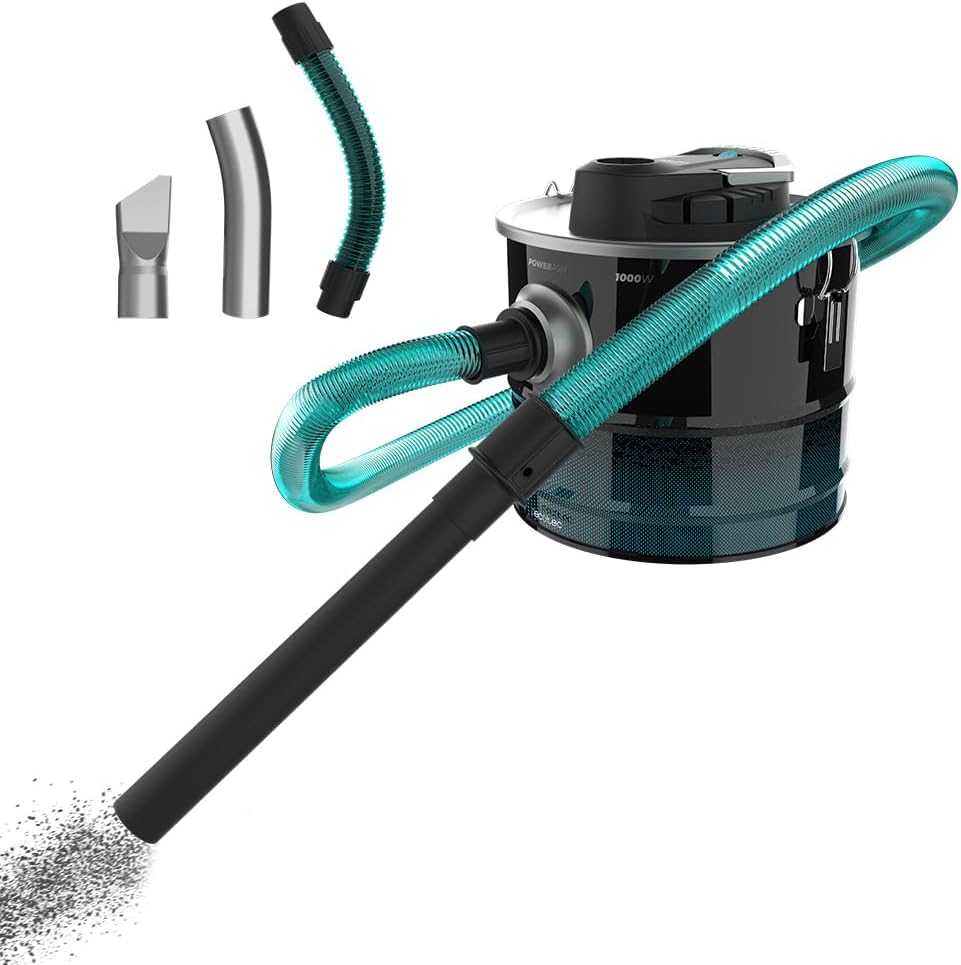

Gotovoview of the Cecotec Conga Ash 3000 Compact Plus ash vacuum cleaner, showcasing its main unit, flexible suction hose, and various nozzles for different cleaning tasks.

2. Sigurnosna uputstva

Please read all safety instructions carefully before using the appliance to prevent accidents and ensure proper operation. Keep this manual for future reference.

• Samo hladni pepeo: Only vacuum completely cold ash. Hot ash or embers can cause fire and damage the appliance.
• Bez tečnosti: This appliance is designed for dry vacuuming only. Do not vacuum liquids or wet materials.
• električna sigurnost: Ensure the power cord and plug are undamaged. Do not operate with a damaged cord or plug. Unplug the appliance from the power outlet before cleaning or performing any maintenance.
• Instalacija filtera: Always ensure the filter is correctly installed and clean before use to maintain suction efficiency and prevent motor damage.
• Nadzor: Ovaj uređaj mogu koristiti djeca starija od 8 godina i osobe sa smanjenim fizičkim, senzornim ili mentalnim sposobnostima ili nedostatkom iskustva i znanja ako su pod nadzorom ili upute o korištenju uređaja na siguran način i razumiju opasnosti koje su uključene. . Djeca se ne smiju igrati s uređajem. Čišćenje i korisničko održavanje ne smiju obavljati djeca bez nadzora.
• Pravilna upotreba: Nemojte koristiti uređaj u druge svrhe osim onih opisanih u ovom priručniku.
• ventilacija: Ensure adequate ventilation when operating the vacuum cleaner in enclosed spaces.

3. Sadržaj paketa

Prilikom raspakivanja provjerite da li su sve komponente prisutne i u dobrom stanju:

• Cecotec Conga Ash 3000 Compact Plus Ash Vacuum Cleaner Unit
• Reinforced Suction Hose with Metallic Coating
• 38mm mlaznica
• Filter with Metallic Mesh

Čist front view of the ash vacuum cleaner, highlighting its compact design and the 15L capacity marking on the tank.

4. Značajke proizvoda

• UltraPower tehnologija: Equipped with a 1000W motor for powerful and efficient suction.
• Extreme Suction Capability: Designed to effectively vacuum various types of debris, including cold ash from fireplaces and pellet stoves, barbecue residues, soil, glass shards, construction material remnants, leaves, and sawdust.
• Resistant Suction Hose: Features a reinforced suction hose with a metallic coating, ensuring durability and heat resistance for demanding cleaning tasks.
• InoxDeposit Tank: Large 15-liter capacity tank made from stainless steel, offering high resistance to heat and dirt.
• Metallic Mesh Filter: The integrated filter with a metallic mesh ensures optimal suction performance and helps prevent damage from fine particles.
• Easy Handling and Portability: Designed with an integrated handle for convenient transport and maneuverability.
• Large Diameter Accessories: Includes accessories with a wide diameter for efficient and effortless cleaning of various surfaces.

The ash vacuum cleaner demonstrating its powerful suction capability by cleaning up broken glass fragments from a tiled surface.

A person easily carrying the compact ash vacuum cleaner by its integrated handle, illustrating its portability and ease of transport.

5. Podešavanje

Follow these steps to prepare your ash vacuum cleaner for use:

1. Raspakujte komponente: Pažljivo uklonite sve dijelove iz ambalaže.
2. Pričvrstite usisno crijevo: Connect the reinforced suction hose securely to the inlet port on the vacuum cleaner unit.
3. Instalirajte mlaznicu: Insert the 38mm nozzle firmly onto the free end of the suction hose.
4. Verify Filter: Ensure the metallic mesh filter is properly seated and secured inside the tank, beneath the motor head.
5. Secure Tank: Place the motor head onto the tank and fasten the clips on both sides to ensure a tight seal.

6. Uputstvo za upotrebu

To operate the Cecotec Conga Ash 3000 Compact Plus:

1. Ensure Ash is Cold: Crucially, confirm that the ash or debris you intend to vacuum is completely cold. Vacuuming hot materials can cause severe damage and fire hazards.
2. Priključak: Umetnite utikač u odgovarajuću električnu utičnicu.
3. Uključeno: Locate the power switch on the unit and switch it to the 'ON' position. The vacuum cleaner will start.
4. Usisavanje: Direct the nozzle towards the ash or debris. Move the nozzle slowly and steadily over the surface to ensure thorough cleaning.
5. Iskljuciti: After cleaning, switch the power button to the 'OFF' position and unplug the appliance from the power outlet.

Demonstration of the ash vacuum cleaner in use, effectively removing cold ash from a fireplace hearth using the specialized nozzle.

A user cleaning leaves and light debris from a tiled area near a pool, showcasing the vacuum's versatility for various dry cleaning tasks.

7. Održavanje

Redovno održavanje osigurava optimalne performanse i produžava vijek trajanja vašeg usisivača za pepeo.

7.1 Pražnjenje rezervoara

1. Isključite: Always unplug the vacuum cleaner from the power outlet before any maintenance.
2. Unlatch: Release the clips on the sides of the tank that secure the motor head.
3. Glava podizanja: Carefully lift the motor head from the stainless steel tank.
4. Prazno: Dispose of the collected ash and debris into an appropriate waste container.

7.2 Čišćenje filtera

The metallic mesh filter should be cleaned regularly, especially when suction power decreases.

1. Ukloni filter: With the motor head removed, carefully detach the filter.
2. Čisti: Gently tap the filter against a hard surface to dislodge accumulated dust and ash. For a more thorough cleaning, you can use a soft brush or rinse it with water.
3. Potpuno osušiti: If rinsed with water, ensure the filter is completely dry before reinstallation to prevent damage to the motor.
4. Ponovo instaliraj: Place the clean, dry filter back into its position and secure the motor head.

An image showing the motor head being lifted and the metallic mesh filter being removed from the ash vacuum cleaner's tank for maintenance and cleaning.

7.3 Hose and Nozzle Cleaning

• Inspect the suction hose and nozzle for any blockages. Clear any obstructions using a long, blunt object.
• Wipe down the exterior of the hose and nozzles with a damp krpom ako je potrebno.

8. Otkrivanje problema

If you encounter issues with your ash vacuum cleaner, refer to the following troubleshooting guide:

9. Specifikacije

10. Garancija i podrška

Cecotec products are designed for durability and performance. For specific warranty details, terms, and conditions, please refer to the warranty card included with your product packaging. You may also visit the official Cecotec website for the most up-to-date support information, FAQs, and contact details for customer service.

Please note that spare parts for this model are available for up to 10 years from the date of purchase, ensuring long-term usability and maintenance.

For technical assistance or inquiries, please contact Cecotec customer support through their official channels.
