Uvod
Welcome to the user manual for your new Dimplex Revillusion® 36 Inch Built-in Electric Firebox. This electric fireplace insert is designed to bring the beauty of realistic flames and life-like handcrafted wood logs into your home. It offers adjustable flame colors, dimming capabilities, and mood lighting to create the perfect ambiance. The translucent acrylic panel enhances the flame reflection off the herringbone brick interior, and the firebox lighting adapts to room conditions.
Beyond aesthetics, this unit features a powerful ceramic heater capable of warming up to 1,000 square feet, which can be deactivated for year-round flame enjoyment. The front glass remains cool to the touch, ensuring safety for children and pets. Installation is straightforward, requiring no venting, gas lines, or piping.
Sigurnosne informacije
UPOZORENJE: Ovaj proizvod vas može izložiti hemikalijama, uključujući čađu, za koju je u državi Kalifornija poznato da uzrokuje rak. Za više informacija idite na www.P65Warnings.ca.gov.
- Always read all instructions before using this appliance.
- Ne koristite kamin s oštećenim kabelom ili utikačem, ili ako je grijač neispravan, pao ili oštećen na bilo koji način.
- Ne provlačite kabl ispod tepiha. Nemojte prekrivati kabel prostirkama za bacanje, vodilicama ili sličnim pokrivačima. Postavite kabl dalje od saobraćajne površine i na mestu gde se neće spotaknuti.
- To prevent a possible electrical shock, do not immerse the heater, plug, or cord in water or other liquid.
- Održavajte pravilan razmak od zapaljivih materijala.
- Ensure the power source matches the requirements of the unit (120V).
- Keep children and pets away from the unit during operation, although the front glass remains cool.
Sadržaj paketa
Upon unpacking, please ensure all components listed below are present and undamaged:
- Dimplex Revillusion® 36 Inch Built-in Electric Firebox
- Realistic Faux Logset
- Prednja staklena ploča
- EZ Plug Kit (120V plug-in cord)
- Multifunkcionalni daljinski upravljač
- Uputstvo za upotrebu (ovaj dokument)

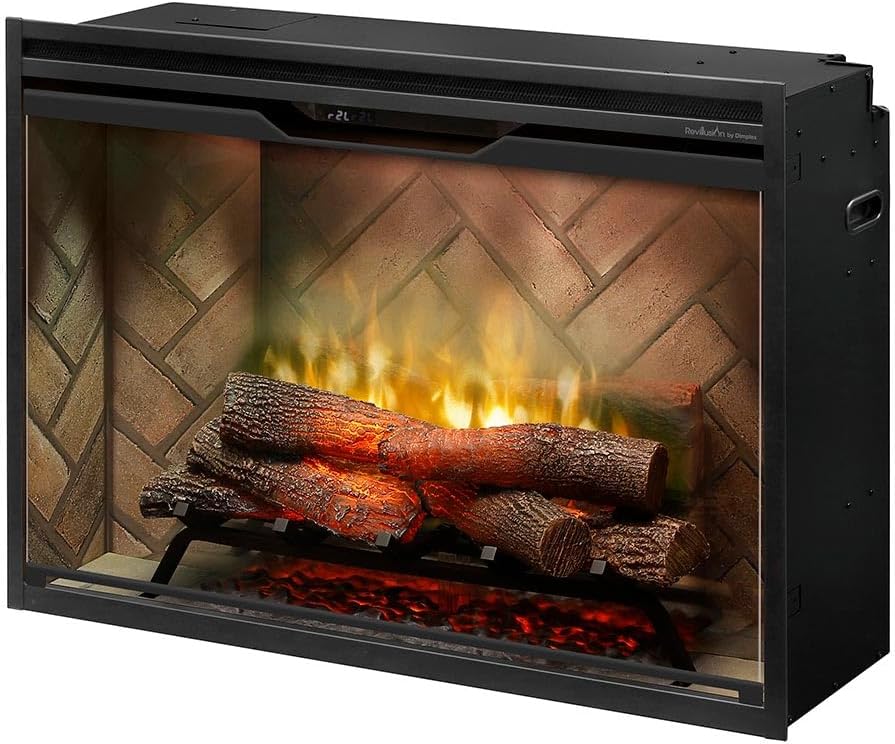

Slika 1: Prednja strana view of the Dimplex Revillusion 36 Inch Built-in Electric Firebox, showcasing the herringbone brick interior and realistic log set with active flames.
Setup
The Dimplex Revillusion® electric firebox is designed for easy installation without the need for venting, gas lines, or complex piping.
- Pripremite otvaranje: Ensure you have a framed opening that accommodates the firebox dimensions (approximately 12.13"D x 37.25"W x 26.63"H). Refer to the detailed dimension image for precise measurements.

Slika 2: Bočna strana view of the electric firebox with key dimensions indicated for installation planning.
- Električni priključak: You have two options for power connection:
- Dodatak: Use the included 120V EZ Plug Kit to connect the firebox to a standard electrical outlet.
- Hardwire: For a cleaner, integrated look, the unit can be hardwired by a qualified electrician.
- Insert the Firebox: Carefully slide the electric firebox into the prepared opening. Ensure it is level and securely positioned.
- Install Front Glass Panel: Attach the front glass panel according to the instructions provided in the separate installation guide (if applicable). This panel enhances the visual effect and protects the interior.
- Place Log Set: Arrange the realistic faux log set within the firebox as desired. The translucent acrylic panel should be positioned to reflect the flames effectively.

Slika 3: Detaljno view of the handcrafted log set and the realistic flame effect within the firebox.
Uputstvo za upotrebu
Your Dimplex Revillusion® firebox can be operated using the multi-function remote control or the integrated control panel.
Funkcije daljinskog upravljača:

Figure 4: The multi-function remote control for convenient operation of your firebox.
- Uključivanje/isključivanje: Press the power button (usually at the top) to turn the unit on or off.
- Flame Brightness/Color: Adjust the intensity and color of the flames to suit your preference. The Revillusion flame technology mimics a natural fire.
- Kontrola topline: Activate the ceramic heater for warmth. The heater can provide supplemental heat for up to 1,000 square feet. You can turn the heat function off independently to enjoy the flames without warmth during warmer months.
- Rasvjeta raspoloženja: Control the interior firebox lighting, which automatically adjusts to match the room's lighting conditions.
- Funkcija tajmera: Postavite tajmer za automatsko isključivanje.
- Podešavanje temperature: Increase or decrease the desired room temperature when the heater is active.
Funkcije kontrolne table:

Figure 5: The integrated control panel provides direct access to key functions.
The control panel, typically located on the unit itself, offers similar controls to the remote for direct operation. Refer to the labels on the panel for specific button functions.
Održavanje
Regular maintenance ensures the longevity and optimal performance of your electric firebox.
- čišćenje:
- Uvijek isključite napajanje prije čišćenja.
- Obrišite vanjske površine mekom krpom, damp krpom. Ne koristite abrazivna sredstva za čišćenje ili sprejeve.
- Gently clean the glass panel with a glass cleaner and a soft, lint-free cloth.
- Periodically vacuum the air intake and exhaust vents to prevent dust buildup.
- Set dnevnika: The realistic log set requires no maintenance other than occasional dusting. Do not attempt to clean with liquids.
- Zamjena žarulje: If the flame effect or interior lighting dims significantly, refer to the detailed instructions in the full product manual for bulb replacement procedures.
Rješavanje problema
If you encounter issues with your electric firebox, try the following steps before contacting support:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Jedinica se ne uključuje. | Nema struje, labava veza, isključen osigurač. | Check power cord connection. Ensure outlet is functional. Reset circuit breaker if tripped. |
| Nema efekta plamena. | Flame effect turned off, bulb failure. | Ensure flame effect is activated via remote/control panel. Check for bulb replacement if necessary. |
| Nema izlaza topline. | Funkcija grijanja isključena, termostat je podešen na prenisku temperaturu. | Activate heater function. Increase thermostat setting. |
| Daljinski upravljač ne radi. | Prazne baterije, prepreka, daljinski upravljač van dometa. | Replace remote batteries. Ensure no obstructions between remote and unit. Operate within recommended range. |
If the issue persists after attempting these solutions, please contact Dimplex customer support.
Specifikacije
- Brand: DIMPLEX
- Naziv modela: DIMPLEX
- Broj modela stavke: RBF36-FG
- ASIN: B0CGMMVFLP
- UPC: 781052152144
- Dimenzije proizvoda: 12.13"D x 37.25"Š x 26.63"H
- Težina artikla: 93.7 funti
- Izvor napajanja: Hardwire/Plug Kit (120V)
- Materijal: Brick or Concrete (Herringbone Brick Background)
- Vrsta završetka: Painted
- Vrsta instalacije: Ugrađeno
- Izlazna toplota: Capable of heating up to 1000 sq ft
- Posebna karakteristika: Corded (with EZ Plug Kit option)
- Vrsta sobe: Spavaća soba, Dnevna soba
- Vrsta ventilacije: Vent Free
- Vrsta plamenika: Keramika
- Dubina komore: 12.07 inča
- Maximum Compatible Size: 36 inča
Garancija i podrška
Your Dimplex Revillusion® Electric Firebox comes with a Ograničena garancija. Please refer to the warranty card included with your product for specific terms and conditions, including coverage duration and what is covered.
For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact Dimplex Customer Support. You can find contact information on the Dimplex webweb-mjestu ili putem vašeg prodavača.
Povratak: This product is eligible for 30-day easy returns. Please check with your retailer for their specific return policy.
