Skar Audio SKM8WD4 8-Inch Dual 4 Ohm Marine Subwoofer Instruction Manual

1. prekoview

The Skar Audio SKM8WD4 is an 8-inch marine-grade subwoofer designed for robust performance in challenging environments. It features a dual 4-ohm voice coil configuration, delivering 500 Watts of peak power and 250 Watts RMS. Constructed with durable materials, this subwoofer is built to withstand marine conditions while providing powerful and clear bass.

Slika 1: Prednja strana view of the Skar Audio SKM8WD4 8-inch marine subwoofer.

2. Značajke proizvoda

• 8-Inch Dual 4 Ohm Marine Subwoofer: Designed specifically for marine applications.
• Rukovanje snagom: 500 Watts Peak Power / 250 Watts RMS Power.
• Glasovna zavojnica: 2.0" (50.8mm) Dual 4-ohm High Temperature Copper Voice Coil for reliable performance.
• Frekvencijski odziv: 51 Hz - 300 Hz, providing deep and impactful bass.
• Osjetljivost: 84.5 dB, ensuring efficient power conversion to sound.
• Struktura motora: High Flux Ferrite Motor for strong magnetic field and precise cone control.
• Surround: High Roll Rubber Surround for enhanced excursion and durability.
• Materijal: Constructed from durable plastic and rubber, suitable for marine environments.
• Otpornost na vodu: IP67 Waterproof rating, salt fog resistant, and UV protected.

3. Šta se nalazi u kutiji

• 1 x Skar Audio SKM8WD4 8-Inch Marine Subwoofer
• 1 x Mounting Gasket
• Mounting Screws (Stainless Steel)

Figure 2: Included mounting gasket and stainless steel screws.

4. Postavljanje i instalacija

Proper installation is crucial for optimal performance and longevity of your marine subwoofer. Ensure all connections are secure and waterproof to prevent damage from moisture.

4.1 Lokacija montiranja

Choose a mounting location that provides adequate air space for the subwoofer (if not using a sealed enclosure) and is structurally sound. The subwoofer is designed for marine applications and can be mounted in areas exposed to moisture, but direct submersion should be avoided. Consider areas like boat benches or panels that offer some form of enclosure.

4.2 Procedura montaže

1. Pripremite otvaranje: Use the provided cutting template (if available, or refer to the dimensions in the specifications section) to mark and cut the mounting hole. Ensure the hole is clean and free of debris.
2. Apply Gasket: Place the mounting gasket around the subwoofer's frame to create a seal between the subwoofer and the mounting surface.
3. Sigurni subwoofer: Insert the subwoofer into the mounting hole. Align the screw holes and use the provided stainless steel screws to secure the subwoofer. Do not overtighten the screws to avoid damaging the frame.

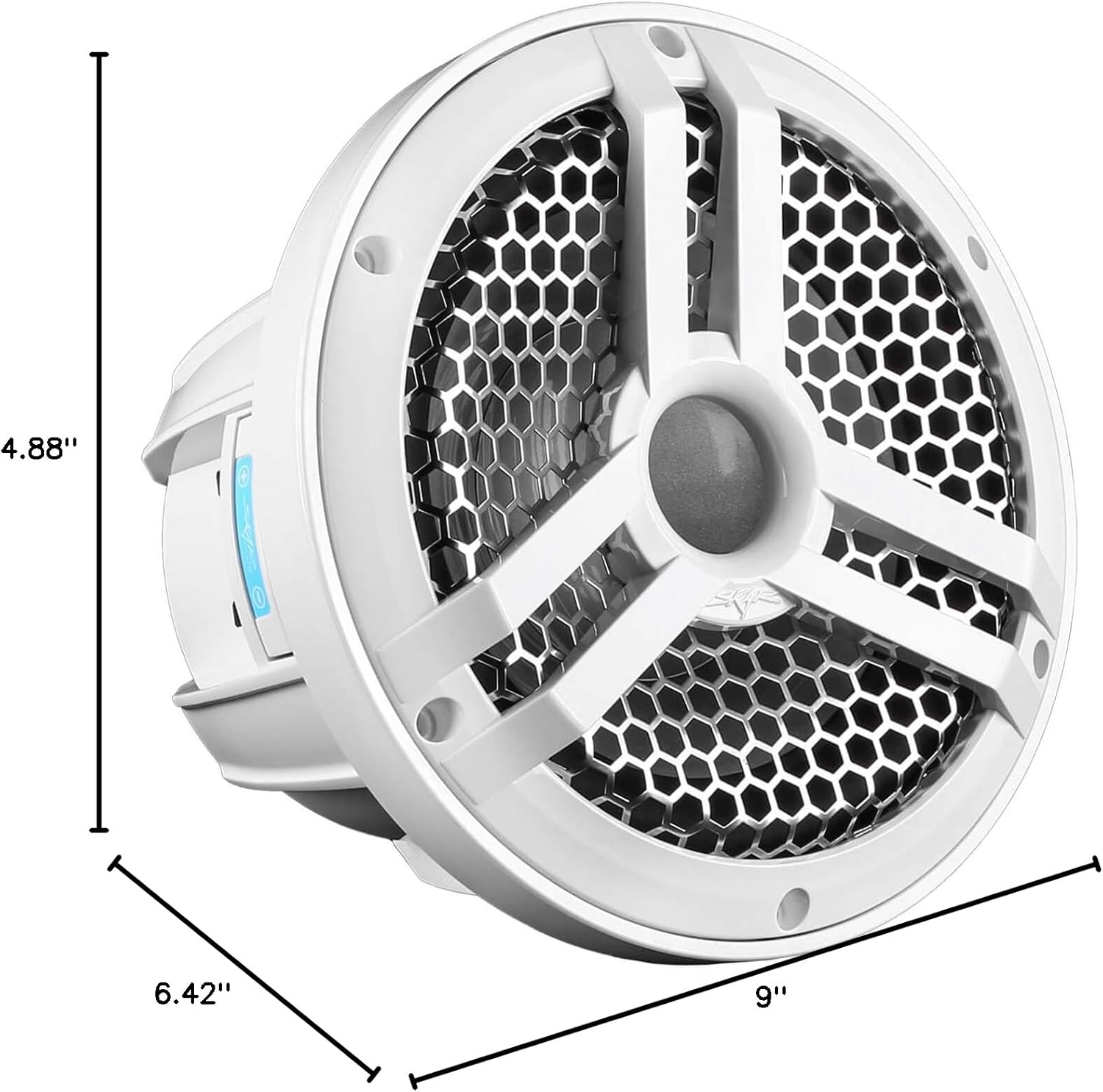

Figure 3: Subwoofer dimensions for accurate mounting.

5. Dijagram ožičenja

The SKM8WD4 features a dual 4-ohm voice coil. Proper wiring is essential to match the impedance requirements of your amplifier. Consult your amplifier's manual for recommended wiring configurations (series, parallel, or independent) to achieve the desired impedance (e.g., 2 ohms or 8 ohms for a dual 4-ohm subwoofer).

5.1 Povezivanje na Amplifier

1. Identifikujte terminale: Locate the positive (+) and negative (-) terminals on the subwoofer. The terminals are designed for wired connectivity.
2. Spojite žice: Use appropriate gauge marine-grade speaker wire. Connect the positive terminal of the subwoofer to the positive output of your amplifier and the negative terminal of the subwoofer to the negative output of your amplifier, following your chosen wiring configuration.
3. Sigurne veze: Ensure all wire connections are tight and free from corrosion. Use marine-grade connectors and heat shrink tubing for added protection against moisture.

Figure 4: Close-up of the subwoofer's wired terminals.

6. Uputstvo za upotrebu

Once installed and wired correctly, your Skar Audio SKM8WD4 subwoofer is ready for operation. Ensure your ampLiferier je uključen i povezan s vašim audio izvorom.

6.1 Početna reprodukcija

1. Start with Low Volume: Begin playing audio at a low volume level.
2. Podesite AmpPostavke lifiera: Gradually increase the volume and adjust any amplifier settings (gain, crossover, bass boost) to achieve desired sound quality without distortion.
3. Osluškujte distorziju: If you hear any distortion, reduce the volume or adjust amplifier settings immediately to prevent damage to the subwoofer.

7. Održavanje

To ensure the longevity and optimal performance of your marine subwoofer, regular maintenance is recommended.

• Redovno čišćenje: Wipe down the subwoofer grille and cone with a damp cloth to remove salt, dirt, and debris. Avoid using harsh chemicals or abrasive cleaners.
• Pregledajte veze: Periodically check all wiring connections for corrosion or looseness. Tighten any loose connections and clean any signs of corrosion.
• UV zaštita: While the subwoofer is UV protected, prolonged exposure to direct sunlight can still affect its appearance over time. Consider using a cover when the boat is not in use.
• Zimljenje: If storing your boat for the winter, ensure the subwoofer is clean and dry. Store in a climate-controlled environment if possible.

8. Otkrivanje problema

If you experience issues with your subwoofer, refer to the following troubleshooting tips:

• Nema zvuka:
  • Check all wiring connections (power, ground, signal, speaker wires) for proper contact and polarity.
  • Osigurajte amplifier is powered on and receiving a signal from the audio source.
  • Proverite da li je ampPostavke pojačanja i skretnice Lifiera su ispravno konfigurirane.
• izobličeni zvuk:
  • Smanjite amppodešavanje pojačanja Liferiera.
  • Provjerite ima li oštećenih žica zvučnika ili labavih spojeva.
  • Ensure the subwoofer is not overdriven (volume too high for its power rating).
• Isprekidan zvuk:
  • Inspect all connections for intermittent contact due to corrosion or loose terminals.
  • Check for any short circuits in the wiring.

9. Specifikacije

10. Garancija i podrška

The Skar Audio SKM8WD4 marine subwoofer comes with a Ograničena garancija. For specific details regarding warranty coverage, duration, and claims process, please refer to the warranty card included with your product or visit the official Skar Audio website. For technical support, troubleshooting assistance, or any other inquiries, please contact Skar Audio customer service.
