SHARDOR Electric Flat Burr Coffee Grinder Instruction Manual

Važna sigurnosna uputstva

Molimo vas da pažljivo pročitate sva uputstva prije upotrebe ovog uređaja. Nepoštivanje ovih uputstava može dovesti do strujnog udara, požara ili ozbiljnih povreda.

• Osigurajte napajanje voltage odgovara ocjeni na uređaju.
• Ne uranjajte uređaj, kabel ili utikač u vodu ili druge tekućine.
• Unplug from the outlet when not in use, before cleaning, or when assembling/disassembling parts.
• Keep hands and utensils out of the bean hopper and grounds container during operation to prevent injury.
• Nemojte koristiti uređaj s oštećenim kablom ili utikačem, ili nakon što uređaj pokvari ili je na bilo koji način oštećen.
• Ovaj aparat je samo za upotrebu u domaćinstvu. Ne koristiti na otvorenom.
• Neophodan je strogi nadzor kada bilo koji uređaj koriste djeca ili u blizini djece.

Product Overview

The SHARDOR Electric Flat Burr Coffee Grinder is designed to provide precise and consistent grinding for various coffee brewing methods. It features a digital display, multiple grind settings, and a flat burr grinding mechanism.

Image: The SHARDOR Electric Flat Burr Coffee Grinder, showcasing its main components including the bean hopper, control panel, and grounds container.

Setup

1. Raspakivanje: Carefully remove all packaging materials and ensure all parts are present: main unit, bean hopper, grounds container, cleaning brush.
2. plasman: Place the grinder on a stable, flat, and dry surface. Ensure there is adequate space around the unit for ventilation.
3. Instalirajte posudu za zrno: Align the bean hopper with the opening on the top of the main unit and twist clockwise until it locks securely into place.
4. Instalirajte kontejner za talog: Slide the grounds container into its designated slot at the front of the grinder. Ensure it is fully inserted.

Image: Illustration of how to correctly install the bean hopper onto the grinder's main unit.

Image: Illustration of how to correctly insert the grounds container into the grinder's base.

Uputstvo za upotrebu

1. Dodajte zrna kafe: Open the lid of the bean hopper and pour whole roasted coffee beans into the hopper. Do not overfill.
2. Odaberite postavku mljevenja: Rotate the grind selector dial to choose your desired fineness. The grinder offers 25 precise grind settings, ranging from fine (1-8 for Espresso) to medium (9-16 for Drip Coffee/Pour Over) to coarse (17-25 for French Press).

Image: Close-up of the grind setting dial, illustrating the 25 available fineness levels for different brewing methods.

3. Podesite vrijeme mljevenja: Use the digital timer control knob to set the desired grinding duration. The digital display will show the selected time in seconds. Adjust based on the amount of coffee needed.

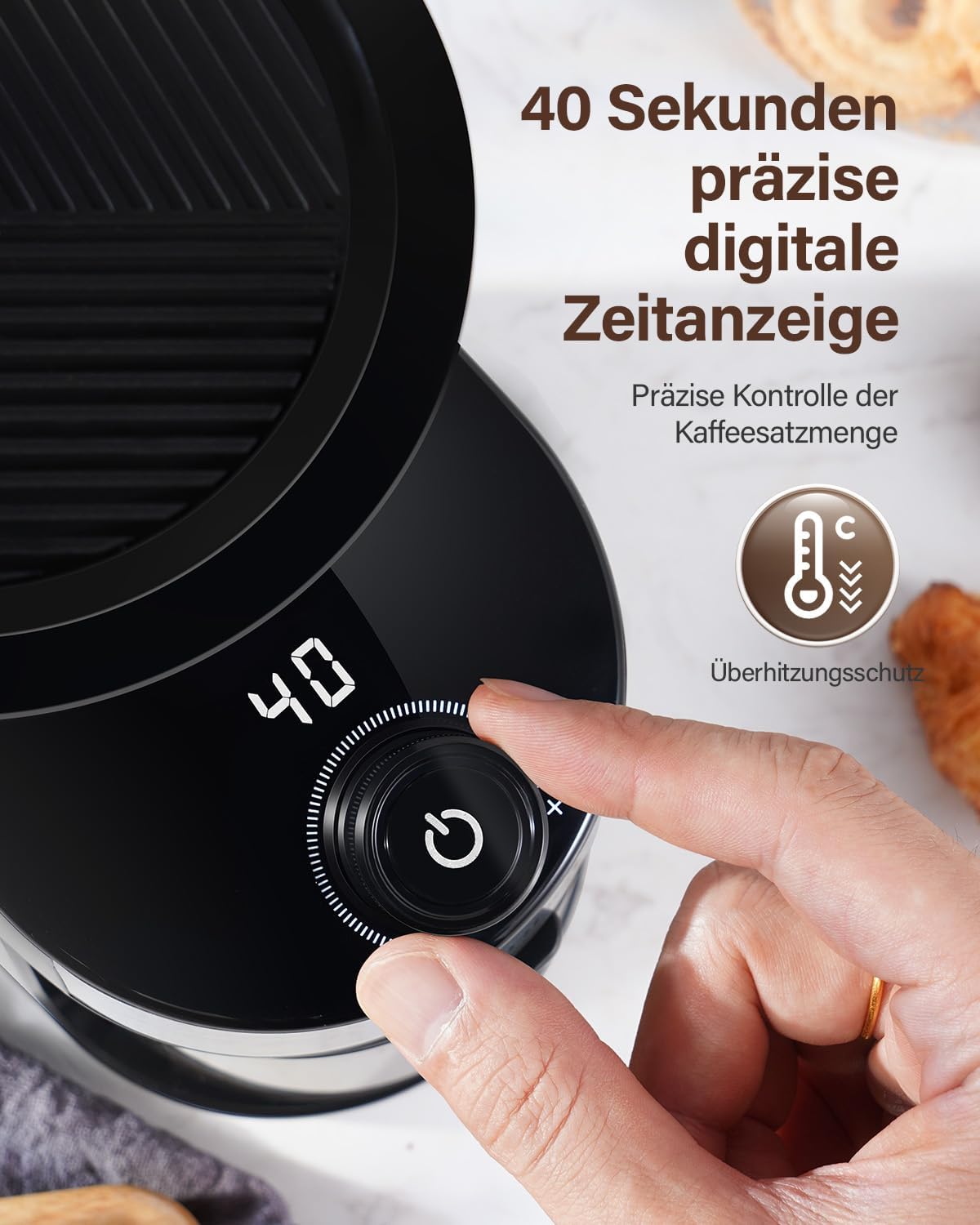

slika: View of the digital display showing the grinding time and the control knob for adjustment.

4. Započni mljevenje: Press the start/stop button to begin the grinding process. The grinder will operate for the set duration. You can stop the grinding at any time by pressing the button again.

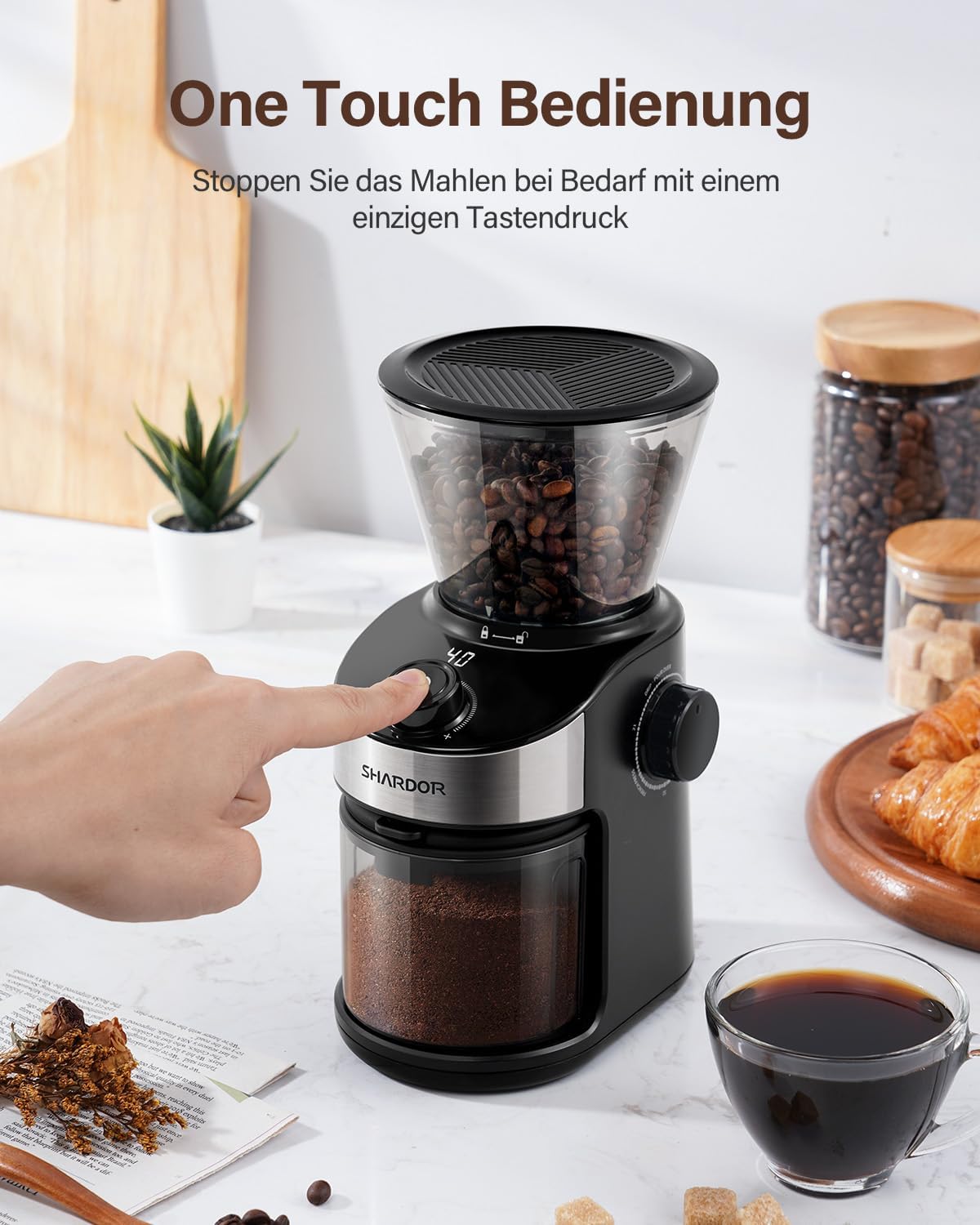

Image: A hand pressing the start button on the grinder, demonstrating the one-touch operation feature.

5. Sakupite mljevenu kafu: Once grinding is complete, carefully remove the grounds container to access your freshly ground coffee.

Održavanje i čišćenje

Regular cleaning ensures optimal performance and extends the lifespan of your grinder.

1. Isključite: Uvijek isključite mlin za meso iz električne utičnice prije čišćenja.
2. Remove Hopper and Container: Detach the bean hopper and grounds container. Empty any remaining beans or grounds.
3. Clean Grounds Container: The grounds container can be washed with warm, soapy water. Dry thoroughly before reattaching. Note: Static electricity can cause coffee grounds to cling to the container. Wiping with a damp cloth or using an anti-static spray may help reduce this effect.
4. Clean Burr Grinders:
   • Remove the upper burr by twisting it counter-clockwise and lifting it out.
   • Use the provided cleaning brush to remove any coffee residue from both the upper and lower burrs.
   • Clean the grinding chamber with the brush.
   • Reinsert the upper burr and twist clockwise until it locks into place.

Image: Demonstrates how to remove the upper burr from the grinder for thorough cleaning.

Image: A cleaning brush being used to remove coffee grounds from the burr mechanism.

5. Obrišite eksterijer: Obrišite vanjski dio brusilice s oglasomamp tkanina. Nemojte koristiti abrazivna sredstva za čišćenje ili ribanje.

Rješavanje problema

Specifikacije

• Brand: SHARDOR
• Model: B0CD7CHBTL
• Dimenzije proizvoda: 16.51 x 12.7 x 24.63 cm
• Težina artikla: 200 grama
• Postavke mljevenja: 25 levels (Espresso, Drip Coffee, French Press)
• Mehanizam za mljevenje: Ravni čičak
• Karakteristike: Digital Timer Display, Overheating Protection

Garancija i podrška

SHARDOR products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official SHARDOR website. If you encounter any issues or require technical assistance, please contact SHARDOR customer support through the contact information provided in your product packaging or on the brand's official channels.

Molimo sačuvajte svoj dokaz o kupovini za zahtjeve u vezi s garancijom.
