HOTONE Ampero Mini MP-50 Multi Effects Processor Uputstvo za upotrebu

1. Uvod

The HOTONE Ampero Mini MP-50 is a compact multi-effects processor designed for guitar and bass. It integrates advanced amp modeling, IR cabinet simulation, and a wide range of effects into a portable unit. Featuring a responsive touchscreen, versatile I/O options, and USB audio interface capabilities, the Ampero Mini provides a comprehensive solution for musicians seeking high-quality tone and flexibility.

Figure 1: HOTONE Ampero Mini MP-50 Multi Effects Processor with included footswitch toppers.

2. Getting Started

2.1 Sadržaj paketa

• HOTONE Ampero Mini MP-50 Unit
• Power Supply (9V DC, center negative)
• 10 PCS Additional Footswitch Toppers
• USB kabel

2.2 Uređaj je završenview

Familiarize yourself with the main components and connections of the Ampero Mini.

Slika 2: Prednja strana view of the Ampero Mini with labeled components.

• Zaslon: 4-inch 800 x 480 color dynamic display touchscreen for navigation and parameter editing.
• nožni prekidači: Two assignable footswitches with Halo LEDs for changing patches, activating/deactivating effects, or setting tap tempo.
• EXP/CTRL (FS 3/4): 1/4" TRS input for connecting an external expression pedal or footswitch controller.
• ULAZ: 1/4" Mono input connection for electric or acoustic instruments.
• IZLAZ: Unbalanced 1/4" TRS stereo output connection for amplifiers or other equipment. A Y cable is required for stereo output (Tip=Left, Sleeve=Right).
• TELEFONI: 1/8" stereo output for connecting headphones.
• AUX IN: 1/8" stereo input for connecting external devices (e.g., phone, MP3 player) for practice.
• Gumb za jačinu zvuka: Podešava ukupnu jačinu zvuka na izlazu.
• USB: USB 2.0 Type-C jack for connecting to a computer for software editing and USB audio.
• Priključak za napajanje: Input for the 9V DC center negative power adapter.

Figure 3: Rear panel connections of the Ampero Mini.

3. Podešavanje

3.1 Priključak za napajanje

Connect the provided 9V DC center negative power adapter to the 'DC 9V' input on the rear panel. Ensure the power supply meets the specified requirements (9V DC, 500mA Max) to prevent damage.

3.2 Priključak instrumenta

Connect your guitar or bass to the 1/4" TS 'INPUT' jack on the rear panel.

3.3 Izlazna veza

• Do AmpSistem za podizanje/razglas: Connect the 1/4" TRS 'OUTPUT' jack to your amplifier or PA system. For stereo output, use a Y-cable to split the signal into left and right channels.
• slušalice: Connect headphones to the 1/8" stereo 'PHONES' output for silent practice.

3.4 Pomoćni ulaz

Connect an external audio source (e.g., smartphone, MP3 player) to the 1/8" stereo 'AUX IN' jack to play along with backing tracks.

3.5 USB veza

Povežite Ampero Mini to a computer or compatible mobile device using the USB 2.0 Type-C port. This enables USB audio streaming and access to the software editor for patch management and sound editing.

Figure 4: USB connectivity for mobile and computer.

4. Operacija

4.1 Korisnički interfejs i navigacija

The Ampero Mini features a 4-inch color dynamic display touchscreen for intuitive control. Tap on screen elements to select effects, edit parameters, and navigate menus. The footswitches allow for quick patch changes, effect toggling, and tap tempo functions.

4.2 Effects and Patches

The unit offers 199 effects and supports up to 9 simultaneous effect modules. It includes 198 patches (99 user-editable, 99 factory presets). The flexible signal chain allows for customization of effect order.

Figure 5: Stompbox Library interface on the Ampero Mini.

4.3 Looper i Drum Machine

The Ampero Mini includes a built-in looper with up to 100 seconds of mono recording time (50 seconds stereo). It also features an internal drum machine with 100 rhythm patterns for practice and creative use.

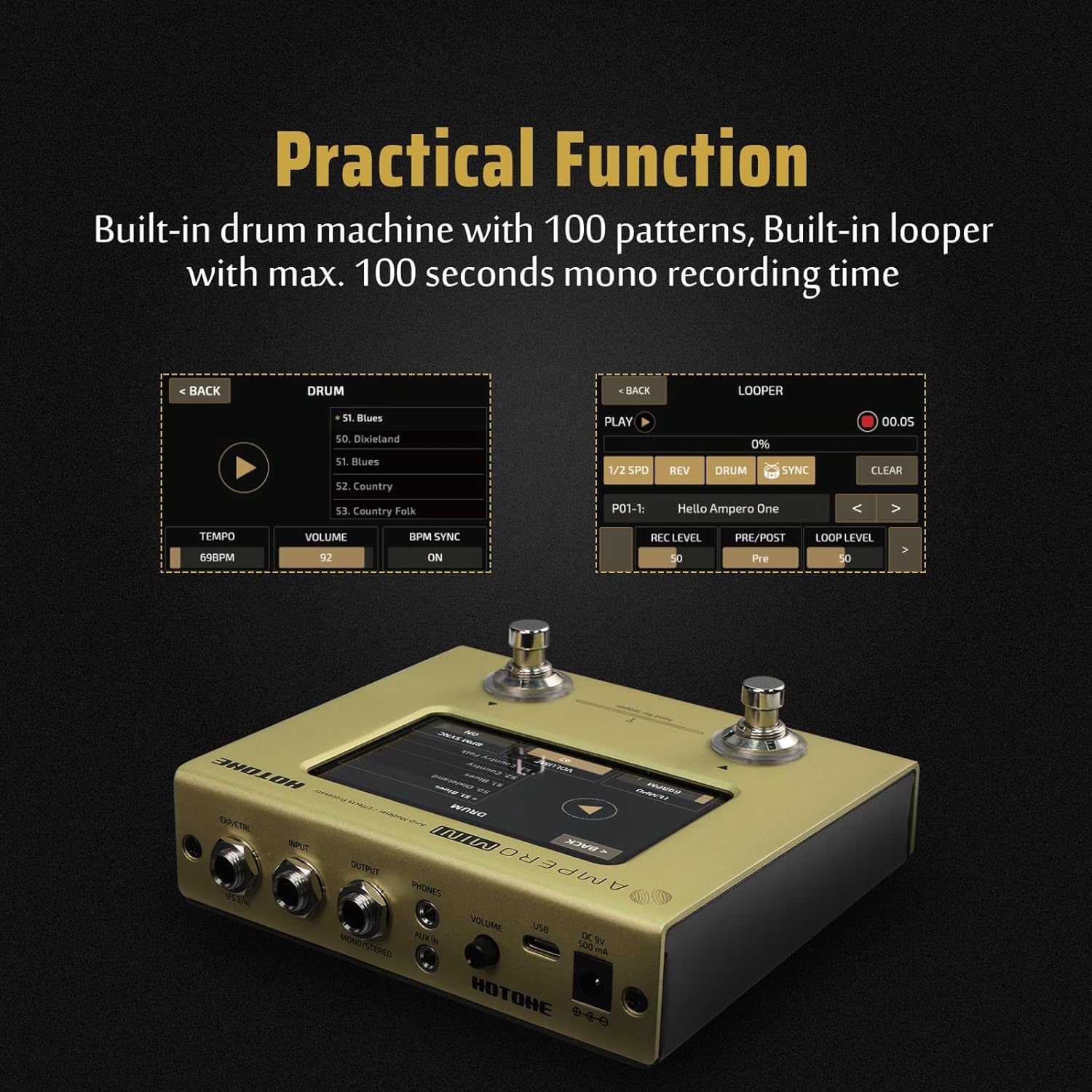

Figure 6: Drum Machine and Looper functions.

4.4 Uređivač softvera

A free software editor is available for Mac and Windows computers. This software provides a visual interface for detailed sound editing, patch management, and firmware updates.

5. Održavanje

Kako biste osigurali dugovječnost i optimalne performanse vašeg Ampero Mini, follow these maintenance guidelines:

• čišćenje: Za čišćenje uređaja koristite meku, suhu krpu. Izbjegavajte abrazivna sredstva za čišćenje ili rastvarače.
• Skladištenje: Store the unit in a dry environment, away from direct sunlight, extreme temperatures, and high humidity.
• Rukovanje: Izbjegavajte ispuštanje uređaja ili izlaganje jakim udarcima.

6. Otkrivanje problema

Ako naiđete na probleme sa svojim Ampero Mini, refer to the following common troubleshooting steps:

• Nema napajanja: Ensure the power adapter is correctly connected and the power outlet is functional. Verify that the correct 9V DC center negative adapter is used.
• Nema izlaza zvuka: Check all instrument and output cable connections. Verify the master volume knob is turned up. Ensure that effects or patches are not muted or bypassed.
• Tuner Sensitivity: The built-in tuner may require careful plucking and sustained notes for accurate detection. For highly precise tuning, an external tuner may be preferred.
• Sound Interruption During Patch Change: It is a characteristic of the device that sound may briefly cut out when switching between patches. This is normal operation and not a defect.
• Problemi sa USB vezom: If the unit is not recognized by your computer, ensure the necessary drivers are installed. These can typically be found on the HOTONE official website.

7. Specifikacije

8. Garancija i podrška

Za informacije o garanciji i tehničkoj podršci, molimo vas da se obratite službenom HOTONE servisu. website or contact your authorized dealer. Additional protection plans may be available for purchase separately to extend coverage beyond the standard manufacturer's warranty.
