BAOFENG BF-888S Voki-tokiji - uputstvo za upotrebu

1. Proizvod je gotovview

The BAOFENG BF-888S is a professional multi-function walkie talkie designed for reliable communication. It features 16 preset channels, a rotary knob for quick channel selection, and various functions to enhance user experience.

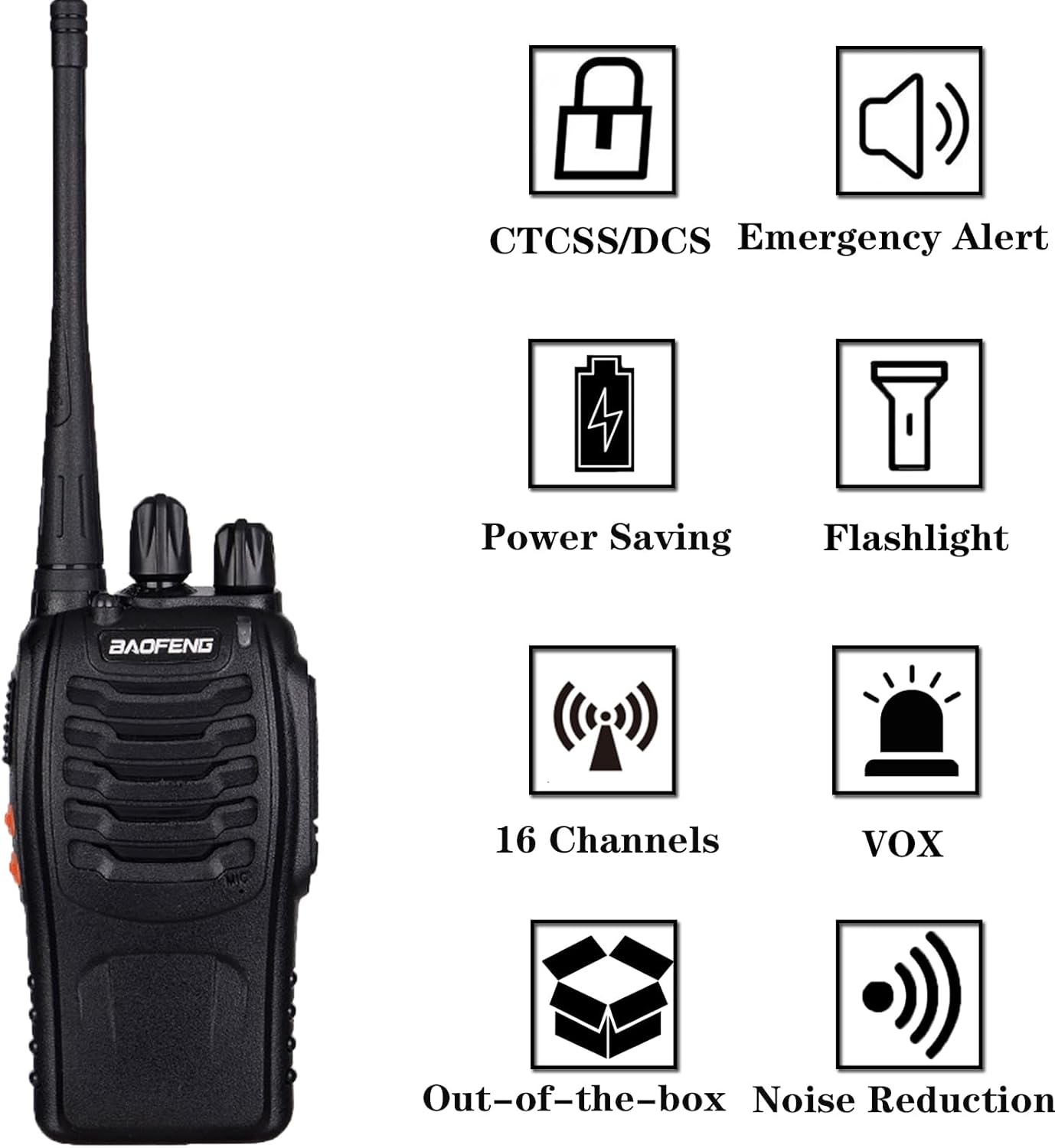

Image: Key features of the BF-888S walkie talkie, including CTCSS/DCS, emergency alert, power saving, flashlight, 16 channels, VOX, out-of-the-box functionality, and noise reduction.

Ključne karakteristike

• 16 unaprijed postavljenih kanala: Jednostavan odabir pomoću okretnog dugmeta.
• CTCSS / CDCSS: 50 CTCSS and 105 CDCSS codes for enhanced privacy.
• VOX funkcija: Glasovno upravljanje prijenosom za komunikaciju bez upotrebe ruku.
• Skeniranje: Automatically scans active channels.
• Alarm slabe baterije: Upozorenja kada je baterija niska.
• Integrisana svjetiljka: Obezbjeđuje osvjetljenje u uslovima slabog osvjetljenja.
• FCC certificiran: FCC ID: 2AJGM-BF888S, ensuring compliance with regulations.

Slika: pramples of the walkie talkie in use, including outdoor activities, security, and construction environments.

2. Sadržaj paketa

Molimo Vas da provjerite da li se u Vašem paketu nalaze svi artikli:

• 3 x BAOFENG BF-888S Radios
• 3 x originalne antene
• 3 x 3.7 V 1500 mAh Li-ion baterije
• 3 x Desktop Punjači
• 3 x kopče za pojas
• 3 x narukvice
• 3 x Earpieces (Headsets)
• 1 x Uputstvo za upotrebu

3. Getting Started

Instalacija baterije

1. Poravnajte baterijski paket sa žljebovima na stražnjoj strani radija.
2. Pomaknite baterijski paket prema gore dok ne klikne na svoje mjesto.
3. Da biste uklonili bateriju, pritisnite osigurač za otpuštanje baterije i pomaknite je prema dolje.

Punjenje baterije

The BF-888S uses a 1500mAh rechargeable lithium battery. A full charge typically takes 3-4 hours.

1. Insert the radio (with battery installed) into the desktop charging base.
2. Ensure the charging contacts on the radio align with those on the base.
3. The indicator light on the charger will typically show red during charging and green when fully charged.

Image: The walkie talkie in its charging base, illustrating battery durability and charging specifications.

4. Osnovni rad

Uključivanje / isključivanje napajanja i kontrola jačine zvuka

1. Da biste uključili napajanje, okrenite Dugme za napajanje/jačina zvuka (gornje lijevo dugme) u smjeru kazaljke na satu dok ne čujete klik.
2. Nastavite okretati dugme u smjeru kazaljke na satu da biste povećali jačinu zvuka, a suprotno od smjera kazaljke na satu da biste je smanjili.
3. Da biste isključili uređaj, okrenite dugme u smjeru suprotnom od kazaljke na satu dok ne čujete klik.

Odabir kanala

1. Rotirajte Dugme za izbor kanala (top-right knob) to choose one of the 16 available channels.
2. Osigurajte da su svi radio uređaji namijenjeni za komunikaciju postavljeni na isti kanal.

Transmitting and Receiving (PTT)

1. Za slanje, pritisnite i držite Pritisni za razgovor (PTT) dugme sa strane radija. Govorite jasno u mikrofon.
2. Otpustite PTT dugme da biste prekinuli odašiljanje i osluškujte odgovor.
3. The LED indicator will typically glow red when transmitting and green when receiving a signal.

VOX funkcija (Glasovno upravljana centrala)

VOX funkcija omogućava prijenos bez upotrebe ruku. Kada je aktivirana, radio će automatski prenositi kada detektuje vaš glas.

• To activate/deactivate VOX, typically this is done via programming software. Refer to the full user manual for detailed programming instructions if you wish to customize this feature.

Funkcija svjetiljke

The BF-888S includes an integrated flashlight.

• Pritisnite Bočni ključ 1 (usually the top side button) to turn the flashlight on or off.

Slika: Sveobuhvatan view of the walkie talkie, highlighting its physical features and controls.

5. Napredne funkcije

CTCSS / CDCSS (Tone Squelch)

CTCSS (Continuous Tone Coded Squelch System) and CDCSS (Continuous Digital Coded Squelch System) are sub-audible tones that allow multiple groups to share the same channel without hearing each other's transmissions. Your radio will only open its squelch and receive audio when it detects a signal with the matching tone.

• These codes are typically programmed into each channel using specific software.

Skeniranje

The scanning feature allows the radio to monitor all programmed channels for activity.

• To activate scanning, typically this is done via programming software or a designated side key. When active, the radio will cycle through channels and stop on any active transmission.

Image: Illustration of the Gainer Antenna technology, emphasizing boosted coverage and enhanced reception range.

Image: Depiction of the independent chip, highlighting its anti-interference capabilities and frequency adjustment features.

Image: Visual representation of the clear sound quality feature, indicating optimized audio performance.

6. Održavanje i njega

• čišćenje: Koristite meku, damp cloth to clean the radio's surface. Avoid harsh chemicals or abrasive cleaners.
• Održavanje baterije: Do not overcharge or deep discharge the battery. Store batteries in a cool, dry place when not in use.
• Skladištenje: Store the radio in a dry environment away from direct sunlight and extreme temperatures.
• antena: Handle the antenna carefully to prevent damage. Do not use the radio without its antenna.

7. Otkrivanje problema

8. Specifikacije

9. Garancija i podrška

For any questions or support regarding your BAOFENG BF-888S Walkie Talkies, please refer to the contact information provided with your purchase or visit the official BAOFENG website. Our professional team is available to assist you with any issues or inquiries.
