TOOLPORT 4x4m Vrtna sjenica s čeličnim krovom - Uputstvo za upotrebu

Uvod

Thank you for choosing the TOOLPORT 4x4m Garden Gazebo with a steel roof. This manual provides essential information for the safe assembly, operation, and maintenance of your new gazebo. Please read these instructions carefully before beginning assembly and retain them for future reference. Proper assembly and care will ensure the longevity and optimal performance of your gazebo.

Image 1: Fully assembled TOOLPORT 4x4m Garden Gazebo, showcasing its spacious design and steel roof, suitable for outdoor living spaces.

Sigurnosne informacije

• Pročitajte sva uputstva: Before assembly, carefully read and understand all instructions.
• Dvočlana montaža: Za sastavljanje su potrebne najmanje dvije odrasle osobe. Ne pokušavajte sastavljati sami.
• Čisto područje: Assemble the gazebo in a clear, level area, free from obstructions.
• Sigurno sidrenje: Always anchor the gazebo securely to the ground using the provided anchors or suitable alternatives. Failure to do so may result in damage or injury in windy conditions.
• Vremenski uslovi: While designed for all-season use, extreme weather conditions (e.g., heavy snow, strong winds, hail) may require additional precautions or temporary disassembly.
• Redovno pregledavajte: Periodically inspect all connections and components for tightness and damage.
• Bez penjanja: Do not climb on the gazebo structure.
• Protivpožarna sigurnost: Keep all heat sources and open flames away from the gazebo.

Sadržaj paketa

Please verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, contact TOOLPORT customer service.

• Weather-resistant aluminum posts
• Steel roof panels (approx. 0.5 mm galvanized steel)
• 8 ground anchors for secure fastening
• Upute za montažu (ovaj priručnik)
• All necessary connection profiles and fasteners

Upute za postavljanje i montažu

The TOOLPORT 4x4m Garden Gazebo is designed for straightforward assembly. It is recommended that two people perform the assembly, which typically takes approximately 4 hours.

1. Priprema

1. Unpack all components and lay them out in an organized manner.
2. Identify all parts using the included parts list (if provided separately).
3. Ensure you have the necessary tools (e.g., wrench, screwdriver, ladder).
4. Choose a level and stable location for your gazebo.

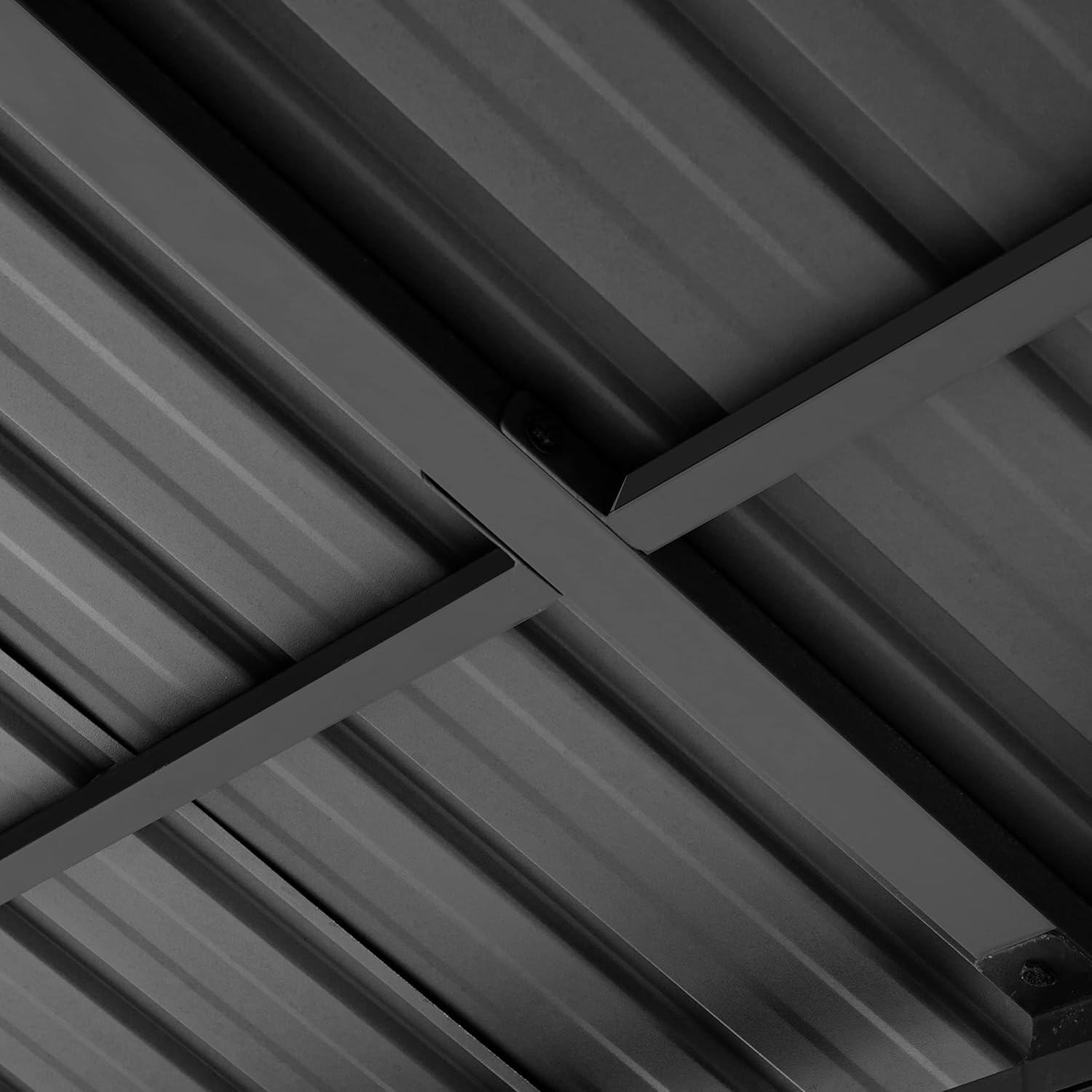

Image 2: Close-up of a roof corner, showing the robust connection points and the corrugated steel roof panels.

2. Sklop okvira

1. Begin by assembling the main support posts. The square profiles are approximately 9x9 cm.
2. Connect the horizontal beams to the top of the posts using the pre-drilled profiles and high-quality connection system.
3. Ensure all bolts are finger-tight at this stage kako bi se omogućile manje prilagodbe.

Slika 3: Detaljno view of a frame connection, highlighting the secure bolting mechanism for structural integrity.

3. Roof Structure Assembly

1. Assemble the roof frame components according to the diagrams.
2. Carefully lift and secure the roof frame onto the main support structure. This step requires multiple people.
3. Ensure all roof frame connections are secure.

Slika 4: View from underneath the gazebo roof, showing the intricate steel frame that supports the roof panels.

4. Ugradnja krovnih panela

1. Attach the galvanized steel roof panels to the roof frame. Overlap panels as instructed to ensure 100% waterproofing.
2. Secure each panel firmly with the provided fasteners.

Image 5: Close-up of the corrugated steel roof, highlighting its robust construction and weather-resistant design.

5. Final Tightening and Anchoring

1. Once all components are in place, go back and securely tighten all bolts and fasteners.
2. Attach the 8 ground anchors to the base of each post and secure them firmly into the ground. This is crucial for stability.

Image 6: Detail of the gazebo post base plate, showing the pre-drilled holes for secure ground anchoring.

Image 7: Close-up of a roof beam connection, illustrating the precise fit and secure fastening points.

Uputstvo za upotrebu

Your TOOLPORT 4x4m Garden Gazebo is designed for year-round use, offering optimal protection in all seasons.

• Zaštita tokom cijele sezone: The galvanized steel roof (approx. 0.5 mm) is robust, reliable, and 100% waterproof, allowing for use throughout the year.
• UV zaštita: The structure provides protection against ultraviolet rays, making it a comfortable shaded area.
• Stabilnost: The robust aluminum structure ensures resistance to UV, corrosion, and general weather conditions.

Image 8: The gazebo providing a sheltered area for a hot tub, demonstrating its versatility and all-season utility in a garden.

Održavanje

Redovno održavanje će produžiti vijek trajanja i izgled vaše sjenice.

• čišćenje: Clean the steel roof and aluminum frame periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• inspekcija: Annually inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten as necessary.
• drenaža: Ensure that water drains properly from the roof and does not accumulate, especially during heavy rainfall or snow.
• Uklanjanje snijega: In areas with heavy snowfall, it is advisable to regularly remove accumulated snow from the roof to prevent excessive weight and potential damage.

Rješavanje problema

Specifikacije

Image 9: Dimensional diagram of the gazebo, indicating its length, width, and height for planning purposes.

Garancija i podrška

For specific warranty information, please refer to the documentation included with your purchase or contact TOOLPORT customer service directly.

If you encounter any issues or have questions regarding your TOOLPORT 4x4m Garden Gazebo, please contact the seller or TOOLPORT customer support for assistance.
