1. Uvod
Thank you for choosing the vidaXL Shower Shelf. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new shower shelf. Please read these instructions carefully before assembly and retain them for future reference.
This shower shelf is designed to enhance your bathroom space by providing convenient storage for toiletries and towels. Constructed from high-quality aluminum, it offers durability and a modern aesthetic suitable for various bathroom decors.
2. Sigurnosne informacije
- Prije početka montaže provjerite jesu li sve komponente prisutne i neoštećene.
- Uvijek koristite odgovarajući alat za instalaciju.
- Mount the shelf securely to a sturdy wall surface capable of supporting the shelf's weight and its contents.
- Do not overload the shelf. The maximum recommended weight is 11 lbs (5 kg).
- Držite male dijelove dalje od djece tokom sastavljanja kako biste spriječili opasnost od gušenja.
- Ako niste sigurni u vezi s bilo kojim koracima instalacije, obratite se kvalificiranom stručnjaku.
3. Sadržaj paketa
Provjerite da li se u vašem paketu nalaze sve sljedeće stavke:
- Shower shelf unit
- Priručnik za montažu
- Pribor za montažu (vijci, zidni tiplovi)
Slika: Vrh view of the shower shelf components, including the main shelf and mounting brackets.

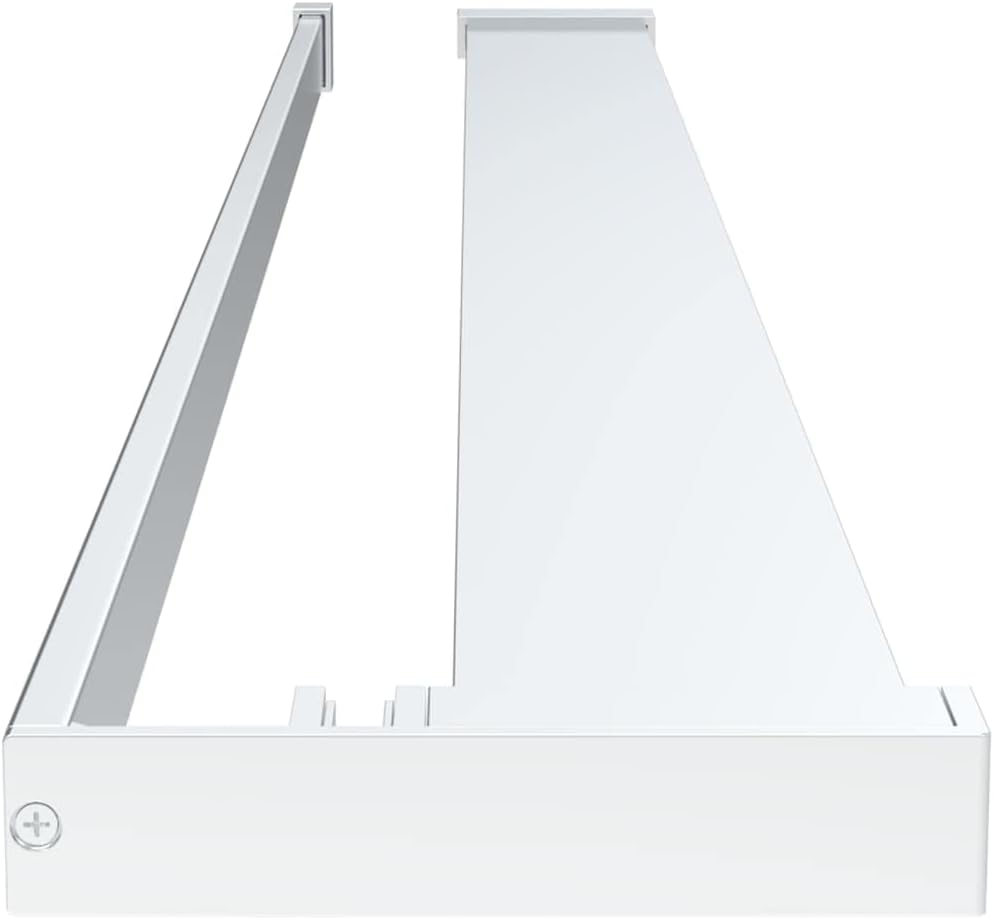

Slika: Sa strane view of the shower shelf components, showing the profile.
4. Specifikacije
| Feature | Detalj |
|---|---|
| Brand | vidaXL |
| Broj modela | 153620 |
| Boja | Chrome (Silver) |
| Materijal | Aluminum Alloy, Zinc Alloy |
| Oblik | Pravougaona |
| Vrsta montaže | Zidni nosač |
| Dimenzije (Š x D x V) | 6.1 x 31.5 x 1.2 inča (15.5 x 80 x 3 cm) |
| Težina artikla | 2.69 lbs (1.22 kg) |
| Maksimalni kapacitet težine | 11 lbs (5 kg) |
| Tip završetka | Polished, Anodized |
| Soba | Kupatilo |

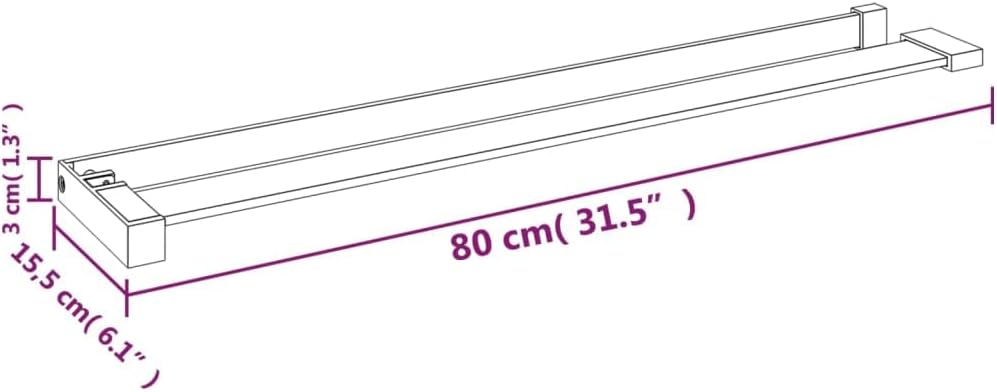

Image: Dimensional diagram of the shower shelf.
5. Postavljanje i instalacija
The vidaXL Shower Shelf is designed for wall mounting. Follow these steps for secure installation:
- Odaberite lokaciju: Select a suitable wall location in your shower or bathroom, ensuring it is a sturdy surface capable of holding the shelf and its contents. Avoid mounting on grout lines if possible.
- Označite tačke bušenja: Hold the shelf or its mounting brackets against the wall at the desired height. Use a pencil to mark the positions for drilling holes. Ensure the marks are level.
- Izbušite rupe: Using an appropriate drill bit for your wall type (e.g., tile, drywall, concrete), drill holes at the marked positions. If installing into drywall, use wall anchors.
- Umetnite zidne ankere: If required, gently tap the wall anchors into the drilled holes until they are flush with the wall surface.
- Pričvrstite zagrade: Position the mounting brackets over the drilled holes/anchors. Insert the screws through the brackets and tighten them securely into the wall or anchors. Do not overtighten.
- Montirajte policu: Slide the main shelf unit onto the attached brackets. Ensure it clicks or locks into place securely.
- Konačna provjera: Gently pull on the shelf to ensure it is firmly attached to the wall before placing any items on it.
Image: Detail of the mounting bracket for wall attachment.
Image: Detail of the shelf end connecting to the mounting hardware.
6. Uputstvo za upotrebu
Once installed, the vidaXL Shower Shelf is ready for use. It provides a stable surface for storing various bathroom essentials.
- Place shampoo bottles, soap, sponges, and other toiletries on the shelf.
- The 31.5-inch length offers ampprostora za više predmeta.
- Ensure items are distributed evenly and do not exceed the maximum weight capacity of 11 lbs (5 kg).
Image: Shower shelf in use, holding various bathroom items.
7. Održavanje
To ensure the longevity and appearance of your vidaXL Shower Shelf, follow these simple maintenance guidelines:
- Redovno čišćenje: Wipe the shelf regularly with a soft, damp cloth to remove soap scum, water spots, and dust.
- Blaga sredstva za čišćenje: For more stubborn stains, use a mild, non-abrasive bathroom cleaner. Avoid harsh chemicals, abrasive pads, or scouring powders, as these can damage the chrome finish.
- Sušenje: After cleaning, dry the shelf thoroughly with a clean, soft cloth to prevent water spots and maintain its shine.
- inspekcija: Periodically check the mounting screws to ensure they remain tight. Retighten if necessary.
8. Otkrivanje problema
If you encounter any issues with your shower shelf, consider the following:
- Polica se čini labavom: Check the mounting screws. If they have loosened over time, carefully retighten them. Ensure the wall anchors are still secure.
- Mrlje od vode ili mat završni sloj: This is often due to hard water. Clean with a mild descaling solution or a vinegar-water mixture, then rinse and dry thoroughly. Regular drying after each use can prevent this.
- Rđanje: The shelf is made from high-quality aluminum designed not to rust. If you observe any discoloration that appears to be rust, it might be surface residue from other metallic items. Clean thoroughly as per maintenance instructions. If actual rust appears, contact customer support.
9. Garancija i podrška
vidaXL products are manufactured with quality and durability in mind. For specific warranty information regarding your shower shelf, please refer to the documentation included with your purchase or visit the official vidaXL website.
For technical support, missing parts, or any other inquiries, please contact vidaXL customer service through their official channels. You can often find support contact information on the vidaXL brand store page or their main website.
Posjetite vidaXL Store za više informacija o proizvodima i podršci.
