XTUGA UH-300 UHF Rechargeable Wireless Karaoke Microphone System User Manual

1. Uvod

This manual provides comprehensive instructions for the setup, operation, and maintenance of your XTUGA UH-300 UHF Rechargeable Wireless Karaoke Microphone System. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

2. Sadržaj paketa

Provjerite da li se u vašem paketu nalaze sve dolje navedene stavke. Ako neke stavke nedostaju ili su oštećene, obratite se korisničkoj podršci.

• 1 x UHF bežični prijemnik
• 2 x UHF bežična mikrofona
• 1 x adapter za napajanje (DC 5V)
• 1 x 3.5 mm na 3.5 mm audio kabel
• 1 x 3.5 mm na RCA audio kabel
• 1 x USB kabl za punjenje
• 1 x Uputstvo za upotrebu

slika: XTUGA UH-300 system components, including the receiver, two microphones, power adapter, and various audio cables.

3. Proizvod je gotovview

3.1 Receiver Controls and Features

slika: Front view of the XTUGA UH-300 receiver with two wireless microphones. The receiver features various knobs and a display screen.

• SNAGA: On/Off switch for the receiver.
• A-RF-B Indicator: Lights indicate signal reception for Microphone A and B.
• AF indikator: Lights indicate audio signal presence.
• MIC VOL A/B: Nezavisne kontrole jačine zvuka za mikrofon A i mikrofon B.
• ECHO: Knob to adjust the echo effect level.
• MUZIKA: Knob to adjust the volume of background music input (e.g., via Bluetooth or AUX).
• MIC (1/4" Jack): Input for an additional wired or wireless microphone.
• Zaslon: Shows channel information for both microphones.

slika: Detaljno view of the receiver's front panel, highlighting the 1/4" MIC jack, individual volume controls for microphones, echo control, and Bluetooth music control.

3.2 Karakteristike mikrofona

• UHF Wireless: Operates on UHF frequencies for stable signal transmission.
• Punjiva baterija: Built-in lithium battery provides 3-8 hours of operation on a 2-3 hour charge.
• Led displej: Shows battery level and selected channel (e.g., CH01-CH30).
• LED svjetlosni prsten: A cool design feature that illuminates during use.
• DC 5V priključak za punjenje: USB port for convenient charging.
• Dugme za frekvenciju: Allows selection of operating channels.

slika: Close-up of the rechargeable wireless microphones, showing the LED display with channel information, and the DC5V charging port with a frequency button.

4. Podešavanje

4.1 Povezivanje prijemnika

1. Connect the power adapter to the DC 5V input on the receiver and plug it into a power outlet.
2. Connect the receiver's audio output to your speaker system, amplifier, or soundbar. You can use either the 1/4" (6.35mm) output or the 1/8" (3.5mm) output, depending on your audio device's input. Use the provided 3.5mm to 3.5mm or 3.5mm to RCA cables as needed.
3. Ensure your speaker system is powered on and set to the correct input source.

slika: Diagram illustrating various input and output connection options for the XTUGA UH-300 system, including connections to smartphones, laptops, karaoke speakers, soundbars, and home theater systems.

slika: The XTUGA UH-300 receiver and microphones connected to a speaker system. Note that a speaker is required for audio output and is not included with the system.

4.2 Charging the Microphones

The microphones have built-in rechargeable lithium batteries. Before first use, fully charge both microphones.

1. Connect the USB charging cable to the DC 5V charging port on each microphone.
2. Plug the other end of the USB cable into a USB power source (e.g., a USB wall adapter, computer USB port).
3. Charging typically takes 2-3 hours. The microphone's display may indicate charging status.

slika: A wireless microphone being charged via its USB port, illustrating the charging process and indicating typical charging and usage times.

4.3 Microphone Pairing and Channel Selection

The microphones are typically pre-paired with the receiver. If you experience connection issues or wish to change channels:

1. Turn on the receiver and the microphone.
2. Press the 'SET' or 'Frequency' button on the microphone to cycle through the 50 available UHF channels (CH01-CH50).
3. Select a channel that is free from interference. The receiver's display will show the corresponding channel for each microphone.

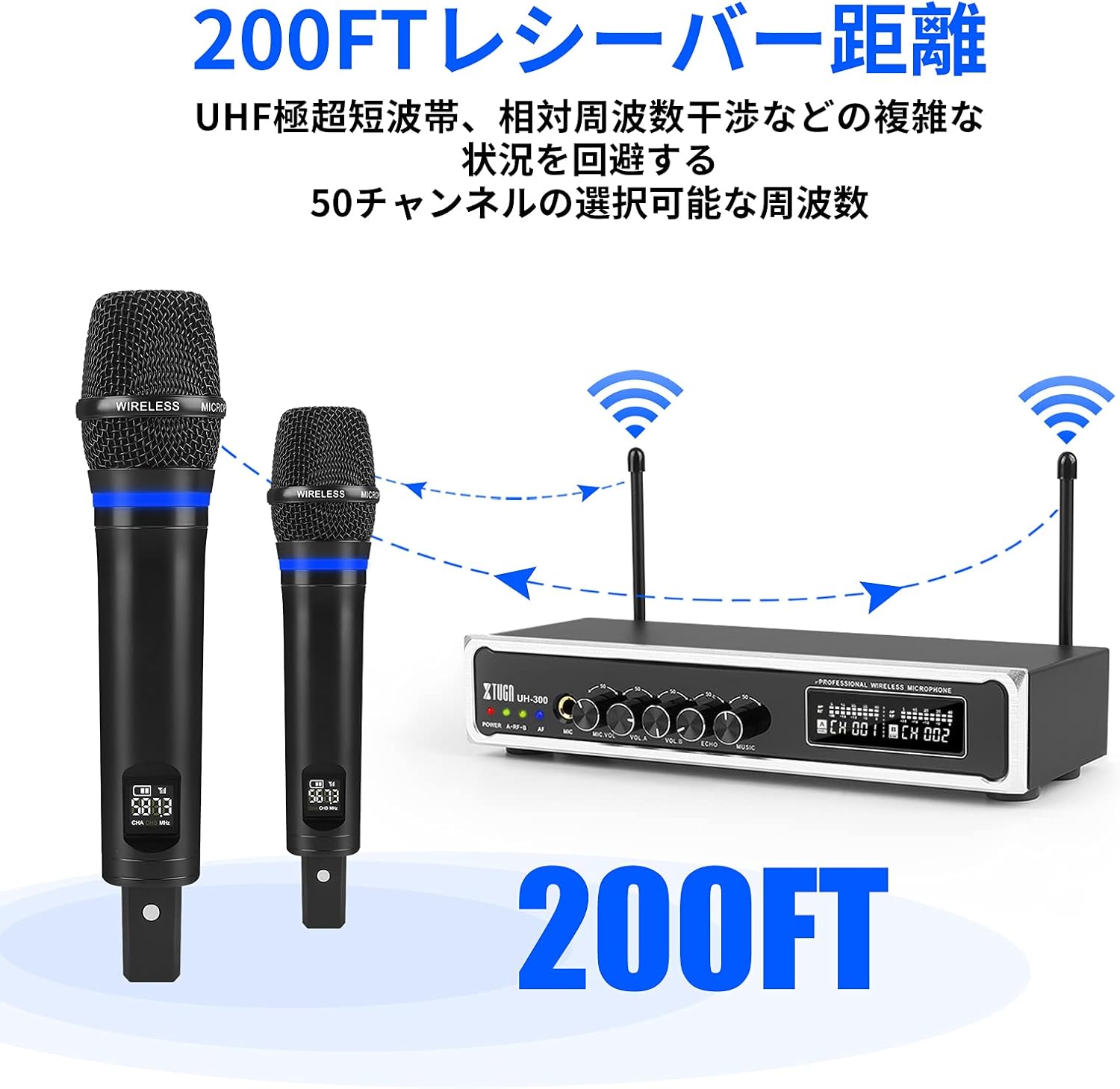

slika: Illustration of the XTUGA UH-300's wireless range (up to 200 feet) and the availability of 50 selectable channels to avoid interference.

5. Uputstvo za upotrebu

5.1 Osnovni rad

1. Power on the receiver using the POWER switch.
2. Power on the wireless microphones. The A-RF-B indicators on the receiver should light up, confirming connection.
3. Speak into the microphones. The AF indicators on the receiver should light up, indicating audio signal presence.
4. Adjust the MIC VOL A and MIC VOL B knobs on the receiver to set the desired volume for each microphone.
5. Adjust the ECHO knob to add or reduce the echo effect to your vocals.

slika: Close-up of the receiver's controls, showing the independent volume knobs for Microphone A and Microphone B, and the adjustable echo effect knob.

5.2 Using Bluetooth Input

The system features built-in Bluetooth for playing background music from your smart devices.

1. Turn on the Bluetooth function on your smartphone, tablet, or other smart device.
2. Traži Bluetooth devices and select "X168" from the list.
3. Once connected, play music from your device. The audio will be routed through the UH-300 receiver.
4. Adjust the MUSIC knob on the receiver to control the background music volume.

slika: Step-by-step guide for connecting a smartphone or iPad to the XTUGA UH-300 via Bluetooth, showing the device name "X168" and the Bluetooth music volume control.

slika: Illustrates the Bluetooth receiver functionality for playing background music, indicating a range of approximately 32 feet and the connection process.

5.3 Using the 1/4" MIC Input

The receiver includes a 1/4" (6.35mm) jack for connecting an additional microphone, allowing for a third vocalist.

1. Connect a wired microphone or the receiver of a third wireless microphone (not included) to the 1/4" MIC input jack on the receiver.
2. Adjust the MIC VOL knob (if available for the 1/4" input) or the overall system volume to balance the sound.

slika: Close-up of the 1/4-inch microphone input jack on the receiver, indicating its function for an additional microphone.

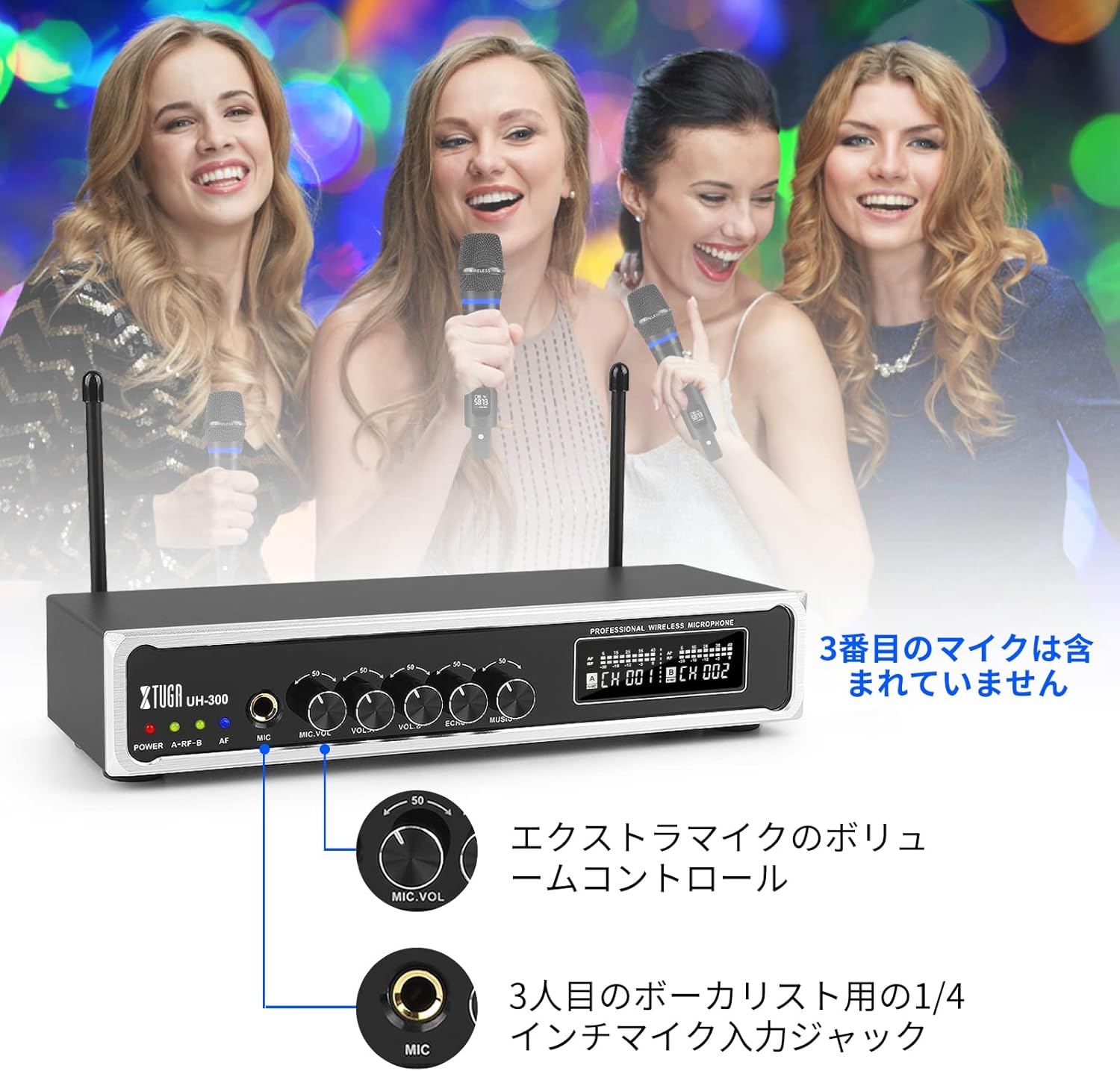

slika: Depicts a scenario with three vocalists, highlighting the 1/4-inch input jack for an additional microphone. The third microphone is not included.

6. Održavanje

• čišćenje: Za čišćenje prijemnika i mikrofona koristite meku, suhu krpu. Ne koristite tekuća sredstva za čišćenje ili abrazivne materijale.
• Skladištenje: Sistem čuvajte na hladnom i suhom mjestu, dalje od direktne sunčeve svjetlosti i ekstremnih temperatura kada se ne koristi.
• Održavanje baterije: For optimal battery life, fully charge the microphones before long periods of storage and recharge them every 3-6 months.
• Izbjegavajte vlagu: Keep the system away from water and high humidity to prevent damage.

7. Otkrivanje problema

8. Specifikacije

9. Garancija i podrška

XTUGA products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase or visit the official XTUGA webSačuvajte dokaz o kupovini za slučaj reklamacije.
