XTUGA C-977 UHF Wireless XLR Transmitter and Receiver User Manual

Sigurnosne informacije

Please read and understand the following safety guidelines before operating your XTUGA C-977 wireless system to ensure safe and optimal performance.

• Rukovanje baterijom: Do not expose batteries to excessive heat, direct sunlight, or fire. Do not short-circuit, disassemble, or modify the batteries. Dispose of used batteries according to local regulations.
• smetnje: This device operates on UHF frequencies and may experience interference from other wireless devices, Wi-Fi equipment, or strong electromagnetic fields. Maintain a reasonable distance from such sources.
• Uslovi okoline: Avoid using the device in extremely hot, cold, humid, or dusty environments. Protect it from water and other liquids.
• Održavanje: Ne pokušavajte sami otvarati ili servisirati uređaj. Za sve servisne radove obratite se kvalifikovanom osoblju.
• odlaganje: At the end of its lifespan, dispose of the product and its accessories responsibly, following local environmental regulations.

Product Overview

The XTUGA C-977 is a versatile UHF wireless audio transmitter and receiver system designed to convert wired XLR microphones and instruments into wireless setups. It offers reliable performance for dynamic microphones, condenser microphones, audio mixers, electric guitars, and basses.

Ključne karakteristike

• UHF bežična tehnologija: Utilizes the UHF band to minimize interference from electronic products like phones, TVs, routers, and Wi-Fi equipment.
• 16 Selectable Channels: Provides 16 frequency points, allowing multiple systems to be used simultaneously without interference.
• Produžena radna udaljenost: Offers a working range of up to 164 feet (50 meters), providing freedom of movement.
• Dug vijek trajanja baterije: Equipped with built-in rechargeable lithium batteries, ensuring 5-8 hours of continuous operation for the transmitter and 8 hours for the receiver.
• Svestrana kompatibilnost: Supports XLR microphones (with selectable 0V/5V/48V modes) and is suitable for guitar audio reception.
• Intelligent Screen Display: Features a clear display showing real-time battery level, frequency, and working status.
• Zero Latency: Delivers high-quality audio with 24-bit resolution and a 48KHz sampling frequency, ensuring minimal delay.

Sadržaj paketa

• Prijemnik (x1)
• Odašiljač (x1)
• XLR to 6.35mm plug adapter (x1)
• 6.35mm to XLR plug adapter (x1)
• USB kabel za punjenje (x1)
• Uputstvo za upotrebu (x1)

Diagram proizvoda

Transmitter (Left Unit in Diagram):

1. XLR adapter
2. Prikaz ekrana
3. Frequency adjustment buttons (CH+/CH-)
4. Power charging port (USB-C)
5. Volume adjustment buttons (VOL+/VOL-)
6. Dugme za napajanje

Receiver (Right Unit in Diagram):

7. XLR adapter
8. Charging display light (CHR)
9. RF svjetlo
10. Power charging port (USB-C)
11. Electric display light (AF)
12. Dugme za napajanje

Uputstva za postavljanje

Početno punjenje

Before first use, fully charge both the transmitter and receiver using the provided USB charging cable. The charging indicator light will show the charging status. A full charge typically takes approximately 4 hours.

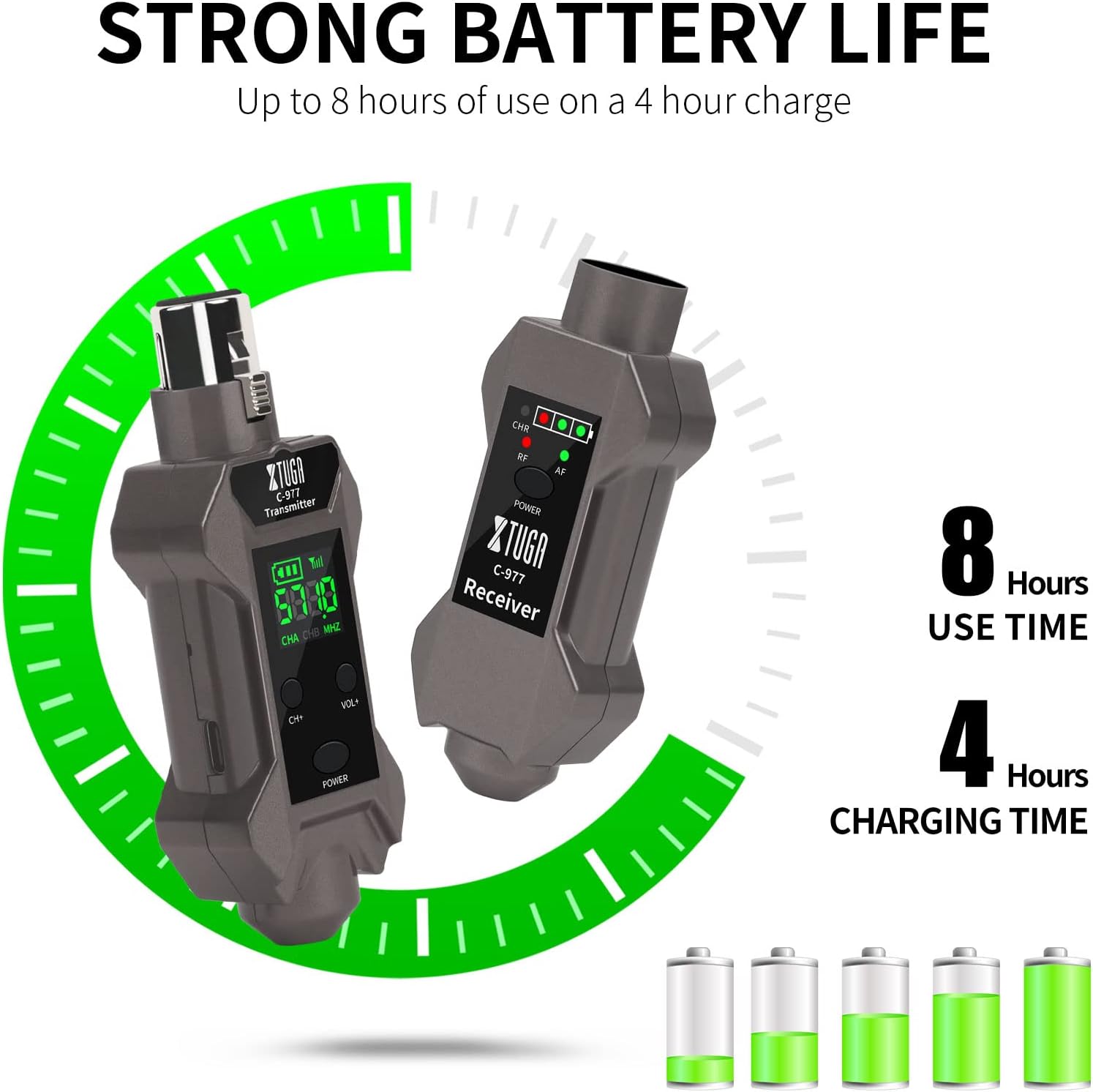

Text description: The image displays the transmitter and receiver units, highlighting their battery life and indicating approximately 8 hours of use time after 4 hours of charging.

Povezivanje predajnika

1. Connect the XTUGA C-977 transmitter directly to your dynamic microphone's XLR output. For condenser microphones, ensure the appropriate 0V/5V/48V mode is selected on the transmitter (refer to 'Microphone Mode Selection' in Operating Instructions).
2. If using with a guitar or other instrument with a 6.35mm output, attach the provided XLR to 6.35mm plug adapter to the transmitter, then plug it into your instrument's output jack.

Povezivanje prijemnika

1. Connect the XTUGA C-977 receiver to the XLR input of your audio mixer, PA system, or amplifier.
2. If your input device uses a 6.35mm jack, attach the provided 6.35mm to XLR plug adapter to the receiver, then plug it into your device's input jack.

Text description: This image illustrates the receiver connected to an electric guitar, demonstrating its compatibility with mixers, keyboards, electric drums, guitars, and violins, and showing the 180-degree rotatable plug for flexible positioning.

Uputstvo za upotrebu

Uključivanje/isključivanje

Press and hold the "POWER" button on both the transmitter and receiver for approximately 3 seconds to turn them on or off.

Automatic Frequency Pairing

The C-977 system features automatic IR frequency pairing. Once both units are powered on, they should automatically connect. The RF light on the receiver will illuminate when a stable connection is established.

Text description: The image depicts the receiver and a microphone with the transmitter, indicating automatic IR frequency pairing within the 500-950MHz range, automatic frequency search, manual FM, and infrared pairing capabilities.

Odabir kanala

If you encounter interference or need to operate multiple wireless systems simultaneously, you can change the operating channel:

1. Short press the "CH+" or "CH-" buttons on the transmitter to cycle through the available 16 UHF channels.
2. The receiver will automatically sync to the new channel.

Text description: This image shows a stage setup with a singer and multiple microphones connected to a mixer using XTUGA C-977 receivers, illustrating the system's ability to use 16 frequency points simultaneously.

Podešavanje jačine zvuka

Use the "VOL+" and "VOL-" buttons on the transmitter to adjust the input volume level as needed.

Microphone Mode Selection (for XLR Transmitter)

The transmitter supports three microphone modes (0V, 5V, 48V) for compatibility with various microphone types:

1. Long press the "CH+" button for 3 seconds to switch between 0V (for dynamic microphones), 5V (for condenser microphones requiring 5V bias), and 48V (for condenser microphones requiring phantom power).
2. The display will show the currently selected mode. The system retains the last adjusted mode after restarting.

Text description: The diagram details how to long-press the CH+ button for 3 seconds to switch between 0V (dynamic mic), 5V (condenser mic), and 48V (condenser mic) modes, with corresponding display indicators.

Održavanje

Proper maintenance will extend the lifespan of your XTUGA C-977 wireless system.

• čišćenje: Regularly wipe the devices with a soft, dry cloth. Avoid using harsh chemicals, solvents, or abrasive cleaners, as these can damage the finish or internal components.
• Skladištenje: Store the units in a cool, dry place away from direct sunlight, high humidity, and extreme temperatures when not in use.
• Održavanje baterije: Recharge the built-in batteries regularly, even if the units are not in frequent use, to maintain optimal battery health and prevent deep discharge.
• luke: Ensure all charging ports and connectors are free from dust, dirt, and debris to prevent connection issues.

Rješavanje problema

If you encounter any issues with your XTUGA C-977 system, refer to the following table for common problems and solutions.

Specifikacije

Detailed technical specifications for the XTUGA C-977 wireless system.

Garancija i podrška

XTUGA is committed to providing quality products and customer satisfaction. For detailed warranty information, technical support, or any service inquiries regarding your C-977 wireless system, please refer to the contact information provided in your product packaging or visit the official XTUGA website. Our support team is available to assist you with any questions or concerns.
