Cecotec Ironhero 1800 Force vertikalna pegla na paru - uputstvo za upotrebu

1. Uvod

Thank you for choosing the Cecotec Ironhero 1800 Force Vertical Steam Iron. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read these instructions carefully before first use and retain them for future reference.

Image 1.1: Cecotec Ironhero 1800 Force Vertical Steam Iron with brush attachment.

2. Sigurnosna uputstva

Uvijek se pridržavajte osnovnih sigurnosnih mjera opreza prilikom korištenja električnih uređaja kako biste smanjili rizik od požara, strujnog udara i tjelesnih ozljeda.

• Osigurajte voltage označeno na uređaju odgovara volti vaše lokalne mrežetage prije povezivanja.
• Ne uranjajte uređaj, kabel za napajanje ili utikač u vodu ili druge tekućine.
• Keep the steam iron out of reach of children and pets.
• Never direct steam towards people or animals. Steam is hot and can cause burns.
• Unplug the appliance from the power outlet when not in use, before filling or emptying the water tank, and before cleaning.
• Do not operate the appliance with a damaged cord or plug, or if it has been dropped or damaged. Contact authorized service personnel for repair.
• Use the appliance only for its intended household purpose as described in this manual.
• Do not leave the appliance unattended while it is switched on or connected to the power supply.
• Always place the steam iron on a stable, heat-resistant surface when not in use.

3. Komponente proizvoda

Familiarize yourself with the parts of your Cecotec Ironhero 1800 Force Vertical Steam Iron:

1. Steam Outlet / Ceramic Soleplate
2. Power Button / Steam Trigger
3. Water Tank (detachable)
4. Poklopac za dovod vode
5. Kabl za napajanje
6. Indikatorska lampica
7. Fabric Brush Attachment (optional)

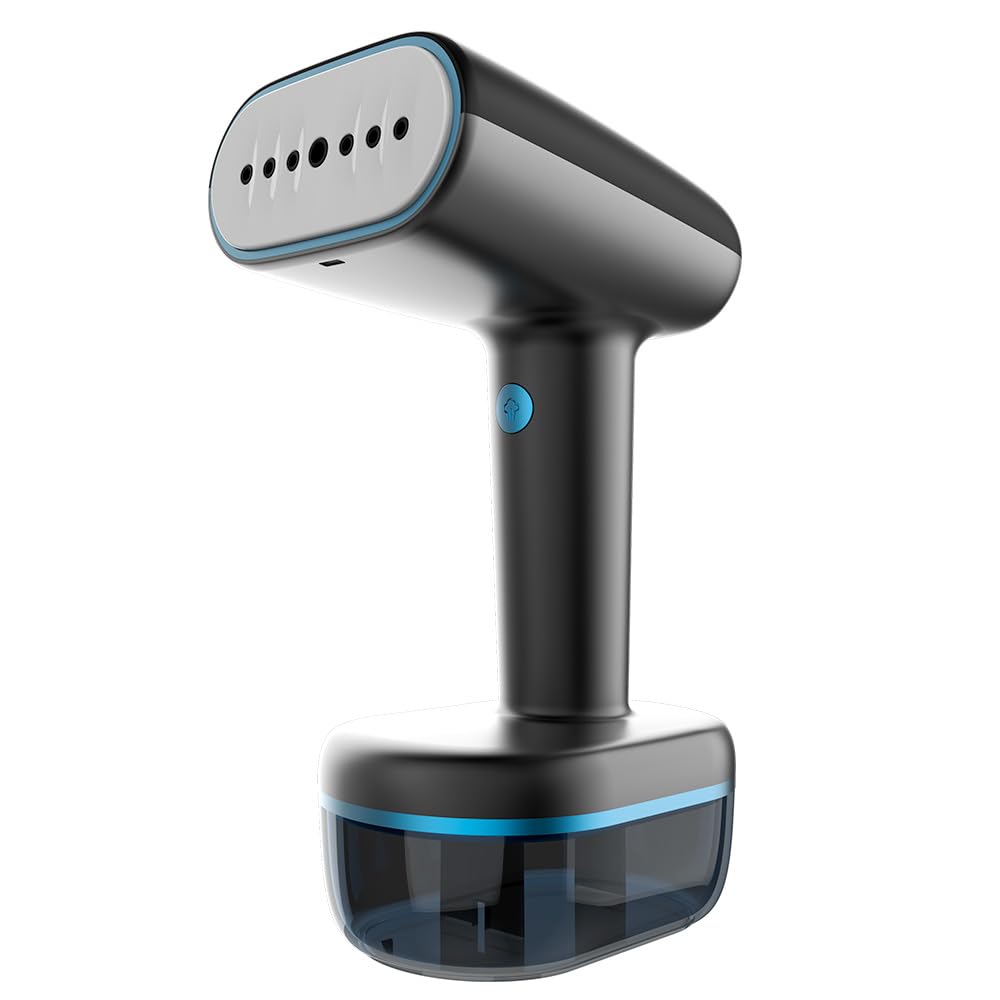

Slika 3.1: Prednja strana view of the steam iron, showing the soleplate and power button.

Image 3.2: Close-up of the ceramic soleplate, highlighting its design.

4. Podešavanje

Follow these steps to prepare your steam iron for use:

1. Napunite rezervoar za vodu:
   • Uvjerite se da je uređaj isključen iz električne utičnice.
   • Odvojite rezervoar za vodu od glavne jedinice.
   • Otvorite poklopac za dovod vode.
   • Fill the tank with clean tap water up to the maximum fill line (approximately 6.76 fluid ounces). Do not overfill. Distilled or demineralized water is recommended to prevent mineral buildup.
   • Close the water inlet cap securely and reattach the water tank to the main unit.
2. Pričvrstite dodatnu opremu (opcionalno): If using the fabric brush attachment, align it with the steam outlet and press firmly until it clicks into place.
3. Povežite se na napajanje: Plug the power cord into a suitable electrical outlet. The indicator light will illuminate, indicating the appliance is heating up.
4. Predgrijavanje: The iron will heat up quickly, typically within 20 seconds. The indicator light may change or turn off once the desired temperature is reached and it's ready for steaming.

5. Uputstvo za upotrebu

Using your Cecotec Ironhero 1800 Force for effective wrinkle removal and fabric care:

1. Pripremite odjevni predmet: Hang the garment on a hanger. Gently pull the fabric taut with one hand.
2. Počnite kuhati na pari: Hold the steam iron vertically, ensuring the soleplate is not touching the fabric directly unless specified for specific materials. Press the power button/steam trigger to release a continuous flow of steam.
3. Steam aplikacija: Move the steam iron slowly over the fabric, from top to bottom. The steam will penetrate the fibers, relaxing wrinkles. For stubborn wrinkles, pass over the area multiple times.
4. Using the Fabric Brush (if attached): The brush attachment helps to open fabric weaves for better steam penetration, especially useful for heavier fabrics, and can also remove lint.
5. Završna obrada: Once steaming is complete, release the steam trigger. Allow the garment to cool and dry completely before wearing or storing to prevent re-wrinkling.
6. Iskljuciti: Unplug the appliance from the power outlet after each use.

Image 5.1: Demonstrating vertical steaming of pants.

Image 5.2: User applying steam to a hanging shirt.

6. Održavanje i čišćenje

Regular cleaning and maintenance will ensure the longevity and optimal performance of your steam iron.

• Prije čišćenja: Always unplug the appliance and allow it to cool down completely before cleaning or storing.
• Prazan rezervoar za vodu: Uklonite rezervoar za vodu i ispraznite preostalu vodu.
• Čista spoljašnjost: Wipe the exterior of the steam iron with a soft, damp tkanina. Nemojte koristiti abrazivna sredstva za čišćenje ili rastvarače.
• Očistite podlogu za peglanje: If the ceramic soleplate becomes dirty, wipe it gently with a damp cloth. Do not use metallic scouring pads or harsh chemicals.
• Descaling (Recommended): Depending on water hardness in your area, mineral deposits may build up over time. To descale, fill the water tank with a mixture of 50% white vinegar and 50% water. Run the steamer until the tank is empty. Repeat with clean water to rinse. Perform this process monthly or as needed.
• Skladištenje: Store the steam iron in a cool, dry place, away from direct sunlight and moisture. Ensure the water tank is empty before storage.

7. Otkrivanje problema

Pogledajte ovaj odjeljak za uobičajene probleme i njihova rješenja.

Ako problem i dalje postoji nakon isprobavanja ovih rješenja, obratite se korisničkoj podršci Cecoteca.

8. Specifikacije

• Model: Cecotec Ironhero 1800 Force (08508)
• Snaga: 1800 W
• Voltage: 240 V
• Kapacitet rezervoara za vodu: Approximately 6.76 fl oz (200 ml)
• Vrijeme zagrijavanja: Približno 20 sekundi
• Kontinuirani izlaz pare: 35 g/min
• Materijal podloge: Ceramic (Ultraslip Turbo Slide)
• Težina artikla: 1.34 kg
• Dimenzije (DxŠxV): 19.5 x 12.5 x 28.5 cm
• Proizvođač: Cecotec

Image 8.1: Product dimensions for the Cecotec Ironhero 1800 Force.

9. Garancija i podrška

Cecotec products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your purchase or visit the official Cecotec webZa tehničku podršku, rezervne dijelove ili upite o servisiranju, molimo Vas da se direktno obratite korisničkoj službi Cecotec-a.

Webstranica: www.cecotec.com
