1. Uvod
Thank you for choosing the Cecotec TotalPure 2in1 MoonStyle Dark Fan and Air Purifier. This innovative appliance combines the functions of a powerful bladeless fan and an efficient air purifier, designed to enhance your indoor comfort and air quality. Featuring a DC motor, Wi-Fi control, an intuitive LED display, and multiple operating modes, this device offers a superior user experience. Please read this manual thoroughly before use to ensure proper operation, maintenance, and safety.
Image 1.1: The Cecotec TotalPure 2in1 MoonStyle Dark Fan and Air Purifier in a bedroom setting, showcasing njegovim elegantnim dizajnom.
2. Sigurnosna uputstva
Da biste smanjili rizik od požara, strujnog udara ili povrede, uvijek slijedite ove osnovne sigurnosne mjere:
- Prije korištenja uređaja pročitajte sva uputstva.
- Osigurajte napajanje voltage odgovara naljepnici s karakteristikama na uređaju.
- Ne uranjajte uređaj, kabel za napajanje ili utikač u vodu ili druge tekućine.
- Isključite uređaj iz električne utičnice kada ga ne koristite, prije čišćenja ili prije bilo kakvog održavanja.
- Držite uređaj van domašaja djece i kućnih ljubimaca.
- Nemojte koristiti uređaj s oštećenim kablom ili utikačem, ili nakon što je uređaj pokvario rad ili je pao ili oštećen na bilo koji način.
- Do not block air openings or operate near curtains or other objects that could block air intake.
- Koristite uređaj samo za predviđenu kućnu upotrebu, kako je opisano u ovom priručniku.
- Do not attempt to repair or disassemble the appliance yourself. Contact authorized service personnel.
3. Proizvod je gotovview i komponente
The Cecotec TotalPure 2in1 MoonStyle Dark is designed with user convenience and performance in mind. Below are the main components and key features of your device.
Slika 3.1: Prednja strana View
Slika 3.2: Bočna strana View
Ključne karakteristike:
- Velika snaga (35 W): Delivers strong airflow for effective cooling.
- Bladeless tehnologija: Provides a safe and elegant design, reducing noise and making cleaning easier.
- Visokoefikasni filter: Ensures powerful air purification, capturing airborne particles.
- Wi-Fi kontrola: Manage settings conveniently via your smartphone.
- LED ekran: Displays all operational parameters and air quality information.
- Kontrola na dodir i daljinski upravljač: Offers multiple ways to interact with the device.
- Oscilacija od 120°: Distributes air evenly across the room.
- 9 Speeds & 4 Modes: Customize your experience for various needs and preferences.
- 8-satni tajmer: Set the device to automatically turn off after a specified period.
High Power 35W
Dizajn bez lopatica
Pročišćavanje zraka
4. Podešavanje
4.1 Raspakivanje i montaža
- Pažljivo izvadite sve komponente iz pakovanja.
- Postavite bazu na ravnu, stabilnu površinu.
- Insert the main body of the fan/purifier into the base, ensuring it clicks securely into place.
- Connect the power cord to the appliance and then plug it into a suitable electrical outlet.
4.2 Podešavanje Wi-Fi veze
To utilize the smart features of your device, connect it to your home Wi-Fi network via the Cecotec smartphone application.
- Download the "Cecotec" app from your smartphone's app store (available for iOS and Android).
- Register or log in to your Cecotec account.
- Follow the in-app instructions to add your new device. This typically involves putting the device into pairing mode (refer to the LED screen for indicators) and connecting to its temporary Wi-Fi hotspot before linking it to your home network.
- Once connected, you can control the fan/purifier remotely and access additional features.

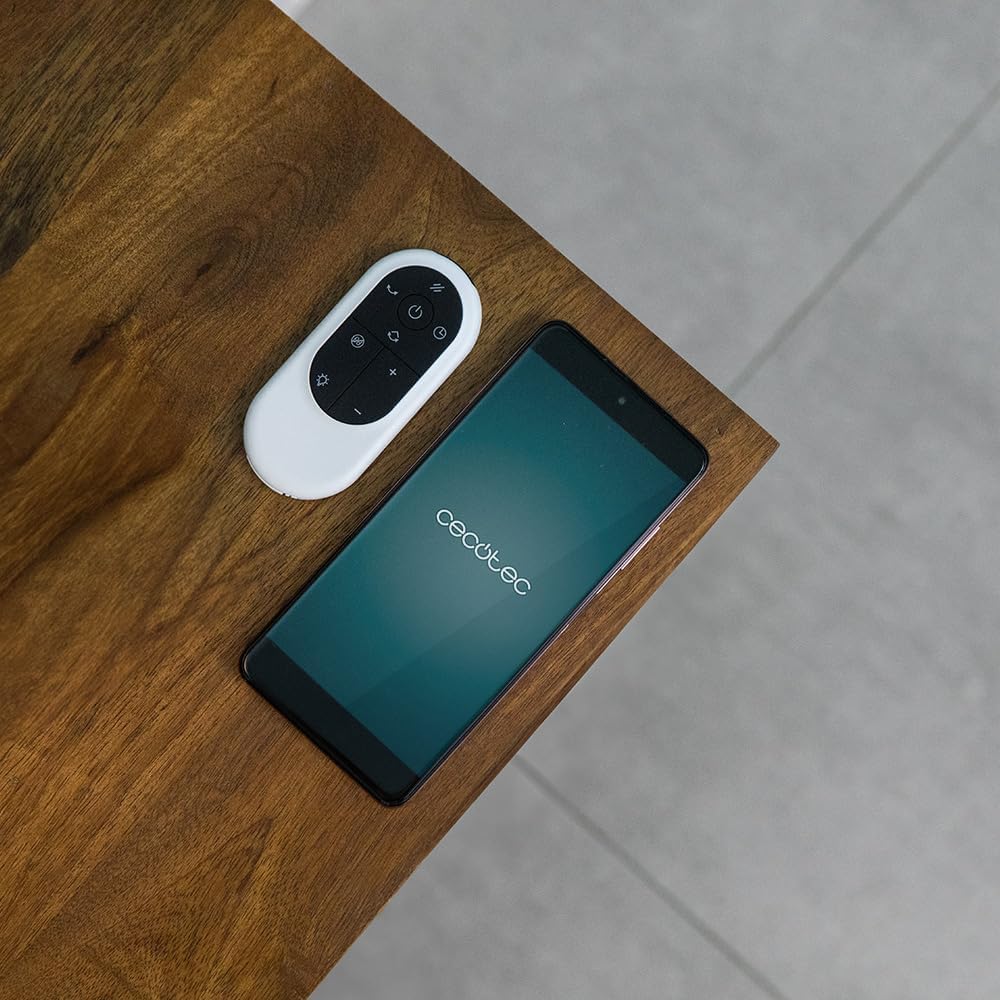

Image 4.1: The remote control and a smartphone displaying the Cecotec app, illustrating the control options.
5. Uputstvo za upotrebu
5.1 Kontrolna tabla i LED ekran
The device features a touch-sensitive control panel and an LED display for easy operation. The LED screen shows current settings, air quality, and other relevant information.
Image 5.1: A hand interacting with the touch control panel on the device.
Slika 5.2: Krupni plan view of the LED display, showing current settings.
5.2 Načini rada i brzine
The fan/purifier offers 9 speed settings and 4 distinct operating modes:
- Normalni način rada: Constant airflow at your selected speed.
- Režim spavanja: Radi na nižoj, tišoj brzini za nesmetan odmor.
- Prirodni način rada: Simulira prirodni povjetarac promjenom brzine ventilatora.
- Automatski režim: Adjusts fan speed automatically based on detected air quality.
Slika 5.3: Gotovoview of 9 speeds, 4 modes, and 8-hour timer.
5.3 Funkcija oscilacije
Activate the oscillation function to distribute purified and cooled air across a wider area. The device can oscillate up to 120 degrees.
Image 5.4: The fan demonstrating its 120-degree oscillation capability.
5.4 Funkcija tajmera
Set the timer for up to 8 hours to automatically turn off the appliance, saving energy and providing convenience.
6. Održavanje
Regular maintenance ensures the longevity and optimal performance of your Cecotec TotalPure 2in1 MoonStyle Dark.
6.1 Čišćenje uređaja
- Prije čišćenja uvijek isključite uređaj iz struje.
- Obrišite vanjske površine mekom krpom, damp tkanina. Nemojte koristiti abrazivna sredstva za čišćenje ili rastvarače.
- Use a soft brush or vacuum cleaner with a brush attachment to gently clean the air intake and outlet grilles.
6.2 Zamjena filtera
The air purification function relies on a high-efficiency filter. The filter needs to be replaced periodically to maintain purification effectiveness. The LED display may indicate when a filter change is due.
Image 6.1: The internal air filter of the Cecotec TotalPure 2in1 MoonStyle Dark.
- Isključite uređaj iz struje.
- Locate the filter compartment, usually at the rear or side of the main unit.
- Open the compartment and carefully remove the old filter.
- Insert a new genuine Cecotec replacement filter, ensuring it is correctly oriented.
- Čvrsto zatvorite pretinac filtera.
- Reset the filter life indicator on the device or via the app, if applicable.
Note: Availability of replacement filters may vary. Please contact Cecotec customer support or check their official website for purchasing replacement filters.
7. Otkrivanje problema
If you encounter any issues with your Cecotec TotalPure 2in1 MoonStyle Dark, please refer to the following common problems and solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Uređaj se ne uključuje. | Nije uključeno; utičnica je neispravna; dugme za napajanje nije pritisnuto. | Provjerite je li kabel za napajanje sigurno uključen u ispravnu utičnicu. Pritisnite dugme za napajanje. |
| Slab protok vazduha. | Low speed setting; blocked air intake/outlet; dirty filter. | Increase speed setting. Check for obstructions. Clean or replace the air filter. |
| Loše prečišćavanje zraka. | Dirty or old filter. | Replace the air filter as per maintenance instructions. |
| Problemi s Wi-Fi vezom. | Incorrect Wi-Fi password; device too far from router; app issues. | Re-enter Wi-Fi password. Move device closer to router. Restart app and device. |
| Neobična buka. | Obstruction inside; unstable surface. | Unplug and check for foreign objects. Place on a stable, flat surface. If noise persists, contact support. |
Ako problem i dalje postoji nakon isprobavanja ovih rješenja, obratite se korisničkoj podršci Cecoteca.
8. Specifikacije
Detailed technical specifications for the Cecotec TotalPure 2in1 MoonStyle Dark Fan and Air Purifier:
| Feature | Specifikacija |
|---|---|
| Brand | Cecotec |
| Broj modela | 08249 |
| Boja | Dark |
| Snaga | 35 Watts |
| Voltage | 230 Volts |
| Materijal | Metal i plastika |
| Broj brzina | 9 |
| Posebne karakteristike | Timer, Wi-Fi Control, Bladeless Technology, LED Display, Oscillation |
| Težina artikla | 8.7 kilograma |
| Dimenzije proizvoda | 10P x 10W x 10H millimeters (Approximate, based on provided data) |
| Preporučena upotreba | Cooling, Air Purification |
| Vrsta montaže | Podni nosač |
9. Garancija i podrška
Cecotec products are manufactured to the highest quality standards. This product comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Cecotec website.
For technical support, troubleshooting assistance, or to inquire about replacement parts (such as filters), please contact Cecotec customer service through their official channels. You can usually find contact information on the Cecotec webweb stranici ili na ambalaži vašeg proizvoda.
Online podrška: www.cecotec.com
