1. Uvod
This manual provides detailed instructions for the safe and efficient use of your Cecotec Conga Rockstar 12500 Stellar AquaPet Flex cordless vacuum cleaner. Please read this manual thoroughly before operating the appliance and keep it for future reference.
The Cecotec Conga Rockstar 12500 Stellar AquaPet Flex is a versatile 4-in-1 cordless vacuum cleaner, functioning as a vertical, broom, handheld, and mop vacuum. It features a digital brushless motor, high suction power, and specialized accessories for comprehensive cleaning.
2. Sigurnosna uputstva
- Osigurajte napajanje voltage odgovara voltage navedeno na naljepnici s karakteristikama uređaja.
- Ne uranjajte uređaj, njegov kabel ili utikač u vodu ili bilo koju drugu tekućinu.
- Uređaj držite dalje od izvora toplote, direktne sunčeve svjetlosti, vlage i oštrih rubova.
- Do not use the appliance to vacuum liquids, flammable or combustible materials, or hot ashes.
- Uvijek isključite uređaj iz električne mreže prije čišćenja ili održavanja.
- Ovaj uređaj je namijenjen samo za kućnu upotrebu. Ne koristite ga na otvorenom ili u komercijalne svrhe.
- Držite kosu, široku odjeću, prste i sve dijelove tijela dalje od otvora i pokretnih dijelova.
- Do not operate the vacuum cleaner without the dust container and filters properly installed.
3. Sadržaj paketa
Pažljivo raspakujte sve komponente i provjerite ih na donjoj listi. Ako neke stavke nedostaju ili su oštećene, obratite se korisničkoj podršci.
- Vertical Vacuum Cleaner Main Unit
- Removable Battery
- Fleksibilno crijevo
- Integrated Accessory for Furniture and Corners
- Punjač
- Zidni nosač sa funkcijom punjenja
- Water Tank (WaterTank)
- Pet Accessory with two heads
- Produžna cijev
- Anti-Tangle Multifunction Brush
- Motorized Accessory for Upholstery
- Kutni dodatak
- Uputstvo za upotrebu
Image: All components of the Cecotec Conga Rockstar 12500 Stellar AquaPet Flex vacuum cleaner, including the main unit, various brushes, nozzles, flexible hose, and wall mount.
Image: A closer look at the comprehensive accessory kit, showing the flexible hose, mini turbo brush, upholstery tool, and crevice tool.
4. Podešavanje
4.1 Montaža
- Attach the extension tube to the main vacuum unit.
- Select the desired cleaning head (e.g., Anti-Tangle Multifunction Brush) and connect it to the end of the extension tube.
- Za ručnu upotrebu, pričvrstite dodatnu opremu direktno na glavnu jedinicu.
- To use the Water Tank, fill it with water and attach it to the appropriate cleaning head as per instructions for wet cleaning.
Image: The main vacuum unit assembled with the extension tube and floor brush, alongside several interchangeable accessories.
4.2 Punjenje baterije
Prije prve upotrebe, potpuno napunite bateriju. Izmjenjiva baterija se može puniti dok je pričvršćena na usisivač ili odvojeno.
- Connect the charger to the charging port on the battery or the wall mount.
- Uključite punjač u utičnicu.
- The battery indicator lights will show the charging status. A full charge provides up to 100 minutes of autonomy.

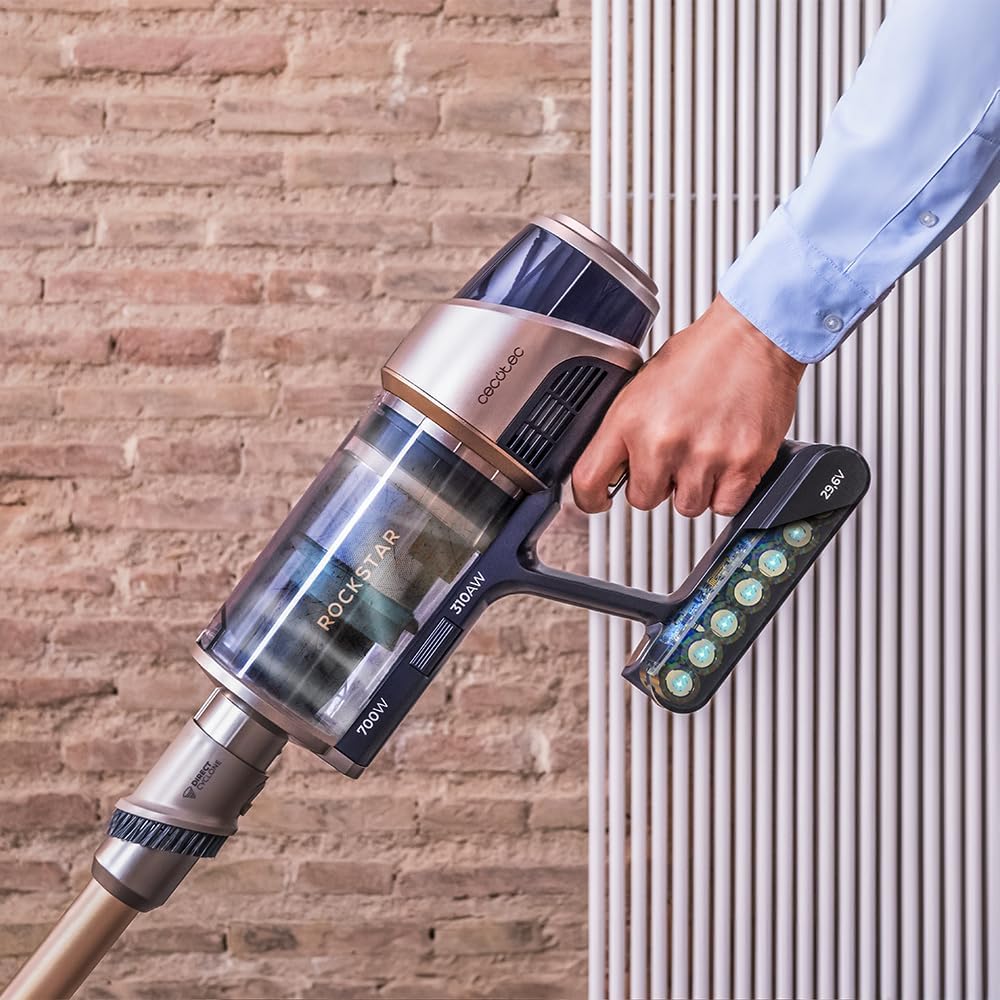

Slika: Krupni plan view of the vacuum's handle and removable battery, showing the battery level indicators.
5. Uputstvo za upotrebu
5.1 Načini napajanja
The vacuum offers multiple power modes to suit different cleaning needs:
- Eko način rada: Za lagano čišćenje i maksimalno trajanje baterije.
- Srednji način rada: Uravnotežena snaga za svakodnevno čišćenje.
- Visoki način rada: Maksimalno usisavanje za tvrdokornu prljavštinu.
- Automatski režim: The vacuum automatically adjusts suction power based on the detected dirt level, optimizing performance and battery usage.
Image: The top of the vacuum cleaner showing a digital display with battery percentage and current power mode (e.g., 'AUTO').
5.2 Korištenje priloga
The Conga Rockstar 12500 Stellar AquaPet Flex comes with a variety of attachments for different cleaning tasks:
- Anti-Tangle Multifunction Brush: Designed to prevent hair from tangling around the brush, making it ideal for pet owners. It also features LED lights to illuminate dirt in dark areas.
- Flex-Schlauch (Flexible Hose): Allows for easy cleaning in hard-to-reach areas without bending down.
- Spremnik za vodu: Enables simultaneous vacuuming and mopping for a complete clean on hard floors.
- Pet Accessory: Specific accessory designed for pet hair removal and grooming.
- Integrated Accessory for Furniture and Corners: Useful for cleaning upholstery, crevices, and tight spaces.
Image: The Anti-Tangle brush head shown with accumulated hair, demonstrating its effectiveness in preventing tangles, with an inset showing a clean brush.
Image: A person utilizing the flexible hose attachment to clean a low-lying area, highlighting the ease of reaching difficult spots.
Image: A man sitting on the floor, using the specialized pet accessory to clean a golden retriever, demonstrating its use for pet care.
5.3 Čišćenje različitih površina
- tvrdi podovi: Use the Anti-Tangle Multifunction Brush with LED lights for optimal visibility and the Water Tank for simultaneous vacuuming and mopping.
- Tepisi i prostirke: The Anti-Tangle Multifunction Brush is effective for deep cleaning carpets. Use High or Auto mode for best results.
- Upholstery and Furniture: Attach the motorized upholstery accessory or the integrated furniture and corner accessory.
- Corners and Crevices: Use the corner accessory or the integrated accessory for tight spaces.
Image: The vacuum cleaner's main brush head actively cleaning scattered debris on a dark carpeted surface.
Image: The vacuum cleaner's head on a light wooden floor, demonstrating its ability to vacuum and mop simultaneously, with visible dirt being cleaned.
6. Održavanje
Redovno održavanje osigurava optimalne performanse i produžava vijek trajanja vašeg usisivača.
6.1 Pražnjenje posude za prašinu
Empty the dust container regularly, especially when the MAX line is reached, to maintain strong suction power.
- Disconnect the vacuum from any charging source.
- Locate the dust container release button and detach the container.
- Open the dust container lid and empty its contents into a waste bin.
- Close the lid and reattach the dust container to the main unit.
6.2 Čišćenje i zamjena filtera
The vacuum uses a HEPA filter system to trap dust and allergens. Clean the filters regularly and replace them as needed.
- Uklonite posudu za prašinu.
- Carefully remove the HEPA filter and other internal filters.
- Tap the filters gently to remove loose dust. For thorough cleaning, rinse them under running water (ensure they are completely dry before reinserting).
- Reassemble the filters and dust container once dry.
6.3 Održavanje četkica
The Anti-Tangle Multifunction Brush is designed to minimize hair tangles, but occasional cleaning may still be required.
- Isključite usisivač i odvojite glavu četke.
- Remove the brush roll from the brush head.
- Use scissors or a cleaning tool to cut and remove any tangled hair or debris.
- Očistite kućište četke i ponovo umetnite valjak četke.
6.4 Održavanje rezervoara za vodu
After using the Water Tank for mopping, empty any remaining water and clean the tank to prevent mold or odors.
- Empty the Water Tank completely.
- Isperite rezervoar čistom vodom.
- Allow the tank to air dry completely before storing.
7. Otkrivanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Vakuum se ne uključuje | Baterija nije napunjena ili nije pravilno umetnuta. | Potpuno napunite bateriju. Provjerite je li baterija sigurno spuštena na svoje mjesto. |
| Mala usisna snaga | Dust container is full. Filters are clogged. Brush roll is obstructed. | Empty the dust container. Clean or replace filters. Remove any obstructions from the brush roll. |
| Error message / Obstruction indicator | Blockage in the tube or brush head. | Check the extension tube, flexible hose, and brush head for any blockages and remove them. |
| Kratko trajanje baterije | Using High power mode continuously. Battery degradation. | Use Eco or Auto mode for longer runtime. If battery life significantly decreases, consider replacing the battery. |
8. Specifikacije
- Broj modela: 00666
- Dimenzije proizvoda: 24 x 72 x 31 cm
- Težina: 4.05 kilograma
- Form Faktor: Stick
- Vrsta filtera: HEPA filter
- bežični: Da
- vrijeme izvođenja: Do 1 sat i 40 minuta (100 minuta)
- baterije: 1 AA Battery required (included) - Note: This likely refers to a small battery for a remote or display, the main vacuum uses a larger rechargeable battery.
9. Garancija i podrška
Za informacije o garanciji i korisničkoj podršci, molimo pogledajte garantni list koji dolazi uz vaš proizvod ili posjetite službenu Cecotec stranicu. webSačuvajte račun kao dokaz o kupovini.
