Cecotec Bake & Toast 4600 Gyro 46L konvekcijska pećnica - uputstvo za upotrebu

1. Važna sigurnosna uputstva

Molimo vas da pažljivo pročitate sva uputstva prije upotrebe uređaja i sačuvate ih za buduću upotrebu. Nepoštivanje ovih uputstava može dovesti do strujnog udara, požara ili ozbiljnih povreda.

• Uvijek se uvjerite da je uređaj isključen iz električne utičnice prije čišćenja ili kada se ne koristi.
• Ne uranjajte uređaj, kabel ili utikač u vodu ili bilo koju drugu tekućinu.
• Ovaj uređaj nije namijenjen za upotrebu od strane osoba (uključujući djecu) sa smanjenim fizičkim, senzornim ili mentalnim sposobnostima, ili nedostatkom iskustva i znanja, osim ako im je dat nadzor ili upute o korištenju uređaja od strane osobe odgovorne za njihovu sigurnost .
• Neophodan je strogi nadzor kada bilo koji uređaj koriste djeca ili u blizini djece.
• Nemojte koristiti uređaj s oštećenim kablom ili utikačem, ili nakon što uređaj pokvari ili je na bilo koji način oštećen.
• Ne koristiti na otvorenom. Ovaj aparat je samo za upotrebu u domaćinstvu.
• Nemojte dozvoliti da kabl visi preko ivice stola ili pulta, niti da dodiruje vruće površine.
• Ne stavljajte na ili blizu vrućeg plinskog ili električnog gorionika, ili u zagrijanu pećnicu.
• Morate biti izuzetno oprezni kada premještate uređaj koji sadrži vruće ulje ili druge vruće tekućine.
• Uvijek prvo priključite utikač na uređaj, a zatim uključite kabel u zidnu utičnicu. Da biste isključili uređaj, isključite bilo koju kontrolu, a zatim izvucite utikač iz zidne utičnice.
• Nemojte koristiti uređaj za drugu upotrebu osim za predviđenu.
• Ensure adequate ventilation around the oven during operation. Maintain a minimum clearance of 10 cm on all sides.
• The temperature of accessible surfaces may be high when the appliance is operating. Do not touch hot surfaces directly. Use oven mitts or handles.
• Ne stavljajte papir, karton, plastiku ili druge zapaljive materijale u pećnicu.

2. Proizvod je gotovview i komponente

The Cecotec Bake & Toast 4600 Gyro is a 46-liter convection oven designed for versatile cooking. It features a rotisserie function, interior light, and a double-glazed door for efficient heat retention.

Slika 2.1: Prednja strana view of the Cecotec Bake & Toast 4600 Gyro convection oven.

Uključene komponente:

• 1 x Convection Oven Unit
• 1 x pleh za pečenje
• 1 x rešetka za roštilj
• 1 x Handle for Accessories (tray/rack removal)
• 1 x Rotisserie Fork
• 1 x Handle for Rotisserie Removal
• 1 x posuda za mrvice
• 1 x Uputstvo za upotrebu

Image 2.2: Illustration of using the accessory handle to remove items from the oven.

3. Podešavanje

3.1 Raspakivanje

1. Pažljivo izvadite pećnicu i sav pribor iz ambalaže.
2. Remove any protective films, stickers, or packaging materials from the oven's interior and exterior.
3. Inspect the oven for any signs of damage. If damaged, do not operate and contact customer support.

3.2 Postavljanje

• Postavite pećnicu na stabilnu, ravnu i toplotno otpornu površinu.
• Ensure there is at least 10 cm of clear space around all sides of the oven (top, back, and sides) for proper ventilation. Do not place it directly against a wall or under cabinets.
• Do not place the oven near flammable materials such as curtains or paper.
• Pazite da kabel za napajanje nije savijen ili priklješten.

3.3 Početno čišćenje i prva upotreba

1. Prije prve upotrebe, obrišite unutrašnjost i vanjštinu pećnice sredstvom za čišćenje.amp krpom i blagim deterdžentom. Temeljno osušite.
2. Wash the baking tray, grill rack, and rotisserie accessories in warm, soapy water. Rinse and dry completely.
3. For the first use, operate the oven empty for approximately 15 minutes at the maximum temperature (230°C) with the convection function enabled. This will burn off any manufacturing residues and odors. A slight smoke or odor is normal during this process. Ensure the area is well-ventilated.
4. Ostavite pećnicu da se potpuno ohladi prije prve upotrebe za kuhanje.

4. Uputstvo za upotrebu

4.1 Kontrolna tabla prekoview

Pećnica ima četiri kontrolna dugmeta na desnoj strani:

• Gornja ručka: Regulacija temperature (do 230°C).
• Druga ručica: Function selector (top heat, bottom heat, both, convection, rotisserie).
• Treće dugme: Timer control (up to 60 minutes or "Stay On").
• Donja ručka: Indikator napajanja.

Slika 4.1: Prednja strana view highlighting the control panel with four knobs.

4.2 Osnovni rad

1. Place food on the baking tray or grill rack. Insert the tray/rack into the desired slot inside the oven.
2. Čvrsto zatvorite vrata pećnice.
3. Podesite željenu temperaturu pomoću Dugme za kontrolu temperature.
4. Select the desired cooking function using the Dugme za izbor funkcije. Options include:
   • Top Heat: For browning and grilling.
   • Bottom Heat: For baking bases.
   • Top & Bottom Heat: Standard baking.
   • Convection: Circulates hot air for even cooking and faster results.
   • Rotisserie: Activates the rotisserie motor (must also select a heat function).
5. Set the cooking time using the Ručica za upravljanje tajmerom. Turn past 10 minutes and then back to the desired time. For continuous operation, turn to the "Stay On" position. The oven will turn off automatically when the timer reaches zero, indicated by an audible signal.
6. The power indicator light will illuminate when the oven is operating.
7. When cooking is complete, carefully remove food using oven mitts and the provided accessory handle.

4.3 Korištenje funkcije ražnja

The rotisserie function is ideal for roasting poultry or large cuts of meat, ensuring even cooking and browning.

1. Skewer the food onto the rotisserie fork, ensuring it is centered and balanced. Secure with the prongs.
2. Insert the pointed end of the rotisserie fork into the drive socket on the right side of the oven interior.
3. Rest the square end of the rotisserie fork onto the support on the left side of the oven interior.
4. Select the desired temperature and a heat function (e.g., Top & Bottom Heat or Convection).
5. Okrenite Dugme za izbor funkcije to the rotisserie icon (often combined with a heat setting).
6. Podesite vreme kuvanja.
7. To remove the hot rotisserie, use the dedicated rotisserie handle. Hook the handle under the rotisserie rod and lift it out, placing it on a heat-resistant surface.

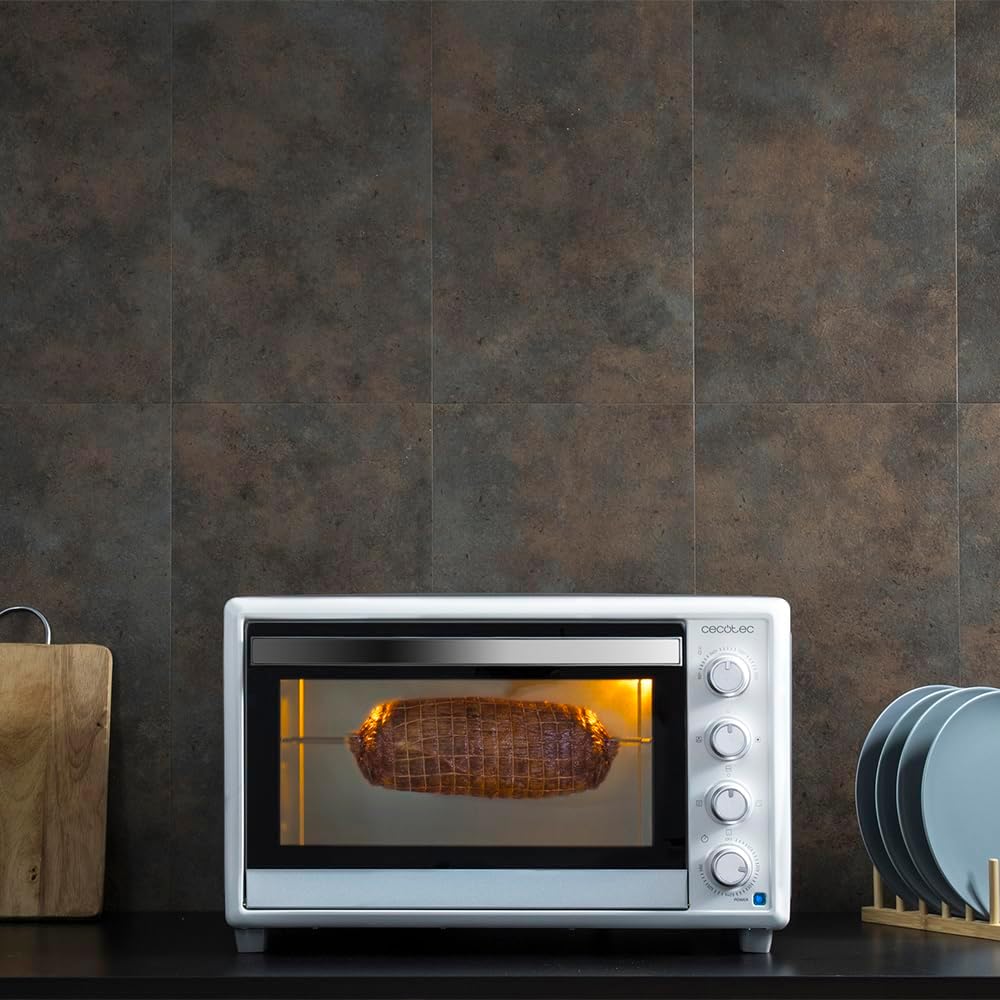

Image 4.2: The rotisserie function in operation, roasting food evenly.

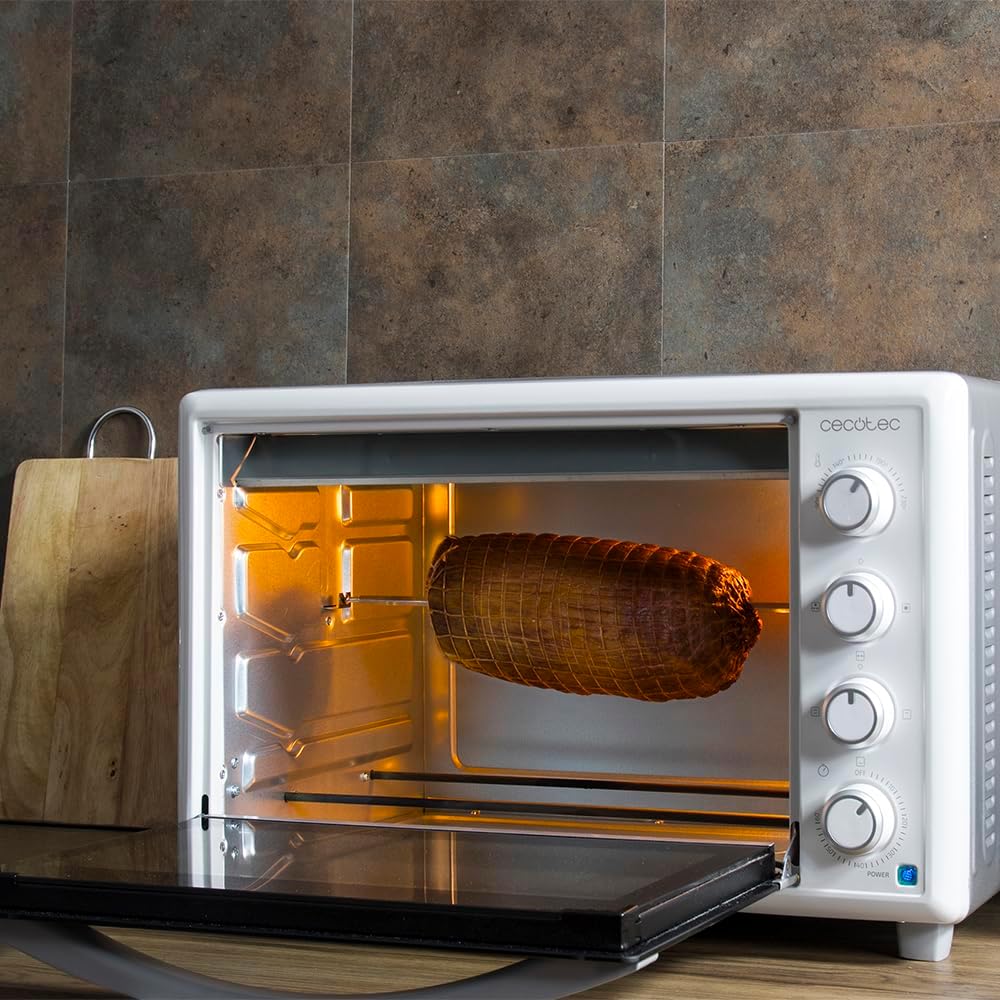

Slika 4.3: View of the oven interior with the rotisserie mechanism and door open.

5. Održavanje i čišćenje

Redovno čišćenje i održavanje osigurat će dugotrajnost i optimalne performanse vaše pećnice.

5.1 Generalno čišćenje

1. Uvijek isključite pećnicu iz električne utičnice i ostavite je da se potpuno ohladi prije čišćenja.
2. Obrišite vanjske površine oglasomamp cloth and mild detergent. Do not use abrasive cleaners or scouring pads, as they may damage the finish.
3. Za unutrašnjost, obrišite oglasomamp cloth and mild detergent. For stubborn stains, a non-abrasive oven cleaner designed for conventional ovens can be used, following the product's instructions. Ensure all cleaner residue is removed.
4. The baking tray, grill rack, and rotisserie accessories can be washed in warm, soapy water or placed in a dishwasher if they are dishwasher-safe (check product specifications).
5. Dry all parts thoroughly before reassembling or storing the oven.

5.2 Crumb Tray Cleaning

The removable crumb tray collects food particles and drips, making cleaning easier and preventing smoke from burnt residue.

Image 5.1: Detail of the removable crumb tray at the bottom of the oven.

1. Ensure the oven is cool and unplugged.
2. Carefully slide out the crumb tray from the bottom of the oven.
3. Discard any accumulated crumbs or food particles.
4. Wash the crumb tray in warm, soapy water. Rinse thoroughly and dry completely before reinserting.
5. Regularly cleaning the crumb tray prevents grease buildup and potential fire hazards.

5.3 Double Glazed Door

The double-glazed door helps maintain internal temperature and improves energy efficiency. Clean the glass with a non-abrasive glass cleaner or a damp tkanina.

Image 5.2: Detail of the oven's double-glazed door construction.

6. Otkrivanje problema

If you encounter any issues with your oven, please refer to the following common problems and solutions before contacting customer support.

7. Specifikacije

8. Garancija i podrška

Cecotec products are manufactured to high-quality standards. In the unlikely event of a problem with your product, please refer to the following information.

8.1 Parts Availability

Rezervni dijelovi za ovaj uređaj dostupni su u periodu od 10 godina od datuma kupovine.

8.2 Korisnička podrška

For warranty claims, technical assistance, or further inquiries, please contact Cecotec customer support through their official webweb-mjesto ili prodavač gdje je proizvod kupljen. Molimo vas da pripremite broj modela (03815) i dokaz o kupovini.
