1. Uvod
Thank you for choosing the Cecotec Drumfit CrossFit 1000 Eolo Exercise Bike. This manual provides essential information for the safe and efficient use of your new fitness equipment. Please read it thoroughly before assembly and operation, and keep it for future reference.
Ključne karakteristike:
- Manually adjustable air resistance for varied intensity.
- Vertically adjustable saddle to accommodate different user heights.
- LCD monitor displaying time, speed, calories, and distance.
- Bidirectional pedaling for comprehensive leg muscle engagement.
- Integrated upper body workout with moving handlebars.
- Compact design for easy placement in any room.
2. Važna sigurnosna uputstva
Before using the exercise bike, please observe the following safety precautions:
- Konsultujte se sa lekarom pre nego što započnete bilo koji program vežbanja.
- Ensure all parts are correctly assembled and tightened before each use.
- Postavite bicikl na ravnu, stabilnu površinu.
- Držite djecu i kućne ljubimce podalje od opreme tokom upotrebe.
- Ne prekoračujte maksimalnu težinu korisnika od 100 kg (220 lbs).
- Nosite odgovarajuću odjeću i obuću za vježbanje.
- Odmah prekinite vježbanje ako osjetite bol, vrtoglavicu ili mučninu.
- Do not insert any objects into the moving parts of the bike.
- Keep hands and feet clear of moving parts, especially the fan and pedals.
3. Upute za sastavljanje
The Cecotec Drumfit CrossFit 1000 Eolo Exercise Bike comes with a mounting kit and requires assembly. Follow these general steps. Refer to the included assembly diagram for detailed instructions.
- Raspakujte komponente: Carefully remove all parts from the packaging. Verify that all components listed in the parts list are present.
- Pričvrstite stabilizatorske šipke: Pričvrstite prednju i zadnju stabilizatorsku šipku na glavni okvir pomoću priloženih vijaka i alata.
- Instalirajte pedale: Attach the left and right pedals to their respective crank arms. Note that pedals are often marked 'L' and 'R' and thread in opposite directions.
- Montaža cijevi sjedišta i sjedišta: Insert the seat post into the main frame and secure it. Attach the saddle to the seat post.
- Instalirajte upravljače: Connect the moving handlebars to the main frame, ensuring they are securely fastened and move freely.
- Attach LCD Monitor: Mount the LCD monitor to its designated bracket on the handlebars. Insert the two AA batteries (included).
- Konačna provjera: Double-check all bolts and nuts to ensure they are securely tightened.
Slika: Front view of the assembled Cecotec Drumfit CrossFit 1000 Eolo Exercise Bike, showing the handlebars, fan, and pedals.
Slika: Sa strane view of the assembled Cecotec Drumfit CrossFit 1000 Eolo Exercise Bike, highlighting its compact design.
4. Initial Setup and Adjustments
4.1. Saddle Adjustment
The saddle can be adjusted vertically to ensure a comfortable and effective workout position. Loosen the adjustment knob on the seat post, slide the saddle to the desired height, and then firmly tighten the knob.
Image: A close-up showing the vertical adjustment mechanism for the saddle, indicated by a blue arrow.
4.2. Podešavanje otpora
The air resistance system is manually adjustable. Locate the resistance knob, typically near the fan housing. Turn the knob clockwise to increase resistance and counter-clockwise to decrease it, allowing you to tailor the intensity to your fitness level.

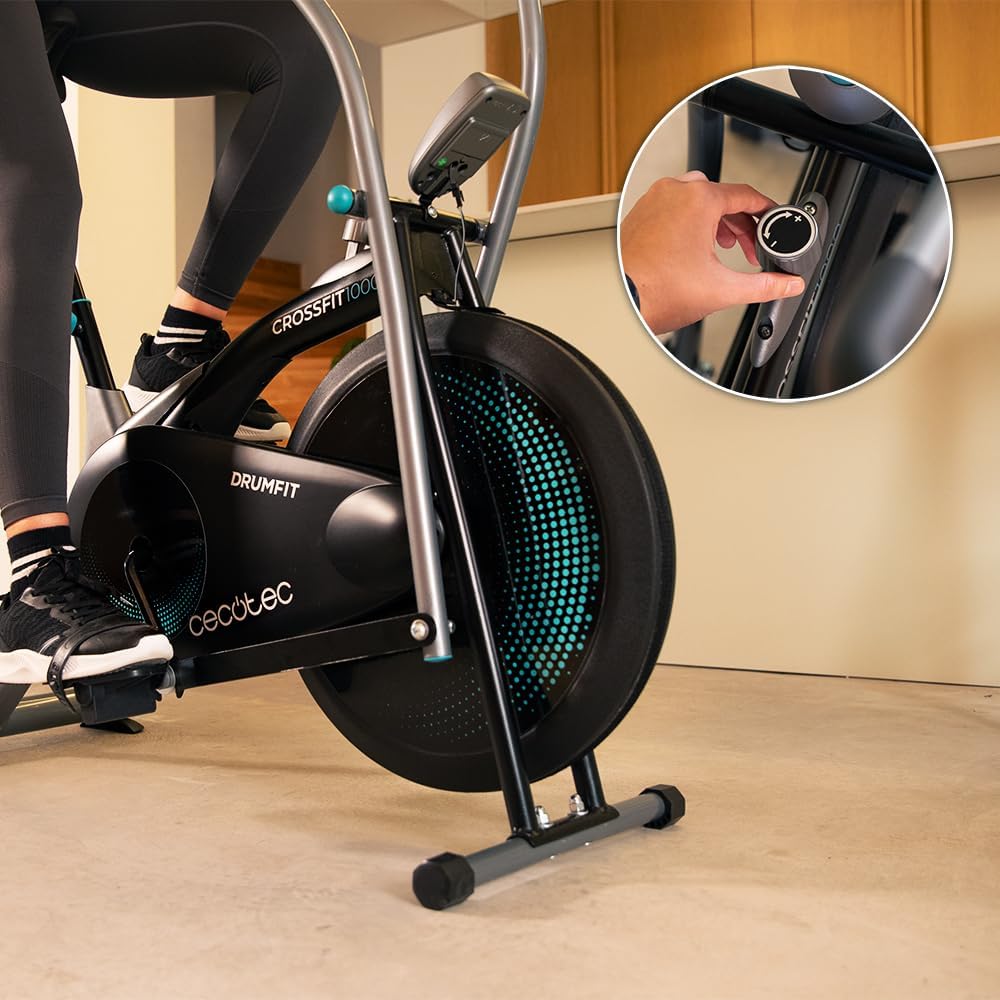

Image: A hand adjusting the manual resistance knob located on the side of the main fan housing.
5. Operating the Exercise Bike
5.1. Starting Your Workout
Sit on the saddle and place your feet firmly on the pedals, securing them with the straps if available. Grip the moving handlebars. Begin pedaling and moving the handlebars to activate the air resistance system.
Image: A person actively using the exercise bike, demonstrating the full-body workout motion with both pedaling and arm movements.
5.2. Bidirectional Pedaling
The bike supports bidirectional pedaling, allowing you to pedal both forwards and backwards. This engages different muscle groups in your legs, providing a more varied and comprehensive lower body workout.

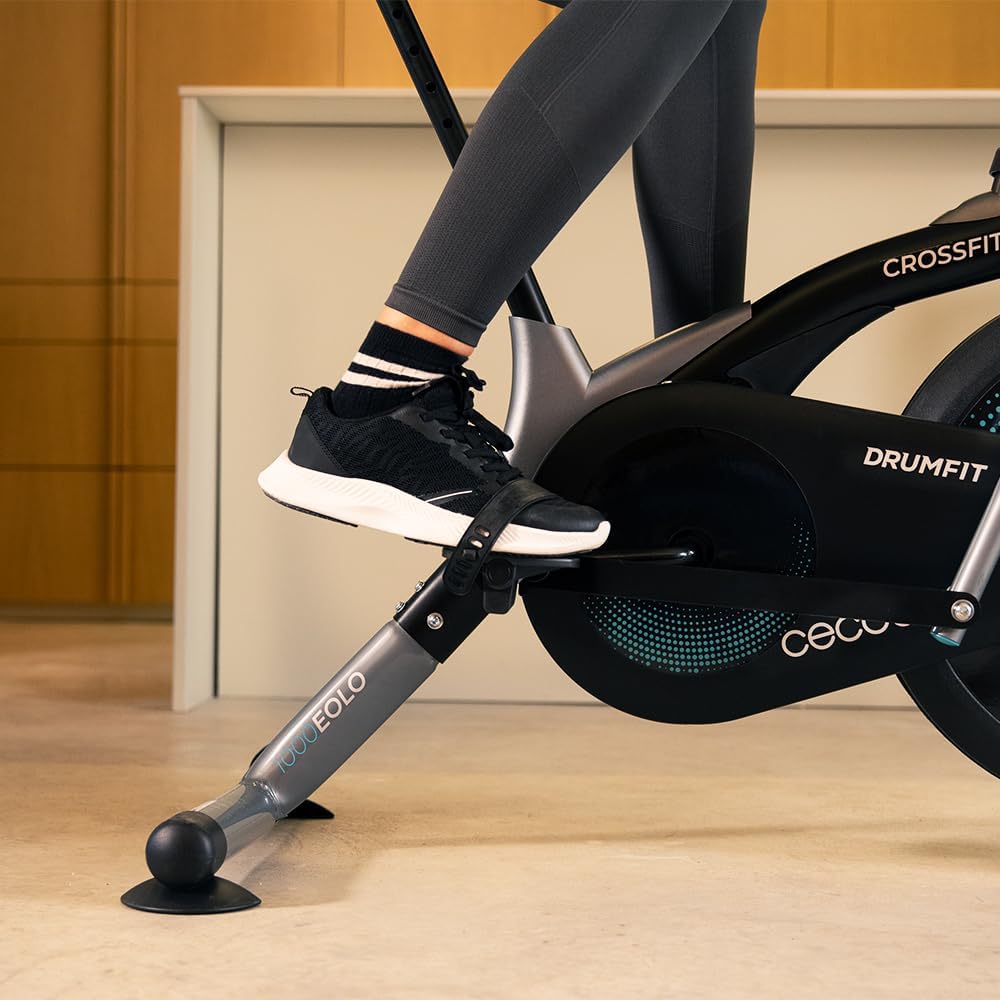

Image: A close-up of a foot on the pedal, illustrating the pedal design and strap for secure foot placement.
5.3. Funkcije LCD monitora
The LCD monitor displays various workout metrics to help you track your progress:
- VRIJEME: Trajanje vašeg trenutnog treninga.
- BRZINA: Vaša trenutna brzina pedaliranja.
- KALORIJA: Procijenjeni broj potrošenih kalorija tokom sesije.
- RAZDALJINA: Ukupna pređena udaljenost tokom treninga.
- SKENIRAJ: Automatically cycles through all display functions every 4 seconds.
Press the "MODE" button to switch between display modes or activate the SCAN function.
Slika: Detaljna view of the LCD monitor, showing the display of time, speed, calories, and distance, with the "MODE" button visible.
6. Održavanje i njega
Redovno održavanje osigurava dugotrajnost i optimalne performanse vašeg sobnog bicikla.
6.1. Čišćenje
Obrišite bicikl oglasomamp cloth after each use to remove sweat and dust. Do not use abrasive cleaners or solvents. Ensure no moisture enters the LCD monitor or other electronic components.
6.2. Podmazivanje
Periodically check moving parts for smooth operation. If any squeaking or stiffness occurs, apply a small amount of silicone-based lubricant to the joints and pivot points.
6.3. Skladištenje
Store the exercise bike in a cool, dry place away from direct sunlight and extreme temperatures. Its compact size allows for convenient storage.
Image: The exercise bike positioned in a narrow space, with dimensions highlighted to show its compact footprint.
7. Otkrivanje problema
If you encounter any issues with your Cecotec Drumfit CrossFit 1000 Eolo Exercise Bike, refer to the following common solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| LCD monitor ne prikazuje | Dead batteries; Loose connection | Replace AA batteries; Check cable connections to the monitor. |
| Škripavi zvuk tokom upotrebe | Loose bolts; Lack of lubrication | Tighten all assembly bolts; Apply silicone lubricant to moving joints. |
| Resistance feels inconsistent | Resistance knob not fully engaged; Debris in fan mechanism | Ensure resistance knob is properly adjusted; Inspect fan for obstructions. |
Ako problem i dalje postoji, obratite se korisničkoj podršci Cecoteca.
8. Specifikacije proizvoda
| Feature | Detalj |
|---|---|
| Model | 07228 |
| Brand | Cecotec |
| Mehanizam otpora | Air (Manually Adjustable) |
| Drive System | Pedal-powered (Non-electric) |
| Maksimalna težina korisnika | 100 kg (220 lbs) |
| Dimenzije proizvoda (D x Š x V) | 107 x 58.5 x 110 cm (42.1 x 23 x 43.3 inča) |
| Težina proizvoda | 16 kg (35.3 lbs) |
| Glavni materijal | Carbon Steel |
| Podešavanje sedla | Vertical |
| Display | LCD (Time, Speed, Calories, Distance, Scan) |
| Baterije uključene | 2 x AA |
| Recommended Max Height | 185 cm (6 ft 1 inch) |
9. Garancija i podrška
Cecotec products are designed for durability and performance. Spare parts availability is guaranteed for 10 years from the date of purchase.
For technical assistance, warranty claims, or to order spare parts, please contact Cecotec customer support through their official webweb-mjesto ili kontakt informacije navedene u dokumentaciji o kupovini.
Molimo sačuvajte dokaz o kupovini u svrhu garancije.
