Uvod
Thank you for choosing the LifeSmart C100 Smart Door Lock. This manual provides detailed instructions for the installation, operation, and maintenance of your new smart lock. Please read this manual thoroughly before installation and keep it for future reference to ensure optimal performance and security.
Sigurnosne informacije
- Prije instalacije provjerite jesu li sve komponente prisutne i neoštećene.
- Do not attempt to disassemble or repair the lock yourself. Contact qualified personnel for assistance.
- Keep the lock away from water and direct sunlight to prevent damage.
- Use only specified power sources if applicable.
- Regularly check the lock for any signs of wear or malfunction.
Sadržaj paketa
Molimo Vas da provjerite da li se u Vašem paketu nalaze sve dolje navedene stavke:
- 1 × LifeSmart C100 Smart Door Lock unit
- Installation accessories (screws, mounting plate, etc.)
- Korisnički priručnik (ovaj dokument)
Product Overview

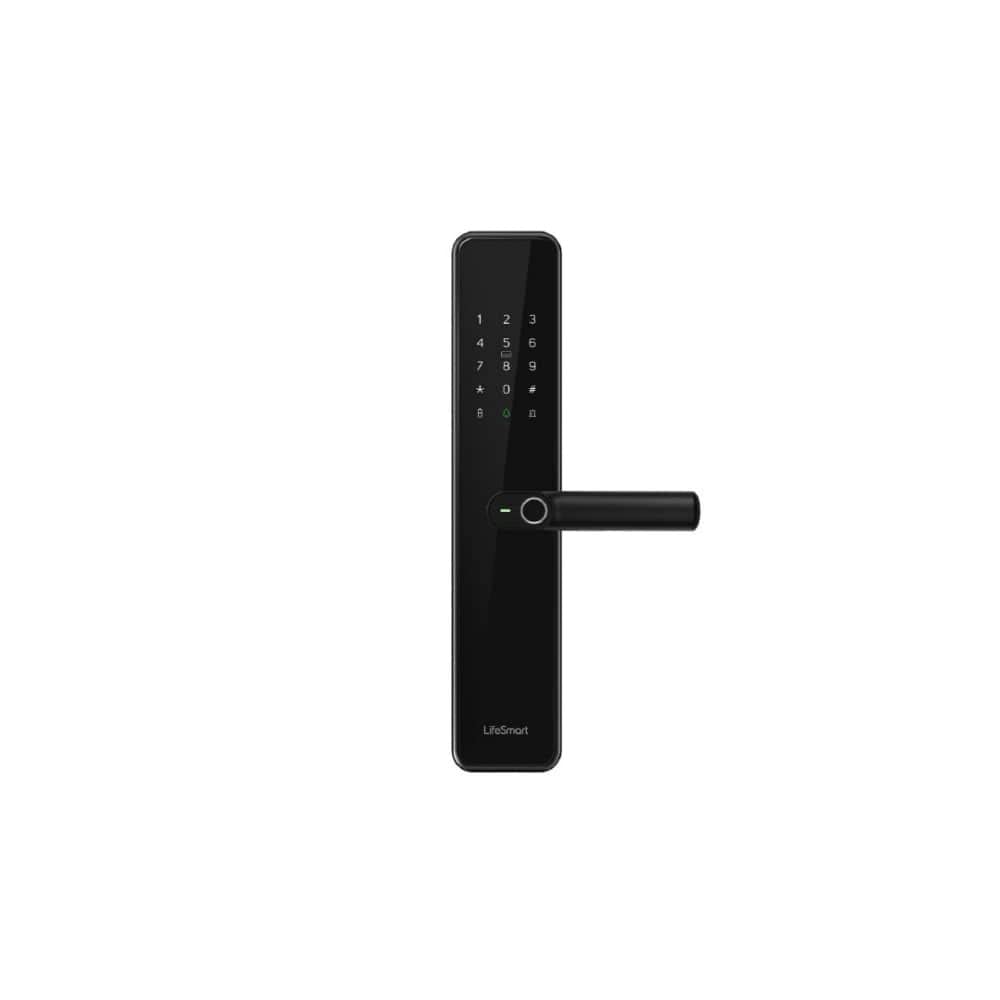

An image showing the LifeSmart C100 Smart Door Lock, featuring a sleek black design with a numeric keypad, a fingerprint sensor integrated into the handle, and the 'LifeSmart' logo at the bottom. The lock is designed for modern keyless entry.
The LifeSmart C100 Smart Door Lock combines advanced security features with a modern design. It features a durable tempered glass panel and an integrated body for enhanced protection. Key features include:
- Ulaz bez ključa: Access your door using fingerprint recognition or a secure password.
- Kaljeno staklo: A sleek, edge-free tempered glass panel for durability and aesthetics.
- Integrirani dizajn: Built with an integrated body for permanent and robust protection.
- Visoka sigurnost: Supports a high level of security for your home.
Instalacija
Proper installation is crucial for the optimal performance and security of your LifeSmart C100 Smart Door Lock. It is recommended to have this lock installed by a professional if you are not familiar with door lock installations.
Kontrolna lista prije instalacije:
- Verify door thickness and backset measurements are compatible with the lock.
- Ensure the door frame is sturdy and aligned.
- Gather necessary tools: screwdriver, drill (if new holes are needed), measuring tape.
Koraci instalacije:
- Pripremite vrata: If replacing an existing lock, remove it. If installing on a new door, drill holes according to the provided template.
- Ugradite zasun/zasun: Umetnite zasun u rub vrata i pričvrstite ga vijcima.
- Montirajte vanjski sklop: Place the exterior unit of the lock onto the door, ensuring the spindle passes through the latch.
- Mount the Interior Assembly: Connect the interior unit to the exterior unit, ensuring all cables are properly routed and connected. Secure with mounting screws.
- Probni rad: After installation, test the mechanical operation of the handle and latch.
Note: Detailed diagrams and specific screw types are typically found in a physical manual. This section provides general guidance.
Operacija
The LifeSmart C100 Smart Door Lock offers multiple convenient ways to unlock your door.
Početno podešavanje:
- Administratorska postavka: Upon first use, you will need to set up an administrator fingerprint and/or password. Follow the voice prompts or on-screen instructions.
- Dodavanje korisnika: As an administrator, you can add additional user fingerprints and passwords. Refer to the lock's interface for specific steps.
Metode otključavanja:
- Otisak prsta: Place your registered finger on the fingerprint sensor located on the handle. The lock will unlock if the fingerprint is recognized.
- Lozinka: Enter your registered password on the numeric keypad, followed by the '#' key. The lock will unlock if the password is correct.
- Mechanical Key (if applicable): In case of emergency or power failure, use the provided mechanical key to unlock the door.
Zaključavanje vrata:
The lock typically auto-locks after a few seconds of closing the door. You can also manually lock it by lifting the handle or pressing a specific button (refer to lock's interface for details).
Održavanje
Redovno održavanje osigurava dugotrajnost i pouzdan rad vaše pametne brave na vratima.
- čišćenje: Wipe the lock surface with a soft, dry cloth. Avoid abrasive cleaners or solvents that may damage the tempered glass panel.
- Provjera baterije: Although the product states "No batteries required", if your specific unit has a backup battery or internal power source, ensure it is charged or replaced as per manufacturer guidelines.
- Mehanički dijelovi: Periodically check the handle and latch for smooth operation. Do not lubricate internal components unless specifically instructed by the manufacturer.
- Ažuriranja softvera: If the lock supports firmware updates via an app, ensure you keep the software updated for optimal security and functionality.
Rješavanje problema
If you encounter issues with your LifeSmart C100 Smart Door Lock, refer to the following common problems and solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Lock does not respond to fingerprint/password. | Incorrect fingerprint/password; dirty sensor; system error. | Ensure correct input. Clean fingerprint sensor. Restart the lock (if possible, by removing power or using reset button). |
| Lock is not locking automatically. | Auto-lock feature disabled; door misalignment. | Check settings to ensure auto-lock is enabled. Adjust door alignment if necessary. |
| Lock makes unusual noises. | Problem s unutrašnjim mehanizmom; opstrukcija. | Check for any obstructions around the latch. If problem persists, contact customer support. |
| Cannot add new users. | Not in administrator mode; memory full. | Ensure you are logged in as administrator. Delete old user data if memory is full. |
If the problem persists after trying these solutions, please contact LifeSmart customer support.
Specifikacije
| Feature | Detalj |
|---|---|
| Brand | LifeSmart |
| Broj modela | C100 |
| Težina artikla | 60 grama |
| Dimenzije proizvoda (D׊×V) | 14 x 8 x 10 cm |
| Boja | Crna |
| Stil | Moderna |
| Materijal | Kaljeno staklo |
| Oblik | Pravougaona |
| Broj komada | 1 |
| Vrsta montaže | Zidni nosač |
| Posebne karakteristike | Keyless Entry |
| Preporučena upotreba | Home Security, Smart Home Setup, Keyless Entry via Fingerprint or Password |
| Uključene komponente | 1 × LifeSmart C100 Smart Door Lock |
| Baterije su potrebne? | br |
| Tip brave | Biometrija |
Garancija i podrška
LifeSmart provides a standard warranty for the C100 Smart Door Lock. Please refer to the warranty card included with your product for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact LifeSmart customer service through their official webweb-mjesto ili kontakt informacije navedene u pakovanju vašeg proizvoda.
Online podrška: Visit the official LifeSmart website for FAQs, updated manuals, and support resources.
Kontakt informacije: Refer to your product packaging or the LifeSmart webstranicu za najnovije kontakt podatke.
