Cecotec Fast&Furious 6060 Ultra parna pegla - uputstvo za upotrebu

Uvod

Thank you for choosing the Cecotec Fast&Furious 6060 Ultra Steam Iron. This iron is designed to provide efficient and effortless ironing with its advanced features, including a powerful 3100W motor, integrated automatic water pump, automatic shut-off system, continuous steam output of 75 g/min, and a super steam shot of 285 g/min. Its double anodized soleplate ensures excellent heat distribution and smooth gliding, while the touch sensor and LCD screen offer intuitive control.

Please read this manual carefully before using the appliance and keep it for future reference. Proper use and maintenance will ensure optimal performance and longevity of your iron.

Važna sigurnosna uputstva

Prilikom korištenja električnih uređaja uvijek se treba pridržavati osnovnih sigurnosnih mjera opreza kako bi se smanjio rizik od požara, električnog udara i ozljeda osoba, uključujući sljedeće:

• Pročitajte sva uputstva pre upotrebe pegle.
• Koristite peglu samo za predviđenu upotrebu.
• Da biste se zaštitili od opasnosti od strujnog udara, ne potapajte peglu u vodu ili druge tečnosti.
• Uvijek isključite peglu prije uključivanja ili isključivanja iz električne utičnice. Nikada ne povlačite kabel da biste ga isključili iz utičnice; umjesto toga, uhvatite utikač i povucite da biste ga isključili.
• Pazite da kabel ne dodiruje vruće površine. Ostavite gvožđe da se potpuno ohladi prije odlaganja. Pri skladištenju olabavite petlju oko gvožđa.
• Uvijek isključite gvožđe iz električne utičnice kada se puni vodom ili prazni i kada se ne koristi.
• Ne koristite peglu s oštećenim kablom ili ako je pegla pala ili je oštećena. Da biste izbjegli rizik od strujnog udara, nemojte rastavljati peglu. Za pregled i popravku obratite se kvalifikovanom servisnom osoblju. Nepravilno sastavljanje može uzrokovati rizik od strujnog udara prilikom upotrebe pegle.
• Pažljiv nadzor neophodan je za svaki uređaj koji koriste djeca ili u njihovoj blizini. Ne ostavljajte peglu bez nadzora dok je spojena ili na dasci za peglanje.
• Opekotine mogu nastati dodirivanjem vrućih metalnih dijelova, vruće vode ili pare. Budite oprezni kada okrećete naopako parno glačalo - u rezervoaru može biti vruće vode.
• Pegla se mora koristiti i ležati na stabilnoj površini.
• Kada postavljate peglu na postolje, vodite računa da površina na koju je postolje bude stabilna.
• Ovaj uređaj nije namijenjen za upotrebu od strane osoba (uključujući djecu) sa smanjenim fizičkim, senzornim ili mentalnim sposobnostima, ili nedostatkom iskustva i znanja, osim ako im je dat nadzor ili upute o korištenju uređaja od strane osobe odgovorne za njihovu sigurnost.
• Djeca trebaju biti pod nadzorom kako bi se osiguralo da se ne igraju s uređajem.

Komponente proizvoda

Familiarize yourself with the main parts of your Cecotec Fast&Furious 6060 Ultra Steam Iron:

• Grejna ploča: Turbo Anodized Pro double soleplate for smooth gliding and even heat distribution.
• Spremnik za vodu: Integrated automatic water pump for continuous steam.
• Kontrola pare: Touch sensor to activate steam.
• Kontrola temperature: LCD screen for comfortable temperature adjustment.
• Mlaznica za raspršivanje: For misting clothes.
• Dugme za samočišćenje: Za održavanje.
• Kabl za napajanje: With automatic shut-off safety system.

Slika 1: Gotovoview of the Cecotec Fast&Furious 6060 Ultra Steam Iron.

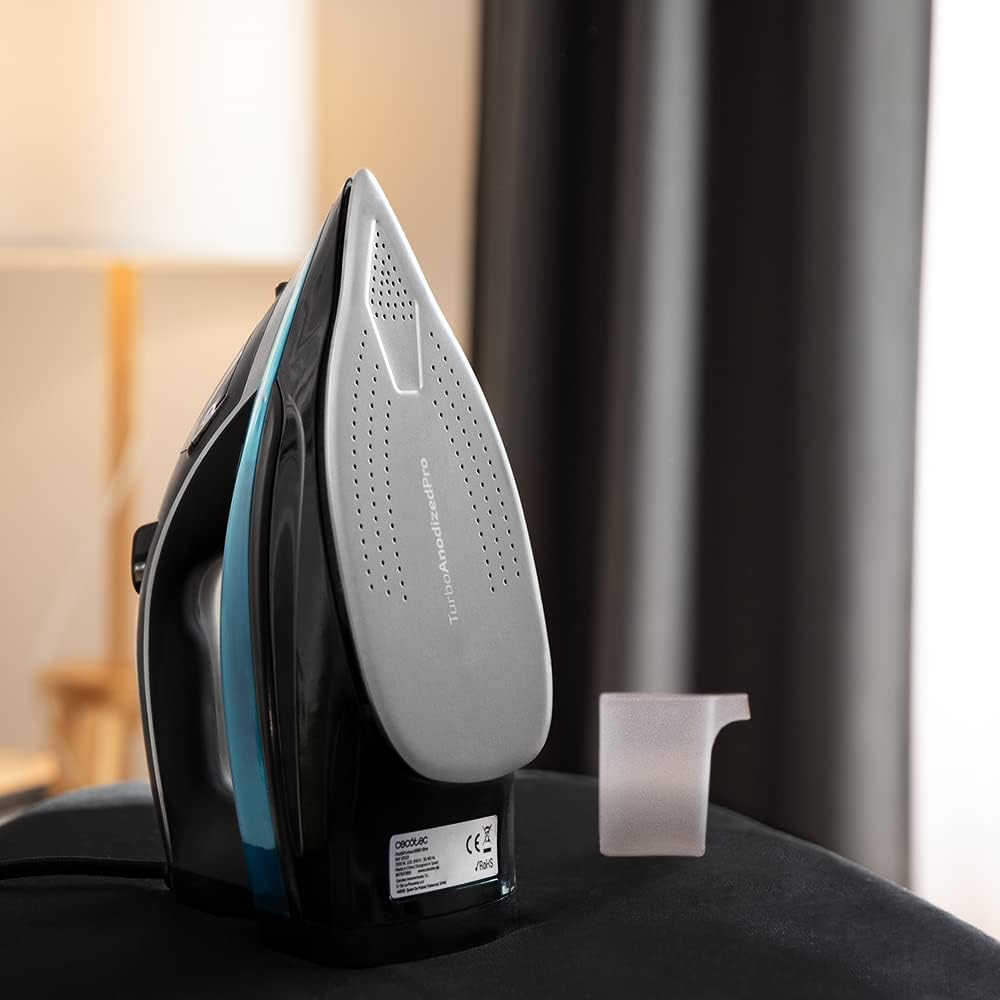

Figure 2: The Turbo Anodized Pro soleplate and included measuring cup.

Setup

1. Raspakivanje: Pažljivo izvadite peglu i sav pribor iz ambalaže. Sačuvajte ambalažu za buduće skladištenje ili transport.
2. Priprema za prvu upotrebu: Before first use, it is recommended to iron an old piece of fabric to ensure any manufacturing residues are removed.
3. Punjenje rezervoara za vodu:
   • Provjerite je li pegla isključena iz električne utičnice.
   • Otvorite ulazni poklopac rezervoara za vodu.
   • Using the provided measuring cup, fill the water tank with clean tap water up to the MAX level indicated. Do not overfill. For areas with hard water, distilled or demineralized water is recommended.
   • Čvrsto zatvorite poklopac ulaznog otvora rezervoara za vodu.
4. plasman: Postavite peglu na stabilnu, toplotno otpornu dasku za peglanje ili površinu.
5. Povezivanje na napajanje: Plug the power cord into a suitable electrical outlet (220-240V).

Uputstvo za upotrebu

1. Uključivanje i odabir temperature

1. Once plugged in, the iron will begin to heat up. The LCD screen will illuminate.
2. Use the temperature control buttons (usually located near the handle or on the LCD panel) to select the desired fabric type or temperature setting. The LCD screen will display the selected setting (e.g., "SILK", "WOOL", "COTTON").
3. Wait for the iron to reach the selected temperature. The indicator light on the iron or the LCD screen will change to indicate readiness. The 3100W power ensures rapid heating.

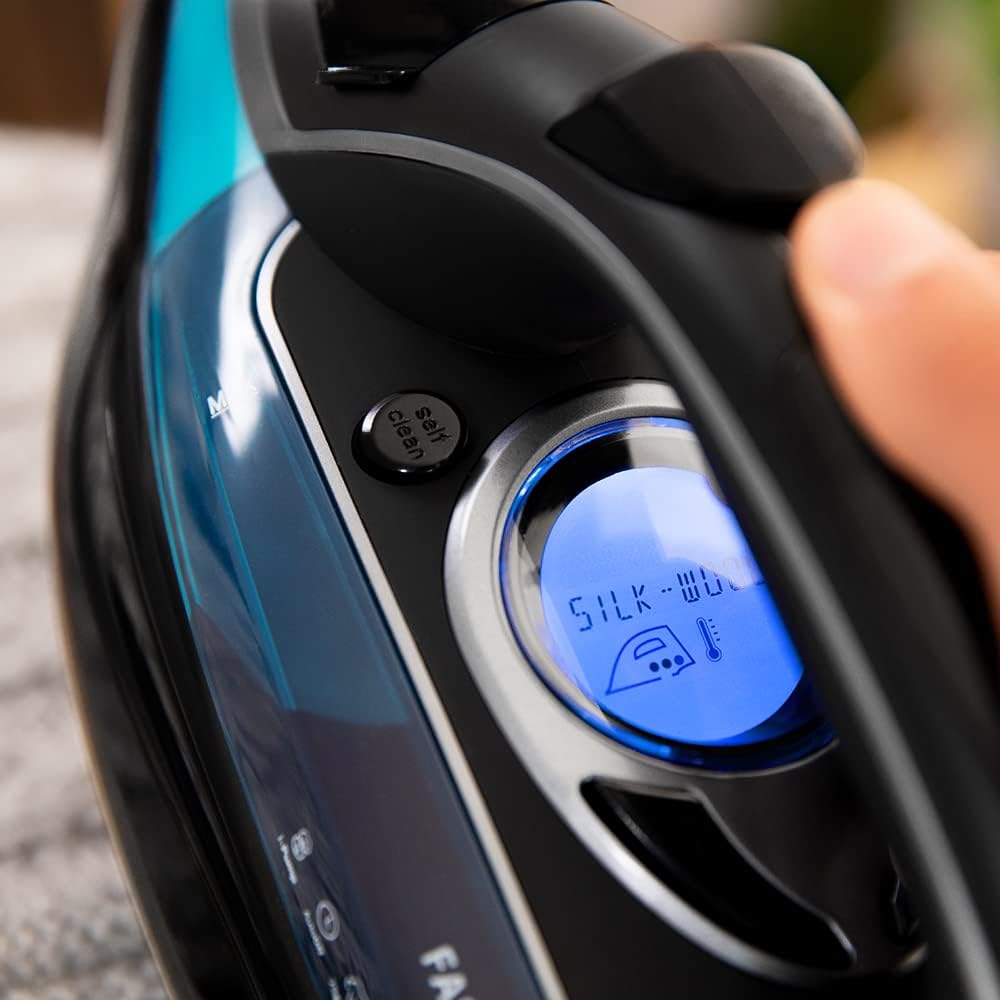

Figure 3: The LCD screen allows for easy temperature control and fabric selection.

2. Peglanje na paru

• Neprekidna para (75 g/min): For continuous steam, ensure the water tank is filled and the iron is at the appropriate temperature for steam (usually medium to high settings). The integrated automatic water pump ensures a steady flow of steam.
• Super Steam Shot (285 g/min): For stubborn wrinkles, press the steam shot button (if available) or activate the touch sensor. This delivers a powerful burst of steam.
• Senzor dodira: The iron features a touch sensor that activates steam only when you are holding the handle and actively ironing, optimizing steam usage.

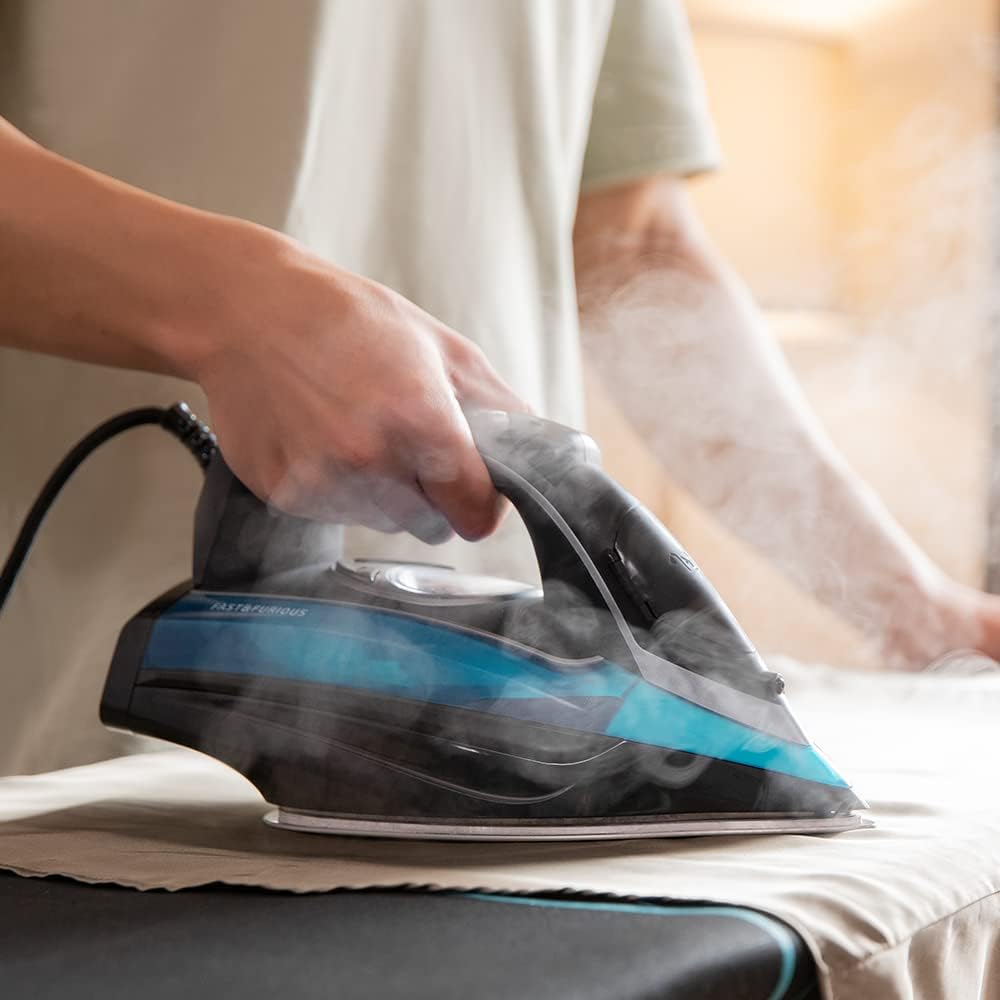

Figure 4: The iron producing continuous steam for effective wrinkle removal.

Figure 5: Utilizing the powerful steam function to smooth out fabric.

3. Suho peglanje

For dry ironing, simply set the temperature to the desired level without activating the steam functions. This is suitable for delicate fabrics or when steam is not required.

4. Automatic Shut-Off (Smart Auto OFF)

The iron is equipped with a Smart Auto OFF safety system. If the iron is left unattended in a horizontal position for a certain period (e.g., 30 seconds) or in a vertical position for a longer period, it will automatically shut off to prevent accidents and save energy. To reactivate, simply move the iron.

Održavanje i čišćenje

Redovno održavanje osigurava dugotrajnost i optimalne performanse vaše pegle.

1. Pražnjenje rezervoara za vodu

After each use, unplug the iron and allow it to cool completely. Open the water tank inlet and carefully empty any remaining water. This prevents mineral buildup.

2. Čišćenje ploče za glačanje

Ako se ploča za glačanje zaprlja, očistite je sredstvom za čišćenjeamp cloth and a non-abrasive cleaner. Do not use metallic scourers or abrasive cleaners as they can damage the anodized surface.

3. Funkcija samočišćenja

The iron features a self-clean button to remove mineral deposits and impurities from the steam vents. Refer to the specific instructions for activating the self-clean cycle, usually involving filling the tank, heating the iron, and pressing the self-clean button over a sink.

4. Skladištenje

Once the iron has cooled down completely and the water tank is empty, store it in an upright position in a safe, dry place. Do not wrap the cord tightly around the iron; loop it loosely.

Rješavanje problema

Specifikacije

Garancija i podrška

Cecotec products are manufactured to the highest quality standards. This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions.

Spare parts for this model are available for up to 10 years from the date of purchase, ensuring long-term usability and support.

For technical assistance, troubleshooting, or warranty claims, please contact Cecotec customer support through their official webweb-mjesto ili kontakt informacije navedene u dokumentaciji vašeg proizvoda.
