Cotsoco MA315

cotsoco Hand Massager User Manual

Model: MA315 | Brand: cotsoco

Uvod

The cotsoco Hand Massager is designed to provide relief from hand, wrist, and finger discomfort through a combination of heat, compression, and vibration. This cordless device offers multiple massage modes and intensity levels to cater to individual needs, promoting relaxation and improved circulation. It is ideal for individuals experiencing hand fatigue, numbness, or pain associated with conditions like arthritis and carpal tunnel syndrome.

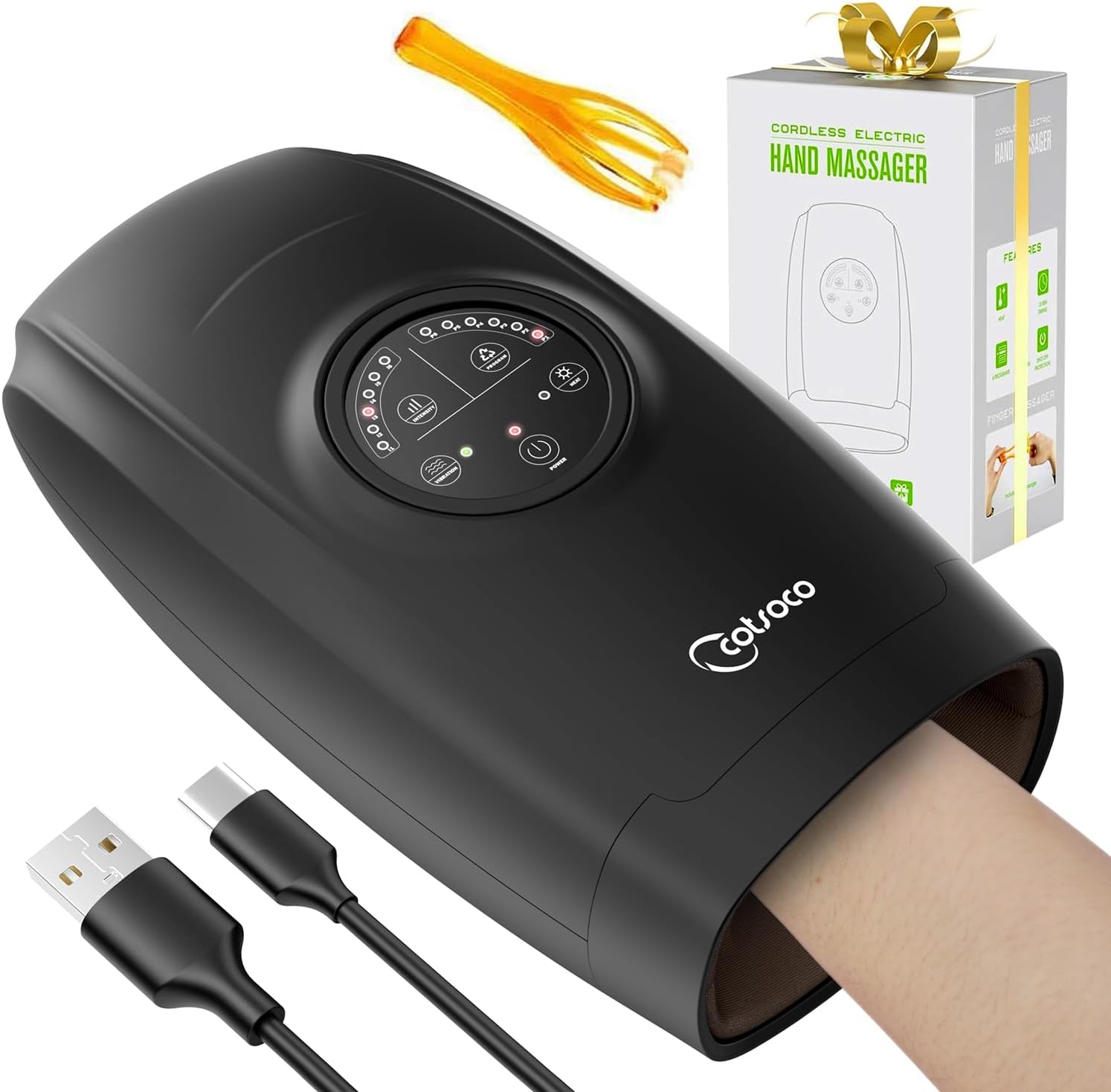

cotsoco Hand Massager with accessories

Image: The cotsoco Hand Massager in black, shown with its charging cables, a finger massager, and the product box, highlighting its compact and portable design.

Sigurnosne informacije

Karakteristike proizvoda

Intelligent LCD Display with control icons

Image: A close-up of the massager's intelligent LCD display, showing icons for power, 2 heat levels, 6 intensities, 2 vibration modes, 6 procedures, and a 15-minute self-stop timer.

Air Compression Massage diagram

Image: A diagram illustrating the air compression massage, showing airbags inflating around the hand to improve circulation and alleviate wrist, palm, and finger pain.

Hand Massager with Gentle Warmth diagram

Slika: Eksplodirala view of the hand massager showing the internal heating elements, indicating gentle heat at 104°F/40°C for prolonged heating over 15 minutes with 2 comfortable temperature levels.

Sadržaj paketa

Package contents of the cotsoco Hand Massager

Image: The complete package contents including the hand massager, finger massager, user manual, USB charging cable, and travel bag, laid out next to the product box.

Setup

  1. Punjenje uređaja: Before first use, fully charge the hand massager using the included USB cable. Connect the USB-C end to the massager's charging port (located on the side) and the USB-A end to a compatible USB power adapter (not included). The power indicator light will flash red while charging and turn solid red when fully charged. A full charge takes approximately 5 hours. Do not use the device while it is charging.
  2. Početni plasman: Insert your hand into the massager, ensuring your palm rests comfortably on the internal nodes.

Uputstvo za upotrebu

  1. Uključivanje/isključivanje: Press the power button (labeled "POWER" on the control panel) to turn the device on. Press and hold the power button to turn it off.
  2. Odaberite način masaže: The massager offers 6 different programs. Press the "PROGRAM" button to cycle through the available modes (P1-P6). Each mode targets different areas of the hand, wrist, and fingers with varying compression patterns.
    • Program 1: Combination of finger, palm, and wrist massage.
    • Program 2: Different combination of finger, palm, and wrist massage.
    • Program 3: First cycle massages palm, second cycle massages palm and wrist.
    • Program 4: Focuses on wrist massage.
    • Program 5: First cycle massages palm, second cycle massages wrist.
    • Program 6: Focuses on palm massage.
  3. Podesite intenzitet: The massager has 6 intensity levels. Press the "INTENSITY" button to adjust the compression strength. Levels range from 1 (gentle) to 6 (strongest).
  4. Aktivirajte funkciju grijanja: Press the "HEAT" button to turn on the gentle warming function. The heat can reach up to 104°F (40°C) and has 2 levels.
  5. Activate Vibration: Press the "VIBRATION" button to activate the vibration function. There are 2 vibration modes: intermittent and continuous.
  6. Automatski tajmer: The massager is equipped with a 15-minute automatic shut-off timer to prevent overuse and conserve battery life.

Video: An official product video demonstrating the unboxing and basic operation of the cotsoco Hand Massager, including how to power it on, select modes, and activate heat and vibration functions.

Održavanje

Rješavanje problema

ProblemMogući uzrokRješenje
Uređaj se ne uključuje.Slaba baterija ili nije napunjena.Uvjerite se da je uređaj potpuno napunjen.
Slab intenzitet masaže.Nivo intenziteta je postavljen prenizak.Increase the intensity level using the "INTENSITY" button.
Nema toplote.Funkcija grijanja nije aktivirana.Press the "HEAT" button to turn on the heating function. Allow a few minutes for the heat to build up.
Uređaj se neočekivano zaustavlja.Aktiviran je automatski tajmer od 15 minuta.This is normal operation. Restart the device if you wish to continue.

Specifikacije

Dimensions of the cotsoco Hand Massager

Image: The hand massager shown with its dimensions (11.8 inches length, 6.3 inches width, 3.8 inches height for hand insertion), highlighting its lightweight (2.4 lbs) and portable design.

Garancija i podrška

cotsoco is committed to providing high-quality products and customer satisfaction. This product comes with a 2-year warranty, which can be extended to 3 years by contacting customer support. We also offer a 90-day free return policy.

For any technical assistance, warranty claims, or other inquiries, please contact cotsoco customer service. Our team is available 24 hours to assist you.
