1. Uvod
This manual provides detailed instructions for the setup, operation, and maintenance of your TMY V88 Projector. Please read this manual thoroughly before using the product to ensure proper function and to prevent damage.
The TMY V88 is a native 1080P Full HD projector supporting 4K video sources, featuring 5G WiFi and Bluetooth 5.1 connectivity. It is designed for both indoor and outdoor use, offering a large screen viewing iskustvo.
2. Sadržaj paketa
Provjerite da li su sve stavke prisutne u paketu:
- TMY V88 Projector
- Kabl za napajanje
- Daljinski upravljač
- Uputstvo za upotrebu
- HDMI kabl
- Cleaning Kit (Q-tips, cleaning solution)
- 80-inch Projection Screen with mounting hooks
- AV Cable (3.5mm to RCA)
Image: TMY V88 Projector with remote, cables, and screen. This image displays the main projector unit, remote control, power cable, HDMI cable, AV cable, and the folded projection screen, illustrating the complete package contents.
3. Proizvod je gotovview
3.1. Projector Features
- Native 1080P Full HD resolution, 4K supported.
- 5G WiFi for stable and fast wireless mirroring.
- Bluetooth 5.1 for external audio device connection.
- Ugrađeni zvučnik.
- Kompaktan i prenosiv dizajn.
- Adjustable projection size from 30 to 300 inches.
- ±15° Keystone correction.

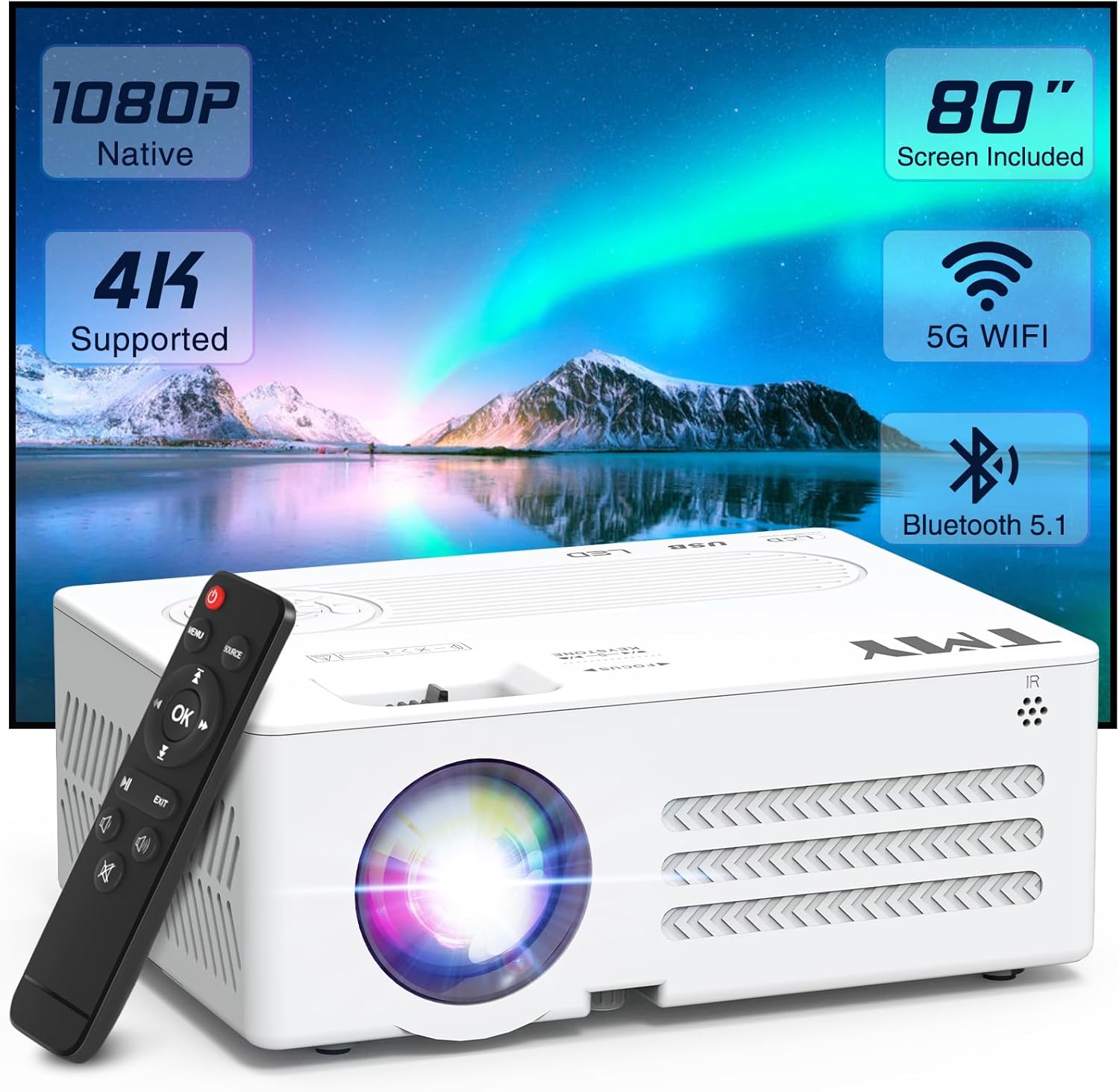

Image: Infographic highlighting key features such as 4K support, Native 1080P, 200 ANSI Lumen, 80" screen, 5G+2.4G WiFi, Bluetooth 5.1, and 250" large display. This image visually summarizes the core capabilities of the TMY V88 projector.
3.2. Portovi i kontrole
The projector features multiple ports for versatile connectivity and intuitive controls for ease of use.
- Audio izlaz: 3.5mm jack for headphones or external speakers.
- Utor za TF karticu: Za reprodukciju medija direktno sa Micro SD kartice.
- HDMI priključak: Connects to computers, gaming consoles, TV sticks, etc.
- USB portovi: For USB drives to play media or connect other USB devices.
- VGA port: For connecting to older computer monitors.
- AV priključak: For connecting older video devices using the included AV cable.
- Focus Wheel: Ručno podešavanje za oštrinu slike.
- Keystone korekcija: Adjusts image shape to correct trapezoidal distortion.
- Dugmad na gornjoj ploči: Power, navigation, and source selection.
Slika: Sa strane view of the TMY V88 Projector showing the audio, TF card, HDMI, USB, and VGA ports. This image provides a clear view of the projector's connectivity options.
4. Podešavanje
4.1. Priključak za napajanje
- Spojite kabel za napajanje na ulaz za napajanje projektora.
- Uključite drugi kraj kabla za napajanje u utičnicu.
- Pritisnite dugme za napajanje na projektoru ili daljinskom upravljaču da biste ga uključili.
4.2. Positioning the Projector
Postavite projektor na stabilnu, ravnu površinu. Za optimalno viewing, ensure the projector is centered with the projection screen or wall.
- Udaljenost projekcije: The recommended projection distance is between 0.9m (35 inches) and 3.3m (120 inches) for optimal image quality.
- Veličina ekrana: The projector supports screen sizes from 30 to 300 inches.
Image: Diagram illustrating recommended projection distances for various screen sizes, from 35 inches at 0.9 meters to 120 inches at 3.3 meters. This helps users determine optimal placement for their desired screen size.
4.3. Adjusting Focus and Keystone
- Fokus: Rotate the focus wheel on top of the projector until the image is clear and sharp.
- Keystone korekcija: Use the keystone correction slider to adjust the image shape if it appears trapezoidal.
Video: A user demonstrating the automatic and manual focus adjustment of the projector. The video shows the projector automatically adjusting focus when moved, and then manually adjusting the focus wheel for fine-tuning, highlighting the ease of achieving a clear image.
5. Upravljanje projektorom
5.1. Odabir ulaznog izvora
After powering on, the projector will display the main menu. Use the remote control or top panel buttons to navigate and select your desired input source:
- HDMI: For devices connected via HDMI cable (e.g., laptop, TV stick, gaming console).
- USB/TF: Za medije files stored on USB drives or TF cards.
- OD: For devices connected via AV cable (e.g., DVD player).
- Preslikavanje ekrana: For wireless connection with iOS or Android devices.
Image: An illustration of the projector connected to various devices such as audio systems, TV sticks, cameras, tablet PCs, Nintendo Switch, and DVD players, demonstrating its broad compatibility. The image also highlights the USB, HDMI, AV, and AUX ports.
5.2. Bežična povezivost (WiFi i Bluetooth)
The TMY V88 Projector supports both 5G WiFi for screen mirroring and Bluetooth 5.1 for audio output.
5.2.1. Screen Mirroring (WiFi)
- U glavnom meniju odaberite "Zrcaljenje ekrana".
- Choose "iOS Cast" for Apple devices or "Android Screen" for Android devices.
- Ensure your mobile device is connected to the same WiFi network as the projector.
- On your mobile device, activate screen mirroring/casting and select the projector from the list of available devices.
Image: A smartphone wirelessly mirroring its screen to the TMY V88 Projector, displaying content on a large wall, illustrating the 5G WiFi connectivity feature. The image shows the projector in a living room setting.
5.2.2. Bluetooth audio veza
- From the main menu, navigate to "Settings" and then "Bluetooth".
- Turn on Bluetooth and select "Search" to find available devices.
- Select your desired Bluetooth speaker or headphones from the list to pair.
Image: The TMY V88 Projector on a table, surrounded by Bluetooth headphones and a speaker, indicating its Bluetooth audio connectivity. This image highlights the projector's ability to connect to external audio devices wirelessly.
6. Održavanje
6.1. Čišćenje objektiva
To maintain optimal image quality, regularly clean the projector lens.
- Use a soft, lint-free cloth or the included cleaning kit.
- Gently wipe the lens surface. Avoid harsh chemicals or abrasive materials.
6.2. Generalno čišćenje
Wipe the projector's exterior with a soft, dry cloth. Ensure ventilation vents are clear of dust and debris to prevent overheating.
7. Otkrivanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Nema prikazane slike | Incorrect input source selected, loose cable connection, device not powered on. | Verify input source, check all cable connections, ensure connected device is powered on. |
| Mutna slika | Out of focus, incorrect keystone adjustment. | Adjust the focus wheel until the image is clear. Use keystone correction to square the image. |
| Nema zvuka | Volume too low, external speaker not connected/paired, incorrect audio output selected. | Increase volume. Check Bluetooth connection for external speakers. Ensure correct audio output is selected in settings. |
| Problemi sa zrcaljenjem ekrana | Different WiFi networks, device compatibility, network interference. | Ensure both devices are on the same 5G WiFi network. Restart both devices. Check for network congestion. |
8. Specifikacije
- Brand: TMY
- Model: V88
- Rezolucija ekrana: Native 1920 x 1080 (Full HD), 4K Supported
- Povezivanje: 5G WiFi, Bluetooth 5.1, HDMI, USB, AV, TF Card, VGA
- Veličina projekcije: 30" - 300"
- Omjer širine i visine: 4:3 / 16:9
- Keystone korekcija: ±15° Ručno
- govornik: Ugrađeni
- Težina artikla: 1.98 funte
- Dimenzije proizvoda: 9.13 x 7.17 x 3.74 inča
9. Garancija i podrška
TMY offers comprehensive customer support for its products.
- garancija: 3 Years Warranty.
- Servis nakon prodaje: Lifetime after-sale service and technical support.
- Povratak: 30 Days No Reason to Return.
- Podrška: Quick reply within 24 hours.
Image: Graphic detailing TMY's customer support offerings, including lifetime after-sale service, 24-hour quick replies, 30-day no-reason returns, and a 3-year warranty. This image reassures users about product support.
