1. Uvod
The Baseus AcmeJoy 4-Port Type-C HUB Adapter is designed to expand the connectivity of your USB-C enabled devices. It provides multiple ports for efficient data transfer, power delivery, and peripheral connections, enhancing your productivity and device versatility.

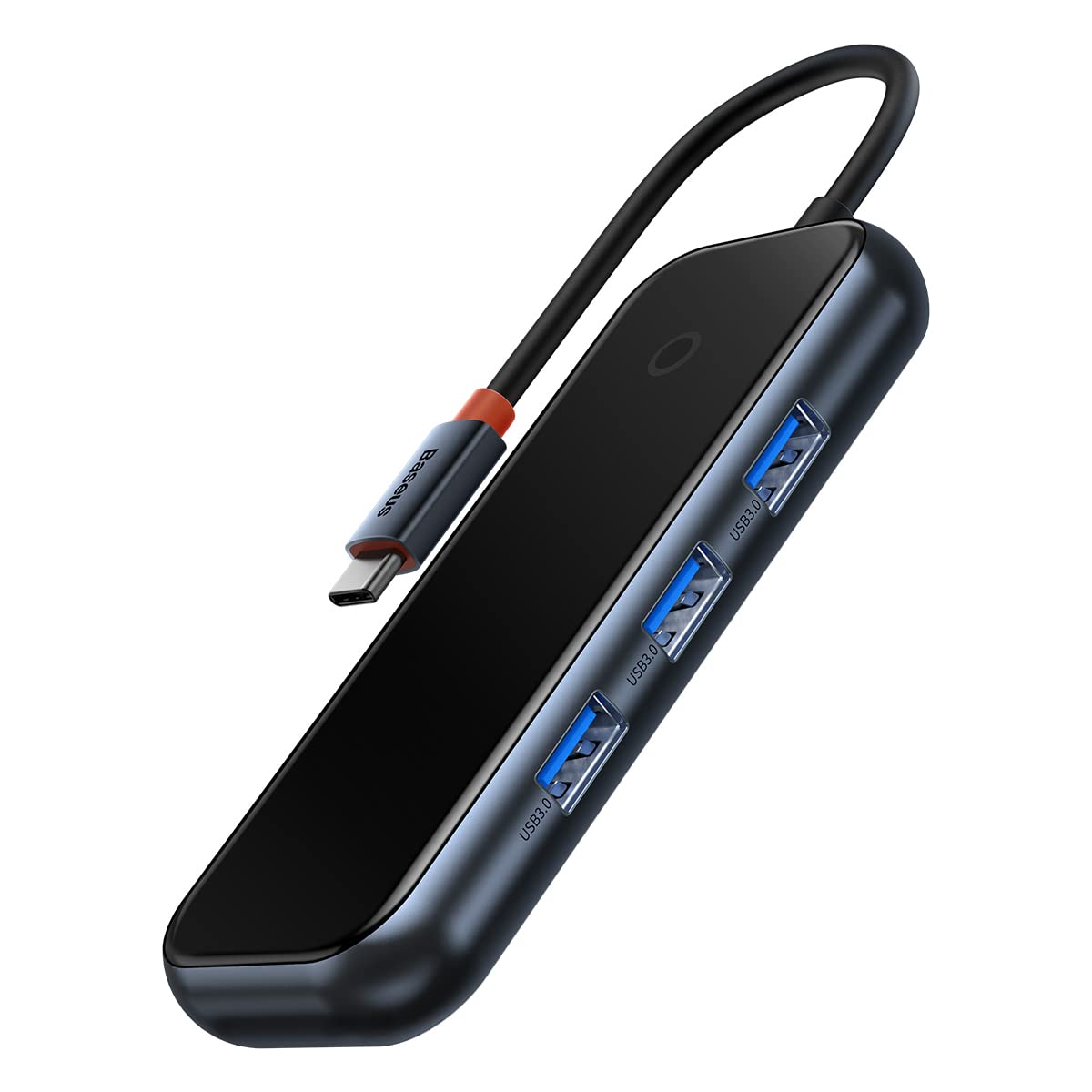

Image: The Baseus AcmeJoy 4-Port Type-C HUB Adapter, showcasing its compact design and integrated Type-C cable.
2. Proizvod je gotovview
This hub features a robust design with essential ports for modern computing needs. It offers a plug-and-play experience, requiring no additional drivers for most operating systems.
- 3x USB 3.0 porta: For connecting various USB peripherals such as flash drives, keyboards, mice, and external hard drives.
- 1x Type-C PD & Data Port: A versatile port supporting both Power Delivery (PD) for charging your host device and high-speed data transfer.
Slika: A view of the Baseus AcmeJoy hub highlighting its three USB 3.0 ports and one Type-C PD & Data port, emphasizing its plug-and-play functionality.
Image: An illustration depicting the internal circuit protections of the Baseus AcmeJoy hub, ensuring safe and stable operation for connected devices.
3. Upute za postavljanje
- Povežite čvorište: Insert the integrated Type-C connector of the Baseus AcmeJoy hub into an available USB-C port on your laptop, tablet, or smartphone.
- Povežite periferne uređaje: Plug your USB devices (e.g., USB flash drives, external hard drives, mouse, keyboard) into the three USB 3.0 ports on the hub.
- Power and Data (Optional): If your host device requires charging or you need additional data transfer capabilities, connect a compatible Type-C power adapter and/or data cable to the Type-C PD & Data port on the hub. This port supports up to 100W Power Delivery.
The hub is designed for plug-and-play operation, meaning it should be recognized automatically by your device without the need for driver installation.
Image: The Baseus AcmeJoy hub connected to a smartphone and a tablet, demonstrating its On-The-Go (OTG) expansion capabilities for mobile devices.
4. Uputstvo za upotrebu
Once connected, the Baseus AcmeJoy hub functions as an extension of your device's connectivity. Below are guidelines for using its features:
4.1. USB 3.0 Data Transfer
- Connect any USB 3.0 or USB 2.0 compatible device to the USB-A ports.
- These ports support data transfer speeds of up to 500 MB/s, allowing for quick transfers of large files.
Image: A laptop connected to the Baseus AcmeJoy hub, which is then connected to an external hard drive, illustrating high-speed data transmission at 500MB/s.
4.2. Type-C Power Delivery (PD) and Data
- The dedicated Type-C port supports Power Delivery up to 100W, enabling fast charging for your compatible laptop or device while using the hub.
- This port also supports data transfer at speeds up to 500 MB/s, allowing you to connect Type-C peripherals or storage devices.
Image: The Baseus AcmeJoy hub connected to a laptop, demonstrating its 100W PD fast charging capability from a power bank and 500MB/s data transmission to an external drive via its 2-in-1 Type-C port.
5. Održavanje
To ensure the longevity and optimal performance of your Baseus AcmeJoy hub, follow these maintenance guidelines:
- čišćenje: Use a soft, dry cloth to clean the surface of the hub. Avoid using liquid cleaners or abrasive materials.
- Skladištenje: Čuvajte hub na hladnom i suhom mjestu, dalje od direktne sunčeve svjetlosti i ekstremnih temperatura.
- Rukovanje: Avoid dropping the device or subjecting it to strong impacts. Do not attempt to disassemble or repair the hub, as this will void the warranty and may cause damage.
- Održavanje kablova: Do not bend the integrated Type-C cable excessively or pull it forcefully.
6. Otkrivanje problema
If you encounter issues with your Baseus AcmeJoy hub, refer to the following common problems and solutions:
- Uređaj nije prepoznat:
- Ensure the hub's Type-C connector is fully and securely inserted into your host device's USB-C port.
- Try connecting the hub to a different USB-C port on your host device, if available.
- Ponovo pokrenite svoj glavni uređaj.
- Spor prijenos podataka:
- Verify that the connected peripheral devices (e.g., USB flash drive, external HDD) support USB 3.0 speeds.
- Avoid connecting too many power-hungry devices simultaneously without external power connected to the hub's PD port.
- Ensure your host device's USB-C port supports USB 3.0 or higher data transfer rates.
- Charging Not Working (via PD port):
- Confirm that your power adapter and Type-C cable are functional and correctly connected to the hub's Type-C PD port.
- Ensure your host device supports USB-C Power Delivery and is compatible with the power output of your adapter.
- Check if the power adapter provides sufficient wattage za vaš uređaj.
- Intermitentna veza:
- Check for any physical damage to the hub or its cable.
- Osigurajte da su svi spojevi čvrsti.
- Test with different peripherals to isolate the issue.
7. Specifikacije
Detailed technical specifications for the Baseus AcmeJoy 4-Port Type-C HUB Adapter:
| Brand | Baseus |
| Broj modela | WKJZ010013 |
| Dimenzije proizvoda | 10 x 5 x 3 cm |
| Težina artikla | 150 grama |
| Interface | USB C |
| Ukupni USB portovi | 4 (3x USB 3.0, 1x Type-C PD & Data) |
| Brzina prijenosa podataka | 500 MB/s (for USB 3.0 and Type-C data) |
| Power Delivery | Up to 100W (via Type-C PD port) |
| Kompatibilnost operativnog sistema | Windows Vista, Windows XP (and modern OS like macOS, Linux, Android) |
| Materijal | Guma |
Image: The back of the Baseus AcmeJoy hub packaging, displaying detailed specifications and compliance information.
8. Garancija i podrška
For detailed warranty information, technical support, or service inquiries regarding your Baseus AcmeJoy 4-Port Type-C HUB Adapter, please refer to the official Baseus webweb-mjesto ili direktno kontaktirajte njihovu korisničku službu. Sačuvajte račun kao dokaz o kupovini za bilo kakve reklamacije u vezi s garancijom.
Proizvođač: Baseus
Webstranica: www.baseus.com
