LG 9.0 cu. ft. Vented Smart Stackable Gas Dryer (Model DLGX8901B) Instruction Manual

1. Proizvod je gotovview

The LG 9.0 cu. ft. Vented Smart Stackable Gas Dryer, Model DLGX8901B, is designed for efficient and convenient laundry care. Featuring a large capacity, advanced drying technologies, and smart connectivity, this dryer simplifies your laundry routine.

Ključne karakteristike:

• Extra-Large 9.0 cu. ft. Capacity: Accommodates bulky items and large loads, reducing the number of cycles needed.
• TurboSteam Technology: Utilizes steam to reduce wrinkles and odors, minimizing the need for ironing.
• Sensor Dry Technology: Automatically detects moisture levels and adjusts drying time for optimal fabric care and energy efficiency.
• ENERGY STAR® certifikat: Dizajniran za energetsku efikasnost, pomažući u smanjenju troškova komunalnih usluga.
• Smart ThinQ® Connectivity: Allows remote control and monitoring via a smartphone app.

Slika 1: Prednja strana view of the LG 9.0 cu. ft. Vented Smart Stackable Gas Dryer.

2. Postavljanje i instalacija

Proper installation is crucial for the safe and efficient operation of your LG gas dryer. It is recommended that installation be performed by a qualified technician.

2.1 Raspakivanje i postavljanje

• Uklonite sav materijal za pakovanje, uključujući osnovnu ambalažu i svu unutrašnju ambalažu.
• Place the dryer on a firm, level floor. Ensure adequate clearance for ventilation and door opening.
• If stacking the dryer, ensure the stacking kit is correctly installed according to its instructions.

2.2 Leveling the Dryer

Use a level to ensure the dryer is perfectly level. Adjust the leveling feet by turning them clockwise to raise or counter-clockwise to lower. A level dryer prevents excessive vibration and noise.

2.3 Gas and Venting Connections

• Connect the gas supply line to the dryer's gas inlet. Use a new flexible metal connector and ensure all connections are tight and leak-free.
• Connect the exhaust vent to the dryer's exhaust outlet. Use rigid metal ducting for best performance and safety. Ensure the vent path is as short and straight as possible.

2.4 Električni priključak

Plug the dryer into a dedicated 120V, 15-amp electrical outlet. Ensure the outlet is properly grounded.

Slika 2: Pod uglom view of the LG Gas Dryer, showing its sleek design and front-load door.

3. Uputstvo za upotrebu

Familiarize yourself with the control panel and various drying cycles to achieve optimal results.

3.1 Kontrolna tabla prekoview

The control panel features a cycle selector knob, a digital display, and various option buttons. The digital display shows the estimated remaining time and current settings.

Figure 3: Close-up of the LG Dryer control panel, highlighting the cycle selector and digital display.

3.2 Punjenje sušilice

• Open the dryer door and load items loosely to allow for proper tumbling and airflow. Do not overload the dryer.
• Za najbolje rezultate, sortirajte veš prema vrsti tkanine i težini.

Slika 4: Unutrašnjost view of the dryer drum with the door open, showing ampprostor za veš.

3.3 Odabir ciklusa sušenja

Turn the cycle selector knob to choose the desired drying cycle. Available cycles include:

• normalno: For most cottons and mixed loads.
• Heavy Duty: For sturdy fabrics like work clothes or jeans.
• posteljina: Optimized for blankets, comforters, and large bedding items.
• Osjetljivo: Nježno sušenje za osjetljive tkanine.
• ručnici: For absorbent items like towels.
• Speed Dry: Za manje količine veša koje treba brzo da se osuše.
• Sušenje na zraku: Dries items without heat.
• Steam Fresh™: Refreshes clothes and reduces wrinkles using steam.
• Steam Sanitary™: Uses high-temperature steam to sanitize items.

3.4 Adjusting Settings (Temperature, Dry Level, Time Dry)

After selecting a cycle, you can customize settings using the corresponding buttons:

• Temp. Control: Adjusts the drying temperature (e.g., High, Medium, Low, Ultra Low).
• Nivo suve: Sets the desired dryness level (e.g., Very Dry, More Dry, Normal Dry, Damp Dry).
• Vrijeme sušenja: Allows you to manually set a specific drying time.

3.5 Starting the Dryer

Pritisnite Start/Pauza button to begin the selected drying cycle. The dryer will automatically adjust based on Sensor Dry technology for most cycles.

4. Održavanje

Redovno održavanje osigurava optimalne performanse i produžava vijek trajanja vaše sušilice.

4.1 Čišćenje filtera za dlačice

• Clean the lint filter before or after every load. Pull the filter straight up and out.
• Remove any accumulated lint by hand. For stubborn residue, wash the filter with warm, soapy water and a soft brush, then rinse thoroughly and dry completely before reinserting.

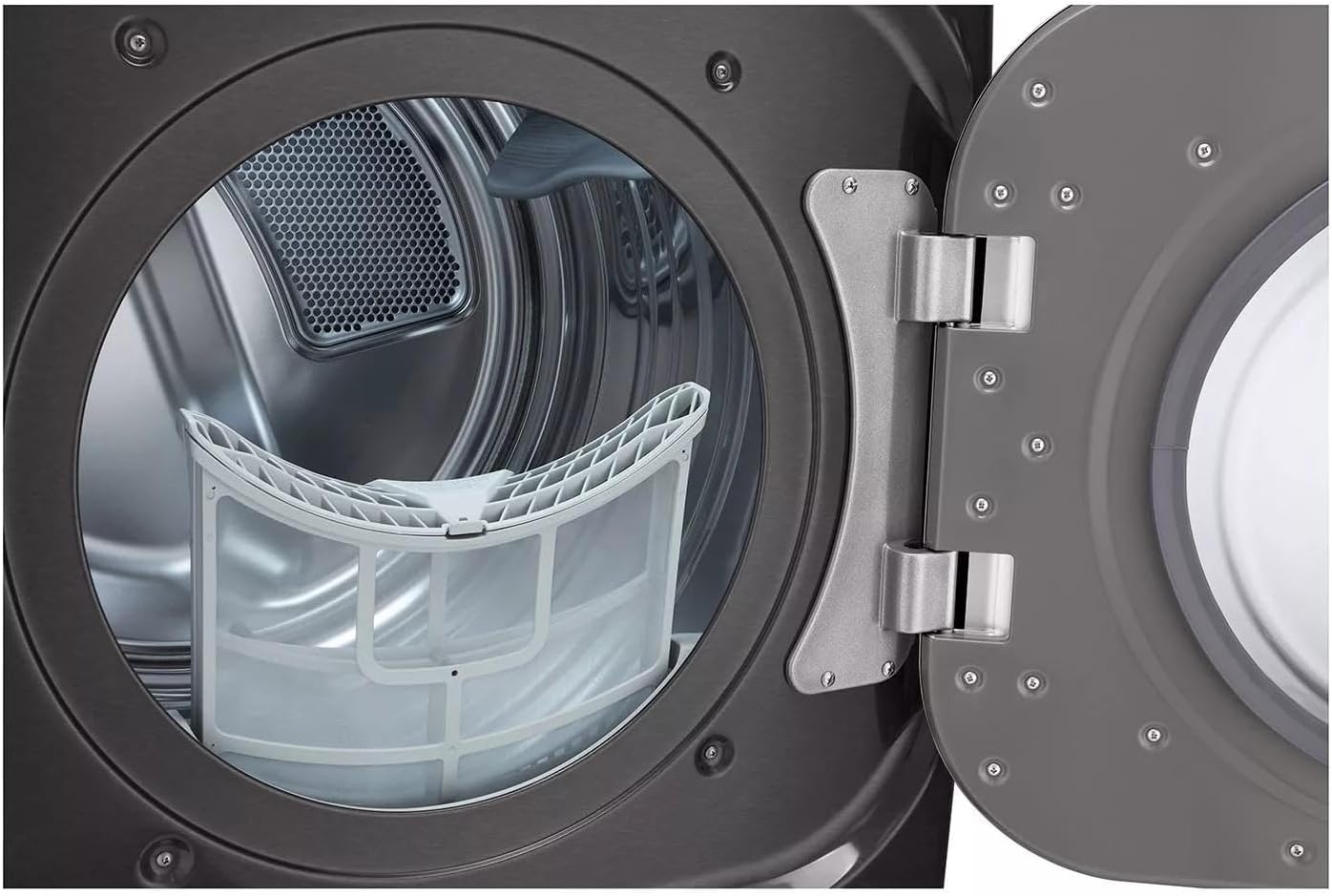

Figure 5: Close-up of the lint filter, easily accessible for cleaning.

4.2 Čišćenje unutrašnjosti sušilice

Obrišite bubanj sušilice oglasomamp cloth after each use to remove any residue. For tougher stains, use a mild household cleaner and wipe dry.

4.3 Čišćenje spoljašnjosti sušilice

Obrišite vanjske površine mekom krpom, damp krpom. Izbjegavajte abrazivna sredstva za čišćenje ili rastvarače koji bi mogli oštetiti završnu obradu.

5. Otkrivanje problema

Refer to this section for common issues and their solutions before contacting service.

6. Specifikacije

7. Garancija i podrška

LG provides comprehensive warranty coverage for its appliances. For specific warranty details, please refer to the warranty card included with your product or visit the official LG website.

7.1 Korisnička podrška

For technical assistance, troubleshooting, or to schedule service, please contact LG Customer Support:

• Online: Posjetite LG podrška Website
• Telefon: Refer to your product documentation for the appropriate customer service number.

When contacting support, please have your model number (DLGX8901B) and serial number ready.
