1. Uvod
This manual provides comprehensive instructions for the installation, operation, and maintenance of your SJOYBRING JOY-W005 Double Din Car Stereo. This unit features Wireless Apple CarPlay & Android Auto, Bluetooth connectivity, 4.2-Channel Audio Output, Mirror Link, a 7-inch Touchscreen, and includes a Backup Camera. Please read this manual thoroughly before use to ensure proper functionality and safety.
2. Sigurnosne informacije
Always prioritize safety. Improper installation or operation can lead to accidents or damage. Observe the following:
- Ensure the vehicle's power is disconnected before installation.
- It is recommended to have the unit installed by a professional car audio technician.
- Ne rukujte uređajem na način koji vam odvlači pažnju od vožnje.
- Working voltage: 12V. Max power output: 60W*4.
- Osigurajte odgovarajuću ventilaciju oko jedinice.
3. Sadržaj paketa
Provjerite da li su sve stavke prisutne u paketu:
Slika 3.1: Illustration of included package contents.
- Glavna jedinica
- Pozadi View Kamera
- Kabel za rezervnu kameru
- kabelskog svežnja
- Daljinski upravljač
- Montažni nosači
- Vijci (različite vrste)
- Korisnički priručnik (ovaj dokument)
4. Proizvod je gotovview
The SJOYBRING JOY-W005 is a versatile car stereo designed to enhance your driving experience with modern connectivity and audio features.
Slika 4.1: SJOYBRING JOY-W005 Head Unit and Accessories.
Ključne karakteristike:
- Wireless Apple CarPlay & Android Auto: Seamless smartphone integration via Wi-Fi and Bluetooth for navigation, calls, and music.
- 4.2-Channel Audio Output: Enhanced sound quality with dedicated outputs for front, rear, and two subwoofers.
- Upgraded Bluetooth System: Stable and clear calls/music streaming with independent Bluetooth module and antenna.
- Link za ogledalo: Display your iOS/Android phone screen on the 7-inch HD touchscreen via USB.
- 7-inčni HD ekran osjetljiv na dodir: 1024 x 600 resolution for clear visuals and 1920 x 1080P video playback.
- Backup Camera Included: HD night vision, 170° ultra-wide viewing angle, IP68 waterproof design for safer parking.
- AM/FM radio: Standard radio functionality.
5. Podešavanje i instalacija
5.1 Provjere prije instalacije
Before beginning installation, ensure your vehicle's dashboard opening size is compatible with the stereo. The unit supports common double din sizes:
- 170 x 97mm (6.69 x 3.81 inches) - Common for US and European car series.
- 178 x 100mm (7 x 3.93 inches) - Common for Asian car series.
- 189 x 117mm (7.44 x 4.61 inches) - Other common sizes.
If your dash size does not match, an additional suitable dash kit may be required. Some cars may also need a wire harness adapter and a radio antenna adapter.
Slika 5.1: Dash Size Compatibility and Wiring Diagrams.
5.2 Dijagram ožičenja
Refer to the following diagram for proper wiring connections. It is crucial to connect wires correctly to avoid damage to the unit or vehicle.
| Boja žice | Funkcija |
|---|---|
| Žuta | +12V Constant Power Supply |
| Crna | zemlja (-) |
| Crveni | +12V Ignition Switch (ACC) |
| Narandžasta | Illuminate Light |
| Plava | Power on Antenna/Amplifier |
| Siva/Crna | Right Front Speaker - |
| Bijela/Crna | Left Front Speaker - |
| Zelena/crna | Left Rear Speaker - |
| Ljubičasta/crna | Right Rear Speaker - |
| Brown | Brake Detect |
| Pink | Back Car Control (Reverse Trigger) |
| Grey | Steering Wheel Control (1) |
| Zeleno | Steering Wheel Control (2) |
| Crna | Ground (Steering Wheel Control) |
| Pink/Crna | Front View Camera Power Supply |
5.3 Pozadi View Instalacija kamere
The included HD night vision rear view camera automatically displays the image when the vehicle shifts into reverse. Connect the camera's video output to the unit's "R-CAM" input and its power to the vehicle's reverse light circuit.

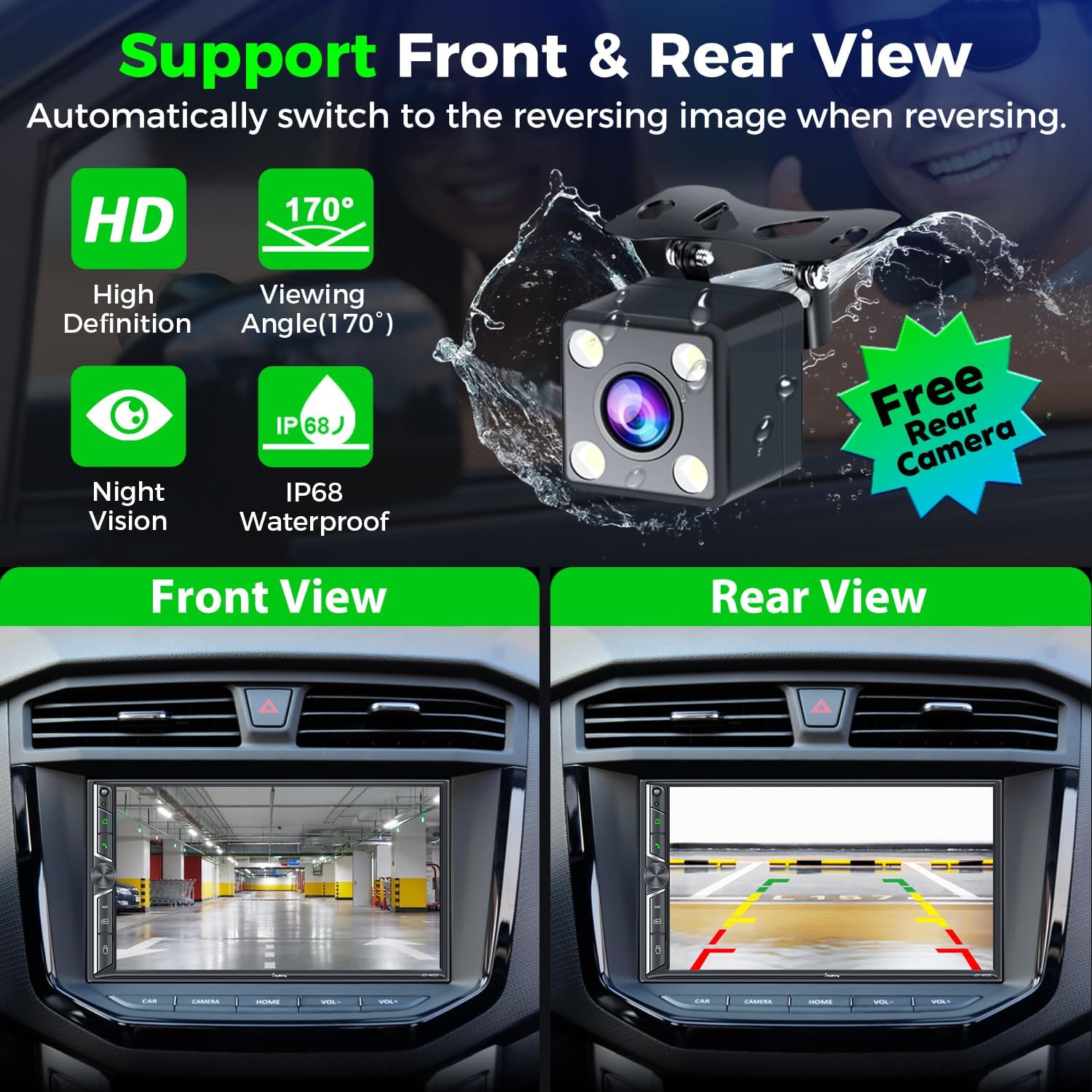

Slika 5.2: Pozadi View Camera Functionality.
6. Uputstvo za upotrebu
6.1 Bežični Apple CarPlay i Android Auto
Connect your smartphone to the car radio via Wi-Fi and Bluetooth to activate Wireless Apple CarPlay or Android Auto. This allows you to access navigation, make calls, play music, and use voice assistants (Siri, Google Assistant) safely while driving.
Slika 6.1: Wireless CarPlay & Android Auto Interface.
6.2 Bluetooth System
The upgraded Bluetooth system provides a stable connection for hands-free calls and music streaming. Pair your device through the unit's Bluetooth settings. The independent Bluetooth module and antenna ensure clear communication.
Slika 6.2: Bluetooth Call and Music Interface.
6.3 Mirror Link
Connect your iOS or Android smartphone via USB to mirror its screen onto the 7-inch display. This allows you to view content like Google Maps, Spotify, or YouTube directly on the car stereo (Note: Not compatible with iOS 18.0 and above).
Slika 6.3: Mirror Link Functionality.
6.4 Audio Output & Equalizer
The unit supports 4.2-channel audio output, including front (FR/FL), rear (RR/RL) speaker outputs, and two subwoofer outputs (SW1/SW2). Utilize the built-in EQ bands and professional DSP to customize your sound experience.
Slika 6.4: 4.2-Channel Audio Output and EQ Setup.
6.5 AM/FM radio
Access your favorite radio stations using the integrated AM/FM tuner. Scan for stations and save presets for quick access.
Slika 6.5: AM/FM Radio Interface.
6.6 Upravljanje volanom (SWC)
If your vehicle supports it, connect the steering wheel control wires to the unit. This allows you to control basic functions like volume, track skipping, and call management directly from your steering wheel.
Slika 6.6: Steering Wheel Control Setup.
6.7 7 Colors LED Buttons
The physical buttons on the unit feature 7-color LED backlighting, which can be customized to match your vehicle's interior lighting or personal preference.
Slika 6.7: Customizable LED Button Colors.
7. Održavanje
- Keep the touchscreen clean using a soft, lint-free cloth. Avoid abrasive cleaners.
- Osigurajte odgovarajuću ventilaciju oko jedinice kako biste spriječili pregrijavanje.
- Redovno provjeravajte ožičenje radi sigurnosti.
- Izbjegavajte izlaganje uređaja ekstremnim temperaturama ili direktnoj sunčevoj svjetlosti tokom dužeg perioda.
8. Otkrivanje problema
Uobičajeni problemi i rješenja:
- Nema napajanja: Check power connections (Yellow, Red, Black wires). Ensure the fuse is intact.
- Nema zvuka: Verify speaker connections. Check audio settings (volume, mute, fader/balance). Ensure external amplifier (if used) is powered on.
- Problemi sa Bluetooth vezom: Ensure Bluetooth is enabled on both the unit and your phone. Try unpairing and re-pairing the device. Check for interference.
- CarPlay/Android Auto se ne povezuje: Ensure Wi-Fi and Bluetooth are on. For wired connection, use a high-quality USB data cable. Check phone compatibility (iOS 18.0+ not supported for Mirror Link).
- Kamera za vožnju unazad se ne prikazuje: Check camera power and video connections. Ensure the "Back Car Control" (Pink) wire is correctly connected to the reverse light trigger.
- Screen Unresponsive/Lagging: Perform a soft reset (refer to the unit's reset button, usually a small pinhole). If persistent, contact customer support.
9. Specifikacije
| Feature | Detalj |
|---|---|
| Dimenzije proizvoda | 3.94 x 7.01 x 3.23 inča |
| Težina artikla | 2.72 funte |
| Broj modela | JOY-W005 |
| Proizvođač | SJOYBRING |
| Tehnologija povezivanja | Bluetooth, Wi-Fi, USB |
| Tip kontrolera | iOS, Android |
| Posebne karakteristike | Touchscreen, Android Auto, Apple CarPlay, AM Tuner, Built-In Wi-Fi |
| Kompatibilni uređaji | Pametni telefon, zvučnik |
| Tip konektora | USB, 3.5 mm priključak |
| Način audio izlaza | Stereo |
| Konfiguracija kanala surround zvuka | 4 Channel (4.2-channel with 2 subwoofer outputs) |
| Video Encoding | H.264, H.265/HEVC, MPEG-4 |
| Boja | Crna |
| Working Voltage | 12V |
| Maksimalna izlazna snaga | 60W*4 |
10. Garancija i podrška
For warranty information and technical support, please refer to the contact details provided with your purchase or visit the official SJOYBRING website. You can also refer to the full User Manual PDF for more detailed instructions:
