1. Sigurnosna uputstva
Molimo vas da pažljivo pročitate sva uputstva prije upotrebe uređaja kako biste osigurali siguran i efikasan rad. Sačuvajte ovaj priručnik za buduću upotrebu.
- električna sigurnost: Ensure the appliance is connected to a properly grounded outlet. Do not use if the power cord is damaged.
- temperatura površine: The cooktop surface and griddle pan can remain hot after cooking. Allow to cool before touching or cleaning.
- Kompatibilnost posuđa: Only use induction-compatible cookware. Incompatible cookware will result in an E0 error code and the unit will not heat.
- Zaključavanje za djecu: Utilize the child lock feature to prevent accidental operation.
- Izloženost vodi: Do not submerge the main induction cooktop unit in water. Clean only with a damp cloth. The griddle pan can be separated and washed.
- Šteta: Do not use the appliance if the glass surface is cracked or damaged. Disconnect power immediately.
- ventilacija: Osigurajte odgovarajuću ventilaciju oko uređaja tokom rada.
2. Proizvod je gotovview
The COOKTRON Portable 2-Burner Induction Cooktop offers versatile cooking options with its 2-in-1 design, functioning as both a dual induction cooktop and a smokeless cast iron griddle grill. It features independent controls for each cooking zone.
Komponente
- Main Induction Cooktop Unit (1800W total)
- Removable Cast Iron Griddle Pan
- Griddle Poklopac
The main unit houses two induction burners, each with independent controls. The removable cast iron griddle pan fits securely over both burners, allowing for simultaneous grilling. A lid is provided for the griddle pan to enhance cooking and reduce splatter.
3. Podešavanje
- Otpakujte sve komponente iz pakovanja.
- Place the main induction cooktop unit on a stable, flat, and heat-resistant surface. Ensure adequate space for ventilation around the unit.
- If using the griddle, place the removable cast iron griddle pan securely onto the cooktop. It is designed to fit over both induction zones.
- Uključite kabl za napajanje u standardnu električnu utičnicu od 120 V.
4. Uputstvo za upotrebu
4.1 Osnovni rad
- Uključivanje/isključivanje: Pritisnite dugme za napajanje da uključite ili isključite jedinicu.
- Detekcija posuđa: The unit will display an 'E0' error code if no compatible cookware is placed on the burner within 30 seconds of activation, or if incompatible cookware is used. The burners will not heat until compatible cookware is detected.
- Zaključavanje za djecu: Press and hold the child lock button for 3 seconds to lock or unlock the control panel.
4.2 Temperature and Power Settings
The cooktop features independent controls for each burner, allowing for different power or temperature settings simultaneously.
- Nivoi snage: Choose from 9 power levels, ranging from 400W to 1100W (in 100W increments).
- Nivoi temperature: Select from 5 temperature levels, ranging from 248°F to 410°F (in 36°F increments).
- Podešavanje: Use the dedicated knobs for each burner to adjust power or temperature settings.
- Tajmer: Use the timer function to set cooking durations. The unit will automatically shut off once the timer expires.
4.3 Using the Removable Griddle Pan
The cast iron griddle provides excellent heat retention and distribution, ideal for frying pancakes, sausages, steaks, and eggs.
- Place the griddle pan directly onto the induction cooktop. Ensure it is properly seated over both heating zones.
- Use the independent controls to set the desired temperature or power for grilling.
- The griddle is designed to be smokeless, reducing smoke by 95% for a healthier cooking environment.
- Use the provided lid to cover the griddle during cooking to maintain heat and reduce splatter.
4.4 Using as a Dual Induction Cooktop
Remove the griddle pan to use the unit as a standard dual induction cooktop with your own compatible pots and pans.
- Place induction-compatible cookware directly onto the marked cooking zones.
- Adjust power or temperature settings independently for each zone using the respective knobs.

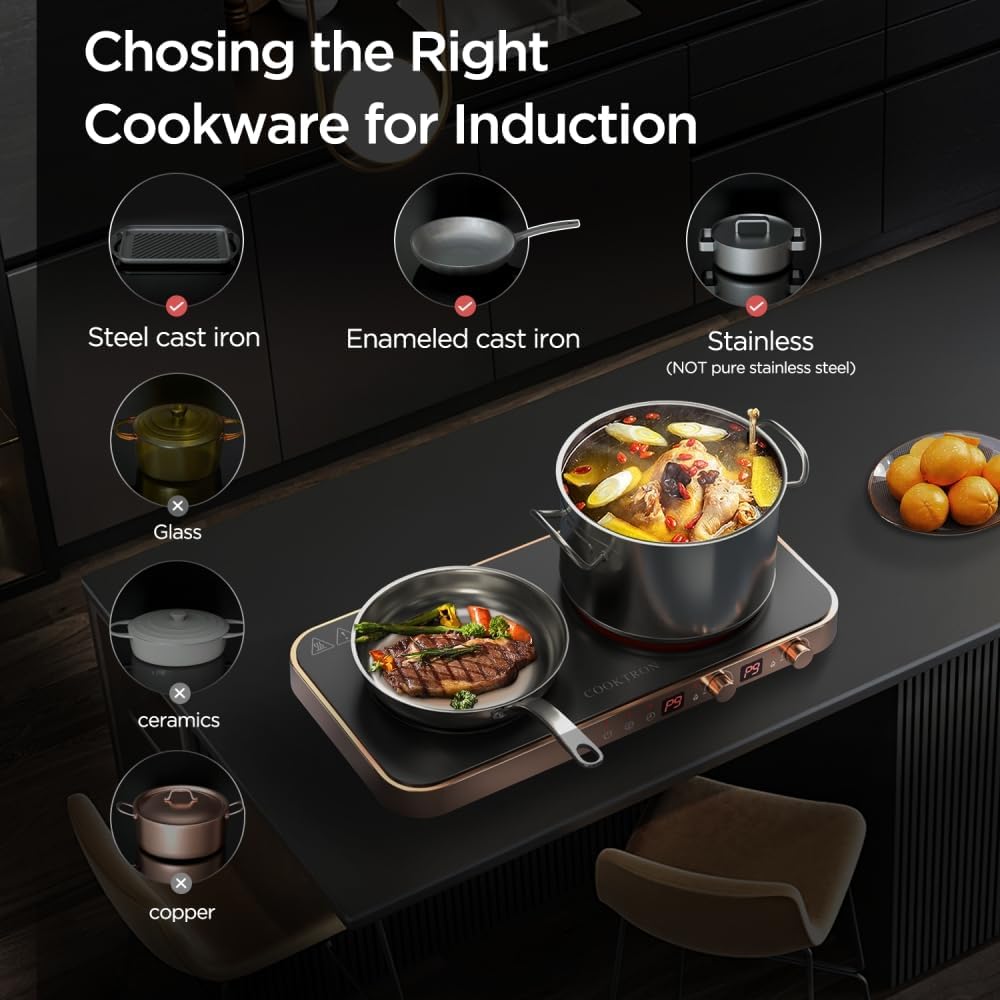

5. Cookware Compatibility
Induction cooktops require cookware with magnetic properties. To test if your cookware is compatible, place a magnet on the bottom. If the magnet sticks, the cookware is compatible.
- Kompatibilni materijali: Steel cast iron, enameled cast iron, magnetic stainless steel.
- Nekompatibilni materijali: Glass, ceramic, copper, aluminum (unless specifically designed for induction with a magnetic base).
6. Održavanje i čišćenje
Pravilno održavanje osigurava dugotrajnost i performanse vaše ploče za kuhanje.
- Cooktop Unit: The high-quality smooth glass surface can be easily cleaned with a damp cloth. Do not submerge the main unit in water or place it in a dishwasher.
- Griddle Pan: The removable cast iron griddle pan has a non-toxic, non-stick coating. It can be washed with soap and water. Allow the griddle pan to cool completely before handling or cleaning to prevent burns.
- Skladištenje: Ensure the unit is clean and dry before storing.
7. Otkrivanje problema
- E0 kod greške: This indicates that no compatible cookware is detected on the burner. Place an induction-compatible pot or pan on the cooking zone.
- E2 kod greške: This typically indicates internal overheating. Disconnect the unit from power and allow it to cool down before attempting to use it again. Ensure proper ventilation.
- Uređaj se ne zagrijava: Verify that the unit is plugged in, powered on, and compatible cookware is correctly placed on the burner. Check for any error codes displayed.
8. Specifikacije
- Brand: COOKTRON
- Model: B0BGS7VL2B
- Snaga: 1800 W (ukupno)
- grijaći elementi: 2 (Induction Burners)
- Vrsta kontrole: Knob
- Materijal: Cast Iron (Griddle), Glass (Cooktop Surface)
- Dimenzije proizvoda: 21.5"D x 11.6"Š x 8.46"H
- Težina artikla: 14.42 funte
- Posebne karakteristike: Electric, Temperature Control, Child Lock
9. Garancija i podrška
For warranty information and customer support, please refer to the documentation included with your product. Contact the manufacturer directly for assistance with any issues or inquiries.
