Uvod
This manual provides detailed instructions for the installation, operation, and maintenance of your INKBIRD IVC-001W 15CM Inline Duct Fan with Smart Controller. This system is designed to provide efficient ventilation, deodorization, dehumidification, and temperature regulation for various indoor environments.
Molimo vas da pažljivo pročitate ovaj priručnik prije upotrebe proizvoda kako biste osigurali sigurne i optimalne performanse.
Sigurnosne informacije
Pridržavajte se sljedećih sigurnosnih mjera opreza kako biste spriječili ozljede ili oštećenje uređaja:
- električna sigurnost: Ensure the power supply matches the fan's requirements. Do not operate with damaged cords or plugs.
- Instalacija: Install the fan in a stable location, ensuring proper duct connections to prevent air leaks.
- Održavanje: Isključite napajanje prije čišćenja ili bilo kakvog održavanja.
- Djeca i kućni ljubimci: Držite uređaj van domašaja djece i kućnih ljubimaca.
- Okruženje: Do not expose the fan or controller to water or extreme temperatures.
Komponente proizvoda
The INKBIRD IVC-001W package includes the following:
- 1 x INKBIRD IVC-001W Inline Duct Fan (15CM / 6-inch)
- 1 x Wi-Fi Enabled Smart Controller
- 1 x Temperature and Humidity Probe
- 1 x kabel napajanja
- Mounting Hardware (e.g., straps, screws)
- Korisnički priručnik (ovaj dokument)
Postavljanje i instalacija
Follow these steps to properly install your INKBIRD Inline Duct Fan:
- Raspakivanje: Pažljivo izvadite sve komponente iz ambalaže. Pregledajte da li ima oštećenja.
- Montaža ventilatora: Secure the inline duct fan in your desired location (e.g., within a grow tent, basement, or kitchen ductwork). Use the provided mounting hardware to ensure it is stable and vibration-free.
- Spajanje kanala: Connect appropriate ducting to both ends of the fan. Ensure all connections are sealed to prevent air leakage and maximize efficiency.
- Montaža kontrolera: Choose a convenient location for the smart controller. It can be wall-mounted or placed on a flat surface.
- Povezivanje kontrolera: Connect the fan to the smart controller using the provided cable. Then, connect the temperature and humidity probe to the controller.
- Priključak za napajanje: Plug the power cord into a standard electrical outlet. The controller screen should illuminate.
- Wi-Fi podešavanje: Download the INKBIRD app on your smartphone. Follow the in-app instructions to connect the smart controller to your Wi-Fi network. This enables remote control and monitoring.
Image: The INKBIRD IVC-001W Inline Duct Fan connected to flexible ducting, shown in an indoor growing environment.
Slika: Detaljna view of the duct fan illustrating the direction of air flow (inlet and outlet) and its connection to ductwork.
Image: The Wi-Fi enabled smart controller displaying temperature and humidity readings, with its probe connected.
Uputstvo za upotrebu
The INKBIRD IVC-001W offers multiple operating modes for flexible environmental control.
Sučelje kontrolera
The smart controller features a high-definition VA screen displaying current temperature, humidity, fan status, and settings. Buttons on the controller allow for direct interaction.
Slika: Detaljna view of the smart controller's screen, showing temperature, humidity, and fan speed settings, along with its physical buttons.
Radni režimi
You can select from Automatic, Manual, or Timer modes:
- Automatski način rada:
- Set desired temperature and humidity ranges.
- The fan will automatically adjust its speed (0-10) to maintain these preset conditions.
- Ideal for maintaining a consistent environment without constant manual adjustment.
- Ručni način rada:
- Manually set the fan speed from 0 (off) to 10 (maximum).
- The fan will operate at the selected speed until manually changed or turned off.
- Tajmer način rada:
- Program up to 6 individual operating times per day.
- For each time slot, you can customize the start time, running length, and fan speed.
- This mode allows for precise scheduling of ventilation cycles.
Image: Screenshot of the INKBIRD smartphone app demonstrating the Automatic Mode interface, where users can set temperature and humidity thresholds.
Image: Screenshot of the INKBIRD smartphone app demonstrating the Manual Mode interface, allowing users to set a specific fan speed.

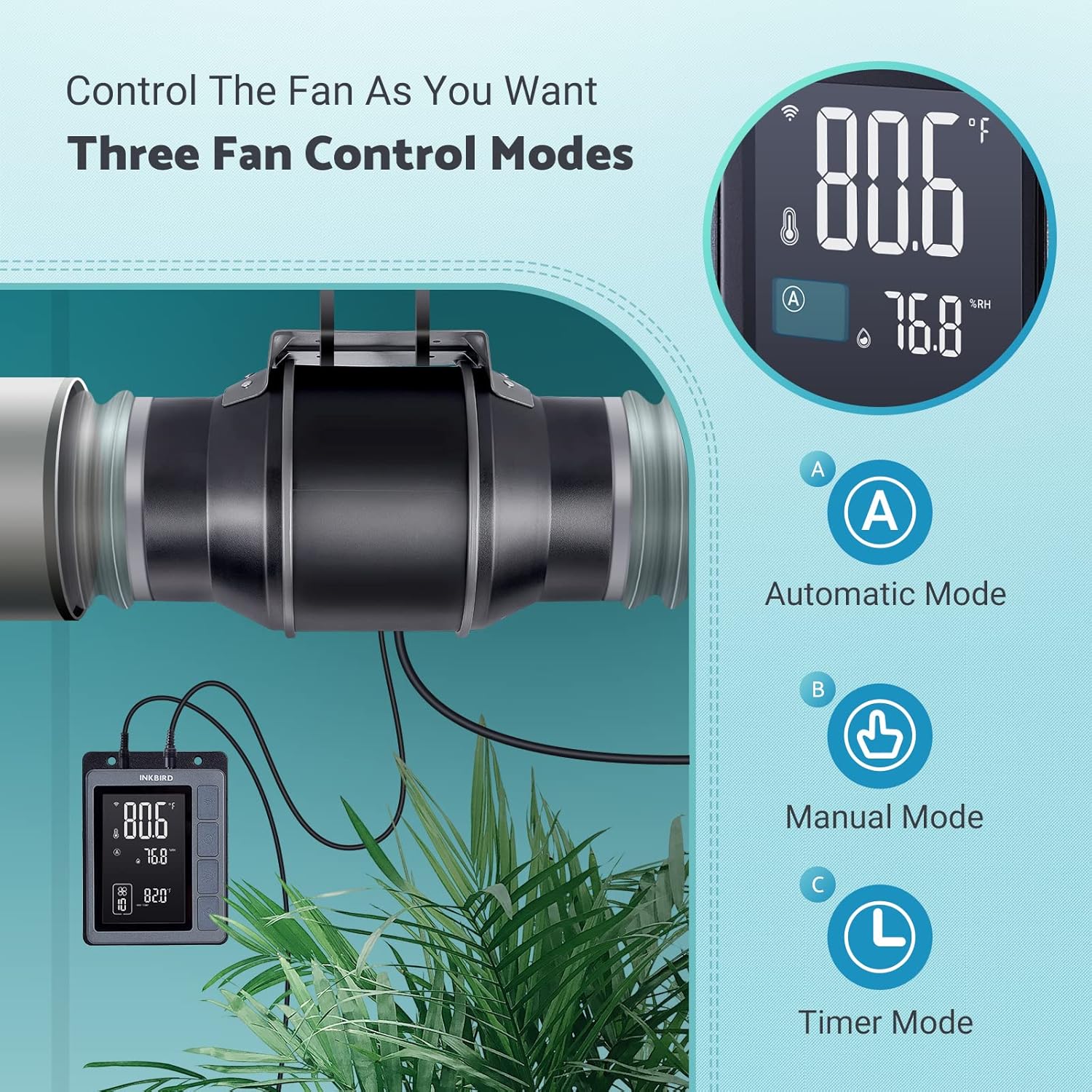

Image: Screenshot of the INKBIRD smartphone app demonstrating the Timer Mode interface, where users can schedule multiple fan operations throughout the day.
Smart App Features
The INKBIRD app provides enhanced control and monitoring capabilities:
- daljinski upravljač: Adjust settings and change modes from anywhere.
- Nadgledanje: View podaci o temperaturi i vlažnosti u realnom vremenu.
- historija: Access historical temperature and humidity data.
- Alarmi: Receive notification messages on your phone if detected temperature/humidity reaches preset alarm values.
- Zaključavanje za djecu: Enable the child lock function via the app or by pressing the '+' and '-' buttons simultaneously on the controller for 2 seconds to prevent unintended changes.
- ECO način rada: The controller supports ECO mode for power saving.
Ključne karakteristike
- Efficient Air Movement: Provides 350 CFM air volume and 2500 RPM fan speed for effective ventilation, deodorization, dehumidification, and temperature regulation.
- tihi rad: Features an energy-efficient EC motor, producing only 32 dB of noise during operation (measured at 3 meters from the fan connected to a 1-meter duct).
- Promjenjiva brzina ventilatora: Fan speed is adjustable from 0 to 10, allowing precise control over airflow.
- Izdržljiva konstrukcija: Built with a durable ABS housing and strong fan blades for long-term use.
- Multi-Fan Control: The smart controller can connect and control two INKBIRD fans simultaneously.
Image: The inline duct fan highlighting its multifunctional capabilities: ventilation, deodorization, humidity regulation, and temperature regulation.

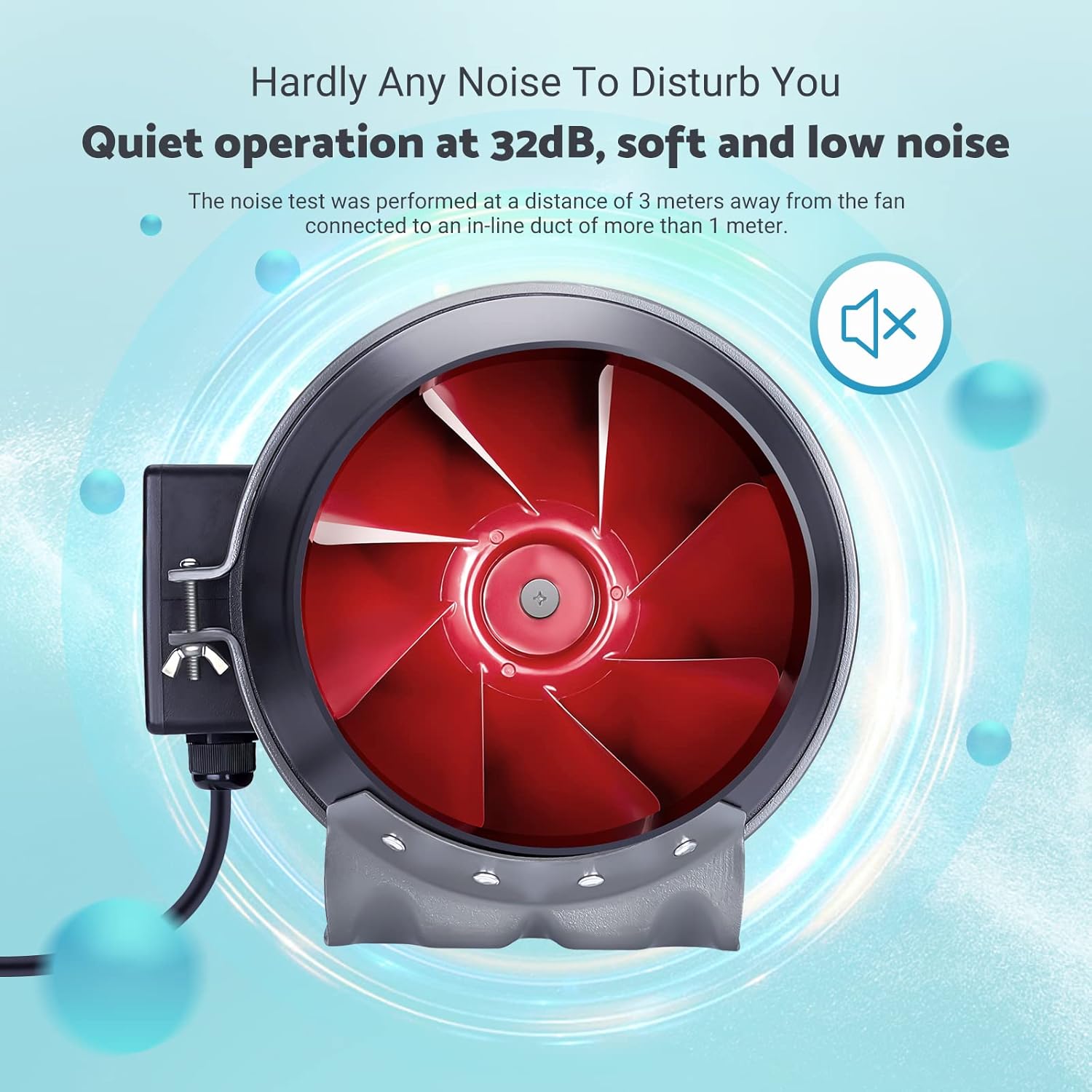

Slika: Interni view of the fan, emphasizing its quiet operation at 32 dB, with the red fan blades visible.

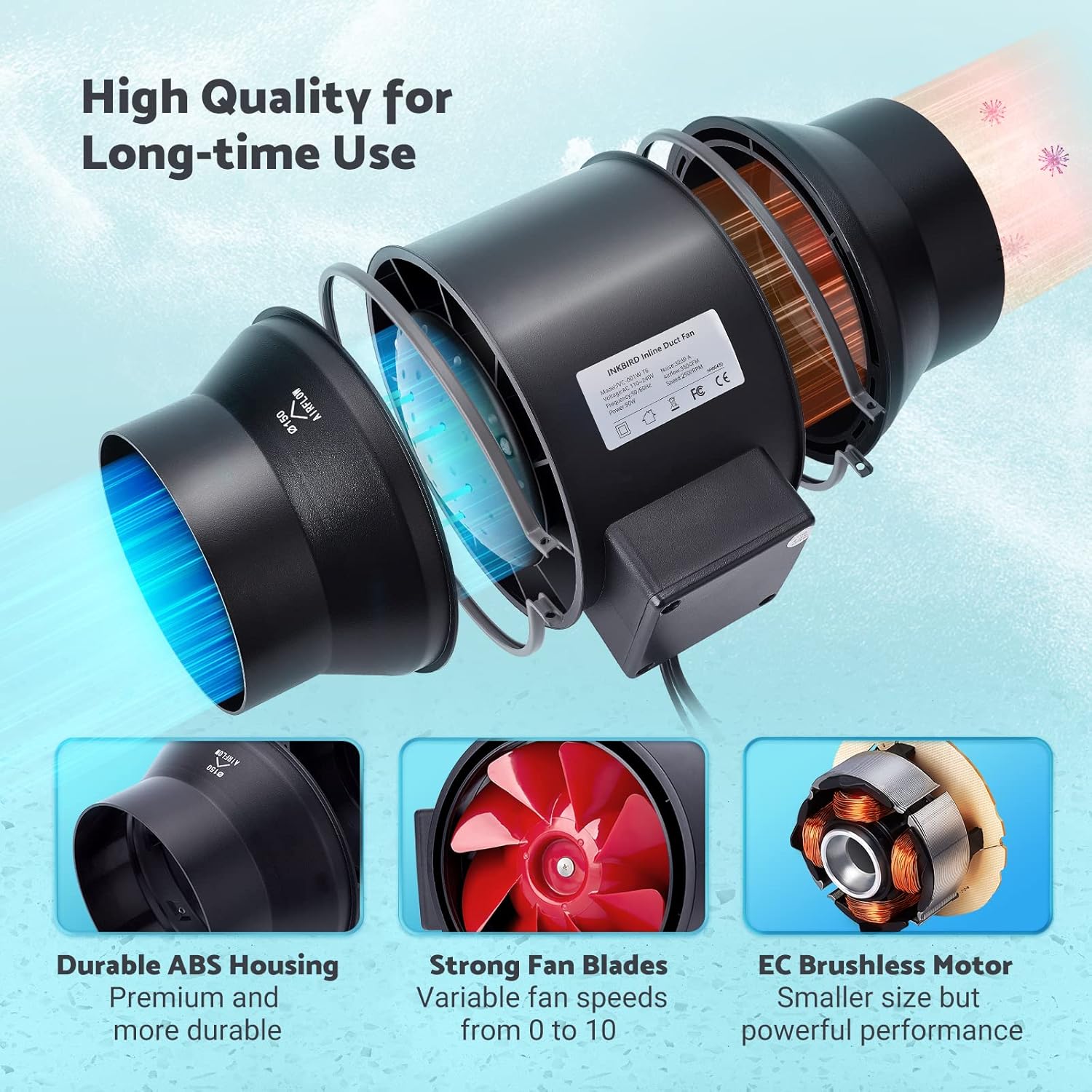

Image: An exploded diagram of the fan, highlighting its durable ABS housing, robust fan blades, and the efficient EC brushless motor.
Održavanje
Regular maintenance ensures the longevity and efficiency of your INKBIRD Inline Duct Fan.
- Isključivanje struje: Always unplug the fan from the power source before performing any cleaning or maintenance.
- Eksterijerno čišćenje: Wipe the exterior of the fan and controller with a soft, damp tkanina. Nemojte koristiti abrazivna sredstva za čišćenje ili rastvarače.
- Čišćenje lopatica ventilatora: Periodically inspect the fan blades for dust and debris accumulation. If necessary, carefully remove the fan from the ducting and gently clean the blades with a soft brush or cloth. Ensure no moisture enters the motor housing.
- Čišćenje sonde: Keep the temperature and humidity probe clean and free from obstructions to ensure accurate readings.
- Inspekcija kanala: Regularly check the ducting for any blockages, tears, or loose connections that could impede airflow.
Rješavanje problema
If you encounter issues with your INKBIRD Inline Duct Fan, refer to the following common problems and solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Ventilator se ne uključuje. | No power supply; loose connection; child lock enabled. | Check power cord connection and outlet. Ensure fan cable is securely connected to the controller. Disable child lock via app or controller buttons. |
| Ventilator radi, ali je protok zraka slab. | Ducting blockage; fan speed set too low; air leaks in ducting. | Inspect ducting for obstructions. Increase fan speed setting. Check duct connections for leaks and seal if necessary. |
| Netačna očitanja temperature/vlažnosti. | Probe is dirty or obstructed; probe is placed in an unsuitable location. | Clean the probe. Relocate the probe to an area that accurately represents the environment you wish to monitor. |
| Problemi s Wi-Fi vezom. | Netačna lozinka za Wi-Fi; ruter previše udaljen; mrežne smetnje. | Verify Wi-Fi password. Move controller closer to the router. Restart router and controller. Ensure 2.4GHz Wi-Fi network is used. |
| Ventilator je bučan. | High fan speed; loose mounting; debris in fan blades. | Reduce fan speed. Ensure the fan is securely mounted. Disconnect power and inspect/clean fan blades. |
Specifikacije
| Feature | Detalj |
|---|---|
| Brand | Inkbird |
| Model | IVC-001W |
| Prečnik ventilatora | 15CM (6-inch) |
| Zapremina zraka | 350 CFM |
| Brzina ventilatora | 2500 o/min (maks.) |
| Nivo buke | 32 dB (at 3 meters) |
| Voltage | 24V |
| Wattage | 50W |
| Izvor napajanja | Corded Electric |
| Materijal | Plastic (ABS Housing) |
| Vrsta montaže | Zidni nosač |
| Posebne karakteristike | Timer, Wi-Fi Smart Controller, Temperature & Humidity Control, Child Lock, ECO Mode |
| Dužina kabla za napajanje | 150 cm (59 inča) |
| Dužina kabla od ventilatora do kontrolera | 240 cm (94.5 inča) |
| Duljina sonde | 250 cm (98.43 inča) |
| Dimenzije proizvoda | 35D x 26.7W x 28H centimetara |
Image: A technical diagram illustrating the dimensions of the inline duct fan, smart controller, and the temperature/humidity probe, including cable lengths.
Garancija i podrška
The INKBIRD IVC-001W Inline Duct Fan comes with a 2 godine garancije od datuma kupovine.
For technical support, warranty claims, or further assistance, please contact INKBIRD customer service through their official webweb-mjesto ili kontakt informacije navedene na pakovanju vašeg proizvoda.
Također možete posjetiti Inkbird trgovina na Amazonu za više informacija o proizvodu i resurse podrške.
