Oasser Tyre Inflator Air Compressor User Manual

Uvod

Thank you for choosing the Oasser Tyre Inflator Air Compressor. This portable and versatile air compressor is designed for efficient inflation of car tyres, motorcycle tyres, bicycle tyres, and various inflatable items such as balls. Featuring dual power supply options (12V DC for car and 240V AC for home), a digital display, automatic shut-off, and an integrated LED light, it provides a convenient and reliable solution for your inflation needs.

Please read this manual thoroughly before operation to ensure safe and optimal performance of your device. Keep this manual for future reference.

Sigurnosne informacije

• Uvijek koristite pumpu za naduvavanje u dobro prozračenom prostoru.
• Ne ostavljajte pumpu za naduvavanje bez nadzora tokom rada.
• Čuvati van domašaja djece.
• Izbjegavajte prekomjerno napuhavanje. Uvijek se pridržavajte preporučenog pritiska za predmet koji se napuhava.
• It is recommended to turn off the compressor and allow it to cool for 5-10 minutes after every 8 minutes of continuous use to extend its lifespan.
• Ne izlažite pumpu za naduvavanje kiši ili vlažnim uslovima.
• Ensure the power source matches the inflator's voltage requirements (12V DC or 240V AC).
• Ne pokušavajte sami rastavljati ili popravljati uređaj. Za servisiranje se obratite kvalificiranom osoblju.

Sadržaj paketa

Provjerite da li su sve stavke prisutne u paketu:

• Oasser Tyre Inflator Air Compressor (Model: ATJ-6488)
• 60cm Compressed Air Hose
• 3m Car Charger (12V DC)
• 1.6m AC Charger (240V AC)
• 4 Nozzle Adaptors (for cars, bicycles, balls, etc.)
• Rezervni osigurač
• Torba za pohranu

Image: The Oasser Tyre Inflator Air Compressor shown with its various components including the main unit, power cables, and nozzle adaptors.

Image: A closer look at the Oasser inflator unit, highlighting the digital display, control buttons, and the various nozzle adaptors included for different inflation needs.

Product Overview

Familiarize yourself with the main parts of your Oasser Tyre Inflator:

• Digitalni prikaz: Shows current pressure and allows setting target pressure.
• Kontrolna dugmad: Power, unit selection (PSI, BAR, KPA, Kg/cm²), and pressure adjustment (+/-).
• Priključak crijeva za zrak: Point for attaching the compressed air hose.
• LED svjetlo: Pruža osvjetljenje za noćnu upotrebu ili u uslovima slabog osvjetljenja.
• DC 12V ulaz: Za povezivanje auto punjača.
• Ulaz AC 240V: For connecting the home charger.
• Hose Storage Slot: Integrated storage for the air hose.

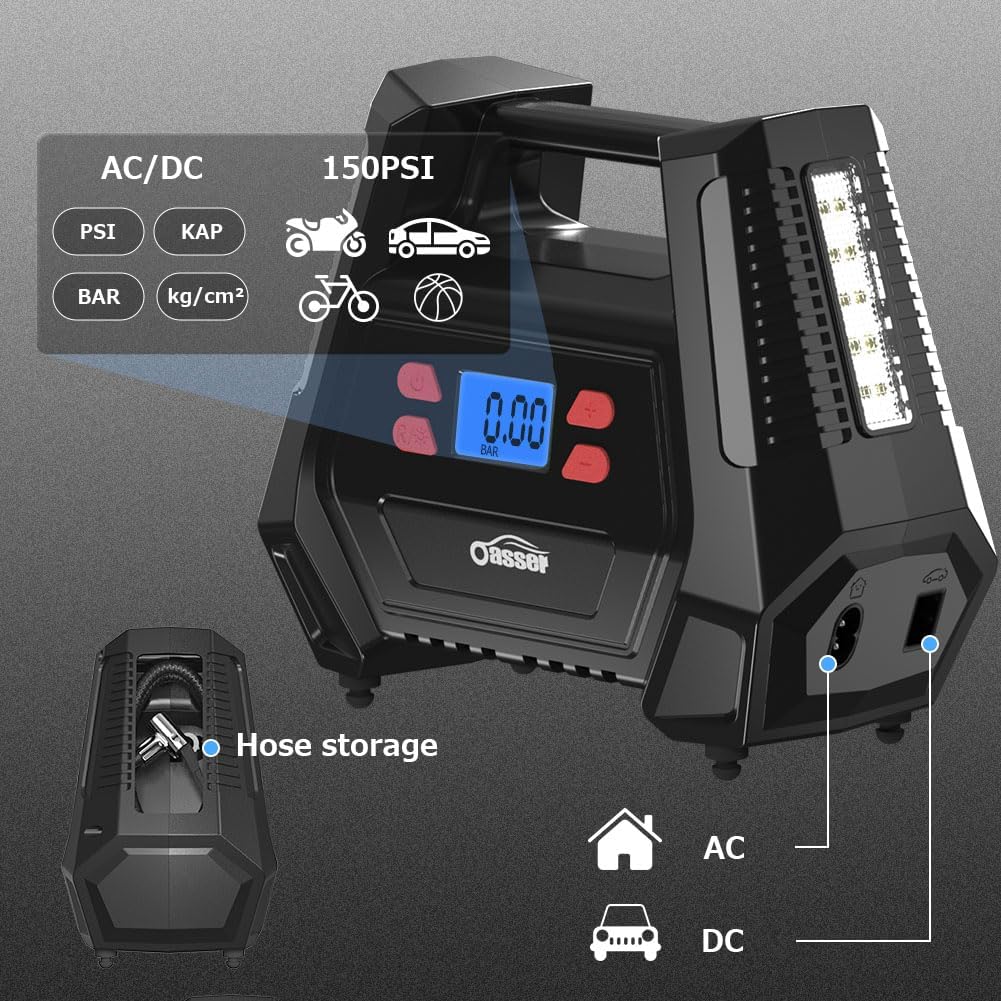

Image: The Oasser inflator highlighting its dual AC/DC power inputs and the convenient hose storage compartment on the side.

Setup

1. Odaberite izvor napajanja:
   • For car use: Connect the 3m car charger to the 12V DC input on the inflator and plug the other end into your vehicle's 12V socket.
   • For home use: Connect the 1.6m AC charger to the 240V AC input on the inflator and plug the other end into a standard wall outlet.


   Image: Illustration of connecting the Oasser inflator to both a car's 12V DC socket and a home's 240V AC outlet, demonstrating its dual power capability.
2. Spojite crijevo za zrak: Screw the compressed air hose securely onto the inflator's air hose connection port.

Uputstvo za upotrebu

Opći koraci inflacije:

1. Uključeno: Pritisnite dugme za napajanje (⏻) to turn on the inflator. The digital display will light up.
2. Odaberite jedinicu: Press the 'R' button to cycle through desired pressure units: PSI, BAR, KPA, or Kg/cm².
3. Postavite ciljani pritisak: Use the '+' and '-' buttons to set your desired target pressure. The display will show the set value.
4. Poveži se sa stavkom: Remove the valve cap from the item you wish to inflate. Securely attach the air hose nozzle to the valve stem. For different items (bicycles, balls), use the appropriate nozzle adaptor.
5. Početak inflacije: Press the inflation button (▶) to begin inflation. The compressor will automatically stop once the preset pressure is reached.
6. Monitoring pritiska: The digital display will show the current pressure during inflation.
7. Prekini vezu: Once inflation is complete, quickly disconnect the nozzle from the valve stem and replace the valve cap.
8. Iskljuciti: Pritisnite dugme za napajanje (⏻) to turn off the inflator.

Image: A visual guide demonstrating the four key steps for operating the inflator: connecting power, attaching to tire valve, setting pressure, and starting inflation.

Korištenje LED svjetla:

The integrated LED light can be activated independently for illumination in dark environments. Refer to the product's specific button for the LED light (often a separate button or a long press of the power button).

Image: The Oasser inflator demonstrating its LED light feature, useful for operating in low-light conditions or at night.

Inflation for Specific Items:

• Car Tyres:

  Connect the air hose directly to the car tyre valve. Set the pressure according to your vehicle's manufacturer recommendations (usually found on a sticker inside the driver's door jamb or in the owner's manual). Inflation time for a standard 195 tyre from 0 to 36 PSI is approximately 5-6 minutes.



  Image: The Oasser inflator in use, connected to a car tire, demonstrating its primary function for vehicle maintenance.

• Motorcycle Tyres:

  Use the standard nozzle or a suitable adaptor if required. Refer to your motorcycle's manual for recommended tyre pressures.

• Bicycle Tyres:

  Select the appropriate nozzle adaptor for your bicycle valve type (Presta or Schrader). Inflate to the pressure indicated on the tyre sidewall.
• Balls and Other Inflatables:

  Attach the needle adaptor for sports balls or the cone adaptor for other inflatables (e.g., swimming rings). Inflate until firm, avoiding over-inflation.



  Image: The Oasser inflator demonstrating its versatility by inflating a basketball using the specialized needle adaptor.

Održavanje

• čišćenje: Obrišite vanjski dio pumpe za naduvavanje mekom,amp tkanina. Nemojte koristiti jake hemikalije ili abrazivna sredstva za čišćenje.
• Skladištenje: Store the inflator in a cool, dry place, away from direct sunlight and extreme temperatures. Utilize the built-in hose storage slot and the included storage bag for organized keeping.
• hlađenje: To prolong the life of the motor, allow the compressor to cool down for 5-10 minutes after every 8 minutes of continuous operation.
• Zamjena osigurača: If the inflator stops working, check the fuse in the 12V car charger plug. Replace it with the provided spare fuse if necessary.

Rješavanje problema

Specifikacije

Garancija i podrška

Oasser products are manufactured to high-quality standards and are warranted against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Oasser website.

If you encounter any issues or have questions regarding your Oasser Tyre Inflator, please contact our customer support team:

• Email: support@oasser.com
• Webstranica: www.oasser.com
• Amazon prodavnica: Oasser Store on Amazon UK

Please have your model number (ATJ-6488) and purchase details ready when contacting support.
