Roca A5A066ENB0 Cala Built-in Bath-Shower Mixer Instruction Manual

1. Proizvod je gotovview

The Roca A5A066ENB0 Cala Built-in Bath-Shower Mixer is a single-lever faucet designed for concealed installation in bathtubs. It features a sleek Matt Black finish from the Cala collection, offering a modern aesthetic. This mixer incorporates water and energy-saving technology and an automatic diverter for seamless switching between bath and shower functions. The unit includes the necessary built-in sub-assembly and escutcheon for installation.

Image 1.1: The Roca A5A066ENB0 Cala Built-in Bath-Shower Mixer in Matt Black finish, showing the single lever and circular escutcheon.

1.1 Sadržaj paketa

• Roca A5A066ENB0 Single-lever Mixer with Automatic Diverter
• Built-in Sub-assembly
• Escutcheon (Rosette)

2. Sigurnosne informacije

Molimo vas da pažljivo pročitate sva uputstva prije instalacije i upotrebe. Nepoštivanje ovih uputstava može dovesti do materijalne štete ili tjelesnih povreda.

• Preporučena profesionalna instalacija: Installation should be performed by a qualified plumber in accordance with local plumbing and building codes.
• Vodovod: Ensure the main water supply is turned off before beginning any installation work.
• pritisak: Verify that water pressure is within acceptable limits for the mixer.
• Sigurnost pri korištenju tople vode: Exercise caution when adjusting hot water temperatures to prevent scalding.
• Alati: Use appropriate tools for installation. Do not overtighten connections.
• čišćenje: Use only mild cleaning agents. Abrasive cleaners can damage the Matt Black finish.

3. Postavljanje i instalacija

This mixer is designed for built-in (concealed) installation. The following steps provide a general guide. Always refer to the specific instructions provided with the built-in sub-assembly and consult a professional if unsure.

3.1 Provjere prije instalacije

• Potvrdite da je sav sadržaj paketa prisutan i neoštećen.
• Ensure the installation area in the wall is prepared according to the dimensions of the built-in sub-assembly.
• Verify water inlet connections are 1/2 inch.

3.2 Koraci instalacije

1. Isključite dovod vode: Pronađite i isključite glavni dovod vode u kupaonicu.
2. Install Built-in Sub-assembly: Mount the built-in sub-assembly securely within the wall cavity. Ensure it is level and at the correct depth, typically between 27mm and 50mm from the finished wall surface, as indicated in the technical drawing.
3. Spojite vodovodne cijevi: Connect the hot and cold water supply lines to the corresponding inlets on the sub-assembly. The water inlet thread is 1/2 inch. Ensure all connections are watertight.
4. Install Escutcheon: Once the wall is finished, attach the escutcheon (rosette) over the built-in sub-assembly.
5. Install Mixer Handle: Secure the single-lever mixer handle onto the spindle of the sub-assembly.
6. Test na curenje: Polako uključite glavni dovod vode i provjerite sve spojeve da li cure.

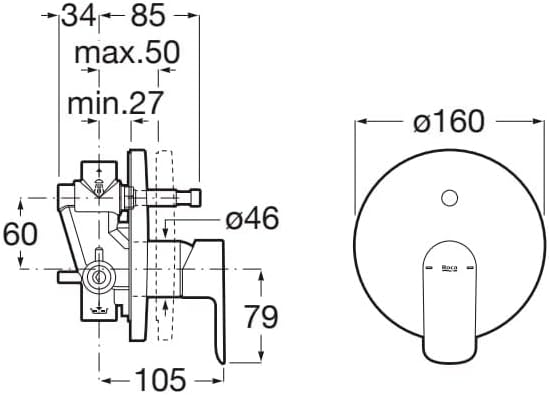

Image 3.1: Technical drawing illustrating the dimensions and installation depth for the built-in sub-assembly and the visible escutcheon and handle.

Slika 3.2: Primjerample of a Roca Cala mixer installed in a contemporary bathroom setting, demonstrating its integrated appearance.

4. Uputstvo za upotrebu

The Roca A5A066ENB0 is a single-lever mixer with an automatic diverter, designed for intuitive control of water flow and temperature.

• Kontrola protoka vode: Lift the single lever upwards to increase water flow. Push it downwards to decrease flow and turn off the water.
• Kontrola temperature: Move the single lever to the left for hot water and to the right for cold water. Adjust the position to achieve the desired temperature.
• Automatski preusmjerivač: The mixer features an automatic diverter. When the water flow is activated, the diverter will automatically direct water to the bath spout. To switch to the shower, pull the small knob located above the main lever. The diverter will return to the bath position automatically when the water is turned off.
• Water Saving System: This mixer is equipped with a water-saving system. You may feel a slight resistance when lifting the lever to its maximum flow position, indicating the water-saving threshold. Pushing past this point will provide full flow.

5. Održavanje i njega

Proper care will ensure the longevity and appearance of your Matt Black mixer.

• Redovno čišćenje: Clean the mixer regularly with a soft cloth and mild soap or a non-abrasive liquid cleaner.
• Izbjegavajte oštre hemikalije: Do not use abrasive cleaners, scouring pads, acids, alcohol, or solvents, as these can damage the Matt Black finish and internal components.
• Sušenje: After cleaning, wipe the mixer dry with a soft cloth to prevent water spots and mineral buildup.
• Održavanje aeratora: Periodically unscrew and clean the aerator (if applicable) to remove any sediment or debris that may affect water flow.

6. Otkrivanje problema

Ako naiđete na probleme s mikserom, pogledajte sljedeće uobičajene probleme i rješenja:

If the problem persists after attempting these solutions, please contact a qualified plumber or Roca customer support.

7. Specifikacije

8. Garancija i podrška

Roca products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official Roca website. In case of technical issues, missing parts, or warranty claims, please contact your retailer or Roca customer service directly.

Roca Official Webstranica: www.roca.com

Please have your model number (A5A066ENB0) and proof of purchase ready when contacting support.
