Dell OptiPlex 5000 desktop računar - korisnički priručnik

1. Uvod

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Dell OptiPlex 5000 Micro PC. Please read this guide thoroughly before using your computer to ensure proper operation and to maximize its lifespan.

The Dell OptiPlex 5000 is a compact and responsive desktop computer designed for business environments, featuring an Intel Core i5 12th Gen processor and Windows 10 Pro operating system.

2. Šta se nalazi u kutiji

Provjerite da li su svi artikli prisutni u pakovanju:

• OptiPlex 5000 Micro PC
• Pro Bežična tastatura i miš
• USB Receiver (for wireless keyboard and mouse)
• Kabl za napajanje (SAD)
• Safety/Environment and Regulatory Guide (English/French Multi-language)
• Vodič za brzi početak
• Materijal za otpremu
• Adapter za napajanje

3. Upute za postavljanje

3.1 Povezivanje perifernih uređaja

Follow these steps to connect your Dell OptiPlex 5000 Micro PC:

1. Povežite tastaturu i miš: Insert the USB receiver for the wireless keyboard and mouse into an available USB port on the computer.
2. Povežite monitor: Connect your monitor to the computer using an HDMI or DisplayPort cable. The OptiPlex 5000 supports up to four independent displays.
3. Povežite se s mrežom (opcionalno): For a wired network connection, connect an Ethernet cable from your router or modem to the Ethernet port on the back of the computer.
4. Priključite napajanje: Connect the power adapter to the computer's power input, then plug the power cord into a wall outlet.

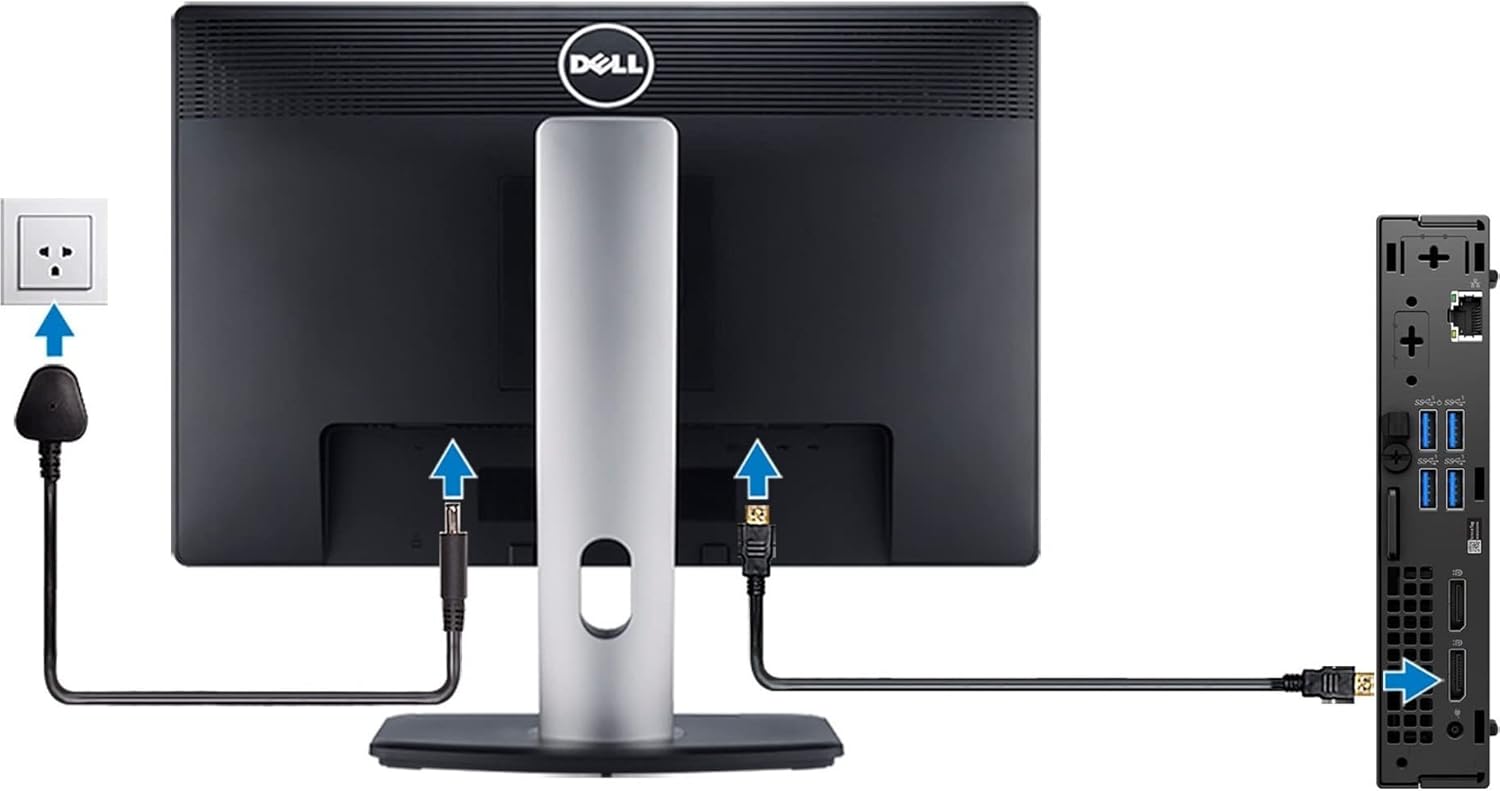

Figure 3.1: Connecting power, monitor, and network cables.

Figure 3.2: Connecting an Ethernet cable.

Slika 3.3: Prample of a complete setup with multiple displays and peripherals.

3.2 Početno uključivanje

After connecting all peripherals and power, press the power button located on the front of the OptiPlex 5000 to turn on the computer. Follow the on-screen instructions to complete the initial Windows 10 Pro setup.

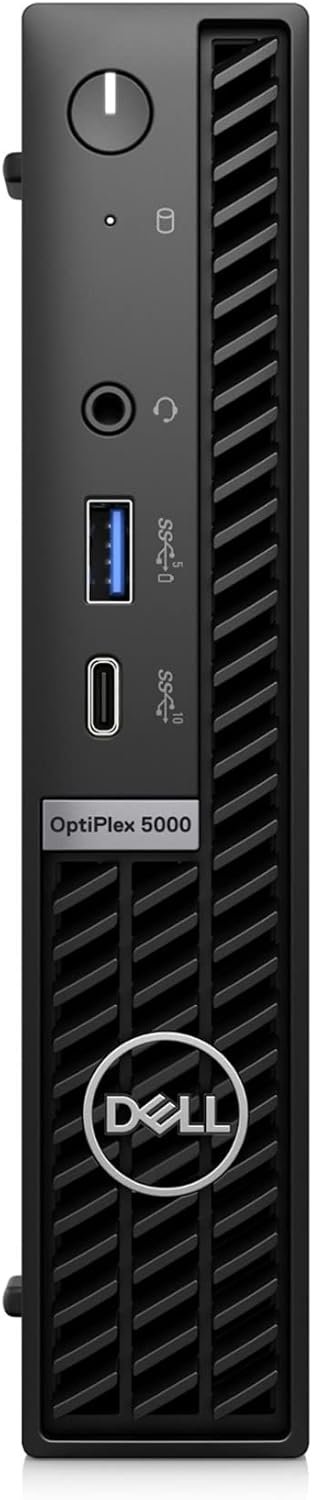

Figure 3.4: Front panel of the OptiPlex 5000.

4. Uputstvo za upotrebu

4.1 Osnovni rad

Your Dell OptiPlex 5000 comes pre-installed with Windows 10 Pro. Upon first boot, you will be guided through the operating system setup. Once complete, you can begin using your computer for various tasks.

• Multitasking: Windows 10 Pro allows you to snap up to four applications to different locations on the screen for efficient multitasking.
• Virtual Desktops: Create individual desktops for specific projects or tasks to organize your workspace.
• Povezivanje: Utilize the high-speed Wi-Fi 6E for wireless network access or the Ethernet port for a wired connection.

4.2 Dell Optimizer Features

The OptiPlex 5000 includes Dell Optimizer, an AI-based software designed to enhance your PC's performance in the background.

• ExpressResponse: Improves application performance by adapting to your usage patterns.
• ExpressConnect: Optimizes conference calls and network connectivity for better remote work experiences.
• Inteligentni zvuk: Enhances sound quality and reduces background noise during calls using automated tuning and neural noise-cancellation.

5. Održavanje

5.1 Opšta njega

• čišćenje: Regularly clean the exterior of the computer with a soft, dry cloth. Avoid using liquid cleaners directly on the device.
• ventilacija: Ensure that the ventilation openings are not blocked to prevent overheating. Maintain adequate space around the computer for airflow.
• Ažuriranja softvera: Redovno ažurirajte operativni sistem i upravljačke programe kako biste osigurali optimalne performanse i sigurnost.

5.2 Component Access

The OptiPlex 5000 is designed for simple maintenance with tool-less access to the chassis. This allows for easy upgrades or servicing of internal components without needing to remove the front bezel.

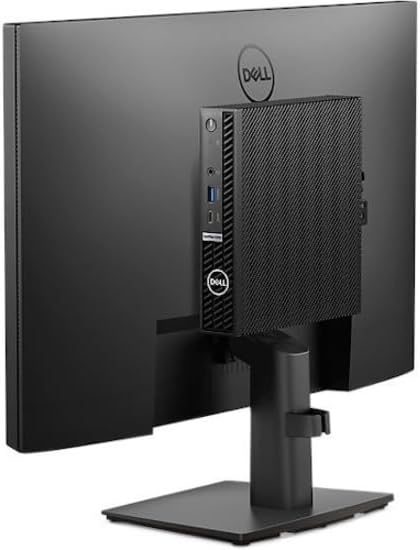

Figure 5.1: OptiPlex 5000 mounted on a monitor stand.

6. Otkrivanje problema

This section provides solutions to common issues you might encounter with your Dell OptiPlex 5000.

• Nema napajanja:
  • Ensure the power adapter is securely connected to both the computer and a working wall outlet.
  • Verify the power cord is not damaged.
  • Pokušajte s drugom utičnicom.
• Bez prikaza:
  • Provjerite je li monitor uključen i je li video kabel (HDMI/DisplayPort) sigurno povezan i sa računarom i sa monitorom.
  • Provjerite je li na vašem monitoru odabran ispravan ulazni izvor.
  • If using multiple monitors, try connecting only one monitor to isolate the issue.
• Problemi s mrežnom vezom:
  • Za žičane veze, provjerite je li Ethernet kabel pravilno spojen i je li ruter/modem ispravan.
  • For wireless connections, verify Wi-Fi is enabled in Windows settings and you are connected to the correct network. Restart your router/modem if necessary.
• Spore performanse:
  • Zatvorite nepotrebne aplikacije.
  • Provjerite da li su Windows i upravljački programi ažurirani.
  • Pokrenite dijagnostiku sistema ili antivirusno skeniranje.

For more complex issues or if the problem persists, please refer to the Dell support website or contact Dell technical support.

7. Specifikacije

Figure 7.1: Rear ports of the OptiPlex 5000.

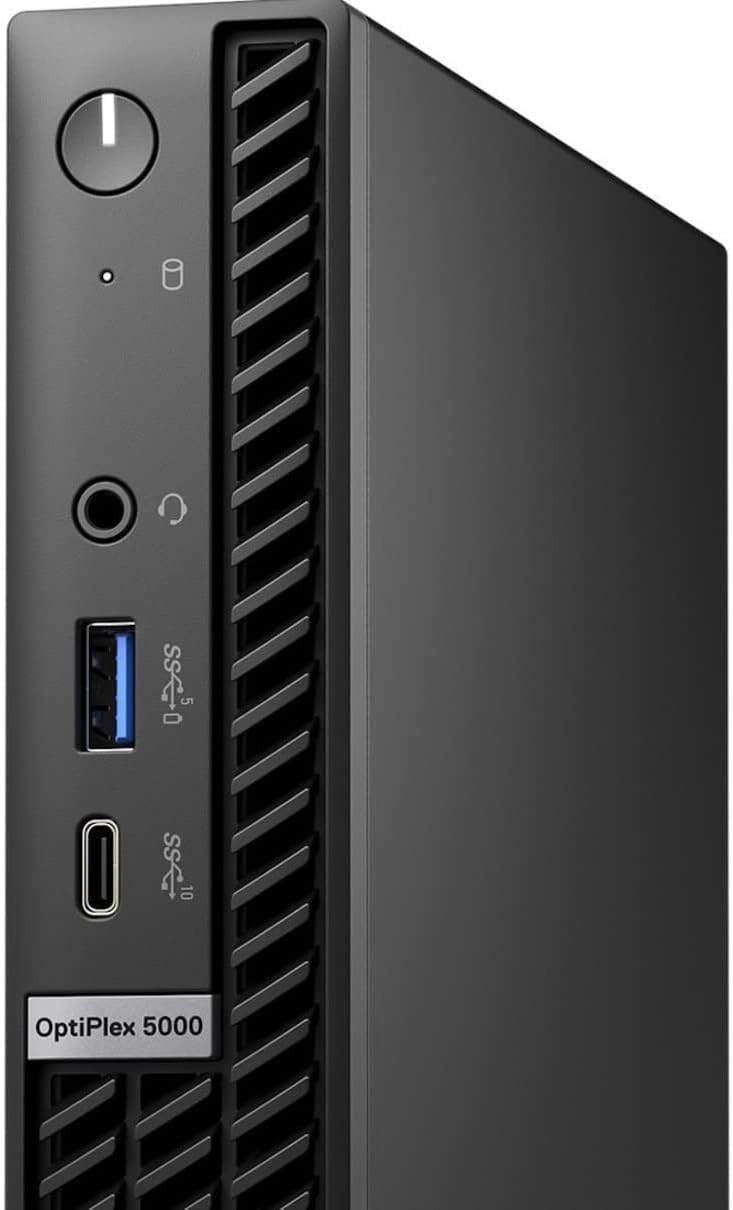

Slika 7.2: Prednja i bočna strana view of the OptiPlex 5000.

8. Garancija i podrška

8.1 Jamstvo za proizvod

Your Dell OptiPlex 5000 Micro PC is covered by Dell's standard limited hardware warranty. For detailed information regarding warranty terms, conditions, and duration, please refer to the warranty documentation included with your product or visit the official Dell support website.

Protection plans are available for extended coverage. For details, refer to the information provided at the time of purchase or contact Dell support.

8.2 Tehnička podrška

For technical assistance, driver downloads, or further troubleshooting, please visit the official Dell Support webstranica:

www.dell.com/support

When contacting support, please have your service tag or express service code ready. This information can typically be found on a label on your computer.
