ZKTeco IN01-A/3G Terminal za evidenciju radnog vremena i kontrolu pristupa s otiskom prsta - Korisnički priručnik

1. Uvod

This manual provides detailed instructions for the installation, operation, and maintenance of the ZKTeco IN01-A/3G Fingerprint Time Attendance and Access Control Terminal. Please read this manual thoroughly before using the device to ensure proper functionality and to prevent damage.

2. Proizvod je gotovview

The ZKTeco IN01-A/3G is a sophisticated 3-inch TFT screen terminal designed for both time attendance and access control applications. It integrates advanced fingerprint recognition technology to provide secure and efficient user identification.

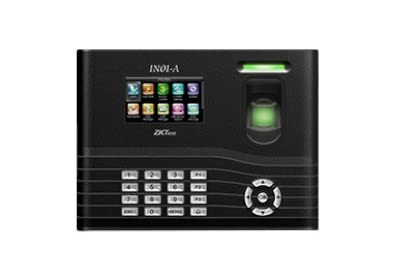

Slika 1: Front view of the ZKTeco IN01-A/3G terminal, showing the 3-inch TFT screen, numeric keypad, navigation buttons, and the fingerprint sensor with an illuminated ring.

Key components include a high-resolution TFT display for user interaction, a numeric keypad for data entry, navigation buttons for menu control, and a robust fingerprint sensor for biometric authentication.

3. Karakteristike

• Kapacitet otiska prsta: Supports storage for up to 3000 fingerprints.
• Prikaz: Equipped with an LCD (3-inch TFT screen) for clear visual feedback.
• Identification Method: Primarily uses fingerprint recognition for user authentication.
• Trajnost: Features a scratch-proof design for enhanced longevity.
• Funkcionalnost: Combines time attendance tracking with access control capabilities.

4. Podešavanje

4.1 Raspakivanje i pregled

Carefully unpack the device and verify that all components are present and undamaged. Report any discrepancies to your supplier immediately.

4.2 Montaža uređaja

1. Choose a suitable location for installation, ensuring it is protected from direct sunlight, extreme temperatures, and moisture.
2. Use the provided mounting template to mark drilling positions on the wall.
3. Izbušite rupe i umetnite zidne čepove.
4. Pričvrstite montažnu ploču na zid pomoću vijaka.
5. Attach the IN01-A/3G terminal to the mounting plate.

4.3 Priključak za napajanje

Connect the provided power adapter to the device's power input port and then plug it into a standard electrical outlet. Ensure the power supply matches the device's requirements.

4.4 Mrežna veza (opcionalno)

If network connectivity is required for data transfer or remote management, connect an Ethernet cable to the device's LAN port and to your network router/switch.

4.5 Početna konfiguracija

Upon first power-up, the device may prompt for initial setup, including date, time, and administrator registration. Follow the on-screen instructions to complete these steps.

5. Uputstvo za upotrebu

5.1 Registracija administratora

The first step is to register an administrator fingerprint. This user will have access to all device settings and user management functions.

1. Pritisnite MENU dugme.
2. Navigirajte do Upravljanje korisnicima i odaberite Novi korisnik.
3. Enter a User ID and then select Upišite otisak prsta.
4. Place your finger on the sensor three times as prompted, ensuring full contact each time.
5. Set the user's privilege level to Administrator.
6. Sačuvajte podešavanja.

5.2 User Fingerprint Enrollment

To allow other users to record attendance or gain access, their fingerprints must be enrolled.

1. Access the menu as an administrator.
2. Navigirajte do Upravljanje korisnicima i odaberite Novi korisnik or select an existing user to add a fingerprint.
3. Enter or confirm the User ID.
4. Odaberite Upišite otisak prsta and follow the on-screen prompts to scan the user's finger three times.
5. Sačuvajte korisničke podatke.

5.3 Evidentiranje prisutnosti

Users can record their attendance by simply placing their enrolled finger on the fingerprint sensor. The device will provide visual and audible confirmation of a successful scan.

5.4 Access Control Functionality

For access control, the device will verify the enrolled fingerprint against its database. Upon successful verification, it will trigger the connected access mechanism (e.g., door lock) according to the configured access rules.

6. Održavanje

6.1 Čišćenje uređaja

Regularly clean the fingerprint sensor and screen with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents, as these can damage the surface.

6.2 Sigurnosna kopija podataka

It is recommended to regularly back up attendance records and user data to an external storage device (e.g., USB drive) or a connected server to prevent data loss.

6.3 Ažuriranja firmvera

Periodično provjeravajte službene podatke ZKTeco-a website for firmware updates. Keeping the device's firmware up-to-date ensures optimal performance and access to new features.

7. Otkrivanje problema

• Uređaj se ne uključuje:
  • Provjerite je li adapter za napajanje sigurno priključen i na uređaj i na ispravnu utičnicu.
  • Provjerite je li utičnica funkcionalna.
• Otisak prsta nije prepoznat:
  • Uvjerite se da vam je prst čist i suh.
  • Place your finger flat and centered on the sensor.
  • Try enrolling the fingerprint again if the issue persists.
  • Clean the fingerprint sensor surface.
• Cannot access menu:
  • Ensure you are using an enrolled administrator fingerprint or password.
• Problemi s prijenosom podataka:
  • Provjerite veze mrežnih kablova.
  • Verify network settings on the device and server.

8. Specifikacije

9. Garancija i podrška

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official ZKTeco webSačuvajte račun kao dokaz o kupovini za reklamacije u slučaju reklamacije.

For further assistance, you may contact ZKTeco customer service or your local distributor.
