FEANS Q8 Wireless Earbuds Instruction Manual

1. Uvod

Thank you for choosing the FEANS Q8 Wireless Earbuds. These earbuds are designed to provide a high-quality audio experience with advanced features for daily use, gaming, and calls. This manual will guide you through the setup, operation, and maintenance of your new earbuds.

The FEANS Q8 earbuds incorporate a Qualcomm QCC3040 chip for stable Bluetooth 5.2 connectivity, CVC8.0 noise cancellation for clear calls, and aptX audio support for enhanced sound quality. They are compatible with a wide range of devices including iPhone, Android, and Windows systems.

2. Šta se nalazi u kutiji

• FEANS Q8 Wireless Earbuds
• Futrola za punjenje
• USB kabel za punjenje (tip-C)
• Multiple sizes of soft ear tips (Small, Medium, Large)
• Uputstvo za upotrebu

3. Proizvod je gotovview & Ključne karakteristike

The FEANS Q8 earbuds are engineered with several key technologies to optimize your listening experience:

• Qualcomm QCC3040 Chip & Bluetooth 5.2: Ensures seamless, high-speed transmission and low-latency audio. Supports HSP/HFP/A2DP/AVRCP protocols.
• Qualcomm CVC8.0 & 4 Microphones: Advanced call noise reduction technology filters environmental sound to enhance voice clarity during calls.
• AptX High Quality Sound: Features 6mm dynamic drivers for deep bass, clear mids, and bright highs, delivering balanced premium sound.
• Produženi vijek trajanja baterije: Up to 7 hours of playback on a single charge. The charging case provides approximately 4 additional charges.
• Hall Switch & IPX5 Water Resistance: Enables quicker pairing upon opening the case. IPX5 rating provides sweat-resistant and waterproof protection for daily use and light rain.
• TrueWireless Mirroring Technology: Ensures stable connection and automatic pairing with the last connected device.

Figure 1: Internal structure highlighting the QCC3040 chip and Bluetooth 5.2.

Figure 2: CVC 8.0 technology for clear call quality.

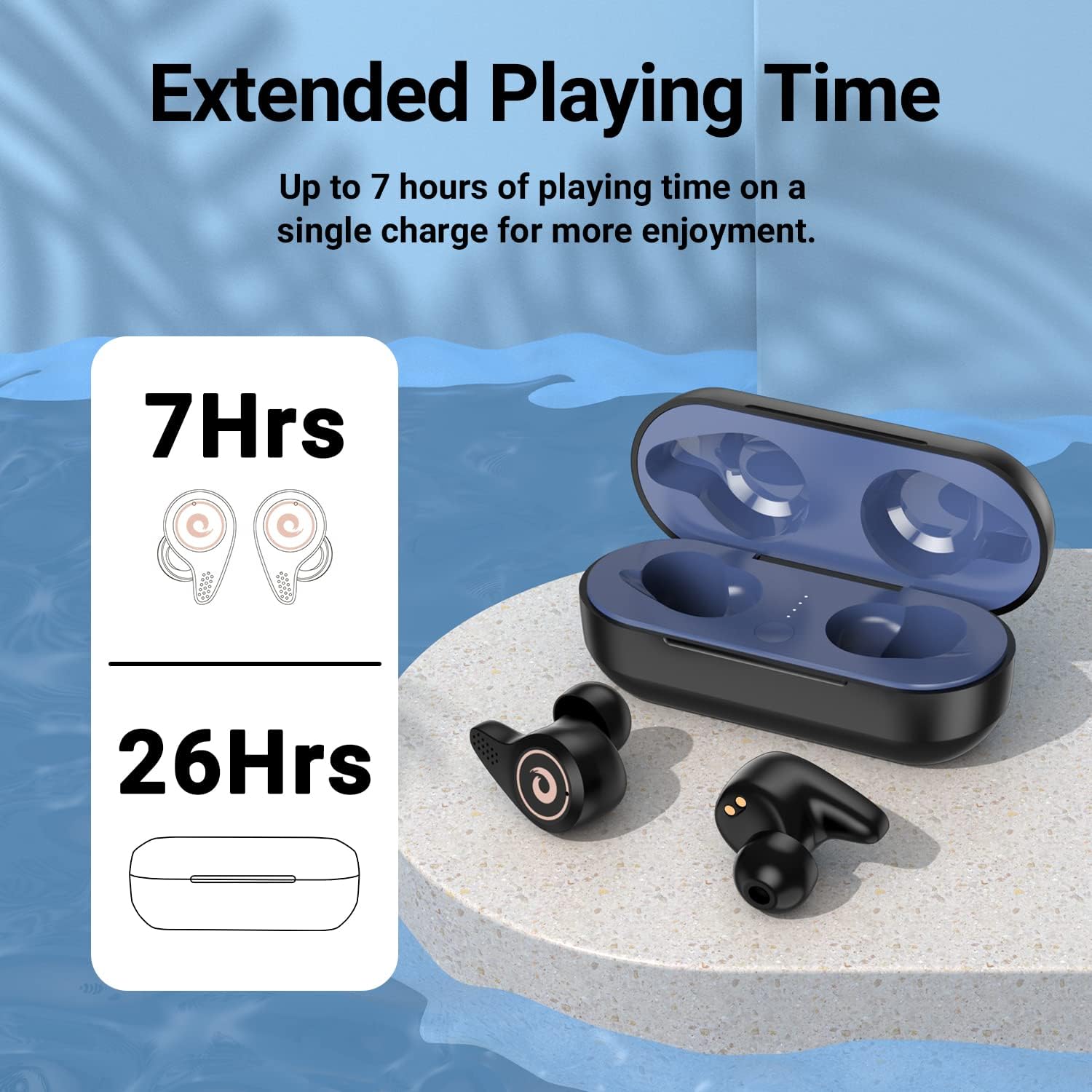

Figure 3: Battery life indication for earbuds and charging case.

4. Podešavanje

1. Početno punjenje:
   • Prije prve upotrebe, provjerite jesu li slušalice i kućište za punjenje potpuno napunjene.
   • Open the charging case. Remove any protective plastic films from the charging contacts on the earbuds.
   • Place the earbuds back into the charging case. Connect the USB Type-C cable to the charging port on the case and to a power source.
   • The LED indicators on the charging case will show the charging status. A full charge is indicated by all four blue lights being solid.
2. Izbor vrhova za uši:
   • Select the ear tips that provide the most comfortable and secure fit for your ears. A good seal is crucial for optimal sound quality and noise isolation.
3. Uparivanje s vašim uređajem:
   • Provjerite je li Bluetooth na vašem uređaju uključen.
   • Otvorite poklopac kućišta za punjenje. Slušalice će automatski ući u način rada za uparivanje.
   • On your device, search for Bluetooth devices and select "Q8" from the list.
   • Nakon povezivanja, čut ćete zvučnu potvrdu i slušalice će biti spremne za upotrebu.
   • The Hall Switch feature allows for quick re-connection to the last paired device simply by opening the case.

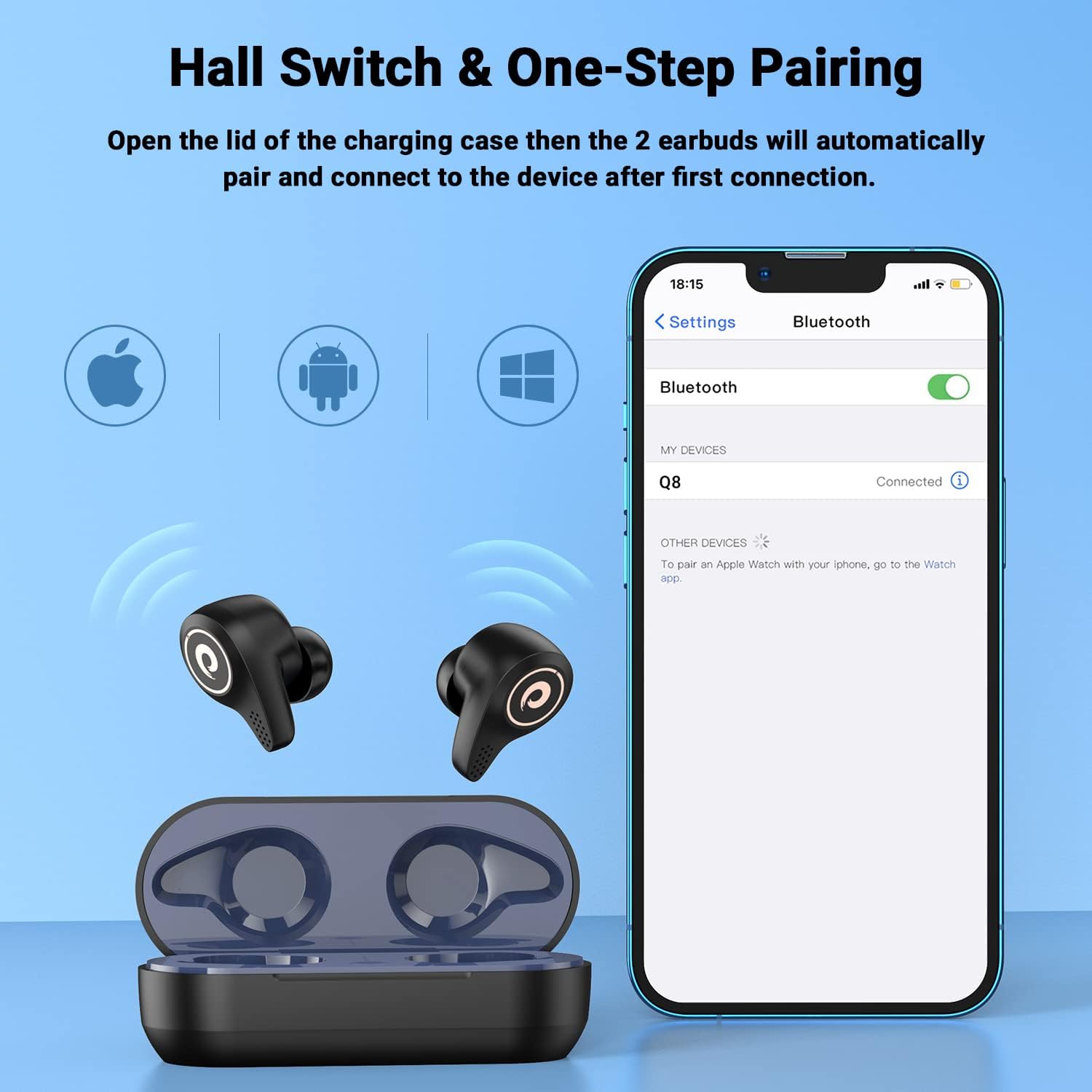

   Figure 4: Hall Switch and one-step pairing process.

5. Uputstvo za upotrebu

• Uključivanje/isključivanje:
  • To power on, open the charging case. The earbuds will automatically turn on.
  • To power off, place the earbuds back into the charging case and close the lid. They will automatically disconnect and begin charging.
• Kontrole na dodir:
  • The earbuds feature intuitive touch controls for media playback and call management. Refer to the quick start guide for specific tap functions (e.g., single tap for play/pause, double tap for next track, etc.).
• Način igre:
  • For a lag-free gaming experience, triple tap the left earbud to enter gaming mode. This reduces latency for synchronized audio and visuals.


  Figure 5: Activating Gaming Mode for reduced latency.

• Pozivi:
  • Utilize the CVC8.0 noise cancelling technology and four microphones for clear conversations in various environments.

6. Održavanje

• čišćenje:
  • Redovno čistite slušalice i kućište za punjenje mekom, suhom krpom.
  • Uklonite nastavke za uši i po potrebi ih očistite blagim sapunom i vodom, pazeći da su potpuno suhi prije ponovnog pričvršćivanja.
  • Keep charging contacts on both earbuds and case free from dust and debris.
• Otpornost na vodu (IPX5):
  • The earbuds are IPX5 water-resistant, meaning they can withstand sweat and light rain. They are not designed for submersion in water.
  • Izbjegavajte izlaganje kućišta za punjenje vodi.
  • If earbuds get wet, wipe them dry thoroughly before placing them back in the charging case.


  Figure 6: IPX5 water resistance for daily use.

7. Otkrivanje problema

• Slušalice se ne uparuju:
  • Ensure the earbuds are charged and removed from the charging case.
  • Isključite i uključite Bluetooth na uređaju, a zatim pokušajte ponovo pretražiti.
  • Ako je prethodno bilo uparivanje, pokušajte zaboraviti uređaj na telefonu i ponovo ga upariti.
• Slušalice se ne pune:
  • Check that any protective plastic films have been removed from the earbud charging contacts.
  • Provjerite je li kabel za punjenje sigurno spojen i na kućište i na izvor napajanja.
  • Verify that the charging case itself has power (check LED indicators).
• Niska jačina zvuka ili loš kvalitet zvuka:
  • Podesite jačinu zvuka i na uređaju i na slušalicama.
  • Ensure ear tips are properly seated and provide a good seal in your ear canal. Try different sized ear tips.
  • Očistite sve nečistoće sa zvučnika slušalica.

8. Specifikacije

9. Zvanični video proizvoda

10. Garancija i podrška

For warranty information, technical support, or any inquiries regarding your FEANS Q8 Wireless Earbuds, please refer to the contact details provided on the product packaging or visit the official FEANS website. Sačuvajte račun o kupovini za reklamacije.
