1. Uvod
This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your Bmax B3 Plus Mini PC. Please read this manual thoroughly before using the device to ensure proper functionality and longevity.
The Bmax B3 Plus Mini PC is a compact and powerful micro-computer designed for various applications, from home entertainment and office tasks to industrial uses. Featuring an Intel N5095 processor, ample memory, and versatile connectivity, it supports 4K 60Hz triple screen display for enhanced productivity and immersive experiences.
2. Sadržaj paketa
Upon opening your Bmax B3 Plus Mini PC package, please verify that all items listed below are present and in good condition. If any items are missing or damaged, contact customer support immediately.
- Bmax B3 Plus Mini PC Unit
- Adapter za napajanje
- HDMI kabl
- Mounting Bracket (VESA compatible)
- Vijci za montažu
- Korisnički priručnik (ovaj priručnik)
Video: Unboxing the Bmax B3 Plus Mini PC and its accessories. This video demonstrates the contents of the retail package, including the mini PC unit, power adapter, HDMI cable, mounting bracket, and user guide.
Slika: Prednja i zadnja strana view of the Bmax B3 Plus Mini PC, highlighting its compact design and various ports.
3. Proizvod je gotovview i karakteristike
The Bmax B3 Plus Mini PC is engineered for efficiency and versatility. Key features include:
- procesor: Intel 11th Gen Jasper Lake N5095 (up to 2.9GHz, 4 Cores, 4 Threads, 10nm Process)
- Memorija: 8GB DDR4 RAM (proširivo)
- Skladištenje: 256GB SSD (M.2 SATA 3.0, with support for 2.5-inch HDD/SSD expansion)
- Grafika: Intel 11th Gen UHD Graphics
- Izlaz ekrana: 2x HDMI, 1x Full-Featured Type-C (supports 4K 60Hz triple screen display)
- Povezivanje: Dual Gigabit Ethernet ports, 2.4G/5G WiFi, Bluetooth 5.0
- luke: 2x USB 3.0, 1x Type-C, 3.5mm Headset Jack, Micro SD Card Slot
Slika: Prekoview of the Bmax B3 Plus Mini PC's core specifications and features.
Slika: Krupni plan views of the Bmax B3 Plus Mini PC's front, back, and right side, detailing all available ports and their functions.
Image: An exploded diagram illustrating the internal components of the Bmax Mini PC, including the SSD, RAM, and cooling system.
4. Vodič za postavljanje
4.1 Initial Setup (Windows Out-of-Box Experience)
For the first-time use, it is recommended to complete the Windows setup without an internet connection to avoid potential issues. Once the system is fully loaded, you can connect to the network.
Video: Guide on performing an offline login for the first-time Windows setup to optimize boot time. This video demonstrates the steps to configure Windows without an immediate internet connection.
4.2 Povezivanje perifernih uređaja
Connect your keyboard, mouse, and display(s) to the appropriate ports on the Bmax B3 Plus Mini PC. Ensure all connections are secure.
Video: A general introduction to the Bmax Mini PC, showcasing its design and various connectivity options for peripherals.
4.3 Podešavanje više ekrana
The B3 Plus supports up to three displays simultaneously via its two HDMI ports and one full-featured Type-C port. To configure multiple displays in Windows:
- Connect all desired monitors to the Mini PC.
- Kliknite desnim tasterom miša na radnu površinu i odaberite "Postavke ekrana".
- Under "Multiple displays", choose your preferred display option (e.g., Extend these displays, Duplicate these displays).
Video: A detailed guide on setting up and configuring a triple screen display with the Bmax B3 Plus Mini PC. This video demonstrates how to connect and arrange multiple monitors.
Image: The Bmax B3 Plus Mini PC supporting three independent displays, showcasing its multi-tasking capabilities.
Image: A visual diagram explaining the triple screen display setup using HDMI and Type-C ports on the Bmax Mini PC.
4.4 Installing 2.5" HDD/SSD
The Bmax B3 Plus Mini PC supports adding a 2.5-inch HDD or SSD for expanded storage. Follow these steps:
- Gently push and slide open the top cover of the Mini PC.
- Locate the internal bay for the 2.5-inch drive.
- Connect the provided SATA cable to the drive and the motherboard.
- Secure the drive in the bay and replace the top cover.
Video: Step-by-step instructions on how to install a 2.5-inch HDD or SSD into the Bmax B3 Plus Mini Computer. This video guides you through opening the case and connecting the drive.
Image: Visual guide demonstrating the process of adding a 2.5-inch HDD/SSD to the Bmax B3 Plus Mini PC.
4.5 VESA montaža
The Bmax B3 Plus Mini PC can be mounted behind a monitor using the included VESA mounting bracket, saving desk space.
- Attach the VESA mounting bracket to the back of your monitor using the provided screws.
- Gurnite Mini PC na nosač dok se sigurno ne učvrsti na svoje mjesto.
- Ensure all cables are properly connected and managed.
Video: Instructions on how to mount the Bmax B3 Plus Mini PC onto a monitor using the VESA mount. This video shows the physical installation process.
Image: A diagram illustrating the VESA mount installation process for the Bmax Mini PC.
5. Uputstvo za upotrebu
5.1 Uključivanje/isključivanje napajanja
To power on the Mini PC, press the power button located on the front panel. To shut down, use the standard Windows shutdown procedure (Start Menu > Power > Shut down).
Video: Demonstrates the power-on sequence and proper shutdown procedure for the Bmax Mini PC.
5.2 BIOS postavke
To access the BIOS settings, power on the Mini PC and repeatedly press the Izbriši key on your keyboard during startup. This allows configuration of advanced settings such as Wake-on-LAN.
Video: A guide on how to access the BIOS settings of the Bmax B3 Plus Mini PC and enable features like Wake-on-LAN.
5.3 Konfiguracija mreže
The Mini PC supports both wired (Dual Gigabit Ethernet) and wireless (2.4G/5G WiFi) network connections. For wired connection, simply plug an Ethernet cable into one of the LAN ports. For Wi-Fi, connect through Windows network settings.

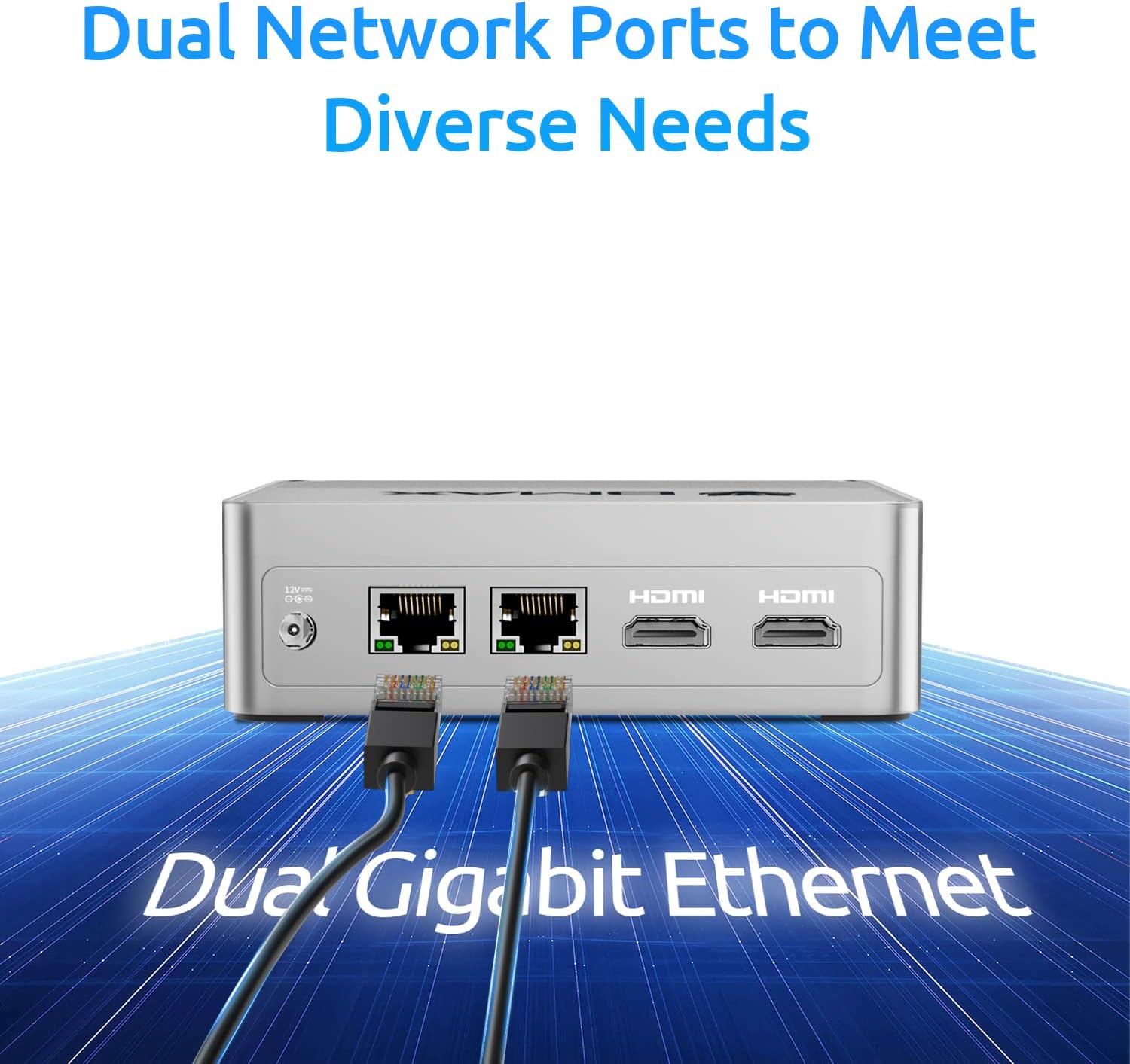

Image: The dual Gigabit Ethernet ports on the rear of the Bmax B3 Plus Mini PC, ready for network connections.
5.4 Kompatibilnost softvera
The Bmax B3 Plus Mini PC is compatible with a wide range of office software, entertainment applications, and utilities, making it suitable for diverse needs.
Image: The Bmax Mini PC in an office environment, demonstrating its suitability for professional use.
Video: Prekorview of the Bmax B3 Plus Mini PC, highlighting its capabilities for various applications and environments.
6. Održavanje
To ensure the longevity and optimal performance of your Bmax B3 Plus Mini PC, follow these maintenance guidelines:
- čišćenje: Regularly clean the exterior with a soft, dry cloth. Use compressed air to clear dust from vents to maintain proper airflow and prevent overheating.
- Ažuriranja softvera: Redovno ažurirajte operativni sistem i upravljačke programe na najnovije verzije radi poboljšanja sigurnosti i performansi.
- Uslovi okoline: Koristite Mini PC u dobro prozračenom prostoru, dalje od direktne sunčeve svjetlosti, prekomjerne toplote i vlage.
- Upravljanje napajanjem: Use the provided power adapter. Avoid frequent abrupt power cuts.
Image: An illustration of the efficient heat dissipation system within the Bmax Mini PC, designed for silent operation.
7. Otkrivanje problema
If you encounter issues with your Bmax B3 Plus Mini PC, refer to the following common problems and solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Računar se ne uključuje | Loose power connection, faulty adapter. | Ensure power adapter is securely connected to both the PC and a working power outlet. Test the outlet with another device. |
| Nema izlaza na ekranu | Loose HDMI/Type-C cable, incorrect display input selected on monitor. | Check display cable connections. Ensure your monitor is set to the correct input source (HDMI 1, HDMI 2, Type-C). Try a different cable or port. |
| Sistem se ruši ili zamrzava | Software conflicts, overheating, outdated drivers, Windows update issues. | Ensure Windows and drivers are updated. Check for proper ventilation. Avoid connecting to the network during initial Windows setup. If issues persist, consider reinstalling the system. |
| Problemi s mrežnom vezom | Loose Ethernet cable, Wi-Fi driver issues, router problems. | Verify Ethernet cable connection. Restart your router. Update Wi-Fi drivers. |
8. Specifikacije
| Feature | Detalj |
|---|---|
| Brand | Bmax |
| Naziv modela | Bmax Mini (B3 Plus) |
| Procesor | Intel N5095 (up to 2.9 GHz, 4 Cores) |
| RAM | 8 GB DDR4 |
| Hard Drive | 256 GB SSD (M.2 SATA 2242) |
| Graficka kartica | Intel UHD Graphics (11th Gen) |
| Operativni sistem | OS (Windows 11 Pro pre-installed as per reviews) |
| Screen Resolution (Max) | 3840 x 2160 piksela (4K) |
| Luke | 2x HDMI, 1x Full-Featured Type-C, 2x USB 3.0, 2x Gigabit Ethernet, 3.5mm Headset Jack, Micro SD Card Slot |
| Bežično povezivanje | 2.4G/5G WiFi, Bluetooth 5.0 |
| Težina artikla | 1.7 funte |
| Boja | Crna |
9. Garancija i podrška
BMAX is committed to providing excellent customer service and support for your Mini PC. For any technical assistance or inquiries, please refer to the following:
- tehnička podrška: BMAX offers lifetime technical service support for its products.
- Povratak: Enjoy 30 days of free returns from the date of purchase.
- garancija: Proizvod dolazi sa 1 godina garancije.
- Kontakt: For professional factory support and online service, please contact BMAX directly through their official channels or the retailer where the product was purchased.
Note: Specific warranty terms and conditions may vary. Please refer to the warranty card included in your package for complete details.
