ACT AC7049 USB-A and USB-C 11-in-1 Docking Station

1. Uvod

The ACT AC7049 Dual Monitor Docking Station transforms your laptop into a complete workstation. This versatile 11-in-1 docking station allows you to connect up to two Full HD displays (max. 2048 x 1152 resolution) to your laptop via HDMI, using a single USB-C/A cable. It expands your laptop's connectivity with a Gigabit LAN port, microphone and headphone jacks, and six additional USB ports. Featuring DisplayLink® technology, it ensures advanced screen display on both MacOS and Windows computers.

2. Ključne karakteristike

• Podrška za dva monitora: Connect up to two external displays with HDMI ports, supporting resolutions up to 2048x1152@60Hz.
• Univerzalna kompatibilnost: Works with laptops featuring a USB-C or USB-A 3.2 Gen1 (USB 3.0) port, compatible with MacOS and Windows thanks to DisplayLink technology.
• Opsežna povezanost: Includes 2x HDMI, 1x Gigabit Ethernet, 3x USB-A 3.2 Gen 1 (one with fast charging), 4x USB-A 2.0, and 3.5mm audio jacks for microphone and headphones.
• Fleksibilan plasman: Designed for both vertical and horizontal placement to optimize desk space and port accessibility.
• USB priključak za punjenje: Dedicated USB port for charging smartphones and tablets.

3. Sadržaj paketa

Molimo Vas da provjerite paket za sljedeće stavke:

• ACT AC7049 Docking Station
• USB-C/A 3.2 Gen1 Connection Cable (USB-A to USB-C)
• Adapter za napajanje
• Vertikalni stalak

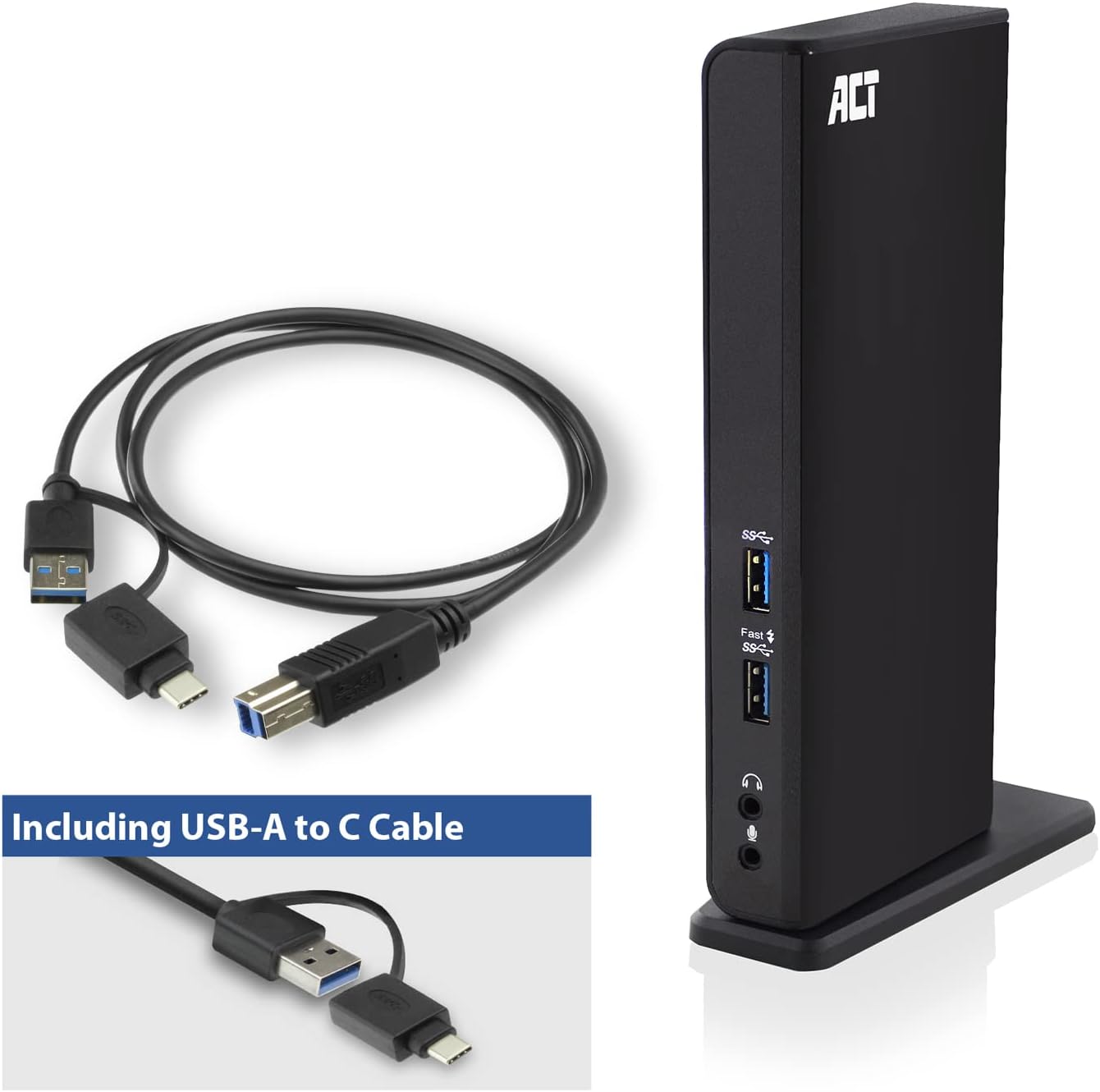

Image: The ACT AC7049 Docking Station shown with its included USB-A to USB-C connection cable and power adapter, highlighting the components provided in the package.

4. Vodič za postavljanje

4.1. Spajanje adaptera za napajanje

1. Connect the power adapter to the DC 5V input port on the back of the AC7049 docking station.
2. Plug the power adapter into a wall outlet. The docking station will power on.

4.2. Povezivanje s vašim laptopom

1. Use the provided USB-C/A 3.2 Gen1 connection cable. Connect the USB-B end to the corresponding port on the docking station.
2. Connect the other end (USB-A or USB-C, depending on your laptop's port) to an available USB 3.2 Gen1 (USB 3.0) or USB-C port on your laptop.

4.3. Driver Installation (DisplayLink)

The AC7049 utilizes DisplayLink technology for extended monitor functionality. Drivers are typically installed automatically on most operating systems. If not, please follow these steps:

1. Visit the official DisplayLink webstranica (www.displaylink.com/downloads) to download the latest drivers for your operating system (Windows or MacOS).
2. Install the downloaded driver package and follow the on-screen instructions.
3. Ponovo pokrenite računar ako se to od vas zatraži.

Image: The official DisplayLink 'Plug and Display' logo, indicating the technology used for multi-monitor support.

5. Uputstvo za upotrebu

5.1. Connecting External Displays

1. Connect your HDMI monitors to the two HDMI ports on the back of the docking station.
2. Once connected, your operating system should detect the new displays. You can configure display settings (extend, mirror, primary display) through your computer's display settings.

Image: A visual representation of the docking station enabling both 'Mirror your content' and 'Extend your content' display modes across a laptop and two external monitors.

5.2. Connecting USB Peripherals

• Prednji USB portovi: Two USB-A 3.2 Gen1 ports (one with fast charging capability) are located on the front for easy access to frequently used devices like USB drives, smartphones, or tablets.
• Rear USB Ports: Four USB-A 2.0 ports are located on the back for connecting peripherals such as keyboards, mice, printers, or other less frequently connected devices.

5.3. Mrežna veza

Connect an Ethernet cable from your router or network switch to the Gigabit Ethernet port on the docking station. Your laptop will automatically gain wired network access.

5.4. Audio veze

Connect your headphones and/or microphone to the dedicated 3.5mm audio jacks on the front of the docking station.

Image: An isometric diagram showcasing the comprehensive connectivity of the ACT AC7049, demonstrating how a laptop, two monitors, a keyboard, mouse, network cable, headphones, and a smartphone can all be connected simultaneously.

6. Opcije postavljanja

The ACT AC7049 docking station offers flexible placement options to suit your workspace:

• Vertical Placement: Use the included stand to position the docking station vertically. This saves desk space and provides easy access to all ports.
• Horizontalni položaj: The docking station can also be placed horizontally if preferred.

Image: The ACT AC7049 Docking Station positioned vertically on its stand, highlighting its compact design and accessible ports.

7. Održavanje

To ensure optimal performance and longevity of your ACT AC7049 Docking Station, follow these maintenance guidelines:

• čišćenje: Use a soft, dry cloth to clean the exterior of the docking station. Avoid using liquid cleaners or aerosols, as they may damage the device.
• ventilacija: Osigurajte da je priključna stanica postavljena u dobro prozračenom prostoru kako biste spriječili pregrijavanje. Ne blokirajte ventilacijske otvore.
• Skladištenje: Kada se ne koristi duži period, priključnu stanicu čuvajte na hladnom i suhom mjestu, dalje od direktne sunčeve svjetlosti i ekstremnih temperatura.
• Upravljanje kablovima: Keep cables organized and free from kinks or excessive bending to prevent damage to the cables and ports.

8. Otkrivanje problema

If you encounter issues with your ACT AC7049 Docking Station, please refer to the following common troubleshooting steps:

• Nema izlaza za prikaz:
  • Ensure the docking station is powered on and correctly connected to your laptop.
  • Verify that the HDMI cables are securely connected to both the docking station and the monitors.
  • Check your laptop's display settings to ensure the external monitors are detected and configured correctly (e.g., extended or mirrored).
  • Reinstall or update the DisplayLink drivers from www.displaylink.com/downloads.
  • Pokušajte spajati jedan monitor istovremeno kako biste izolirali problem.
• USB uređaji ne rade:
  • Ensure the docking station is properly connected to your laptop and powered.
  • Try connecting the USB device directly to your laptop to confirm it is functional.
  • Connect the USB device to a different USB port on the docking station.
  • Ponovo pokrenite laptop.
• Nema mrežne veze:
  • Verify the Ethernet cable is securely connected to both the docking station and your router/switch.
  • Check your laptop's network settings to ensure the wired connection is enabled.
  • Test the Ethernet cable with another device if possible.
• Zvuk ne radi:
  • Ensure headphones/microphone are fully plugged into the correct 3.5mm jacks.
  • Check your laptop's sound settings to ensure the docking station's audio output/input is selected as the default device.

9. Specifikacije

10. Garancija i podrška

ACT products are designed for reliability and adhere to international standards and EU legislation. The ACT AC7049 Docking Station comes with a manufacturer's warranty, typically ranging from 2 to 5 years. For specific warranty details and support, please refer to the official ACT webweb stranicu ili kontaktirajte svog prodavca.

For technical support or further inquiries, please visit the official ACT connectivity webstranica: www.act-connectivity.com
