1. Proizvod je gotovview
The EuropAce EBF Z1 is an advanced air purifying dual bladeless fan designed to provide efficient cooling and air purification. It features an internationally patented three-way airflow duct for powerful air circulation, dual side wings for wide oscillation, and an integrated Korean True HEPA Filter for effective air purification. The fan also incorporates Artificial Intelligent Smart Wind Technology for automatic speed adjustment based on ambient temperature, a DC Inverter Motor for energy efficiency, and offers 24 wind speeds for flexible control.

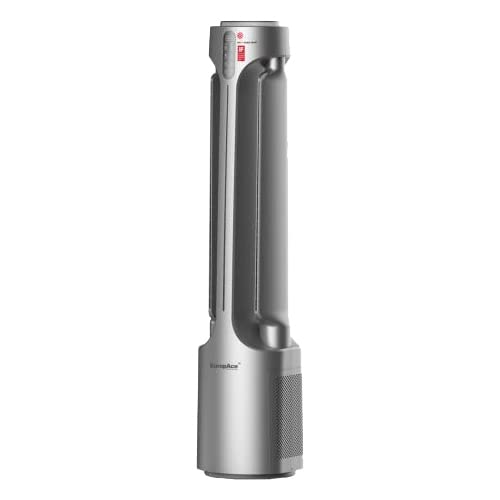

Figure 1: EuropAce EBF Z1 Air Purifying Dual Bladeless Fan. This image displays the EuropAce EBF Z1 Air Purifying Dual Bladeless Fan. The fan features a sleek, tall, and bladeless design with a gun metal finish. It has a control panel at the top and a stable base.
Ključne karakteristike:
- Dual-Wings Bladeless Technology: Innovative design for safe and efficient airflow.
- Intelligent Air Circulation: Patented Three-Way Airflow Duct for enhanced air movement up to 30m³/min and moving dual side wings for 160-degree oscillation.
- Smart Wind Technology with HEPA Filtration: Automatic wind speed adjustment based on temperature and integrated Korean True HEPA Filter for air purification.
- Energetski efikasan: DC Inverter Motor for reduced power consumption.
- tihi rad: Designed for silent performance.
- Kontrola varijabilne brzine: 24 adjustable wind speeds.
- Integrated Remote Control: Pogodan rad sa udaljenosti.
2. Sigurnosne informacije
Molimo vas da pažljivo pročitate sva sigurnosna uputstva prije upotrebe uređaja. Nepoštivanje ovih uputstava može dovesti do strujnog udara, požara ili ozbiljnih povreda.
- Uvijek pazite da uređaj bude postavljen na stabilnu, ravnu površinu.
- Ne stavljajte prste ili predmete u otvore za ulaz ili izlaz zraka.
- Držite uređaj dalje od vode ili drugih tečnosti.
- Isključite uređaj iz električne utičnice prije čišćenja ili održavanja.
- Nemojte koristiti uređaj sa oštećenim kablom ili utikačem.
- Ovaj uređaj je samo za upotrebu u zatvorenom prostoru.
- Čuvati van domašaja djece i kućnih ljubimaca.
3. Podešavanje
- Raspakivanje: Carefully remove the fan from its packaging. Retain packaging materials for future storage or transport.
- plasman: Place the fan on a firm, level surface, ensuring there is adequate space around it for optimal airflow and oscillation. Avoid placing it near curtains or other objects that could obstruct airflow.
- Priključak za napajanje: Uključite kabel za napajanje u standardnu električnu utičnicu. Provjerite jačinu zvukatage odgovara specifikacijama uređaja.
4. Uputstvo za upotrebu
Kontrolna tabla i daljinski upravljač:
The fan can be operated using the touch-sensitive control panel located on the top of the unit or via the included remote control. Ensure the remote control has working batteries.
- Uključivanje/isključivanje: Pritisnite dugme za napajanje (⏻) to turn the fan on or off.
- Podešavanje brzine ventilatora: Use the '+' and '-' buttons to cycle through the 24 available wind speeds. The current speed will be displayed on the LED screen.
- Oscilacija: Press the oscillation button (↔) to activate or deactivate the 160-degree dual-side wing oscillation feature.
- Odabir načina rada: Select different operating modes such as Normal, Natural, or Sleep mode. Refer to the specific icons on the control panel for each mode.
- Funkcija tajmera: Postavite tajmer za automatsko isključivanje.
- Smart Wind Technology (AI Mode): Activate the AI mode to allow the fan to automatically adjust its speed based on the ambient room temperature.
- Pročišćavanje zraka: The integrated HEPA filter operates continuously when the fan is on, purifying the air.
5. Održavanje
Regular maintenance ensures optimal performance and longevity of your EuropAce EBF Z1 fan.
- Čišćenje eksterijera: Obrišite vanjske površine ventilatora mekom,amp cloth. Do not use abrasive cleaners or solvents. Ensure the fan is unplugged before cleaning.
- Air Inlet/Outlet Cleaning: Use a soft brush or vacuum cleaner with a brush attachment to gently remove dust from the air inlets and outlets.
- Zamjena HEPA filtera: The Korean True HEPA Filter requires periodic replacement. The frequency depends on usage and air quality. Refer to the indicator on the control panel or consult the full user manual for specific instructions on how to access and replace the filter. Always use genuine EuropAce replacement filters.
6. Otkrivanje problema
Ako imate problema s ventilatorom, pogledajte sljedeće uobičajene probleme i rješenja:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Ventilator se ne uključuje. | Nema napajanja. | Provjerite je li kabel za napajanje sigurno uključen u ispravnu utičnicu. |
| Daljinski upravljač ne radi. | Prazne baterije ili prepreka. | Replace remote control batteries. Ensure no obstructions between remote and fan. |
| Smanjeni protok vazduha. | Blocked air inlets/outlets or dirty filter. | Clean air inlets/outlets. Check and replace the HEPA filter if necessary. |
| Neobična buka tokom rada. | Obstruction or internal issue. | Turn off and unplug the fan. Check for any foreign objects. If noise persists, contact customer support. |
If the problem persists after attempting these solutions, please contact EuropAce customer support for assistance.
7. Specifikacije
| Feature | Detalj |
|---|---|
| Brand | EuropAce |
| Model | EBF Z1 |
| Dimenzije proizvoda | 26D x 25.3Š x 115V cm |
| Težina | 12.12 kg |
| Wattage | 48 vati |
| Izvor napajanja | Corded Electric |
| Vrsta materijala | Metal |
| Posebne karakteristike | Bladeless, Air Purification (HEPA Filter), Smart Wind Technology, 24 Wind Speeds, 160-degree Oscillation |
| Vrsta montaže | Podni nosač |
8. Garancija i podrška
The EuropAce EBF Z1 Air Purifying Dual Bladeless Fan comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty period and coverage details.
For technical support, service inquiries, or to purchase replacement parts (such as HEPA filters), please contact EuropAce customer service. Contact details can typically be found on the EuropAce official webweb stranici ili na ambalaži vašeg proizvoda.
Molimo sačuvajte svoj dokaz o kupovini za zahtjeve u vezi s garancijom.
