Bewinner 1080p Car Dash Cam User Manual

1. Uvod

This manual provides detailed instructions for the installation, operation, and maintenance of your Bewinner 1080p Car Dash Cam. Please read this manual thoroughly before using the device to ensure proper functionality and safety. This dash cam features a 10-inch IPS touchscreen and dual front and rear cameras for comprehensive vehicle recording.

2. Sigurnosne informacije

• Provjerite je li kamera za automobil sigurno montirana i ne ometa vozačev view ili ometaju kontrolu vozila.
• Do not operate the device while driving. Adjust settings only when the vehicle is safely parked.
• Use only the provided power adapter to prevent damage to the device and vehicle.
• Izbjegavajte izlaganje uređaja ekstremnim temperaturama, direktnoj sunčevoj svjetlosti tokom dužeg perioda ili prekomjernoj vlazi.
• Keep the lens clean for optimal recording quality.
• Redovno pravite sigurnosne kopije važnih videa files kako bi se spriječio gubitak.

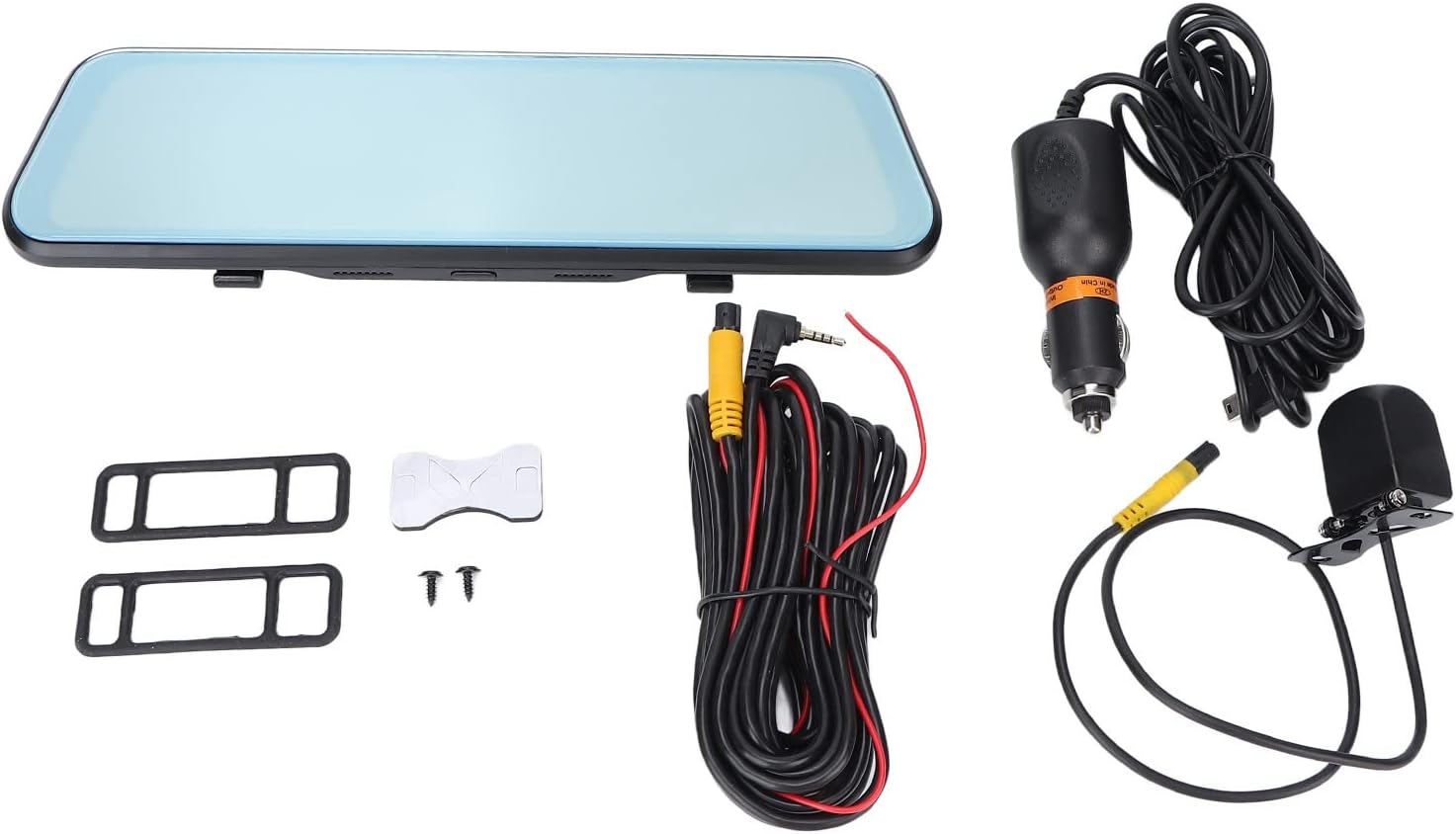

3. Sadržaj paketa

Provjerite da li se u vašem paketu nalaze sve dolje navedene stavke:

• Bewinner 1080p Car Dash Cam (Main Unit)
• Zadnja kamera
• 2 x Power Cords (Car Charger)
• Uputstvo za upotrebu
• Dvostrana ljepljiva traka
• 2 x Vijci
• 2 x Mounting Accessories (Rubber Straps)

4. Proizvod je gotovview

The Bewinner Dash Cam is designed to provide reliable video recording for your vehicle. It features a large touchscreen display and dual cameras for comprehensive coverage.

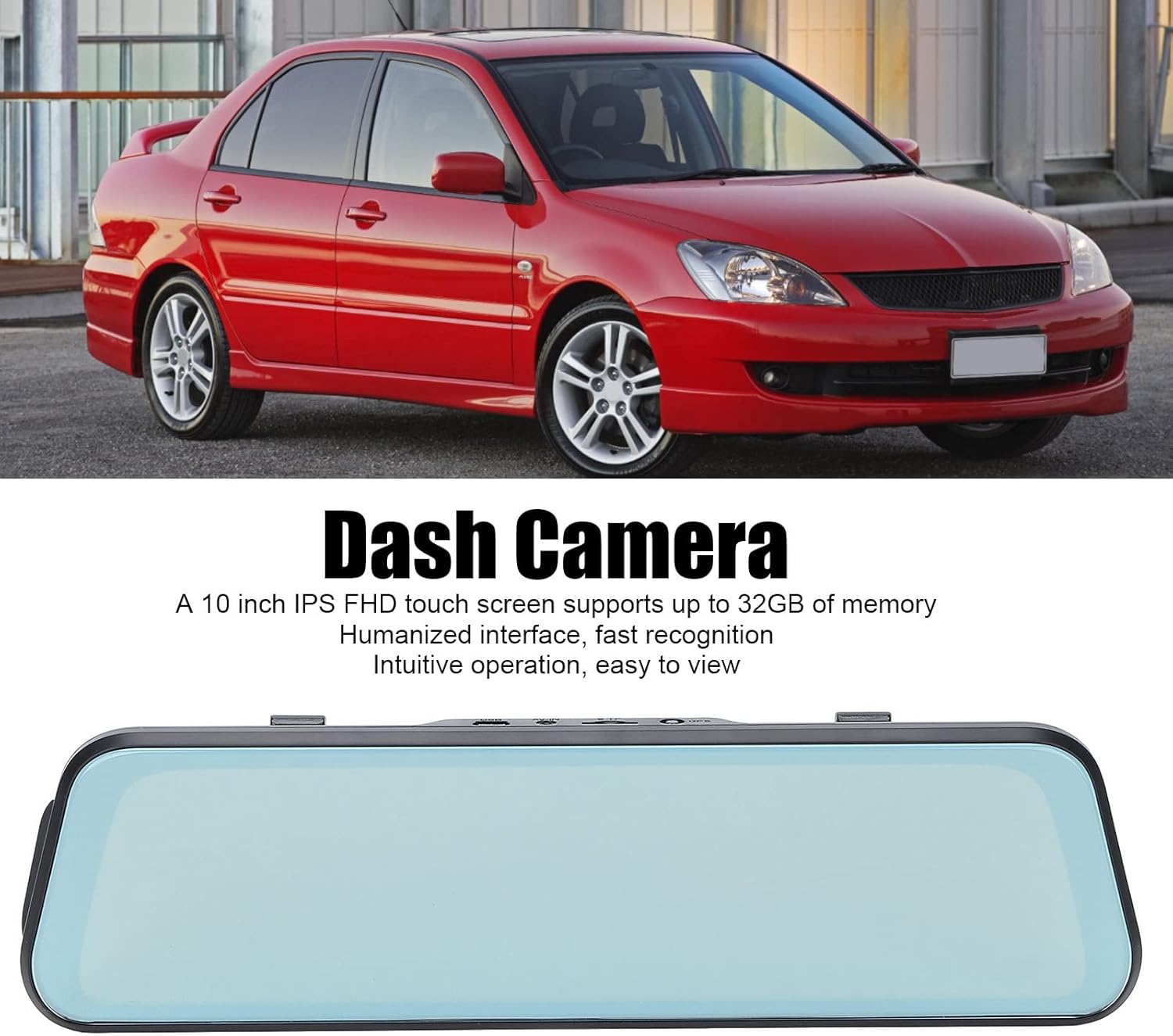

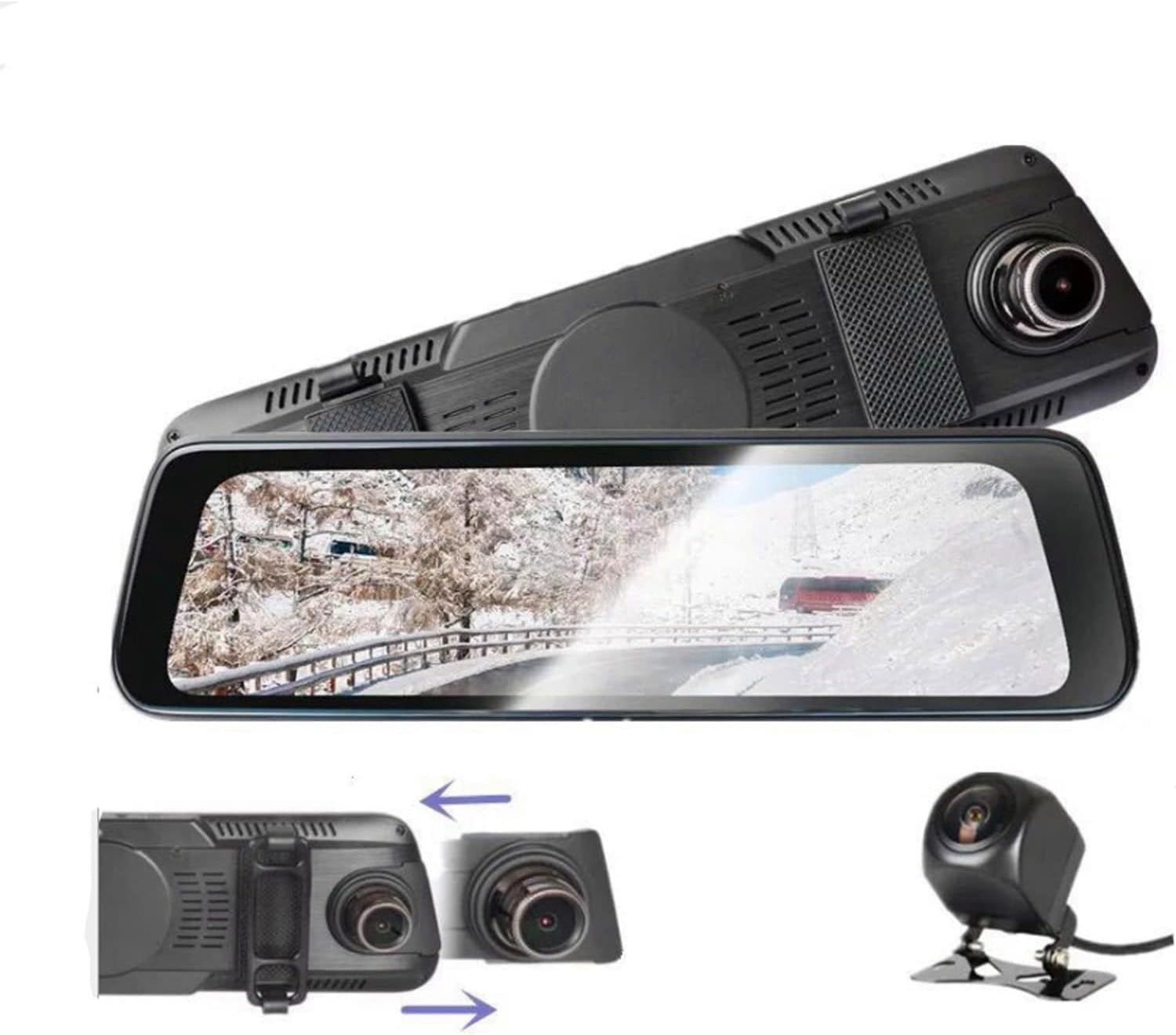

4.1 Main Dash Cam Unit

The main unit integrates a 10-inch IPS touchscreen display and the front camera. It is designed to be mounted over your existing rearview ogledalo.

4.2 Zadnja kamera

The rear camera provides a wide-angle view of the area behind your vehicle, enhancing safety and recording capabilities.

5. Postavljanje i instalacija

5.1 Umetanje Micro SD kartice

Before installation, insert a Class 10 or higher Micro SD card (up to 32GB, not included) into the dash cam's card slot. Ensure the card is inserted correctly until it clicks into place.

5.2 Mounting the Main Dash Cam Unit

1. Attach the two rubber straps (mounting accessories) to the back of the main dash cam unit.
2. Securely fasten the dash cam over your vehicle's existing rearview mirror using the rubber straps. Ensure it is stable and does not vibrate.
3. Adjust the front camera lens angle to capture the desired view puta ispred nas.

5.3 Instaliranje zadnje kamere

1. Choose a suitable location at the rear of your vehicle, typically above the license plate, for the rear camera.
2. Use the provided double-sided adhesive tape and screws to securely mount the rear camera.
3. Route the rear camera cable to the main dash cam unit. Connect the cable to the designated rear camera input port on the main unit.
4. If applicable, connect the red wire of the rear camera cable to your vehicle's reverse light power source for automatic reverse display functionality.

5.4 Priključak za napajanje

1. Connect one end of the car charger (power cord) to the dash cam's power input port.
2. Drugi kraj auto punjača priključite na utičnicu za upaljač u vozilu.
3. The dash cam will automatically power on and begin recording when the vehicle engine starts, and power off when the engine is turned off.

6. Uputstvo za upotrebu

6.1 Uključivanje/isključivanje napajanja

• automatski: The device powers on and off automatically with the vehicle's ignition.
• Priručnik: Press and hold the power button (if available) to manually turn the device on or off.

6.2 Rad na ekranu osjetljivom na dodir

The 10-inch IPS touchscreen allows for intuitive navigation and control. Tap icons to select functions, swipe to navigate menus or switch camera views.

6.3 Načini snimanja

• Snimanje u petlji: Videos are recorded in segments (e.g., 1, 3, or 5 minutes). When the memory card is full, the oldest unlocked files se prepisuju.
• Snimanje u hitnim slučajevima (G-senzor): The built-in G-sensor detects sudden impacts or collisions and automatically locks the current video file kako bi se spriječilo njegovo prepisivanje.
• Parking monitor: When enabled, the dash cam will automatically start recording if it detects a collision or vibration while the vehicle is parked. This feature typically requires a hardwire kit (not included) for continuous power.

6.4 Zamjena kamere Views

On the touchscreen, you can typically swipe left or right, or tap a specific icon, to switch between front camera view, zadnja kamera view, or a picture-in-picture display showing both simultaneously.

6.5 Postavke menija

Access the settings menu via the touchscreen to configure various options:

• Video rezolucija: Set recording resolution (e.g., 1080p for both front and rear).
• Trajanje snimanja u petlji: Adjust segment length (e.g., 1/3/5 minutes).
• Osetljivost G-senzora: Adjust the sensitivity of impact detection.
• Parking monitor: Omogućite ili onemogućite ovu funkciju.
• Datum/Vrijeme: Postavite tačan datum i vrijeme za tačan vremenski okviramps na snimcima.
• Jezik: Select your preferred language (supports Chinese, English, French, Italian, Korean, Russian, Spanish, German, Japanese, etc.).
• Formatirajte SD karticu: Format the Micro SD card to ensure optimal performance and clear old data.

7. Održavanje

• čišćenje: Use a soft, dry cloth to clean the dash cam screen and lens. Do not use abrasive cleaners or solvents.
• SD Card Maintenance: Format the Micro SD card regularly (e.g., once a month) to prevent data corruption and ensure smooth recording. Back up any important files prije formatiranja.
• Skladištenje: If storing the device for an extended period, remove it from the vehicle and store it in a cool, dry place.

8. Otkrivanje problema

9. Specifikacije

10. Garancija i podrška

Bewinner products are designed for reliability and performance. For specific warranty details, please refer to the warranty card included with your purchase or contact Bewinner customer support. If you encounter any issues not covered in this manual, please reach out to our customer service team for assistance.

For further support, visit the official Bewinner webweb stranicu ili kontaktirajte svog prodavca.
