SmallRig brzootpuštajući Clamp (Arca-Type) - Model 2143B Instruction Manual

1. Proizvod je gotovview

The SmallRig Quick Release Clamp (Compatible with Arca-type) 2143B is a lever-type base designed for rapid mounting and unmounting of cameras or accessories equipped with a separately available Arca-type plate. The tightness of the clamp can be adjusted via a small screw on the lever, ensuring cross-compatibility with most Arca-type plates.

Ovo clamp features multiple 1/4"-20 and 3/8"-16 threaded holes, as well as thorough mounting holes on its bottom surface. This allows for versatile attachment to various camera support devices such as tripods, jibs, and other rigs.

Ključne karakteristike:

• Arca-Type Plate Compatibility: Designed to quickly mount and unmount cameras or accessories with Arca-type plates.
• Versatile Mounting Threads: Equipped with 1/4"-20 and 3/8"-16 threaded holes for broad compatibility with various support systems.
• Secure Locking Lever: A robust lever mechanism ensures equipment is securely held in place.
• Izdržljiva konstrukcija: Manufactured from high-quality aluminum alloy for long-lasting performance.

2. Sadržaj paketa

Molimo Vas da provjerite da li se u Vašem paketu nalaze sve dolje navedene stavke:

• 1 x SmallRig Quick Release Clamp 2143B
• 4 x 1/4"-20 vijaka
• 1 x 3/8"-16 vijaka
• 2 x Hex Spanner

The image shows the SmallRig Quick Release Clamp 2143B alongside its accessories: four 1/4-inch-20 screws, one 3/8-inch-16 screw, and two hex spanners for installation and adjustment.

3. Postavljanje i instalacija

Follow these steps to properly set up and install your SmallRig Quick Release Clamp 2143b:

1. Priložiti Clamp to Support: Use the provided 1/4"-20 or 3/8"-16 screws to attach the Quick Release Clamp to your tripod, monopod, camera cage, or other support device. Ensure the screws are tightened securely using the hex spanners.
2. Attach Arca-Type Plate to Camera: If your camera or accessory does not already have an Arca-type plate, attach one (sold separately) to its base using the appropriate screw.
3. Mount Camera to Clamp: Open the lever on the Quick Release Clamp. Slide your camera (with the attached Arca-type plate) into the clamp's jaws. Close the lever firmly to secure the camera.
4. Adjust Tightness (if needed): If the plate feels too loose or too tight, use a hex spanner to adjust the small screw on the lever mechanism to achieve the desired clamping force.

This image illustrates the underside of the clamp, clearly marking the various 1/4-inch-20 and 3/8-inch-16 threaded holes for versatile mounting options on tripods, rigs, or other camera support equipment.

The quick release clamp is shown integrated into a camera rig setup, illustrating how it provides a secure and low-profile connection for quick mounting and dismounting of the camera.

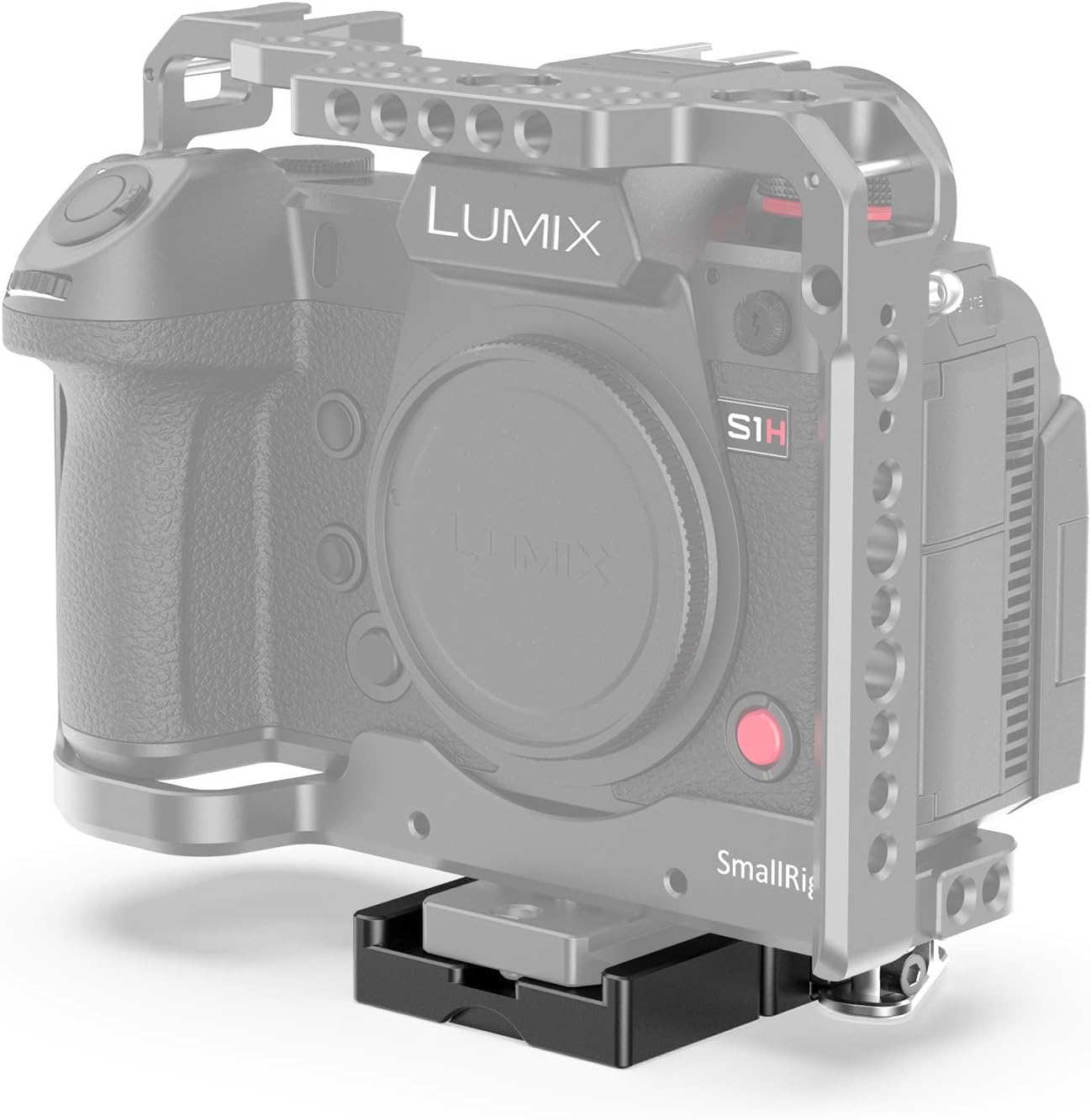

Strana view of the SmallRig Quick Release Clamp 2143B on a camera rig, highlighting the lever for quick release and the overall compact design when in use.

Video snimci instalacije:

4. Uputstvo za upotrebu

The SmallRig Quick Release Clamp 2143B is designed for straightforward operation:

• Montaža: With the lever in the open position, align your Arca-type plate with the clamp's jaws and slide it in. Once positioned, push the lever to the closed position until it clicks or feels firm.
• Releasing: To remove your camera or accessory, simply pull the lever to the open position and slide the Arca-type plate out of the clamp.
• Podešavanje Clamping Force: Ako clamping force is not optimal, use one of the provided hex spanners to turn the small screw located on the side of the lever. Turn clockwise to increase tightness and counter-clockwise to loosen.

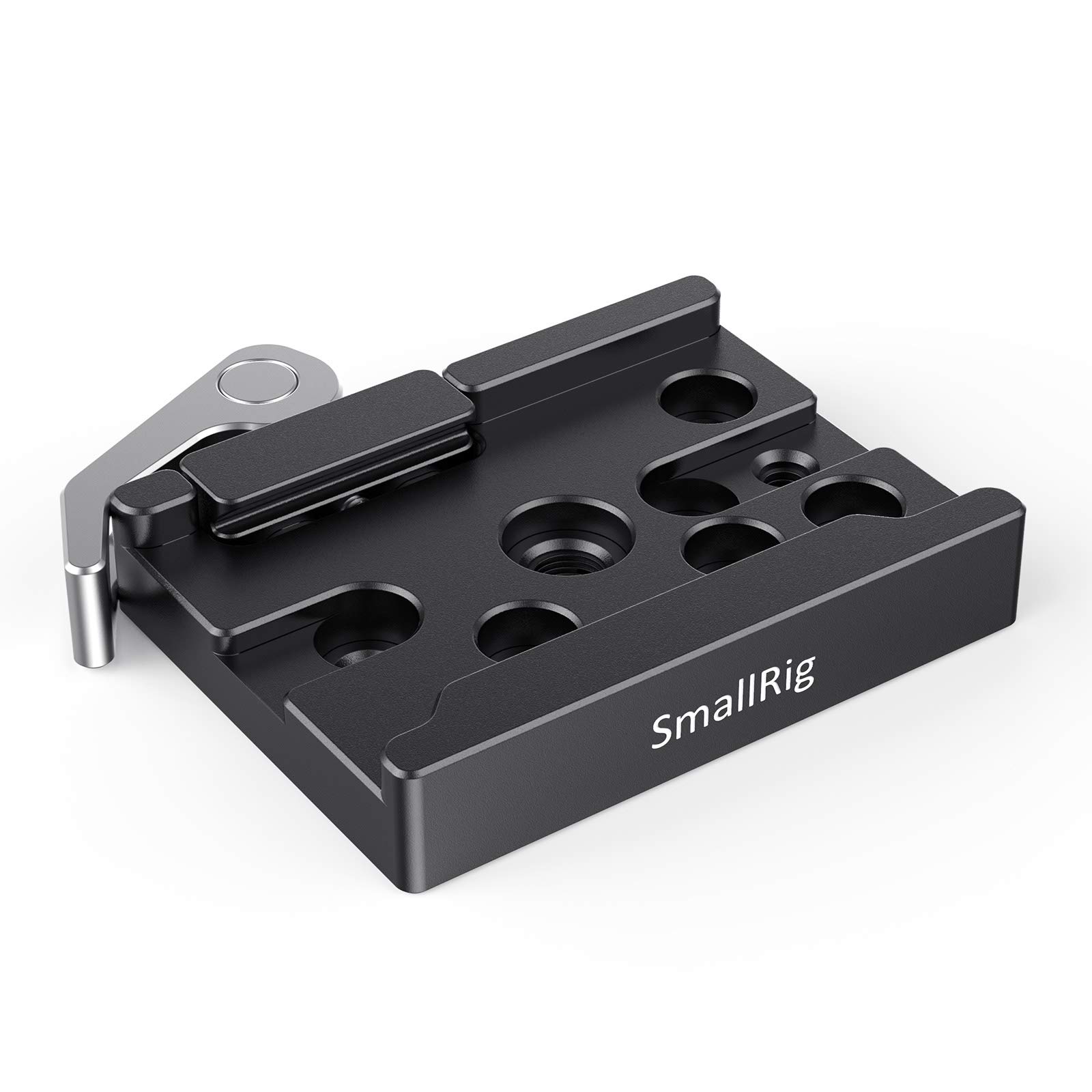

Odozgo prema dolje view of the SmallRig Quick Release Clamp 2143B, highlighting the lever mechanism and the Arca-type compatible jaws designed to securely hold a quick release plate.

5. Održavanje

To ensure the longevity and optimal performance of your SmallRig Quick Release Clamp 2143B, follow these maintenance guidelines:

• čišćenje: Regularly wipe the clamp mekom, suvom krpom da uklonite prašinu i ostatke. Izbjegavajte korištenje jakih kemikalija ili abrazivnih materijala.
• inspekcija: Periodically check all screws and the lever mechanism for any signs of loosening or wear. Tighten any loose screws with the provided hex spanners.
• Skladištenje: Pohranite klamp in a dry, clean environment when not in use to prevent corrosion or damage.

6. Otkrivanje problema

If you encounter any issues with your Quick Release Clamp, razmotrite sljedeće:

• Plate feels loose after clamping: Ensure the Arca-type plate is fully seated within the clamp's jaws. Adjust the tightness screw on the lever clockwise to increase clamping force.
• Difficulty inserting/removing plate: Check if the lever is fully open. If the plate is still difficult to insert or remove, adjust the tightness screw on the lever counter-clockwise to loosen the clampmehanizam.
• Clamp not securely attaching to tripod: Verify that the 1/4"-20 or 3/8"-16 screws used to attach the clamp to your support device are fully tightened.

7. Specifikacije

This image displays the key dimensions of the SmallRig Quick Release Clamp 2143B, including its length, width, and height, providing precise measurements for compatibility.

8. Garancija i podrška

SmallRig products are manufactured to high-quality standards. For warranty information, please refer to the official SmallRig website or contact your retailer. If you require technical assistance or have questions regarding your product, please reach out to SmallRig customer support through their official channels.
