Uvod
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your MageGee V510 Wireless RGB Gaming Keyboard. Please read this manual carefully before using the product to ensure optimal performance and longevity.
Image: MageGee V510 Wireless RGB Gaming Keyboard, showcasing its full layout and vibrant backlighting.
1. Upute za postavljanje
1.1 Sadržaj paketa
- MageGee V510 Wireless RGB Gaming Keyboard
- 2.4G USB prijemnik
- Kabel za punjenje tipa C
- Korisnički priručnik (ovaj dokument)
1.2 Povezivanje tastature
- Locate the 2.4G USB receiver. It is typically stored in a compartment on the keyboard or included separately in the packaging.
- Plug the 2.4G USB receiver into an available USB port on your PC or laptop.
- Uključite tastaturu pomoću prekidača za napajanje, koji se obično nalazi sa strane ili na zadnjoj strani tastature.
- The keyboard should automatically connect to your device. If not, ensure the receiver is properly inserted and the keyboard is powered on.
The 2.4G wireless connection provides a stable transmission with reduced latency, offering a working distance of up to 10 meters.

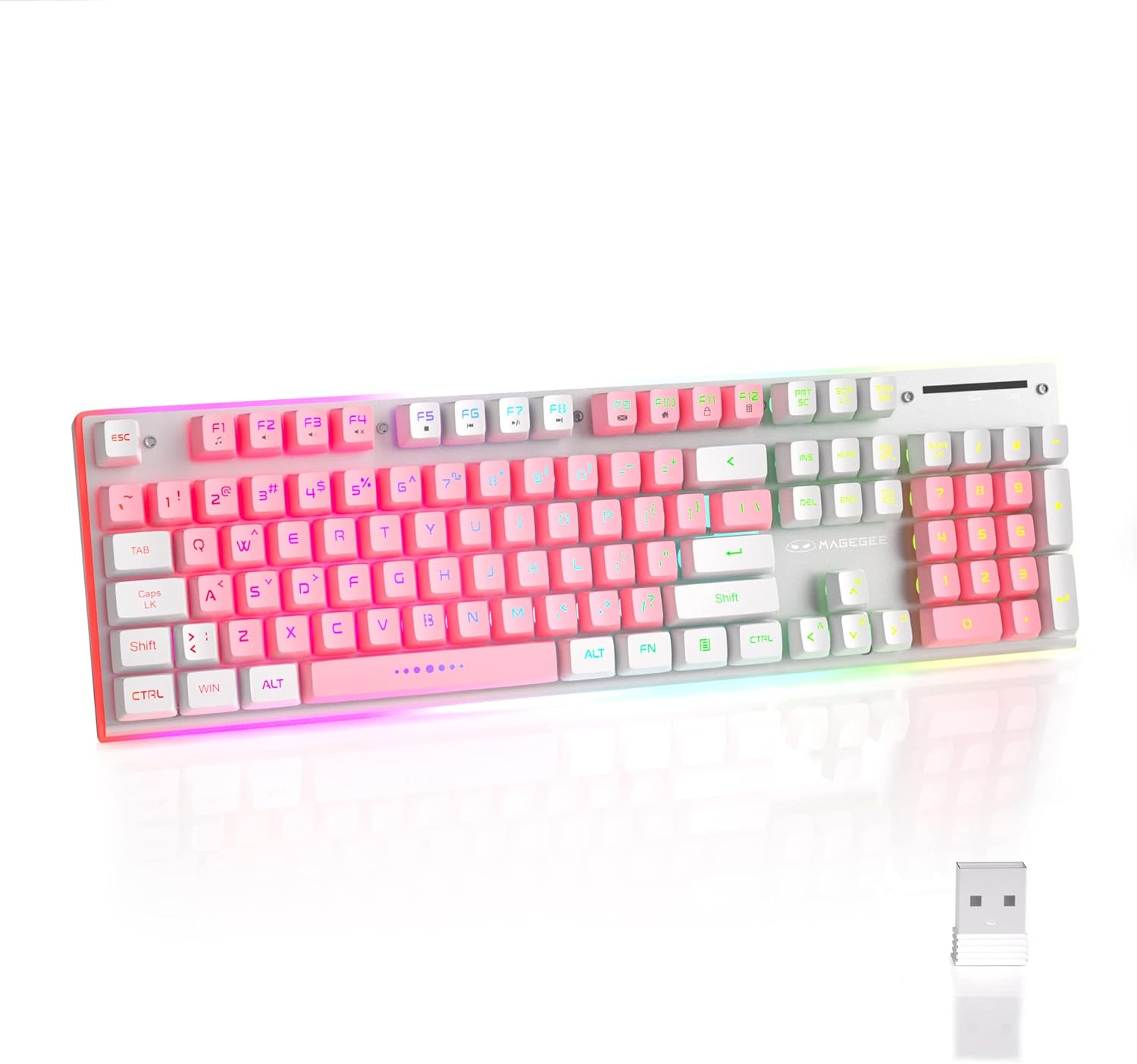

Image: The MageGee V510 keyboard shown alongside its compact 2.4G USB receiver, ready for wireless connection.
Image: Diagram illustrating the wireless connection between the keyboard and a laptop via the USB receiver, indicating a stable connection.
2. Uputstvo za upotrebu
2.1 RGB kontrola pozadinskog osvjetljenja
The V510 keyboard features dynamic RGB backlighting and unique side ambient lighting.
- Switch Backlight Effect: Pritisnite Fn + 1-5 to cycle through multiple backlight modes and 8 different colors.
- Uključivanje/isključivanje pozadinskog osvjetljenja: Pritisnite Fn + Scr (Scroll Lock key) to toggle the backlight on or off. Turning off the backlight conserves battery.
- Brighten/Dim Light: Pritisnite Fn + ↑ (Strelica gore) za povećanje svjetline i Fn + ↓ (Strelica prema dolje) za smanjenje svjetline.
- Podesite brzinu svjetlosti: Pritisnite Fn + ← (Left Arrow) to slow down the light effect speed, and Fn + → (Right Arrow) to speed up the light effect.
Image: Visual guide to RGB backlight controls on the MageGee V510 keyboard, showing key combinations for changing effects, brightness, and speed.
Image: The MageGee V510 keyboard highlighting its unique surround LED strip, providing ambient lighting around all sides, not just keycap glow.
Image: A series of MageGee V510 keyboards demonstrating various brilliant RGB backlighting modes and switchable colors.
2.2 multimedijalnih prečica
The keyboard includes 12 multimedia shortcut keys for quick access to frequently used programs and functions.
| Kombinacija tastera | Funkcija |
|---|---|
| Fn + F1 | Player |
| Fn + F2 | Utišavanje zvuka |
| Fn + F3 | Volume Up |
| Fn + F4 | Mute |
| Fn + F5 | Last Song |
| Fn + F6 | Next Song |
| Fn + F7 | Pusti/Pauza |
| Fn + F8 | Stani |
| Fn + F9 | Dom |
| Fn + F10 | |
| Fn + F11 | Moj kompjuter |
| Fn + F12 | Favoriti |
Image: A diagram illustrating the 12 multimedia shortcut keys (Fn + F1-F12) and their corresponding functions on the MageGee V510 keyboard.
2.3 Punjenje tastature
The MageGee V510 keyboard is equipped with a 2000mAh rechargeable battery.
- Connect the included Type-C charging cable to the charging port on the keyboard and to a USB power source (e.g., computer USB port, USB wall adapter).
- Charging time: Approximately 3.5 to 4 hours for fast charging, or 8 to 10 hours for slow charging.
- Battery life: Up to 20 hours of continuous use with RGB backlight, or up to 60 hours with monochrome backlight.
Slika: Krupni plan view of the MageGee V510 keyboard's side, showing the power switch and the Type-C charging port.
Image: Graphic displaying the 2000mAh battery capacity and up to 60 hours of usage time for the MageGee V510 keyboard.
3. Održavanje
3.1 Čišćenje tastature
The MageGee V510 features a waterproof design and floating keycaps for easy cleaning.
- To clean dust and debris, use a soft brush or compressed air.
- For spills, gently wipe the surface with a damp cloth. Ensure the keyboard is powered off and disconnected from any charging cable before cleaning.
- Avoid submerging the keyboard in water.
Image: The MageGee V510 keyboard with water droplets on its surface, illustrating its waterproof design and floating keycaps for easy cleaning.
3.2 Keycap Information
The keyboard uses mixed-color double-shot keycaps, which are wear-resistant, durable, and do not fade. The keycaps are removable for deeper cleaning or customization.
Slika: Krupni plan view of the MageGee V510 keyboard's mixed-color double-shot keycaps, showing a keycap removed to reveal the underlying switch mechanism.
4. Otkrivanje problema
- Tastatura ne reaguje:
- Ensure the 2.4G USB receiver is securely plugged into a USB port on your computer.
- Provjerite je li prekidač za napajanje tastature u položaju "UKLJUČENO".
- Check the battery level. If low, connect the charging cable.
- Pokušajte priključiti USB prijemnik u drugi USB priključak.
- Ponovo pokrenite računar.
- Pozadinsko osvjetljenje ne radi:
- Provjerite da pozadinsko osvjetljenje nije isključeno (pritisnite Fn + Scr).
- Check backlight brightness (press Fn + ↑).
- Provjerite da li je baterija tastature dovoljno napunjena.
- Tipke se ne registruju ili se pojavljuju kao ghosting:
- The keyboard features 25-key anti-ghosting. If issues persist, ensure the keyboard is clean and free of debris under the keycaps.
- Pokušajte ponovo spojiti USB prijemnik.
- Problemi s povezivanjem:
- Ensure there are no significant obstructions between the keyboard and the USB receiver.
- Avoid placing the receiver near strong interference sources (e.g., Wi-Fi routers, other wireless devices).
If you encounter any persistent issues, please contact MageGee customer support for assistance.
5. Specifikacije
| Feature | Detalj |
|---|---|
| Brand | MageGee |
| Model | V510 |
| Tehnologija povezivanja | 2.4G bežična veza (USB prijemnik) |
| Opis tastature | Gaming, Standard 104-key layout |
| Posebne karakteristike | Ergonomic, RGB Backlit, Waterproof, 25-key Anti-ghosting, Metal Panel, Detachable Keycaps |
| Kompatibilni uređaji | Laptop, PC (Win 2000 / XP / ME / 7 / 8 / 10 / Vista / Mac) |
| Boja | Bijela/ružičasta |
| Upravljanje bojama pozadinskog osvjetljenja | RGB |
| Materijal | Plastic (with metal panel) |
| Kapacitet baterije | 2000mAh |
| bežični domet | Do 10 metara |
| Dimenzije | Približno 422 mm (17.40 inča) x 133 mm (5.37 inča) x 37 mm (1.47 inča) |
Image: Technical drawing of the MageGee V510 keyboard showing its length (422mm), width (133mm), and height (37mm).
Slika: Bočni profesionalacfile of the MageGee V510 keyboard illustrating its ergonomic design with an 8-degree tilt and adjustable foot supports.
Slika: Prekoview graphic highlighting key features of the MageGee V510 keyboard, including 2.4G Wireless, RGB Backlight, Surround Lighting, Mixed-Color Keycaps, Large Battery Capacity, Anti-Ghosting, and Ergonomic Design.
6. Garancija i podrška
MageGee is committed to providing quality products and customer satisfaction.
- For any product issues or inquiries, please contact MageGee customer support.
- Za specifične uslove i odredbe garancije pogledajte dokumentaciju o kupovini.
Contact information for support is typically available on the official MageGee webweb-mjestu ili putem vašeg prodavača.
