GEPRC TinyGO 4K FPV Whoop RTF Drone User Manual

Uvod

Hvala na kupoviniasing the GEPRC TinyGO 4K FPV Whoop RTF Drone. This comprehensive kit is designed for beginners and experienced pilots alike, offering a ready-to-fly solution for immersive FPV (First Person View) flying and high-quality 4K video capture. Please read this manual thoroughly before operating the drone to ensure safe and optimal performance.

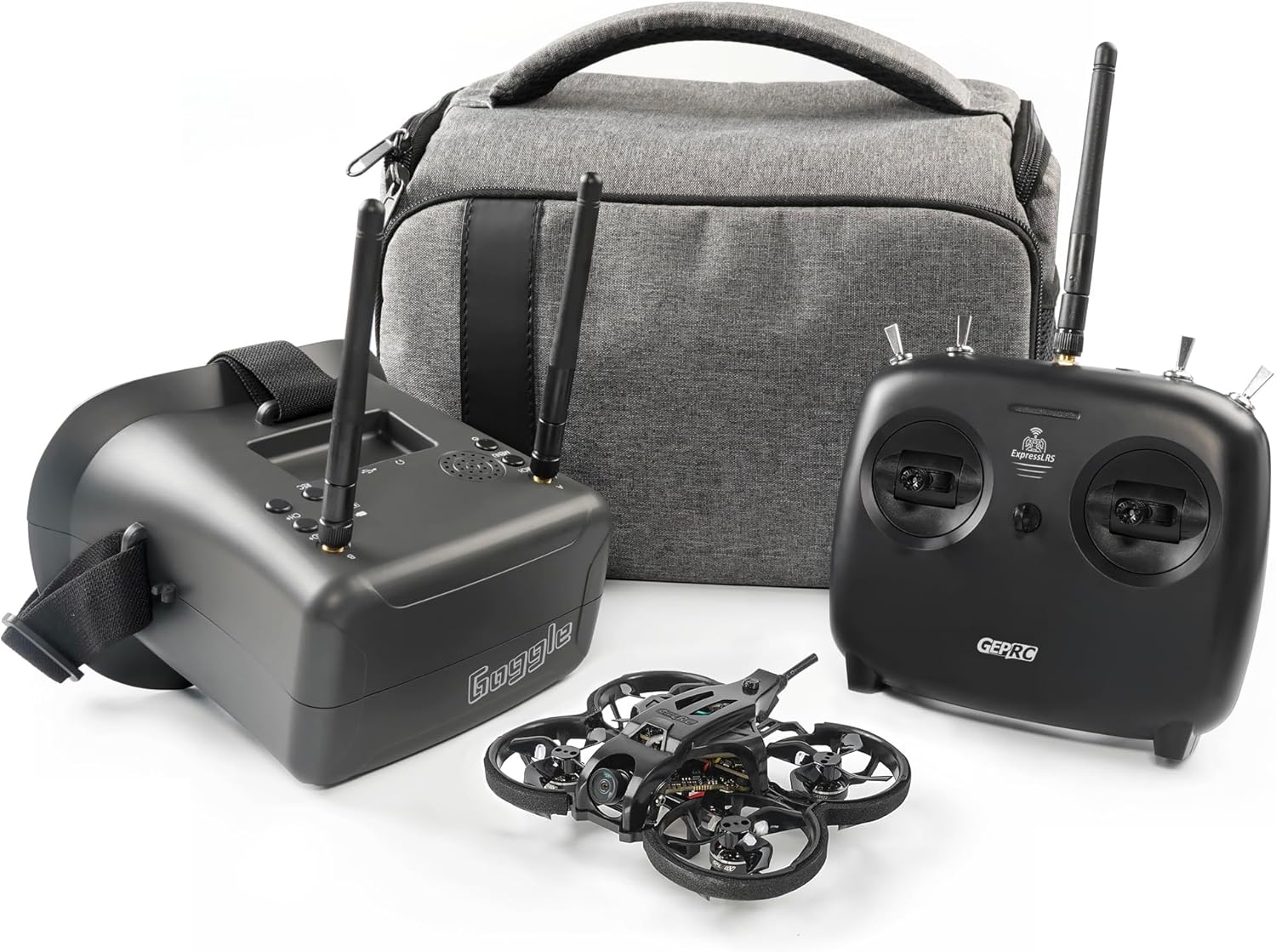

Figure 1: Complete GEPRC TinyGO 4K FPV Whoop RTF Drone Kit.

The complete kit includes the TinyGO 4K FPV Whoop Drone, GEPRC GR8 Remote Controller, FPV Goggles, multiple batteries, a multi-charger, spare propellers, and a convenient carrying case, providing everything needed to start flying.

Sigurnosne smjernice

Operating FPV drones requires adherence to strict safety protocols. Failure to follow these guidelines may result in injury, property damage, or legal consequences.

• Nadzor odraslih: This product is intended for adults only. Minors should only operate under direct adult supervision.
• Provjera prije leta: Always perform a thorough pre-flight inspection of the drone, remote, and goggles. Ensure all components are securely attached and free from damage.
• Sigurnost baterije: Use only recommended batteries and chargers. Do not overcharge or discharge batteries. Store batteries in a fireproof bag away from flammable materials. Discontinue use if batteries show signs of swelling or damage.
• Okruženje leta: Fly in open areas, away from people, animals, buildings, and obstacles. Avoid flying near airports, restricted airspace, or in adverse weather conditions (strong winds, rain).
• Sigurnost propelera: Keep hands and face clear of rotating propellers. Always remove propellers before performing maintenance or handling the drone indoors.
• Linija vida: Maintain visual line of sight with the drone at all times, even when using FPV goggles.
• Lokalni propisi: Familiarize yourself with and adhere to all local drone regulations and laws.

Sadržaj paketa

Provjerite da li se u vašem paketu nalaze sve dolje navedene stavke:

Slika 2: Detaljno view svih uključenih komponenti.

This image displays all the items you should find in your GEPRC TinyGO 4K FPV Whoop RTF Drone package, including the drone, remote, goggles, batteries, charger, and accessories.

Vodič za postavljanje

1. Punjenje baterija

Before first use, fully charge all batteries. The kit includes a USB multi-charger for the drone's LiPo batteries. Connect the charger to a USB power source (e.g., computer USB port, USB wall adapter).

• Connect the drone batteries to the appropriate ports on the USB charger. Ensure the connectors are aligned correctly.
• The indicator lights on the charger will show charging status (e.g., red for charging, green for fully charged).
• Charge the remote controller and FPV goggles using their respective USB charging cables.

Figure 3: The TinyGO drone weighs approximately 54 grams.

This image shows the lightweight design of the TinyGO drone, weighing only 54 grams, which contributes to its agility and flight performance.

2. Drone Preparation

• Inspect the propellers for any damage or cracks. Replace if necessary.
• Ensure the battery is securely inserted into the drone's battery compartment.
• Proverite da li je objektiv kamere čist i da nema prepreka.

Slika 4: Prednji-vrh view of the TinyGO drone.

This image highlights the compact design and integrated propeller guards of the TinyGO drone, designed for durability and safe indoor/outdoor flight.

3. Podešavanje daljinskog upravljača

• Power on the GEPRC GR8 Remote Controller.
• Ensure the remote is bound to the drone. Refer to the binding instructions if the drone and remote are not already paired.
• Familiarize yourself with the control sticks and buttons.

4. FPV Goggles Setup

• Power on the FPV Goggles.
• Adjust the head strap for a comfortable fit.
• Scan for the drone's video feed. Ensure a clear and stable video signal before flight.

Uputstvo za upotrebu

1. Provjere prije leta

• Ensure all batteries (drone, remote, goggles) are fully charged.
• Provjerite propelere na oštećenja i uvjerite se da su sigurno pričvršćeni.
• Verify that the flight area is clear of obstacles, people, and animals.
• Confirm a strong video signal in the FPV goggles.

2. Arming the Drone

To arm the drone (start the motors), typically move both control sticks to the bottom-outer corners simultaneously. Refer to the remote controller's specific instructions for exact arming procedures.

3. Takeoff and Flight

• Gently increase the throttle (left stick up) to lift off.
• Use the right stick to control pitch (forward/backward) and roll (left/right).
• Use the left stick to control yaw (rotation) and throttle (altitude).
• Practice hovering and gentle maneuvers in a safe, open space before attempting advanced flights.

4. Sletanje

Slowly decrease the throttle until the drone gently lands. Once on the ground, disarm the motors immediately by moving both control sticks to the bottom-inner corners (or as per your remote's specific disarming procedure).

5. Video snimanje

The TinyGO 4K drone is capable of 4K video capture. Consult the drone's specific documentation or the GEPRC website for instructions on how to initiate and stop video recording, and how to access recorded footage. Ensure a compatible microSD card (not included) is inserted into the drone's camera slot.

Održavanje

Regular maintenance ensures the longevity and performance of your TinyGO drone.

• Pregled propelera: After every crash or hard landing, inspect propellers for bends, cracks, or chips. Replace damaged propellers immediately.
• Čišćenje motora: Keep motors free from dirt, dust, and debris. Use compressed air or a soft brush to clean.
• Pregled okvira: Check the drone frame for any cracks or damage. Minor cracks can sometimes be repaired with specialized adhesives, but severe damage may require part replacement.
• Održavanje baterije: Store LiPo batteries at storage voltage (around 3.8V per cell) if not used for extended periods. Do not leave batteries fully charged or fully discharged for long durations.
• Ažuriranja firmvera: Periodically check the GEPRC official website for firmware updates for the drone, remote, and goggles. Keeping firmware updated can improve performance and add new features.

Rješavanje problema

Specifikacije

Garancija i podrška

For warranty information, technical support, or service inquiries, please visit the official GEPRC webweb-mjesto ili direktno kontaktirajte njihovu korisničku službu. Sačuvajte račun kao dokaz o kupovini za reklamacije u slučaju garancije.

Službenik GEPRC-a Webstranica: www.geprc.com

For additional resources and community support, consider visiting online FPV forums and communities.
