1. Uvod
Thank you for choosing the Fansbe Portable Sound Machine. This device is designed to create a peaceful environment for sleep and relaxation by offering a wide selection of soothing sounds and an adjustable ambient night light. It is suitable for use by babies, children, and adults in various settings such as nurseries, bedrooms, offices, and during travel.
Image 1.1: The Fansbe Portable Sound Machine, showcasing its compact design and ambient light feature.
2. Sigurnosne informacije
Molimo pročitajte i razumite sva sigurnosna uputstva prije upotrebe ovog proizvoda. Sačuvajte ovaj priručnik za buduću upotrebu.
- Ne izlažite uređaj vodi ili prekomjernoj vlazi.
- Ne rastavljajte niti pokušavajte sami popraviti uređaj. Sve servisne radove prepustite kvalifikovanom osoblju.
- Držite uređaj dalje od izvora toplote, direktne sunčeve svjetlosti i zapaljivih materijala.
- Provjerite da li su baterije pravilno umetnute prema oznakama polariteta.
- Uklonite baterije ako se uređaj neće koristiti duži period.
- Keep small parts and batteries out of reach of children to prevent choking hazards.
3. Proizvod je gotovview
The Fansbe Portable Sound Machine features intuitive controls for easy operation.

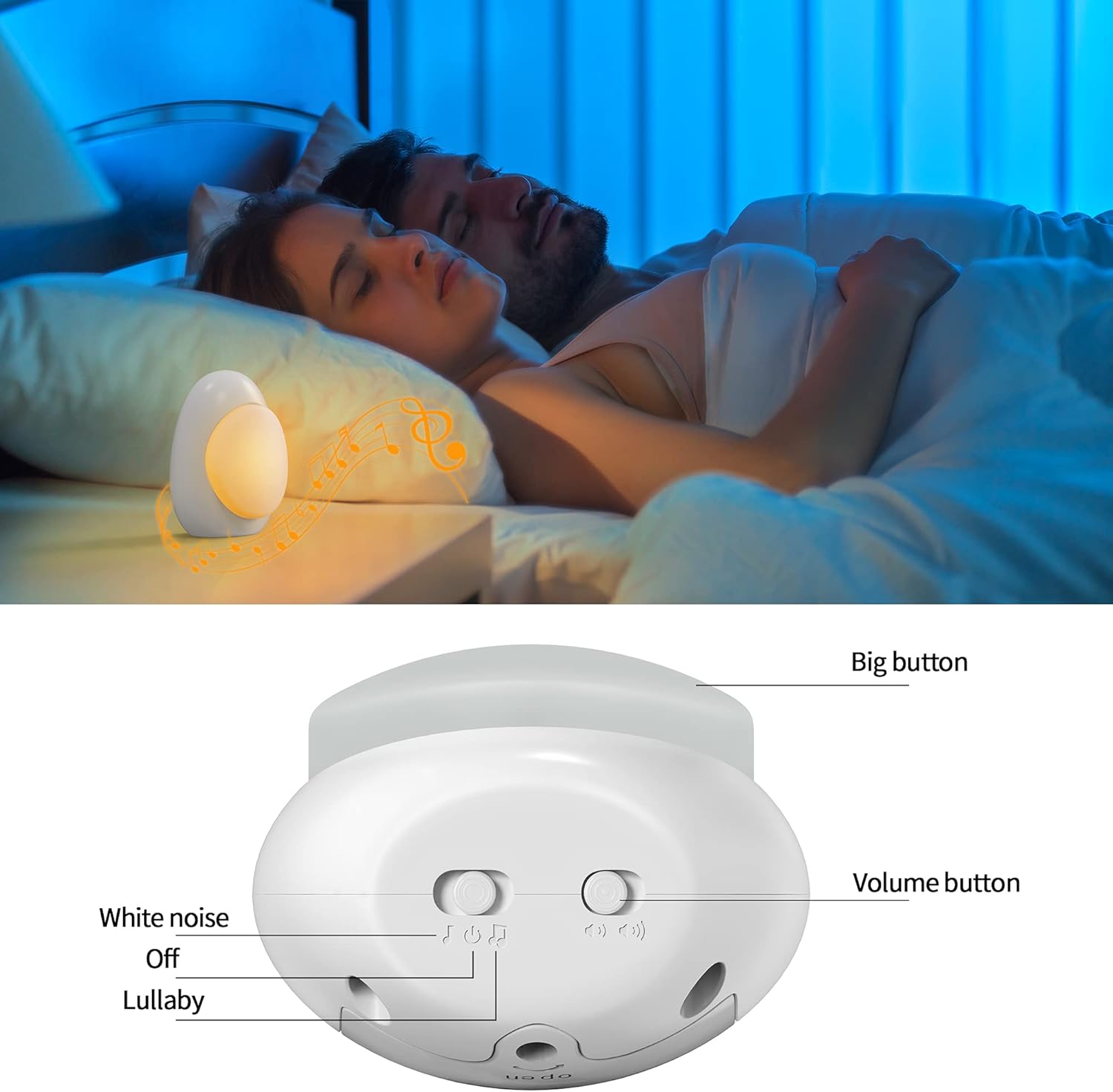

Image 3.1: Control panel of the Fansbe Sound Machine, indicating button functions.
Kontrole:
- Big Button (Top): Power On/Off, Sound Mode Selection.
- Volume Button (Side): Adjusts sound output level.
- Prekidač za bijeli šum: Activates white noise sounds.
- Lullaby Switch: Activates lullaby sounds.
- Prekidač za isključivanje: Turns off sound output.
4. Podešavanje
4.1 Instalacija baterije
The Fansbe Portable Sound Machine is powered by 3 AAA batteries (included).
- Pronađite odjeljak za bateriju na dnu uređaja.
- Use a small screwdriver (often included) to open the battery compartment cover.
- Umetnite 3 AAA baterije, pazeći na ispravan polaritet (+/-) kao što je naznačeno unutar odjeljka.
- Vratite poklopac odeljka za baterije i pričvrstite ga vijkom.
Image 4.1: The sound machine powered by AAA batteries.
5. Uputstvo za upotrebu
5.1 Power On/Off and Sound Selection
- Da biste uključili uređaj, pritisnite Veliko dugme on the top. The night light will illuminate, and a default sound will begin playing.
- To cycle through the available sound modes (White Noise, Lullaby), use the switches on the side of the device.
- Da isključite uređaj, pritisnite i držite Veliko dugme until the light and sound cease. Alternatively, use the 'Off' switch on the side.
Image 5.1: The sound machine providing soothing sounds for a sleeping baby.
Slika 5.2: Primjeramples of the 95 soothing sounds available.
5.2 Podešavanje jačine zvuka
Pritisnite Dugme za jačinu zvuka on the side of the device to increase or decrease the sound volume to your preferred level.
5.3 Rad noćnog svjetla
The integrated night light provides a soft, ambient glow. To adjust its brightness:
- With the device powered on, the night light will be active.
- Pritisnite i držite Veliko dugme on the top of the device. The brightness will cycle through different levels. Release the button when the desired brightness is reached.
Image 5.3: The sound machine functioning as a soft glow night light.
Image 5.4: Visual guide for adjusting night light brightness.
6. Održavanje
To ensure the longevity and optimal performance of your Fansbe Portable Sound Machine, follow these maintenance guidelines:
- Čišćenje: Wipe the device with a soft, dry cloth. Do not use abrasive cleaners, solvents, or immerse the device in water.
- Skladištenje: Store the device in a cool, dry place when not in use. If storing for an extended period, remove the batteries.
- Zamjena baterije: Replace all three AAA batteries simultaneously when the sound or light output diminishes. Do not mix old and new batteries or different types of batteries.
7. Otkrivanje problema
If you encounter any issues with your Fansbe Portable Sound Machine, please refer to the following common solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Uređaj se ne uključuje. | Baterije su prazne ili nepravilno umetnute. | Zamijenite baterije novima, vodeći računa o ispravnom polaritetu. |
| Nema izlaza zvuka. | Volume is too low or sound mode is off. | Increase volume using the volume button. Ensure the sound mode switch is set to White Noise or Lullaby, not Off. |
| Noćno svjetlo je slabo ili ne radi. | Low battery power or brightness setting is low. | Replace batteries. Adjust brightness by long-pressing the Big Button. |
| Kvalitet zvuka je loš. | Niska snaga baterije. | Zamijenite baterije. |
8. Specifikacije
- Brand: Fansbe
- Model (ASIN): B09JBFB2H4
- Izvor napajanja: 3 x AAA Batteries (Included)
- Opcije zvuka: 95 Soothing Sounds (5 White Noise, 90 Lullaby)
- Svjetlosna karakteristika: Adjustable Ambient Night Light
- Dimenzije paketa: 4.69 x 4.02 x 3.31 inča
- Težina artikla: 5.61 unci
- Tip konektora: 3.5mm Jack (for headphones, not explicitly mentioned in features but in specs)
- Proizvođač: Fansbe
- Prvi raspoloživi datum: 13. oktobar 2021
9. Garancija i podrška
Fansbe products are manufactured with quality and performance in mind. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Fansbe webMolimo sačuvajte dokaz o kupovini za potrebe reklamacije.
