Uvod
This manual provides essential instructions for the safe and efficient use of your AEG CX7-2-45AN Ergorapido Cordless 2-in-1 Vacuum Cleaner. Please read this manual thoroughly before operating the appliance and retain it for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your vacuum cleaner.

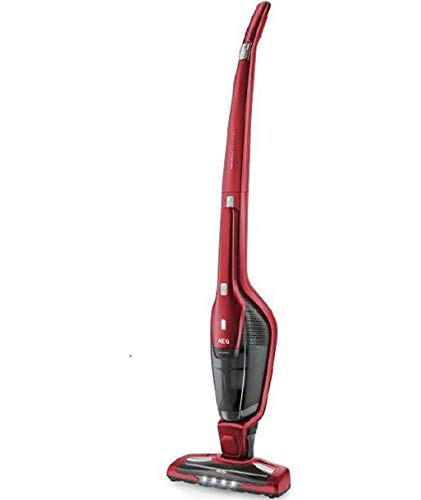

Image: The AEG CX7-2-45AN Ergorapido Cordless 2-in-1 Vacuum Cleaner, showcasing its sleek design and dual functionality as a stick vacuum and a detachable handheld unit.
Važna sigurnosna uputstva
- Always disconnect the charger from the power supply before cleaning or performing maintenance.
- Ovaj uređaj je namijenjen samo za kućnu upotrebu. Ne koristite ga na otvorenom ili na mokrim površinama.
- Do not allow children to operate the vacuum cleaner. Supervise children and pets when the appliance is in use.
- Nemojte skupljati zapaljive ili zapaljive tečnosti, kao što je benzin, niti ih koristiti u područjima gdje bi mogle biti prisutne.
- Ne uzimajte ništa što gori ili dimi, kao što su cigarete, šibice ili vrući pepeo.
- Nemojte koristiti bez posude za prašinu i/ili filtera na mjestu.
- Ako je kabel za napajanje oštećen, mora ga zamijeniti proizvođač, njegov serviser ili slično kvalifikovane osobe kako bi se izbjegla opasnost.
- Usisavač čuvajte u zatvorenom prostoru na suhom mjestu.
Podešavanje i početna upotreba
1. Montaža
Your AEG Ergorapido vacuum cleaner comes partially assembled. To complete assembly:
- Insert the handheld unit into the main body of the stick vacuum until it clicks securely into place.
- Attach the floor nozzle to the bottom of the stick vacuum. Ensure it is firmly connected.
2. Punjenje baterije
Before first use, fully charge the vacuum cleaner for approximately 4 hours. The charging indicator lights will show the charging status.
- Place the vacuum cleaner on its charging stand or connect the charger directly to the charging port.
- Uključite punjač u zidnu utičnicu.
- The indicator lights will illuminate during charging and turn off or change color when fully charged.
Uputstvo za upotrebu
1. Power On/Off and Suction Control
- Da biste uključili usisivač, pritisnite dugme za napajanje koje se nalazi na dršci.
- Pritisnite dugme za napajanje ponovo da ga isključite.
- Some models may feature a power level selector to adjust suction strength for different surfaces. Refer to the specific controls on your unit.
2. Korištenje kao štapnog usisavača
For general floor cleaning, use the appliance in its upright stick vacuum configuration. The motorized brush roll is ideal for carpets and hard floors.
3. Korištenje kao ručnog usisavača
To detach the handheld unit for spot cleaning, furniture, or car interiors:
- Press the release button located on the main body of the stick vacuum.
- Gently pull the handheld unit upwards to remove it.
- Attach desired accessories (e.g., crevice tool, brush nozzle) to the handheld unit's suction opening.
- To reattach, align the handheld unit with the stick vacuum body and push down until it clicks into place.
Održavanje
Regular maintenance ensures your vacuum cleaner operates at peak efficiency.
1. Pražnjenje kante za prašinu
- It is recommended to empty the dustbin after each use or when the MAX fill line is reached.
- Pritisnite dugme za otpuštanje posude za prašinu i izvadite posudu za prašinu iz ručnog uređaja.
- Otvorite poklopac kante za prašinu i ispraznite sadržaj u kantu za smeće.
- Čvrsto ponovo pričvrstite posudu za prašinu.
2. Čišćenje filtera
- The filters should be cleaned regularly, ideally every 2-4 weeks depending on usage.
- Remove the dustbin and then carefully pull out the filters.
- Tap the filters over a waste bin to remove loose dirt.
- For a deeper clean, rinse the filters under lukewarm running water. Ensure they are completely dry before reinserting. Do not use a washing machine or dryer.
3. Čišćenje valjka četke
- Hair and debris can get tangled in the brush roll. Periodically check and clean it.
- Isključite usisivač.
- Locate the brush roll access cover on the floor nozzle and open it.
- Uklonite valjak četke i pažljivo odrežite sve zapetljane dlake ili vlakna pomoću makaza.
- Reinsert the brush roll and close the cover securely.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Vakuum se ne uključuje. | Baterija nije napunjena. | Napunite bateriju do kraja. |
| Dugme za napajanje nije pravilno pritisnuto. | Uverite se da je dugme za napajanje čvrsto pritisnuto. | |
| Smanjena snaga usisavanja. | Kanta za smeće je puna. | Ispraznite kantu za smeće. |
| Filteri su začepljeni. | Očistite ili zamijenite filtere. | |
| Mlaznica ili crijevo su začepljeni. | Provjerite i uklonite sve blokade. | |
| Valjak četke se ne okreće. | Kosa ili ostaci zapetljani u valjku četke. | Očistite valjak četke kako je opisano u odjeljku Održavanje. |
| Poklopac za pristup valjku četke nije pravilno zatvoren. | Ensure the brush roll cover is securely latched. |
Specifikacije
- Model: AEG CX7-2-45AN Ergorapido
- Vrsta: Cordless 2-in-1 Stick and Handheld Vacuum Cleaner
- Brand: AEG
- Nivo buke: 75 decibela
- Referenca proizvođača: 900940731
- ASIN: B09J1RRRNN
- Snaga: 18 V
Napomena: Specifikacije se mogu promijeniti bez prethodne najave radi poboljšanja proizvoda.
Garancija i podrška
For warranty information, technical support, or to purchase replacement parts, please refer to the warranty card included with your product or visit the official AEG website. Do not attempt to repair the appliance yourself, as this may void your warranty and pose safety risks. Always contact authorized service personnel for repairs.
Sačuvajte svoj dokaz o kupovini za garancijske zahtjeve.
