1. Uvod
This manual provides detailed instructions for the installation, operation, and maintenance of your ESLYYDS Double Din Car Stereo. This advanced multimedia system offers a wide range of features including Apple CarPlay, Android Auto, Bluetooth connectivity, a high-definition touchscreen, and support for a backup camera, enhancing your in-car entertainment and navigation experience.
Figure 1.1: ESLYYDS Double Din Car Stereo Overview
2. Sadržaj paketa
Molimo Vas da provjerite da li se u Vašem paketu nalaze sve dolje navedene stavke:
- ESLYYDS Double Din Car Stereo Unit
- Set nosača za montažu
- Camera Wire A
- Camera Wire B
- Steering Wheel Control Unit
- Žičani svežanj A
- Kabelski svežanj B
- Stražnji-view Kamera
- Daljinski upravljač
- Korisnički priručnik (ovaj dokument)
Figure 2.1: Stereo Dimensions and Included Accessories
3. Značajke proizvoda
The ESLYYDS Double Din Car Stereo is equipped with a variety of features designed for convenience and enhanced driving experience:
- Apple CarPlay & Android Auto Compatibility: Seamlessly integrate your smartphone for navigation, music, calls, and messages using voice control.
- 7-inch HD Capacitive Touch Screen: A responsive and accurate display supporting 1080P video playback.
- Bluetooth 5.2: For stable and clear hands-free calling and audio streaming.
- Phone Mirror Link: Display your smartphone's screen directly on the stereo.
- Dual USB Interface: One port for media playback and another with 2.1A fast charging capability.
- Pozadi View Ulaz kamere: Supports the included 12 HD LED light, night vision, 170° viewing angle waterproof backup camera for safer reversing.
- Kontrola na volanu (SWC): Compatible with existing steering wheel controls for convenient operation.
- AM/FM Audio Receiver: Access to radio stations with user-friendly digital control.
- AUX IN Connectivity: Za eksterne audio uređaje.
- 7 Color LED Buttons: Customizable button illumination.
3.1 Apple CarPlay i Android Auto
Connect your smartphone via USB to access navigation, phone contacts, email, notifications, and music directly on the stereo display. This feature utilizes voice control technology for safe operation while driving.

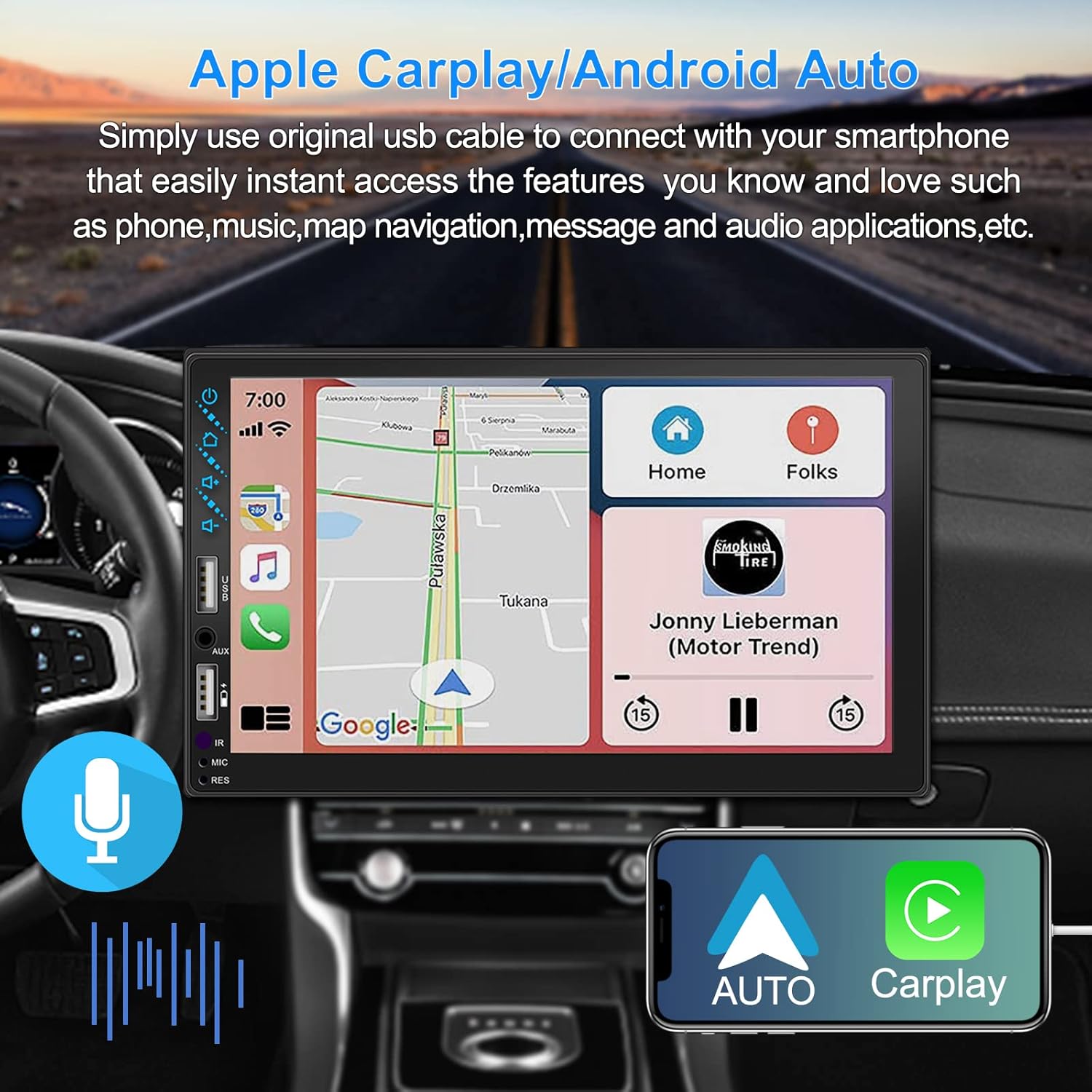

Figure 3.1: Apple CarPlay and Android Auto Interface
3.2 Upravljanje glasom
Utilize voice commands to control various functions such as making calls, playing music, and navigating, allowing you to keep your hands on the wheel and eyes on the road.
Slika 3.2: Funkcionalnost glasovne kontrole
3.3 Phone Mirror Link
The Mirror Link function allows you to display your smartphone's screen directly onto the stereo's touchscreen. This supports Android devices (version 10.1 and below) and iPhone devices (version 14.5 and below, including iPhone 12, 11, XR, and 8 series and below) with resolutions up to 1920x1080 pixels.

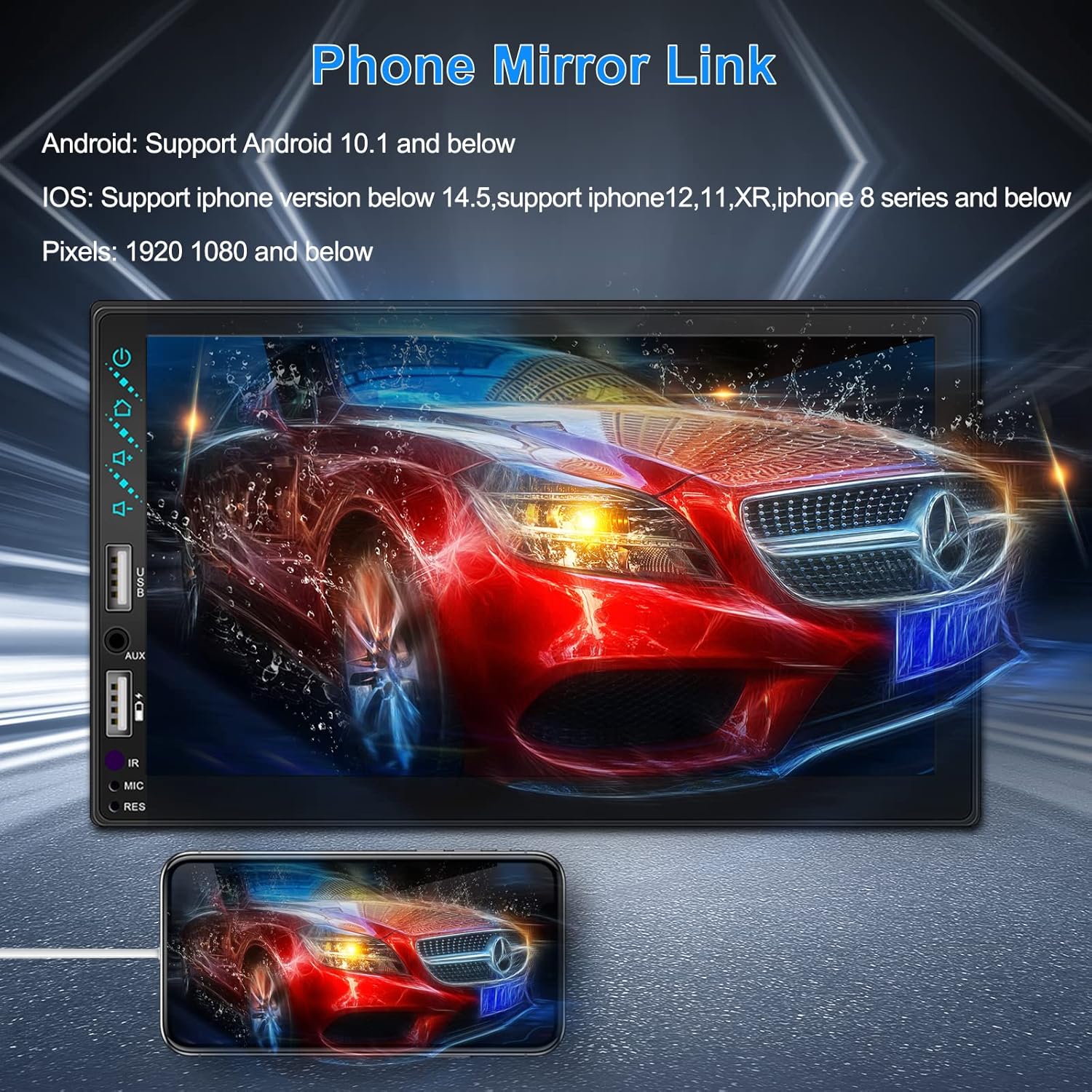

Figure 3.3: Phone Mirror Link
3.4 Pozadi View Kamera
The included waterproof backup camera features 12 HD LED lights for night vision and a 170° viewing angle. When you shift into reverse, the system automatically displays the camera feed on the screen, providing optimal visibility in various weather conditions.

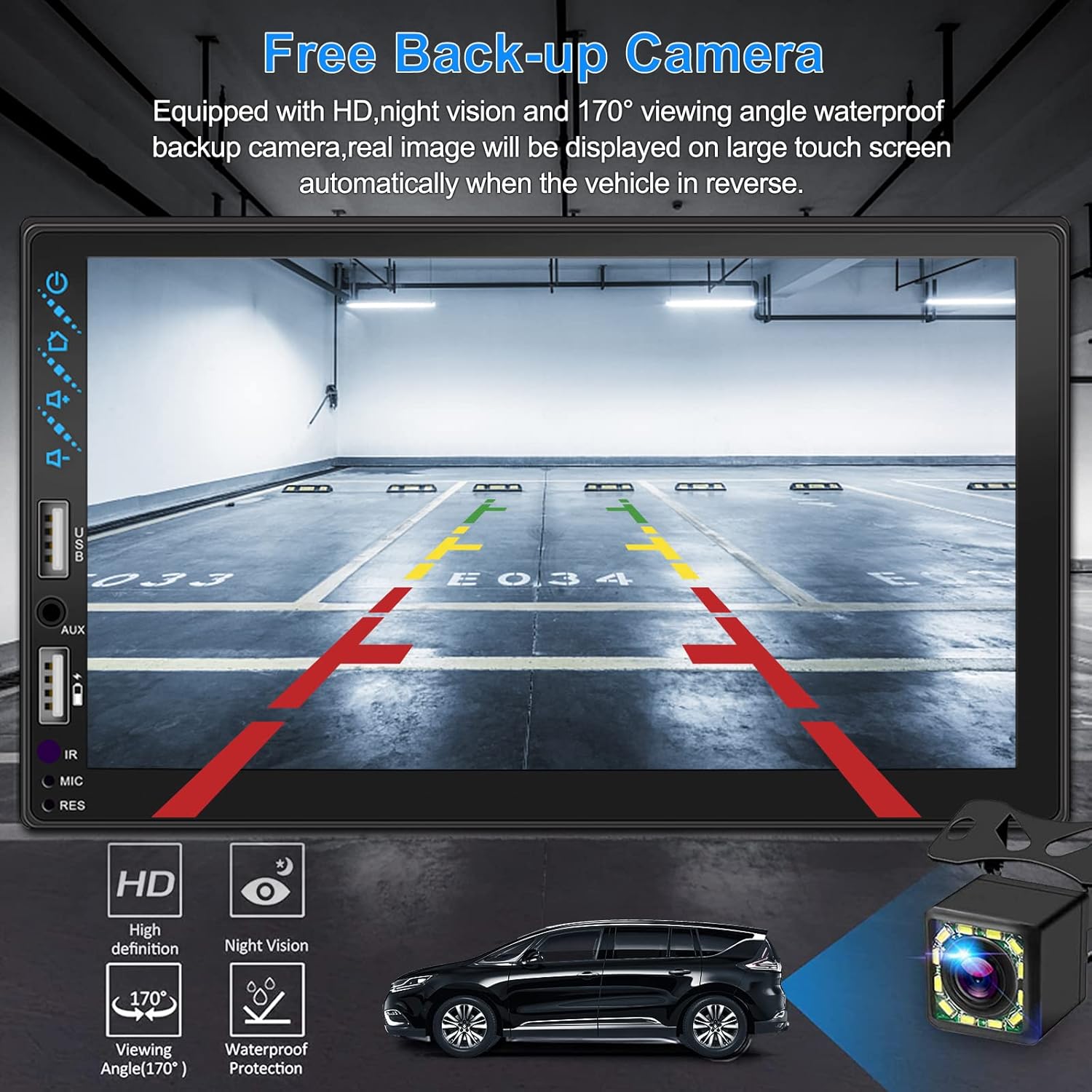

Slika 3.4: Pozadi View Prikaz kamere
4. Vodič za instalaciju
Proper installation is crucial for optimal performance. It is recommended to have the unit installed by a professional if you are unfamiliar with car audio wiring.
4.1 Dimenzije
The stereo unit has a standard double din size. Refer to Figure 2.1 for detailed dimensions.
- Širina: 178 mm (7 inča)
- Visina: 102 mm (4 inča)
- Dubina: 60 mm (2.6 inča)
4.2 Dijagram ožičenja
Carefully follow the wiring diagram below to connect the stereo to your vehicle's electrical system. Ensure all connections are secure to prevent malfunctions.

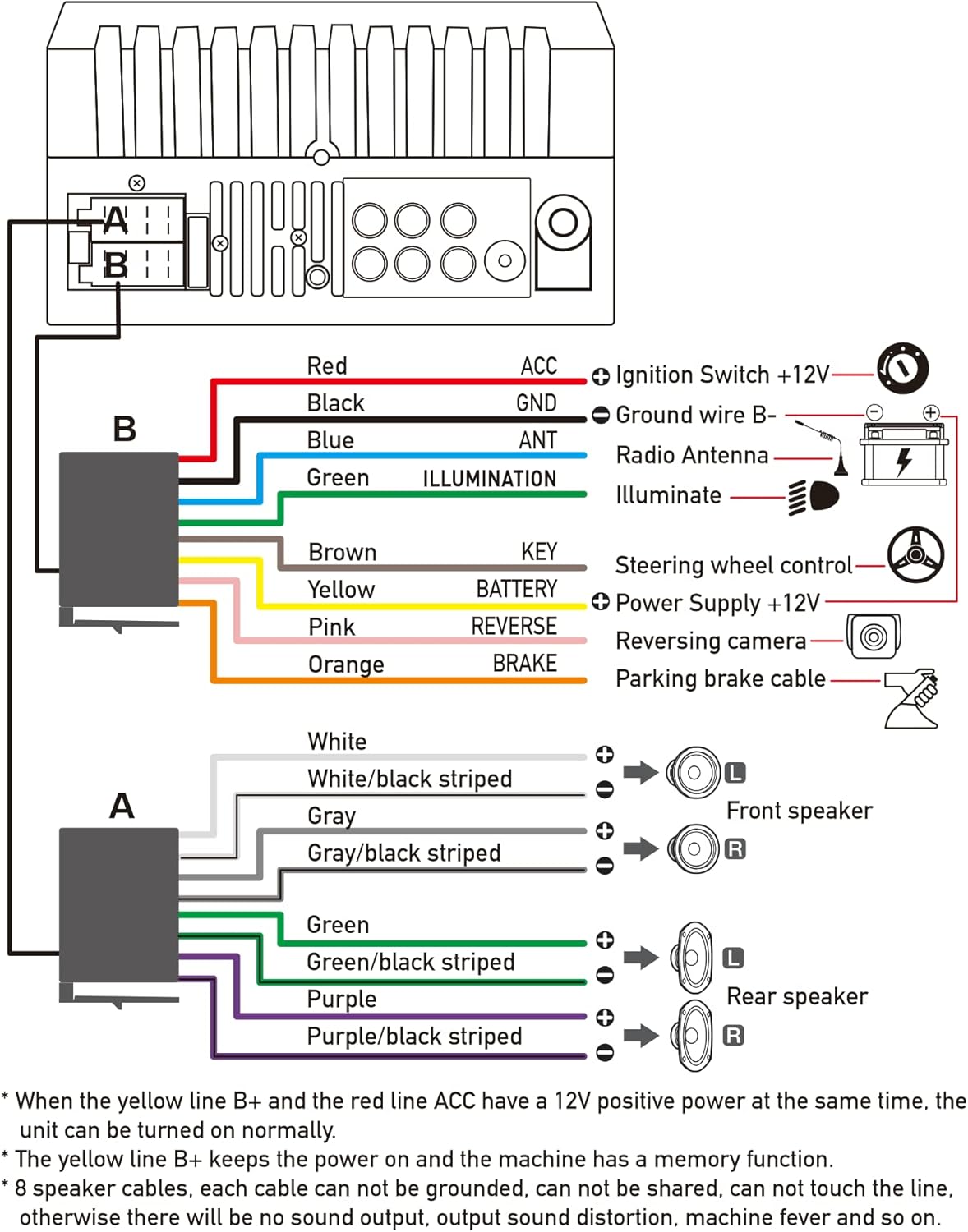

Figure 4.1: Main Wiring Diagram
- Crvena (ACC): Connect to Ignition Switch +12V.
- Crna (GND): Connect to Ground wire B-.
- Plava (ANT): Connect to Radio Antenna (if applicable).
- Green (ILLUMINATION): Connect to Illuminate wire.
- Smeđa (KLJUČ): Connect to Steering wheel control.
- Yellow (BATTERY): Connect to Power Supply +12V.
- Roza (Poleđina): Connect to Reversing camera input.
- Orange (BRAKE): Connect to Parking brake cable.
Speaker Connections (8 speakers supported):
- White / White/black striped: Prednji lijevi zvučnik
- Gray / Gray/black striped: Prednji desni zvučnik
- Green / Green/black striped: Zadnji lijevi zvučnik
- Purple / Purple/black striped: Zadnji desni zvučnik
Važne napomene:
- The unit requires both the Yellow (BATTERY) and Red (ACC) wires to have a 12V positive power supply simultaneously for normal operation.
- The Yellow (BATTERY) wire keeps the power on and maintains memory functions.
- For speaker connections, each cable must not be grounded or shared with other cables. Incorrect wiring can lead to no sound output, sound distortion, or damage to the machine.
5. Uputstvo za upotrebu
5.1 Osnovne operacije
- Uključivanje/isključivanje: Pritisnite dugme za napajanje na prednjoj ploči ili daljinskom upravljaču.
- Kontrola jačine zvuka: Use the volume buttons on the front panel, steering wheel controls, or remote control.
- Izbor izvora: Tap the 'Source' or 'Mode' icon on the touchscreen to switch between Radio, Bluetooth, USB, AUX, CarPlay, and Android Auto.
5.2 Apple CarPlay / Android Auto Usage
- Connect your compatible iPhone or Android smartphone to the stereo's USB port using a certified USB cable.
- The stereo will automatically detect the connection and prompt you to launch CarPlay or Android Auto.
- Pratite uputstva na ekranu da biste dovršili podešavanje.
- Once connected, you can access supported apps like Maps, Phone, Messages, and Music directly from the stereo's touchscreen or via voice commands.
5.3 Bluetooth uparivanje
- Uključite Bluetooth na svom pametnom telefonu.
- On the stereo, navigate to the Bluetooth menu.
- Traži available devices on your smartphone. The stereo's Bluetooth name will typically be 'ESLYYDS' or similar.
- Select the stereo from your smartphone's list and confirm the pairing code if prompted.
- Nakon uparivanja, možete bežično upućivati/primati pozive i strimovati zvuk.
5.4 Phone Mirror Link Usage
- Connect your smartphone to the stereo's USB port.
- Select the 'Mirror Link' option on the stereo's screen.
- Follow the specific instructions displayed on the stereo for your phone's operating system (Android or iOS) to enable screen mirroring. This may involve enabling USB debugging for Android or trusting the device for iOS.
5.5 Radio operacije
- Select the 'Radio' source.
- Use the 'Scan' function to automatically search and save stations, or manually tune using the frequency controls.
- Save your favorite stations to preset buttons for quick access.
5.6 Reprodukcija s USB-a
- Insert a USB drive containing audio or video files into the designated USB playback port.
- The stereo will automatically switch to USB mode or prompt you to select it.
- Pregledajte i reproducirajte svoje medije files using the touchscreen controls.
6. Održavanje
To ensure the longevity and optimal performance of your car stereo, follow these maintenance guidelines:
- čišćenje: Use a soft, dry cloth to clean the screen and exterior. For stubborn smudges on the screen, use a screen cleaner specifically designed for electronic displays. Avoid abrasive cleaners or solvents.
- temperatura: Izbjegavajte izlaganje uređaja ekstremnim temperaturama, i visokim i niskim, tokom dužeg perioda.
- Vlaga: Keep the unit dry. Do not expose it to water or excessive humidity.
- Ažuriranja firmvera: Provjerite proizvođača website periodically for any available firmware updates to improve performance and add new features.
7. Otkrivanje problema
If you encounter issues with your ESLYYDS car stereo, please refer to the following common problems and solutions. If the problem persists, contact customer support.
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Nema struje | Nepravilno ožičenje; Pregoreli osigurač; Problem sa akumulatorom vozila. | Check power (Yellow and Red) and ground (Black) wire connections. Inspect vehicle fuses. Ensure vehicle battery is charged. |
| Nema zvuka | Speaker wires incorrectly connected; Volume too low; Mute function active. | Verify all speaker wire connections (ensure no shorts or grounds). Increase volume. Check if mute is enabled. |
| Bluetooth se ne povezuje | Bluetooth not enabled on phone/stereo; Incorrect pairing process. | Ensure Bluetooth is active on both devices. Delete previous pairings and re-attempt pairing process. |
| CarPlay/Android Auto se ne pokreće | Faulty USB cable; Phone not compatible; Software issue. | Use a high-quality, certified USB cable. Ensure your phone's OS version is compatible. Restart both phone and stereo. |
| Zadnja kamera ne prikazuje sliku | Camera wire disconnected; Reverse trigger wire not connected. | Check the camera's video input and power connections. Ensure the Pink (REVERSE) wire is correctly connected to the vehicle's reverse light trigger. |
| USB not reading media | Nepodržano file format; Corrupted USB drive; USB port issue. | Osigurajte medije files are in supported formats (e.g., MP3, MP4, MKV). Try a different USB drive. |
8. Specifikacije
| Feature | Specifikacija |
|---|---|
| Dimenzije proizvoda | 7 x 2.6 x 3.94 inča |
| Težina artikla | 2.33 funte |
| Broj modela | L3 |
| Veličina ekrana | 7 inča (18 cm) |
| Display Type | HD Capacitive Touchscreen |
| Tehnologija povezivanja | Carplay, Android Auto, Mirror-Link, Bluetooth 5.2, USB, AUX |
| Tip kontrolera | Google Assistant, iOS, Android |
| Posebne karakteristike | Touchscreen, RDS, Steering Wheel Control (SWC), Fast Charging USB (2.1A) |
| Kompatibilni uređaji | Smartphone |
| Tip konektora | USB |
| Način audio izlaza | Surround |
| Konfiguracija kanala surround zvuka | 5.1 |
| Podrška za video kodiranje | MKV |
| Boja | Crna |
| Datum prve dostupnosti | 25. septembra 2021 |
9. Garancija i podrška
ESLYYDS is committed to providing excellent customer service and technical support. For any inquiries or assistance, please contact our professional technical team.
- Garancija povrata novca: 30-day period from purchase.
- Zamjenska garancija: 12-month period for product replacement.
- tehnička podrška: Life-time technical support is provided.
Please refer to your purchase documentation for specific contact details or visit the official ESLYYDS webstranicu za informacije o podršci.
