Symcode 3300DW 2D Fixed USB Barcode Scanner User Manual

Uvod

This manual provides comprehensive instructions for the Symcode 3300DW 2D Fixed USB Barcode Scanner. It covers product features, setup procedures, operating guidelines, maintenance tips, troubleshooting solutions, and detailed technical specifications. Please read this manual carefully before using the device to ensure proper operation and to maximize its lifespan.

Karakteristike proizvoda

• Super Decoding Capability: The Symcode 3300DW barcode scanner efficiently and accurately captures both 1D and 2D barcodes from various surfaces, including labels, paper, mobile phone screens, and computer displays. It supports a wide range of barcode types.
• Automatic Infrared Detection: Equipped with an automatic detection function, the scanner initiates scanning when a barcode approaches its window, even if the device is in sleep mode. This hands-free operation enhances efficiency by allowing users to handle items without needing to manually activate the scanner.
• Povezivost "plug and play": This scanner requires no driver installation, additional software, or applications. Simply connect it to your device via the provided USB cable. It is compatible with Windows XP/7/8/10, Mac OS, and Linux operating systems.

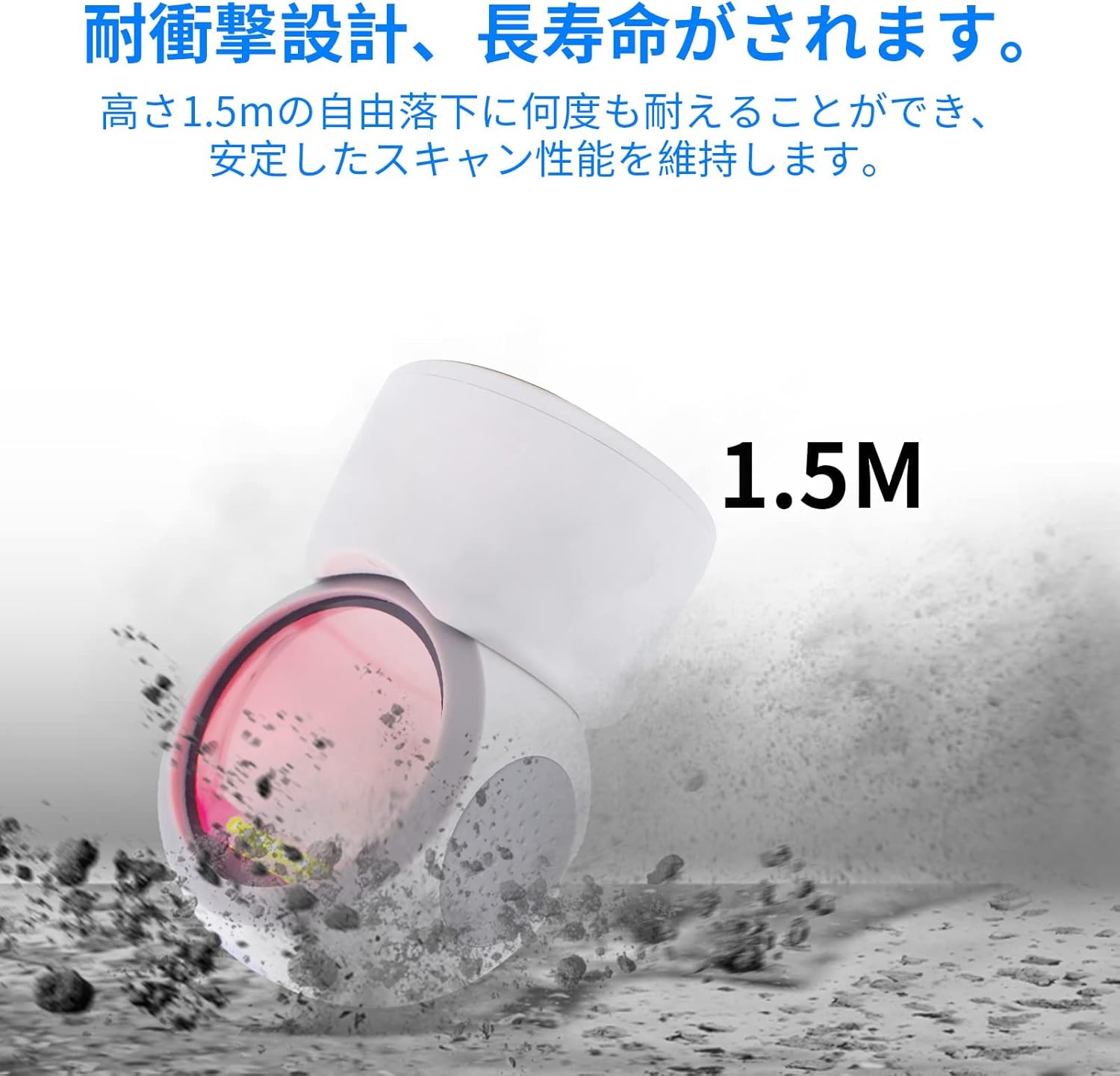

• Robustan dizajn: Engineered for durability, the scanner can withstand drops from a height of up to 1.5 meters, ensuring reliable performance in demanding environments.
• Svesmjerno skeniranje: The scanner is designed to read 1D and 2D codes from various angles, providing flexibility and ease of use.
• Podesivi ugao: The scanning head can be adjusted by 30 degrees, allowing for convenient positioning to suit different scanning needs.
• Dizajn protiv klizanja: Features anti-slip pads on both sides and the base to prevent movement and protect desktop surfaces.

Setup

1. Raspakujte skener: Carefully remove the Symcode 3300DW barcode scanner and its USB cable from the packaging.
2. Poveži se s host uređajem: Insert the RJ45-like connector of the USB cable into the port on the back of the scanner. Then, plug the USB Type-A end of the cable into an available USB port on your computer or host device.
3. Prepoznavanje sistema: The scanner is plug-and-play. Your operating system (Windows, Mac OS, Linux) should automatically detect and install the necessary drivers. This process usually takes a few seconds.
4. Potvrdite vezu: Once connected, the scanner will enter standby mode. You can test the connection by opening a text editor (like Notepad or Word) and scanning a barcode. The barcode data should appear in the text editor.

Uputstvo za upotrebu

Osnovno skeniranje

The Symcode 3300DW scanner operates in an automatic detection mode. To scan a barcode:

1. Ensure the scanner is connected to your host device and powered on.
2. Postavite barkod unutar polja skenera view. The scanner will automatically detect the barcode and emit a light to read it.
3. A successful scan is typically indicated by an audible beep and/or a visual confirmation light. The scanned data will be transmitted to your active application (e.g., a text editor, POS software).

Omnidirectional Scanning

The scanner is designed to read barcodes regardless of their orientation. Simply present the barcode to the scanning window, and the device will decode it.

Adjusting the Scan Angle

The scanner head can be tilted up to 30 degrees to optimize the scanning angle for different items or setups. Gently adjust the head to the desired position.

Podržane vrste barkodova

The Symcode 3300DW supports a comprehensive range of 1D and 2D barcode symbologies:

• 1D bar kodovi: EAN-8, EAN-13, Codabar, KOD 39, KOD 93, KOD 128, Kineska pošta, GS1-128, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 od 5, Standard 2 od 5, Matrix 2 od 5, Industrijski 2 od 5, MSI, RSS, ITF14, Telepen.
• 2D bar kodovi: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF417, Maxicode, Aztec, Hanxin.

Održavanje

To ensure the longevity and optimal performance of your Symcode 3300DW barcode scanner, follow these maintenance guidelines:

• Čišćenje prozora za skeniranje: Regularly clean the scan window with a soft, lint-free cloth. If necessary, use a mild, non-abrasive cleaning solution. Avoid harsh chemicals or abrasive materials that could scratch the window.
• Generalno čišćenje: Obrišite vanjski dio skenera mekom,amp cloth. Do not immerse the scanner in water or any cleaning liquid.
• Održavanje kablova: Inspect the USB cable periodically for any signs of damage. Avoid bending or twisting the cable excessively.
• Skladištenje: Kada se ne koristi, skener čuvajte na čistom i suhom mjestu, dalje od direktne sunčeve svjetlosti i ekstremnih temperatura.
• Protivklizne podloge: Ensure the anti-slip pads on the base and sides are clean and intact to maintain stability and prevent desktop scratches.

Rješavanje problema

If you encounter issues with your Symcode 3300DW barcode scanner, refer to the following common problems and solutions:

• Skener ne reaguje:
  • Check if the USB cable is securely connected to both the scanner and the host device.
  • Pokušajte spojiti skener na drugi USB priključak na računaru.
  • Restart your computer and reconnect the scanner.
• No Data Output After Scanning:
  • Ensure that an application (e.g., text editor, spreadsheet, POS software) is open and has focus to receive the scanned data.
  • Provjerite da barkod nije oštećen ili loše odštampan.
  • Check if the scanner's light is activating when a barcode is presented. If not, ensure the scanner is properly powered.
• Netačan izlaz podataka:
  • Ensure the correct keyboard layout is selected on your computer (e.g., US English).
  • Some barcodes may require specific settings. Refer to the product's advanced configuration guide (if available) for specific barcode type settings.
• Scanner Beeps Continuously or Emits Error Sounds:
  • This may indicate a configuration error or a hardware issue. Try resetting the scanner to factory defaults (if a reset barcode is provided in a separate guide).
  • Ako se problem nastavi, kontaktirajte korisničku podršku.

Specifikacije

Sigurnosne informacije

Molimo pridržavajte se sljedećih sigurnosnih mjera opreza:

• Do not look directly into the scanner's light source.
• Držite uređaj dalje od vode i drugih tečnosti.
• Avoid dropping or subjecting the scanner to severe impacts, despite its robust design.
• Do not attempt to disassemble or repair the scanner yourself. Refer all servicing to qualified personnel.
• Za povezivanje koristite samo priloženi USB kabel.

Garancija i podrška

For warranty information, technical support, or service inquiries regarding your Symcode 3300DW barcode scanner, please refer to the documentation included with your purchase or contact the seller directly. Keep your purchase receipt as proof of purchase for warranty claims.
